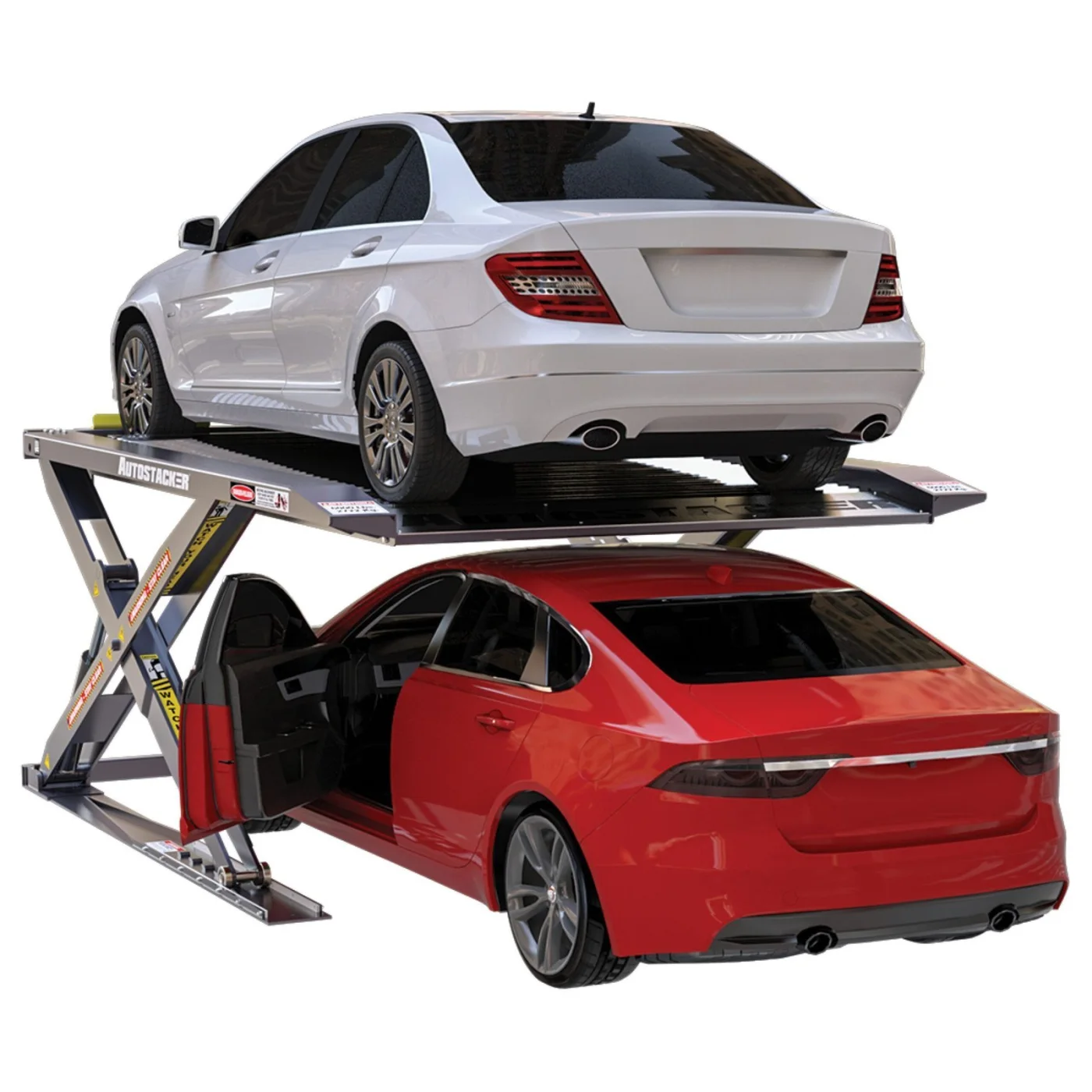

BendPak Autostacker™ A6W Ex-Wide Scissors Parking Lift Platform 6,000 lb w/Power Unit Console
$14,195.00
BendPak Autostacker™ A6W Ex-Wide Scissors Parking Lift Platform 6,000 lb w/Power Unit Console is part of our scissor lifts selection from BendPak.
- Lifting capacity: 6000 lb
9 in stock
BendPak Autostacker™ A6W Ex-Wide Scissors Parking Lift Platform 6,000 lb w/Power Unit Console
BendPak Autostacker™ A6W Ex-Wide Scissors Parking Lift Platform 6,000 lb w/Power Unit Console is part of our scissor lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.

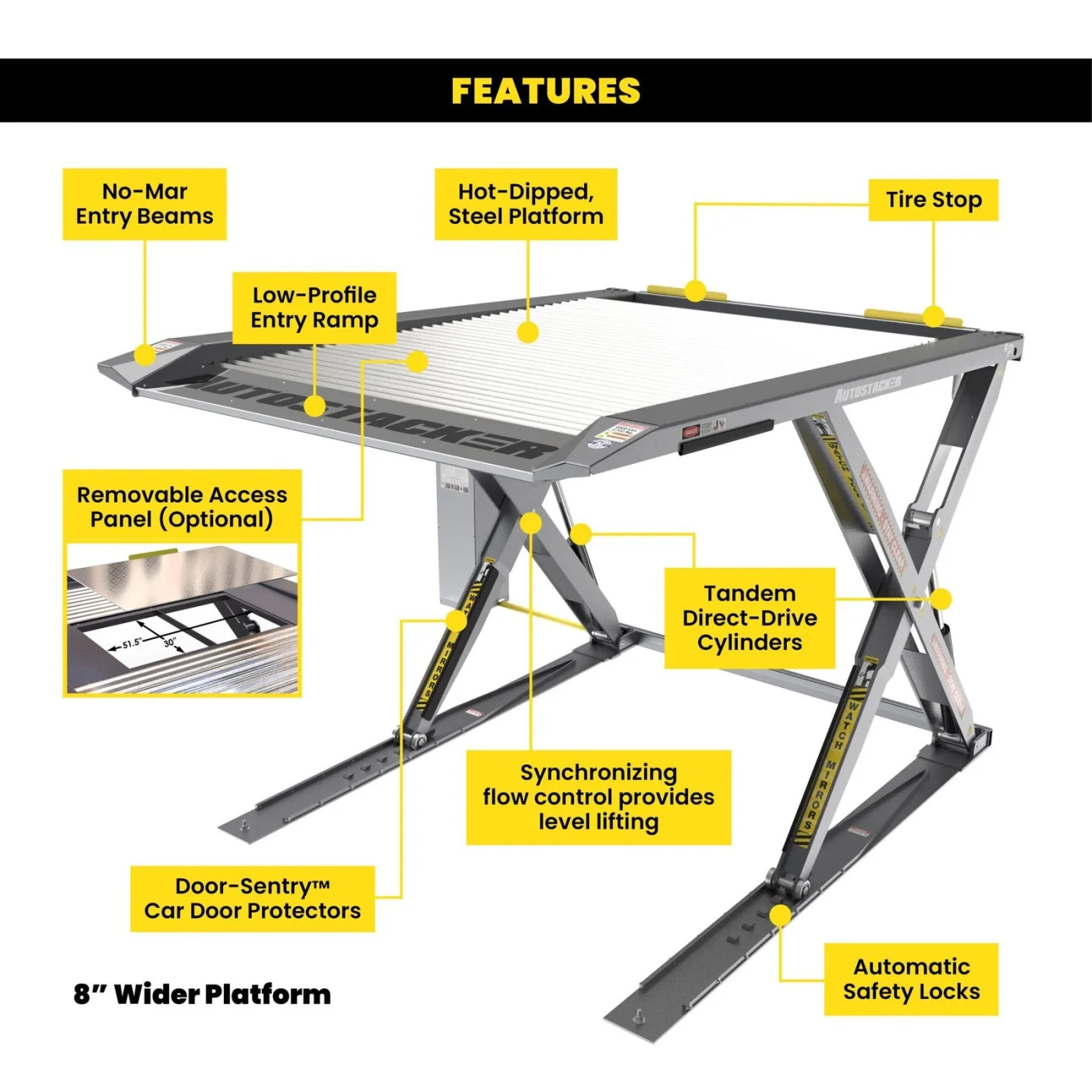

Equipment details
- 6,000-lb. lifting capacity accommodates cars, light trucks, and SUVs with confidence
- Extra-wide construction (111" overall width) provides increased door clearance and platform space

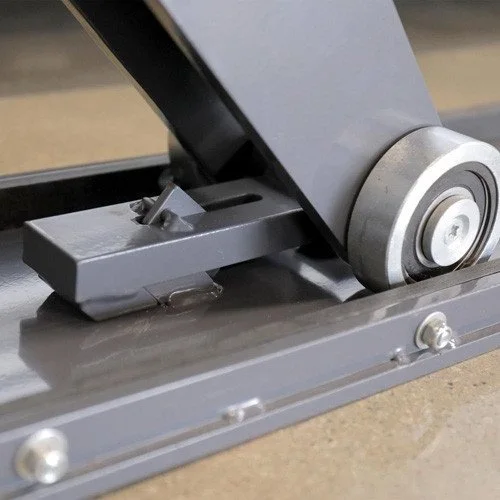

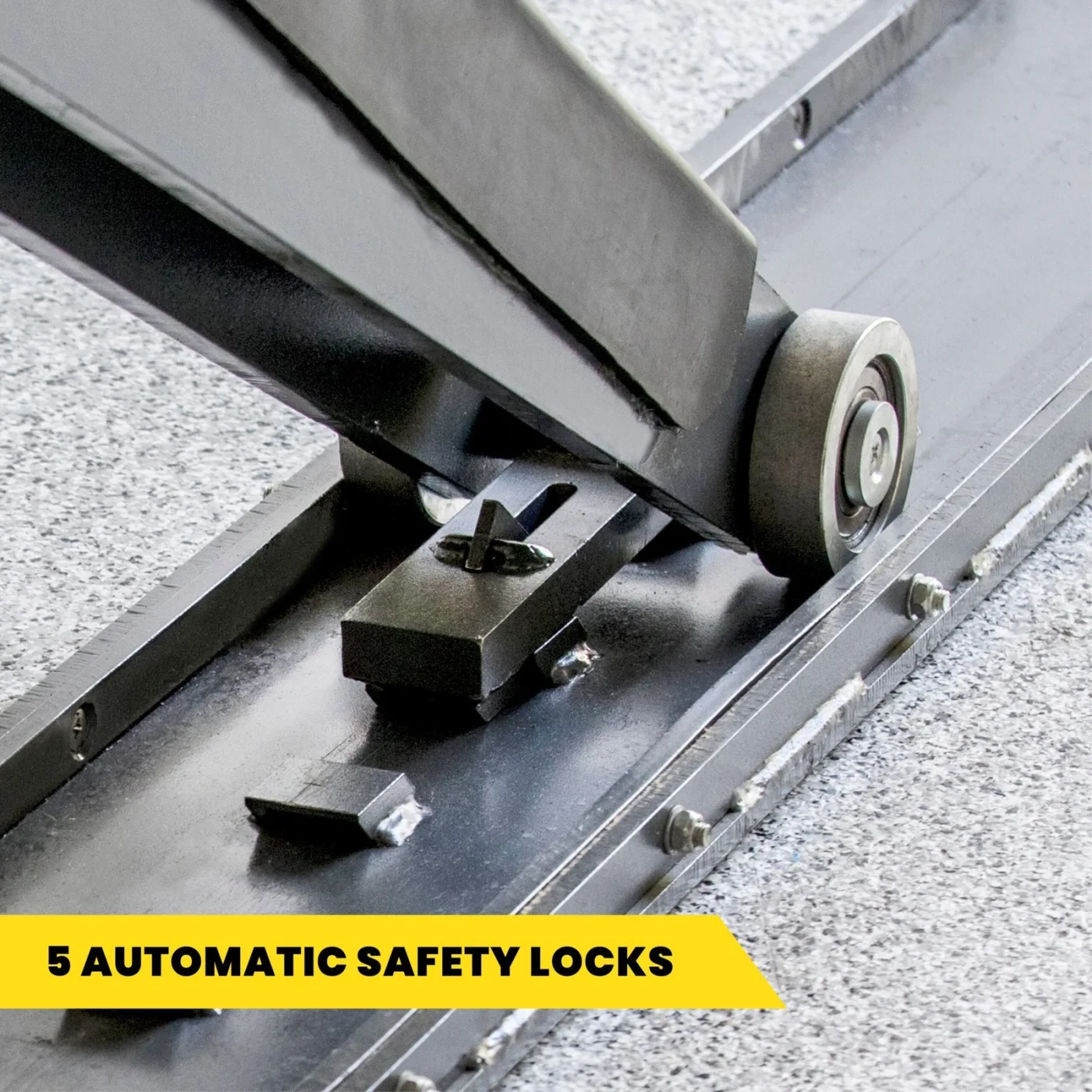

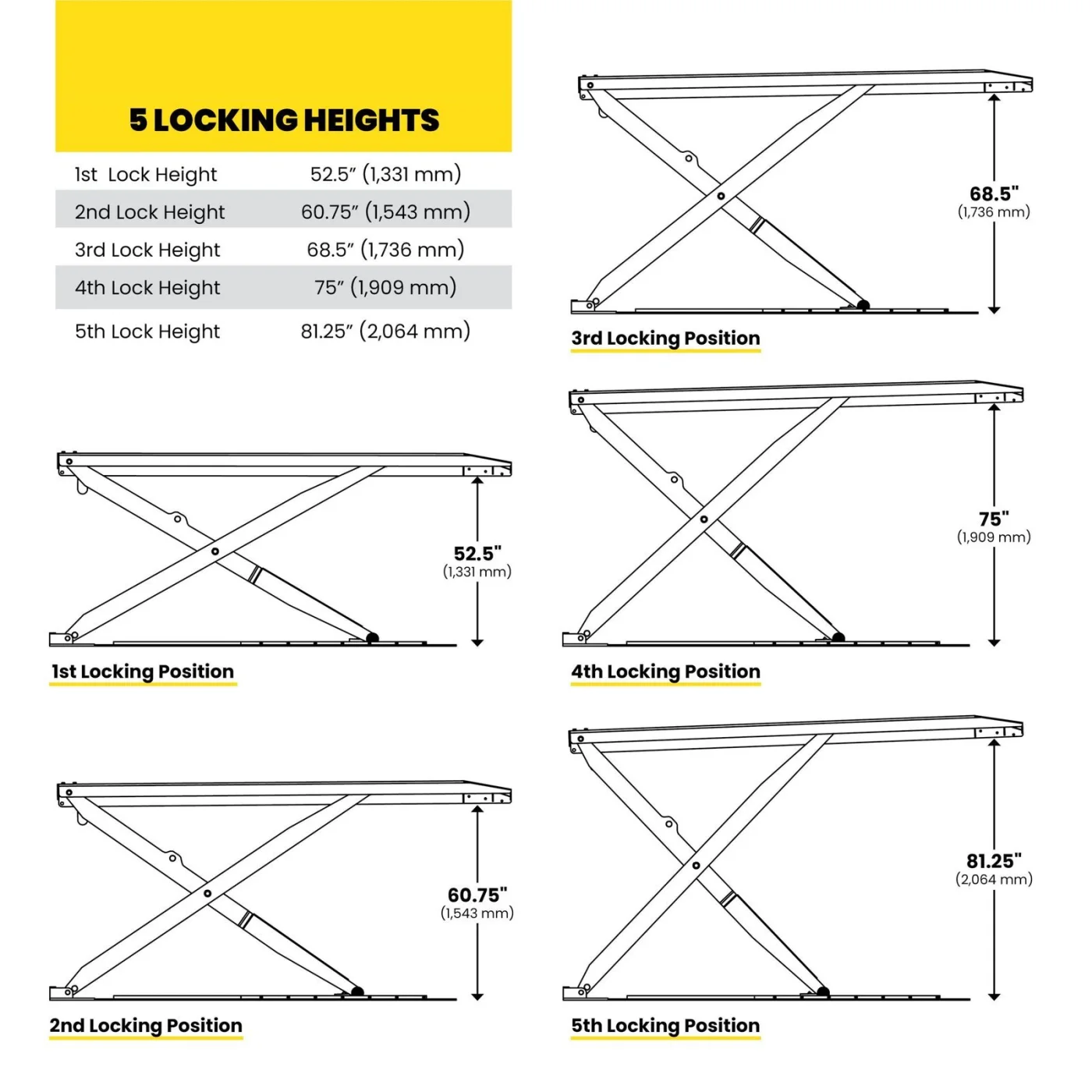

- Five automatic locking heights from 52.5" to 81.25", offering variable height parking to accommodate a wide range of vehicle and ceiling heights
- 100% hot-dipped, galvanized steel platform is drip-proof, corrosion-resistant, and built for decades of service
- Patented Door-Sentry™ rubber door protectors guard against accidental scratches and door dings
- Key-switch disconnect fully disables operation for enhanced security when the lift is not in use

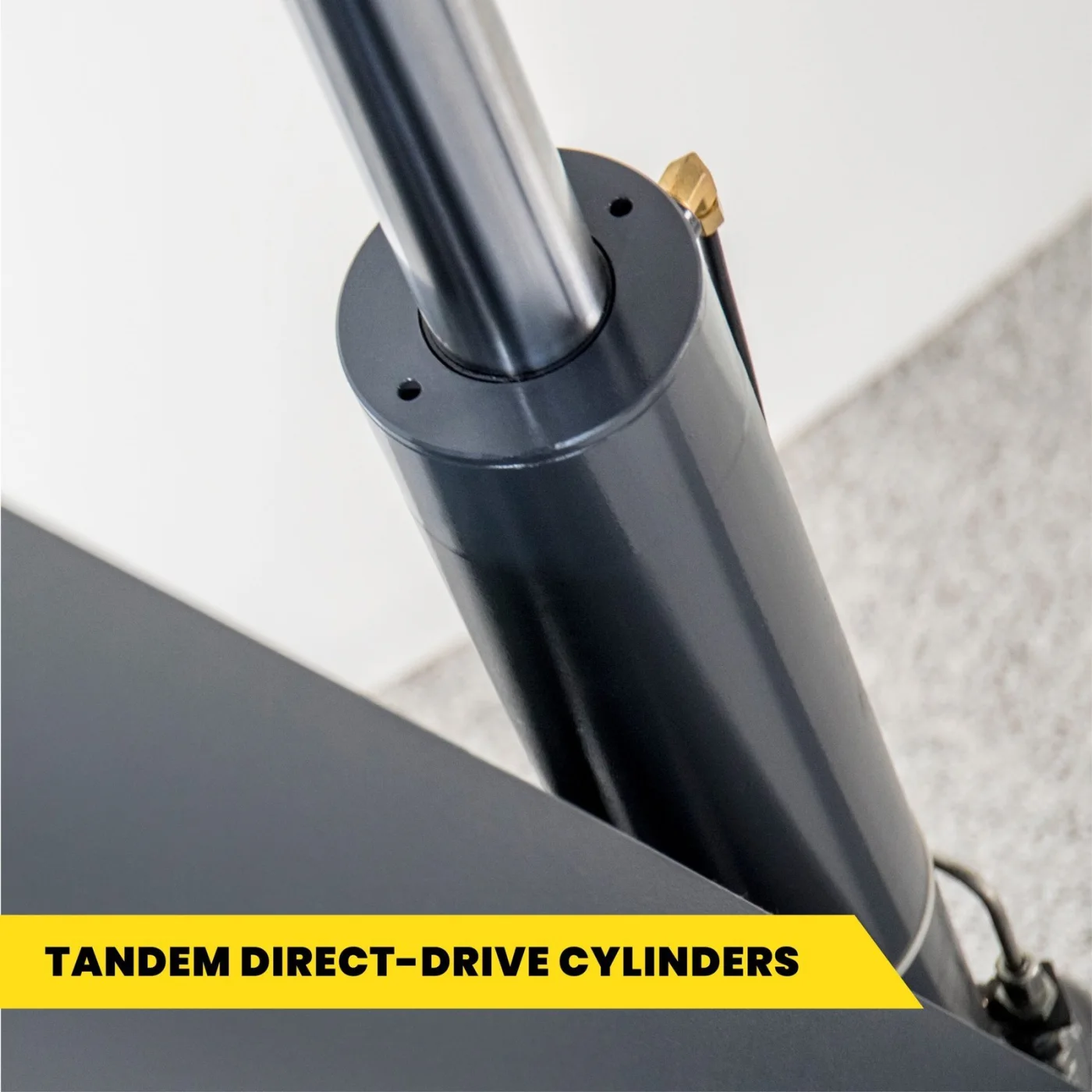

- Dual, direct-drive hydraulic lifting cylinders and a dependable hydraulic circuit provide precise, equalized lifting
- Hydraulic safety valves (velocity fuses) prevent sudden platform collapse in the unlikely event of hydraulic system failure

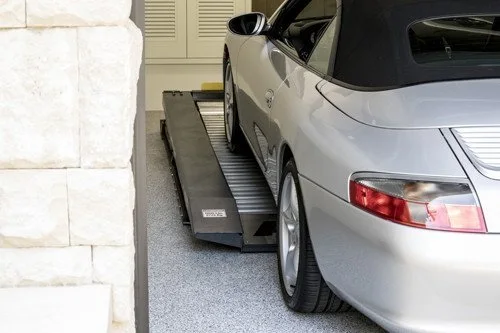

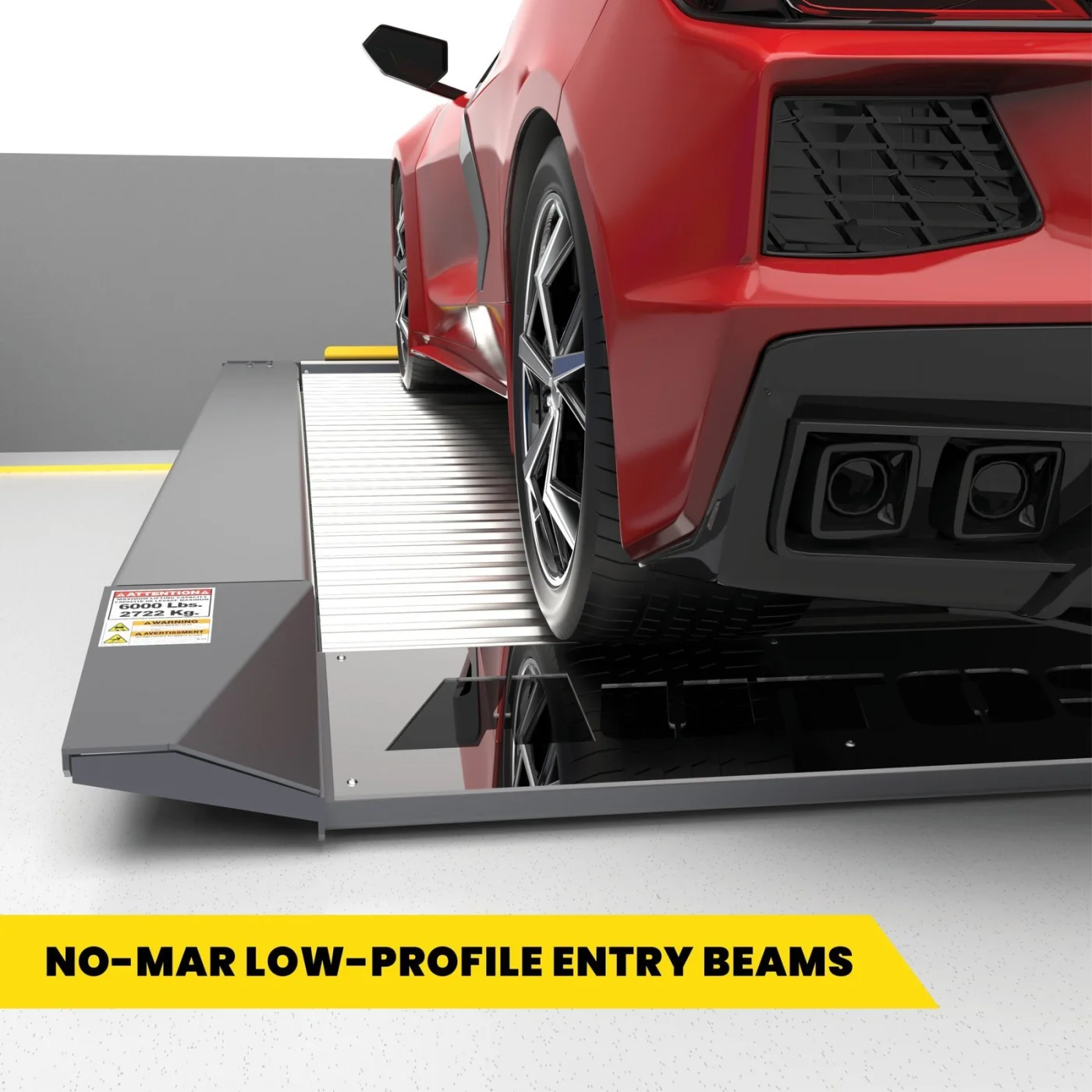

- Low-profile entry ramp (just 2" entry height) and front wheel dish that acts as a wheel chock to prevent rolling
- UL Listed electrical components meet National Electrical Code (NEC) requirements; operates quietly at just 52 dB
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation

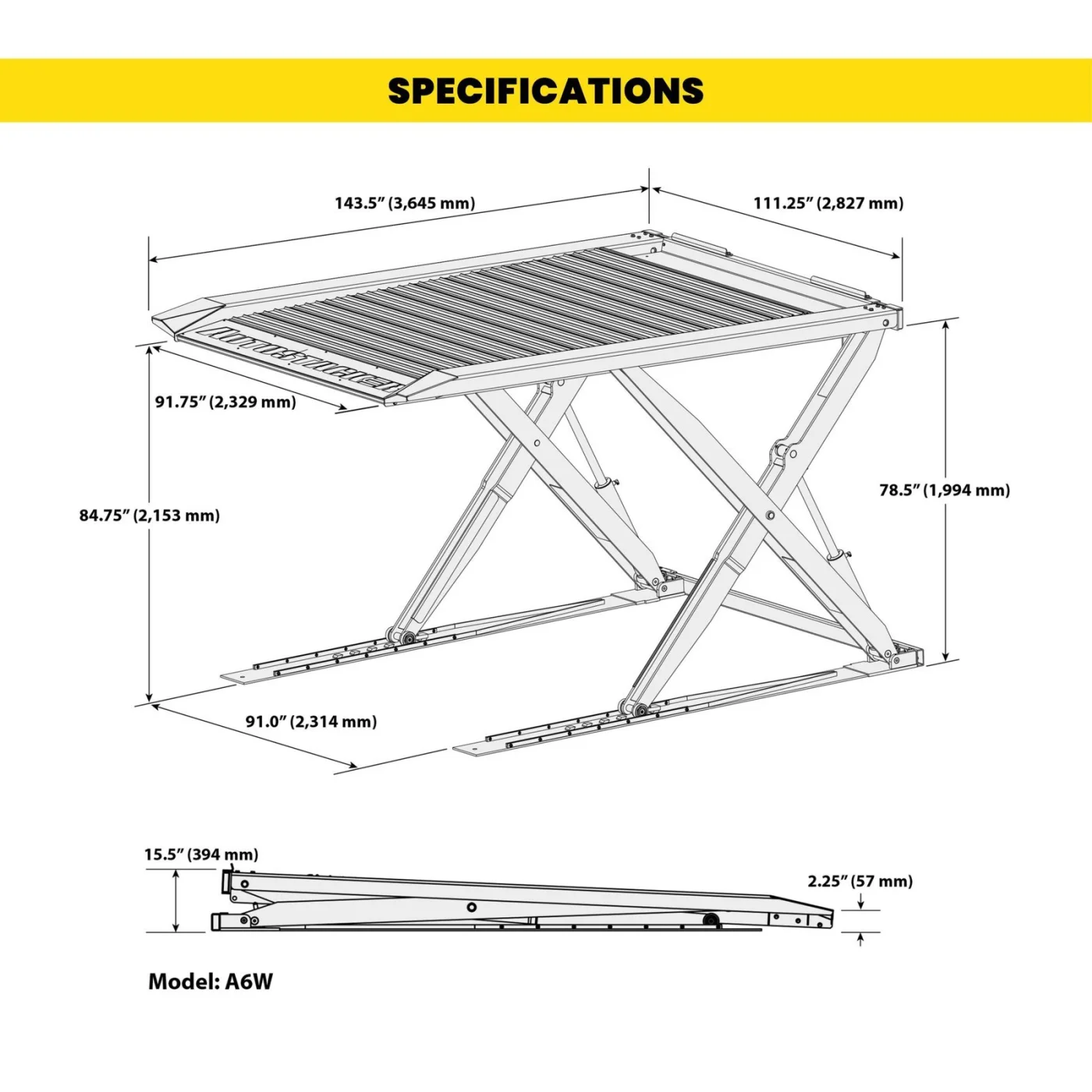

| Brand |
BendPak |
|---|---|
| MPN / Model |
5175282-V001 |
| Condition |
New |
| Lifting Capacity |
6,000 lbs. / 2,722 kg |
| Platform Length |
124” / 3,150 mm |
| Platform Height (forward) |
13” / 330 mm |
| Ramp Height (entry) |
2” / 51 mm |
| Max Under Underclearance |
80” / 2,032 mm |
| First (Lowest Locking Position) |
52.5" (1,331 mm) |
| Second |
60.75" (1,543 mm) |
| Third |
68.5" (1,736 mm) |
| Forth |
75" (1,909 mm) |
| Fifth (Highest Locking Position) |
81.25" (2,064 mm) |
| Motor |
208-240V, 50/60 Hz / 1 Ph |
| Noise |
52 dB |
| Lifting capacity |
6000 lb |
| Lift type |
Parking Lifts ,Scissor Lifts |
| Phase |
Single phase |
| Voltage |
208–240 V |
