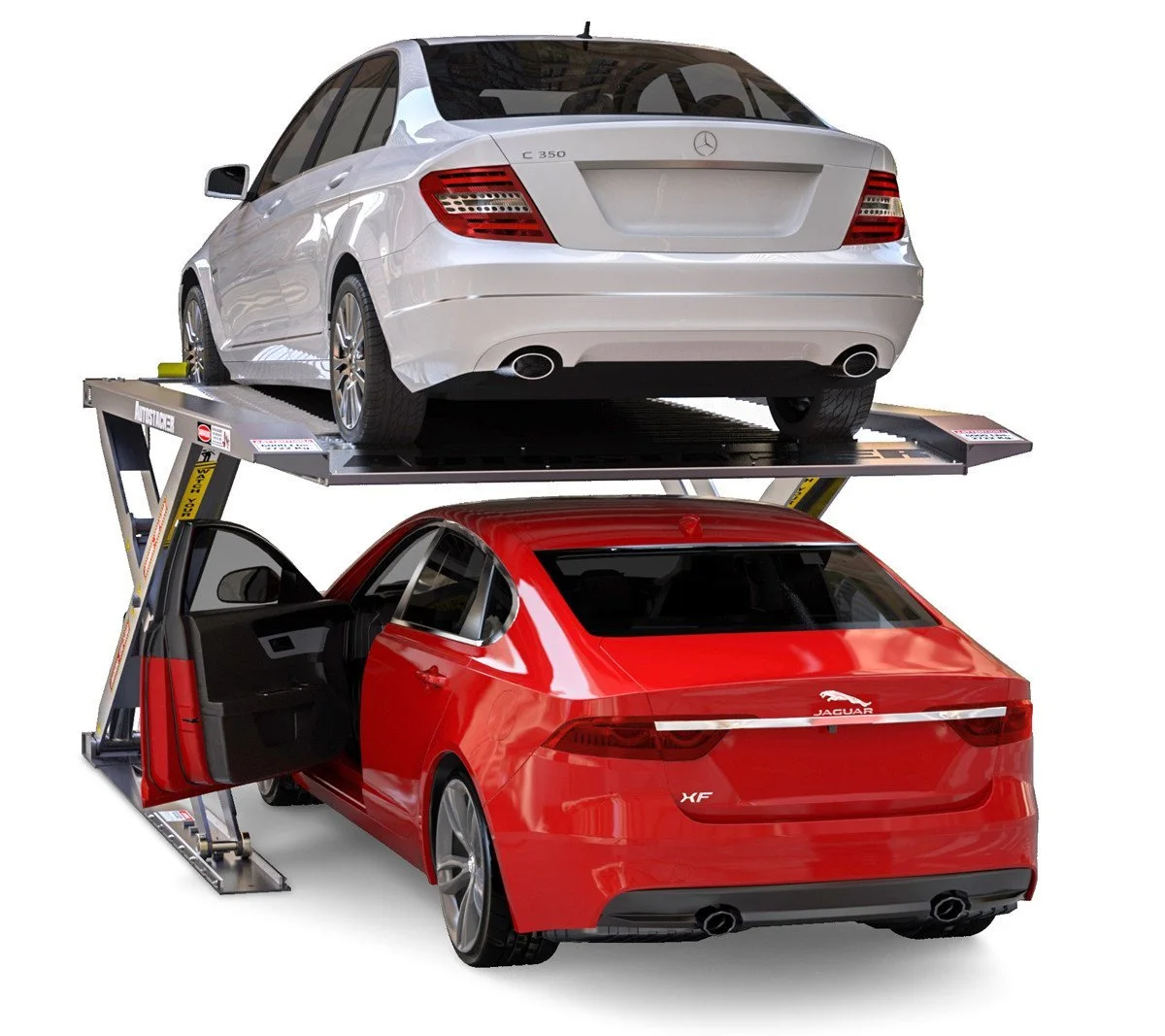

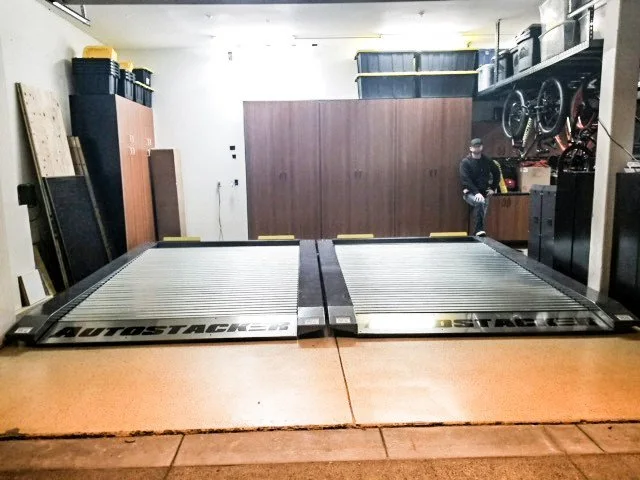

BendPak Autostacker™ A6S 110V Scissors Parking Lift Platform 6,000 lb w/Power Unit Console
$13,195.00
BendPak Autostacker™ A6S 110V Scissors Parking Lift Platform 6,000 lb w/Power Unit Console is part of our scissor lifts selection from BendPak.
- Lifting capacity: 6000 lb
8 in stock
BendPak Autostacker™ A6S 110V Scissors Parking Lift Platform 6,000 lb w/Power Unit Console
BendPak Autostacker™ A6S 110V Scissors Parking Lift Platform 6,000 lb w/Power Unit Console is part of our scissor lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

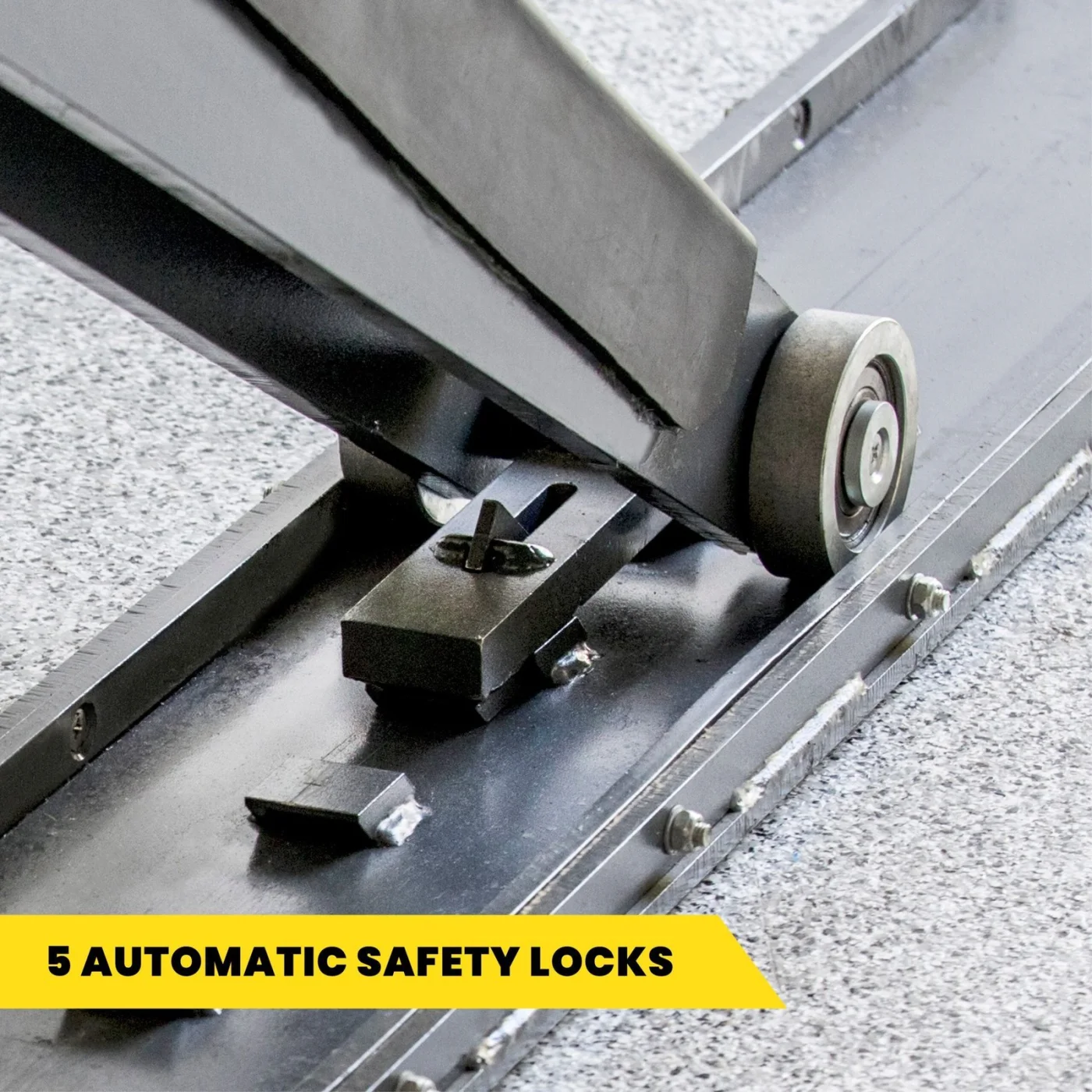

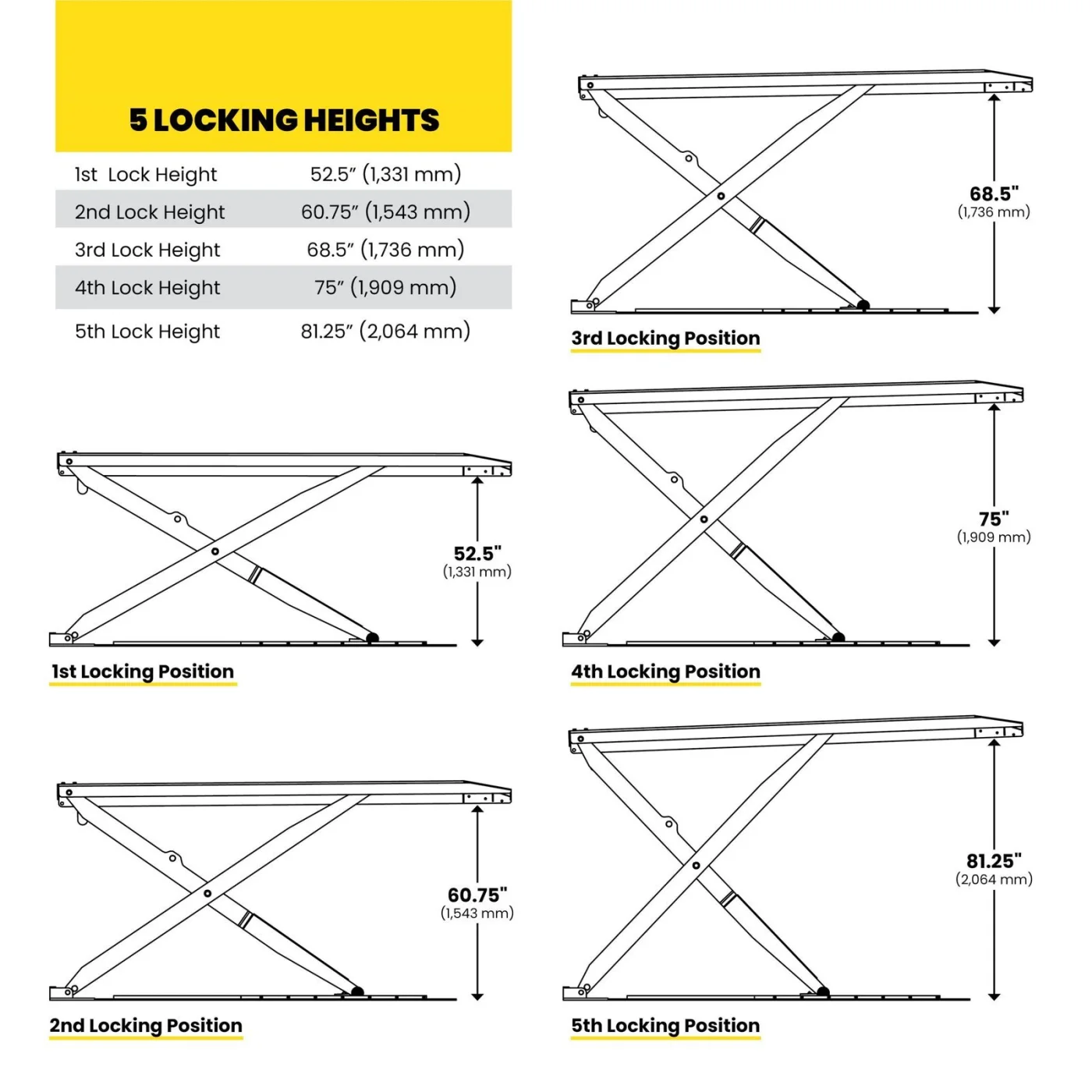

- 1st Locking Position: 52.5" (1,331 mm)
- 2nd Locking Position: 60.75" (1,543 mm)
- 3rd Locking Position: 68.5" (1,736 mm)
- 4th Locking Position: 75" (1,909 mm)
- 5th Locking Position: 81.25" (2,064 mm)
- 5260591 A6S Scissors Parking Lift Platform
- Right side scissors superstructure
- Left side scissors superstructure
- Front wheel trough
- Ramp assembly with logo plate
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175387 |
| Condition |
New |
| Lifting Capacity |
6,000 lbs. / 2,722 kg |
| Platform Length |
124” / 3,150 mm |
| Platform Height (forward) |
13” / 330 mm |
| Ramp Height (entry) |
2” / 51 mm |
| Max Under Underclearance |
80” / 2,032 mm |
| First (Lowest Locking Position) |
52.5" (1,331 mm) |
| Second |
60.75" (1,543 mm) |
| Third |
68.5" (1,736 mm) |
| Forth |
75" (1,909 mm) |
| Fifth (Highest Locking Position) |
81.25" (2,064 mm) |
| Motor |
110V, 50/60HZ, 1-Phase (A6S-OPT1-110)or 208-240V, 50/60 Hz / 1 Ph (A6S-OPT1) |
| Noise |
52 dB |
| Lifting capacity |
6000 lb |
| Lift type |
Parking Lifts ,Scissor Lifts |
| Phase |
Single phase |
| Voltage |
110 V |
