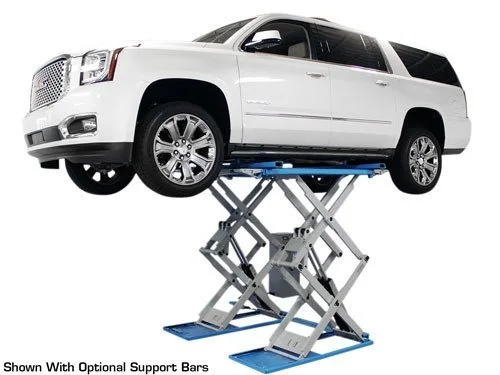

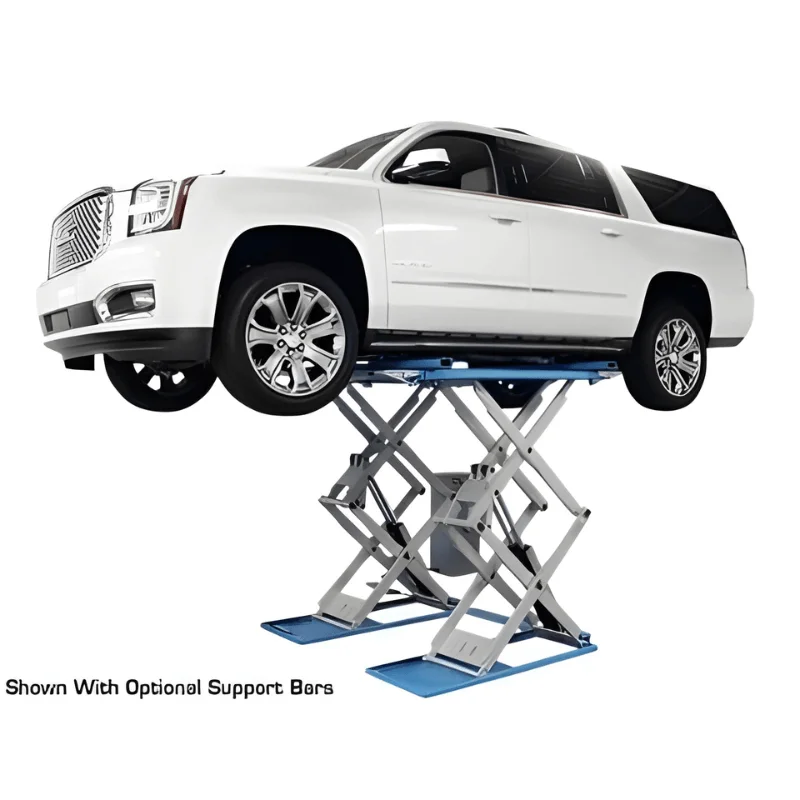

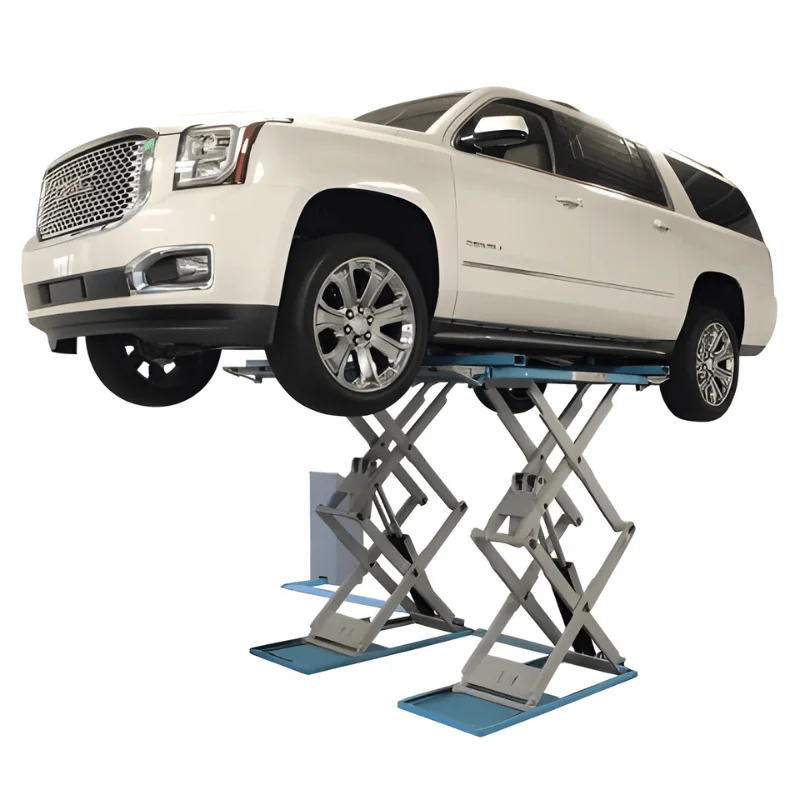

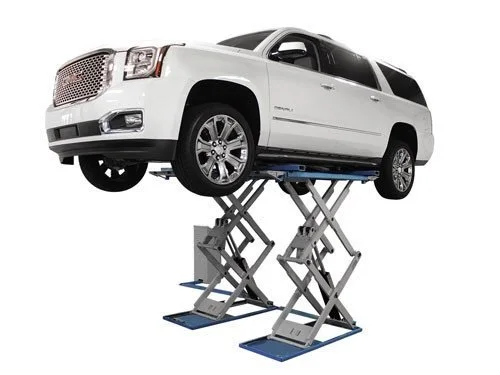

Atlas® SLP-9K Full-Rise Scissor Lift 9,000 lbs
$9,499.00
Atlas® SLP-9K Full-Rise Scissor Lift 9,000 lbs is part of our scissor lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
15 in stock
Atlas® SLP-9K Full-Rise Scissor Lift 9,000 lbs
Atlas® SLP-9K Full-Rise Scissor Lift 9,000 lbs is part of our scissor lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

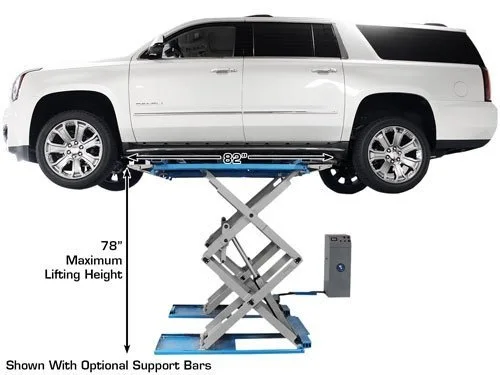

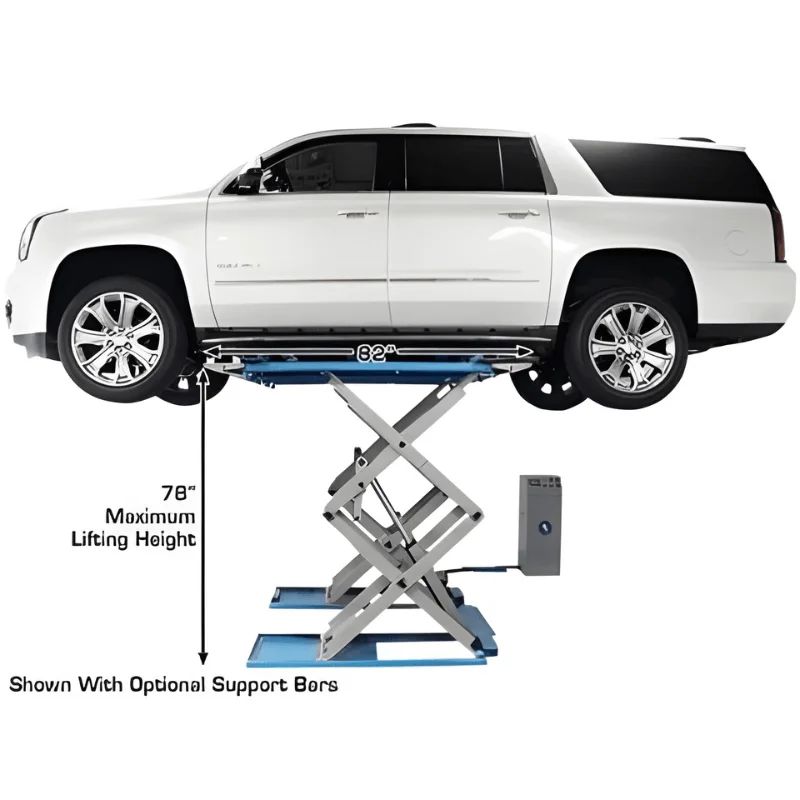

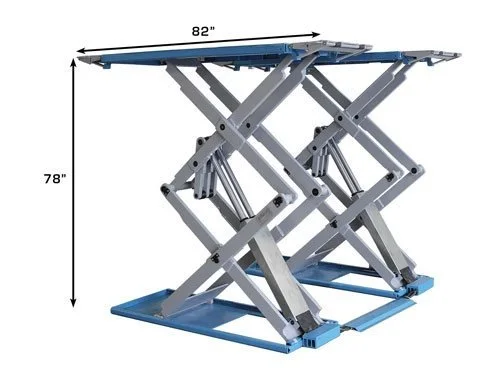

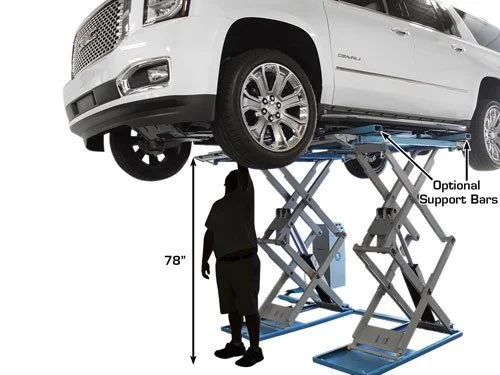

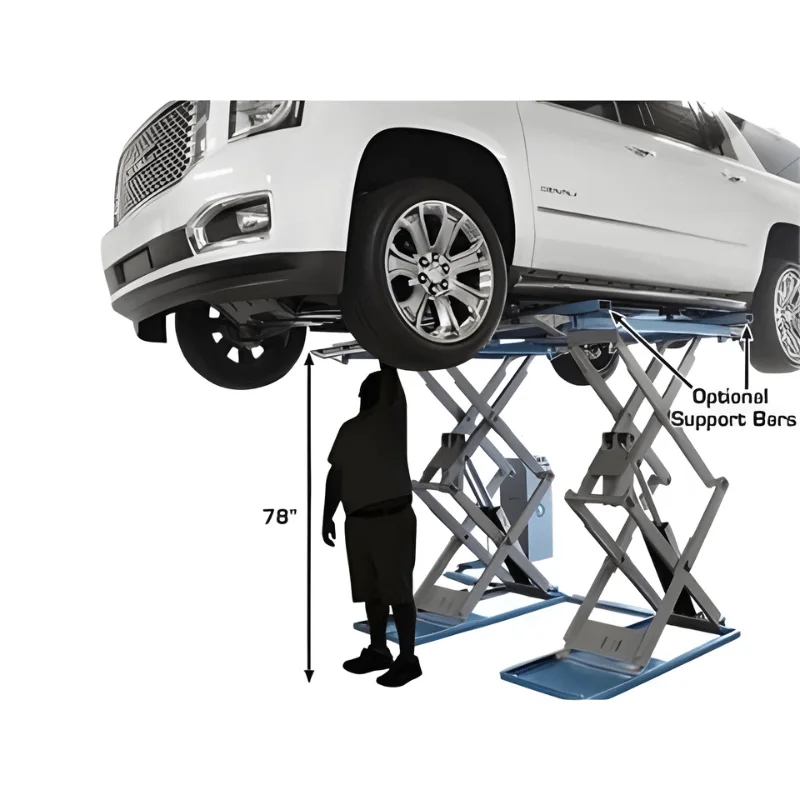

- 9,000 lbs capacity with a 78-inch (6' 6") maximum lifting height ideal for trucks, SUVs, and full-frame vehicles
- Ultra-low 4½" lowered height for easy vehicle entry and service shops with limited overhead clearance

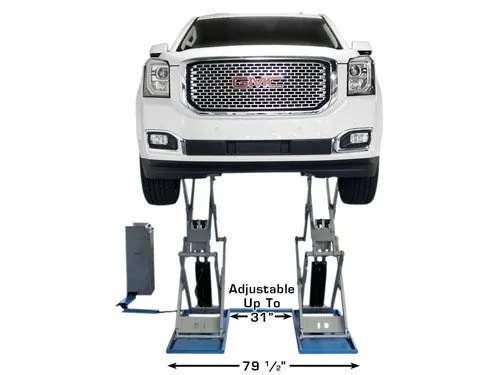

- Adjustable platform width up to 31 inches to accommodate full-frame, uni-body, and SUV lifting points

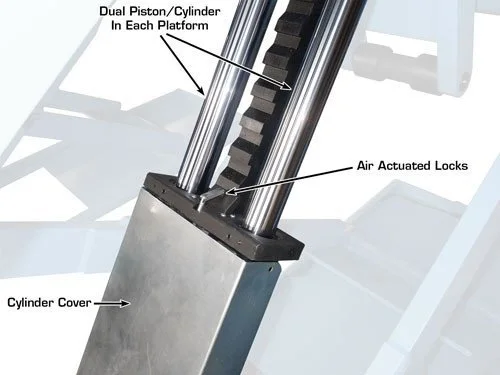

- 10 air-actuated locking positions with automatic engagement and disengagement for safe, reliable operation

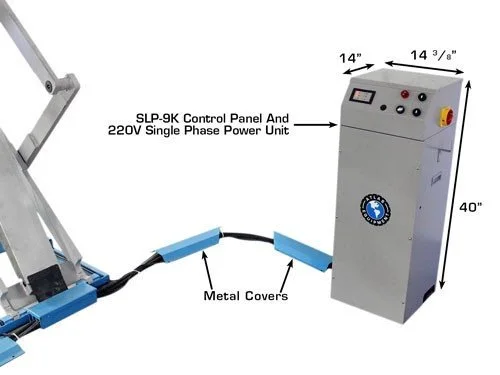

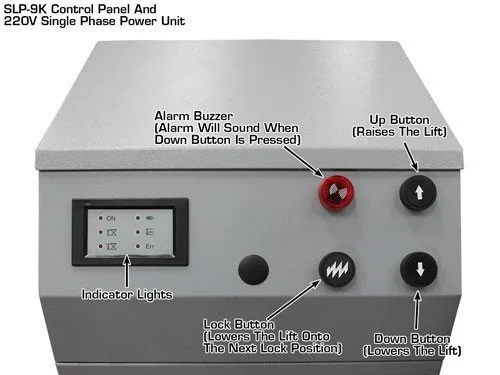

- Separate self-contained control panel with push button controls and housed 220V single-phase motor
- Open middle design for easy access and a cleaner, less cluttered workspace
- Locking approach ramps (11" x 24") and included adapter pads for versatile lifting points
- Zerk grease fittings at each hinge point and UHMP wear blocks for years of smooth, reliable performance
- CE certified and backed by a 1-year structural and hydraulic warranty
- 9,000 LB. capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-SLP9K |
| Condition |
New |
| Capacity |
9,000 lbs |
| Max Lift Height |
78" (6' 6") |
| Max Overall Length |
82" |
| Lift Platform |
59 ½" x 25 ½" |
| Lowered Height |
4 ½" |
| Width Between Platforms |
Adj. up to 31" |
| Approach Ramps |
11" x 24" |
| Locking Positions |
10 |
| Locks Actuated |
Air |
| Lifting Cylinders |
4 (2 In Each Platform) |
| Oil Requirement |
3.5 Gallons AW32/AW46 |
| Shipping Weight |
2,400 lbs |
| Lifting capacity |
9,000 lb |
| Lift type |
Scissor Lifts |
