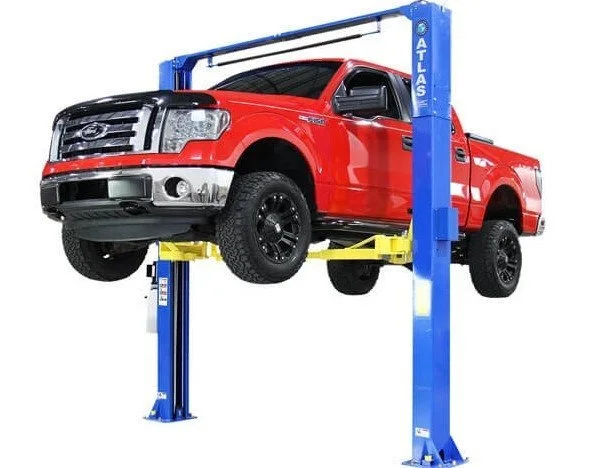

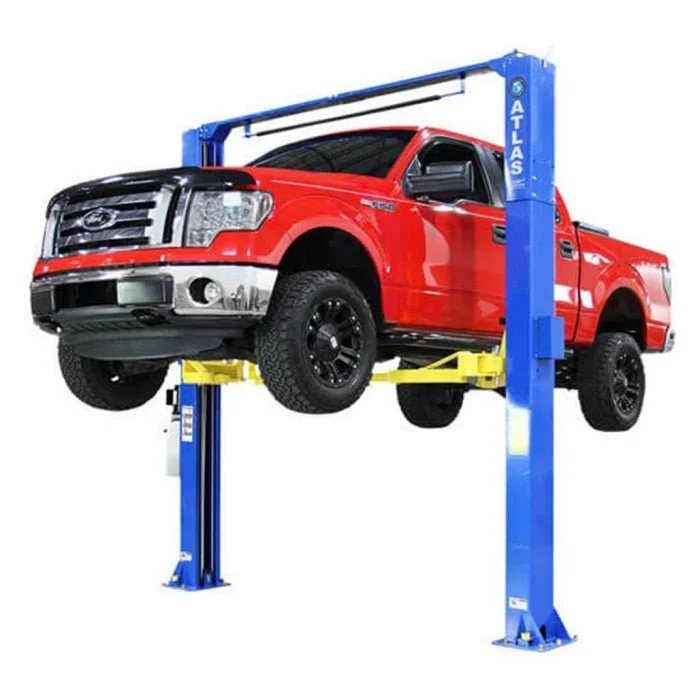

Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs
$3,029.00
Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs
Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lb. capacity handles a wide range of vehicles from compact cars to light trucks
- Dual configuration arms switch between symmetric and asymmetric positioning for maximum versatility
- Low 4 1/2" minimum arm height accommodates vehicles with low pickup points and ground clearance
- Dual direct-drive cylinders with fewer moving parts for reliable, low-maintenance operation
- Maximum lift height of 78 1/4 inches (with adapters) provides ample working clearance
- Includes truck adapter set for expanded vehicle compatibility right out of the box
- 9,000 LB. Capacity
- Overhead, Open-Floor design
- Asymmetric/Symmetric Arms

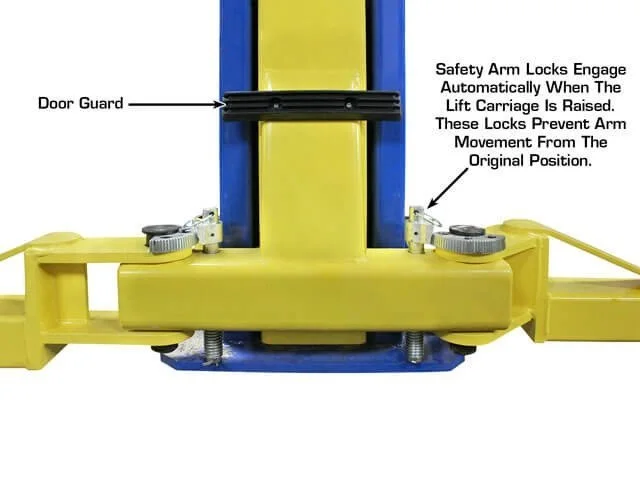

- Automatic Arm Restraints
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
XH-PRO-9D |
| Condition |
New |
| Wiring Instructions Available: |
for this lift. |
| Capacity |
9,000 lbs |
| Lifting Time |
N/A |

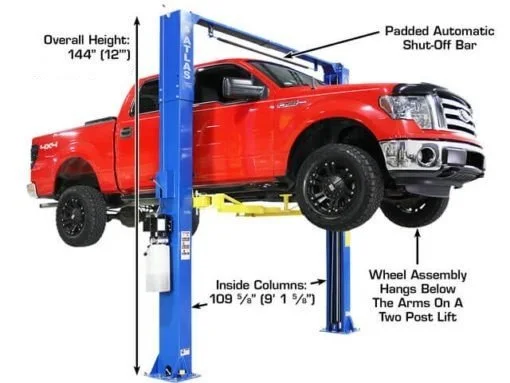

| Overall Height |
144" (12') |
| Overall Floor Width |
134.6" |
| Outside Column To Outside Column |
124 7/8" (10’ 4 7/8") |

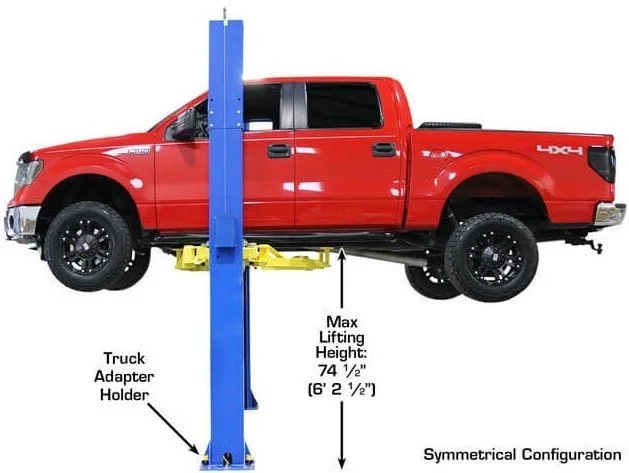

| Max Lift Height w/o Adapters |
68" |
| Max Lift Height w/Adapters |
78 1/4" |
| Minimum Arm Height |
4 1/2" |

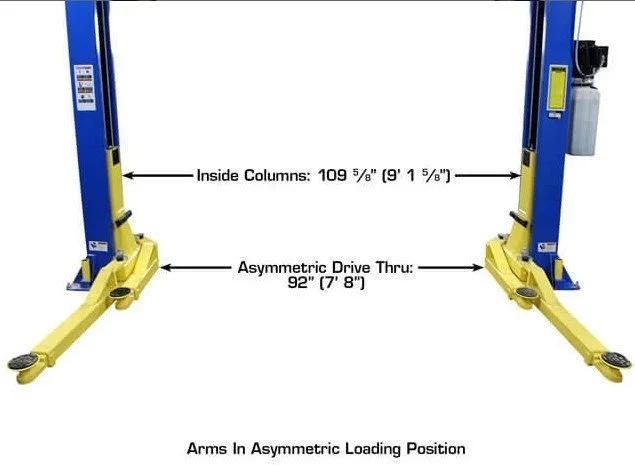

| Inside Column |
109 3/4" |
| Column Size |
7 ¼" x 11" |
| Drive Thru Arm Configuration |
100" Symmetric/ 92 1/4" Asymmetric |
| Base of Lift |
14 ¼" x 18" |
| Column Thickness of Steel |
5mm |
| Carriage Thickness of Steel |
6mm |
| Arms Thickness of Steel |
6mm |
| Cable Diameter |
.375" |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Weight |
1,450 LB. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
