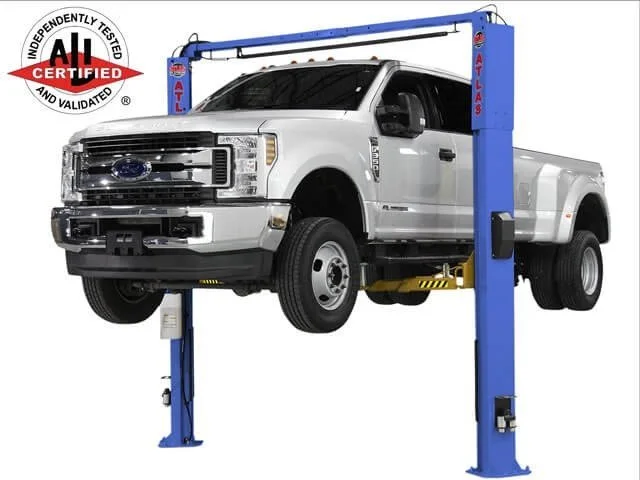

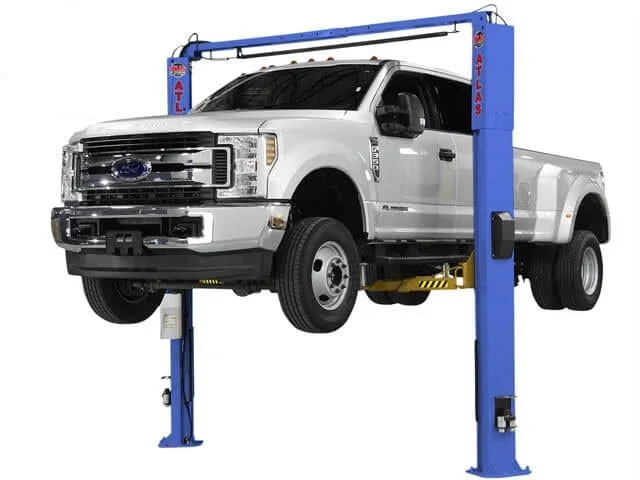

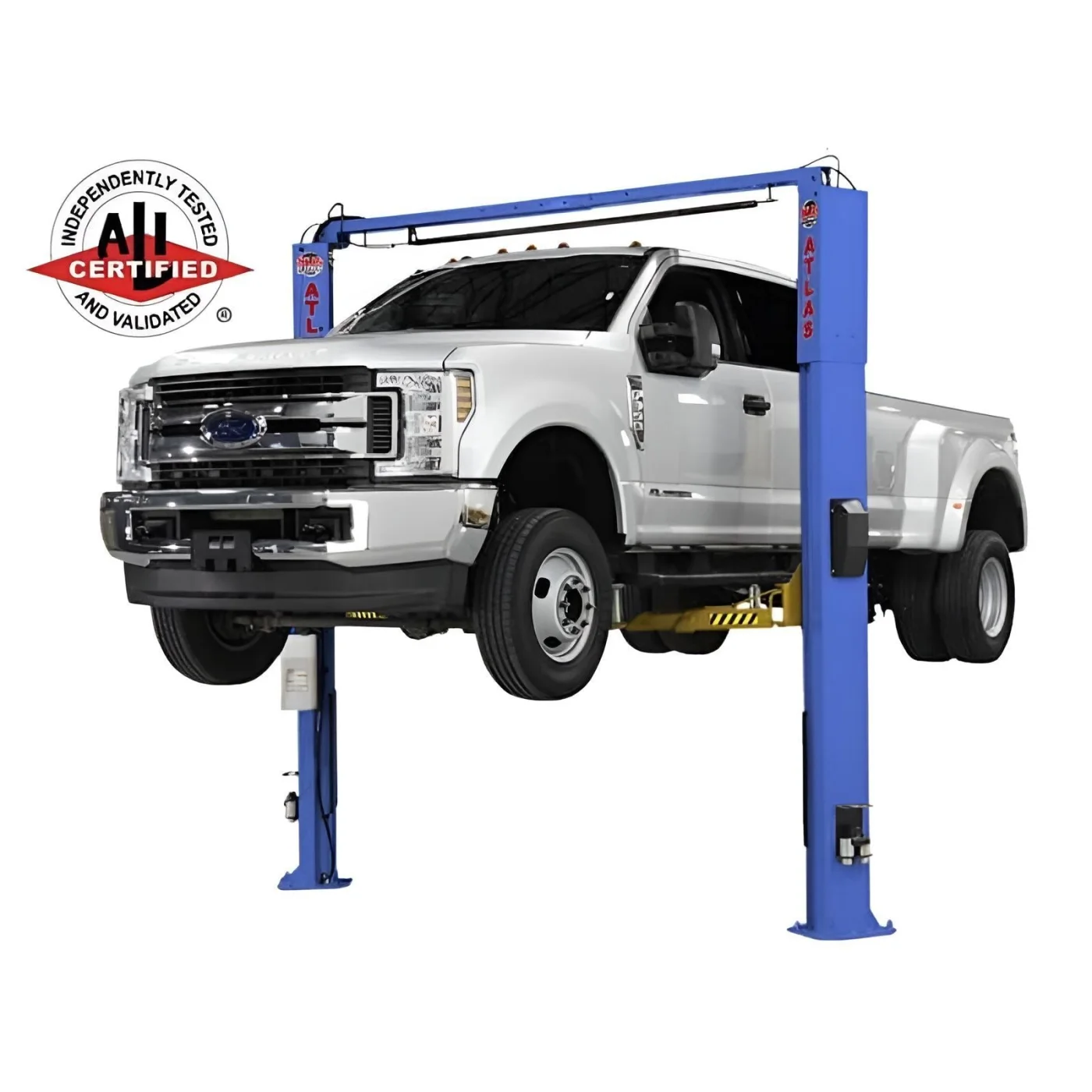

Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs
$5,049.00
Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
- Lifting capacity: 10000 lb
11 in stock
Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs
Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000 lb capacity with ALI Certification for verified safety and performance
- Adjustable height installation 139 7/8" standard or 135 7/8" low-height (cylinders extend to 12' 4")

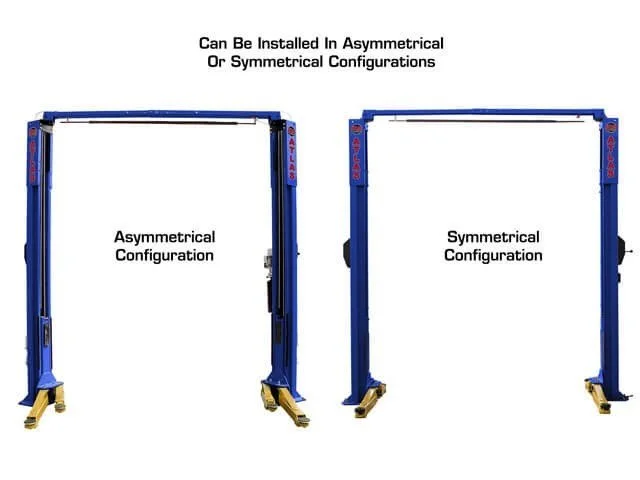

- Symmetric or asymmetric column configurations for maximum vehicle positioning flexibility

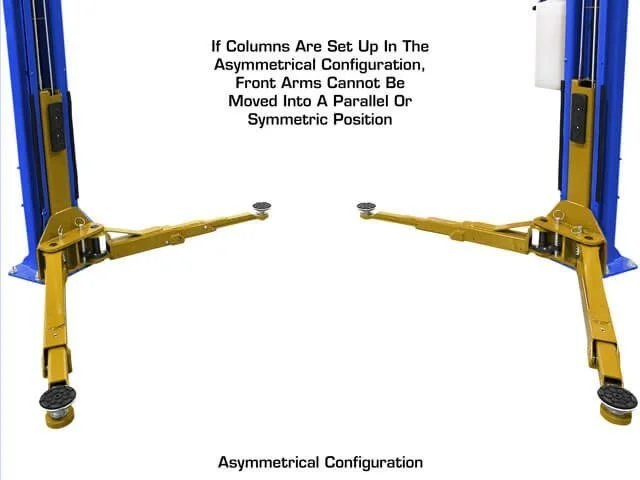

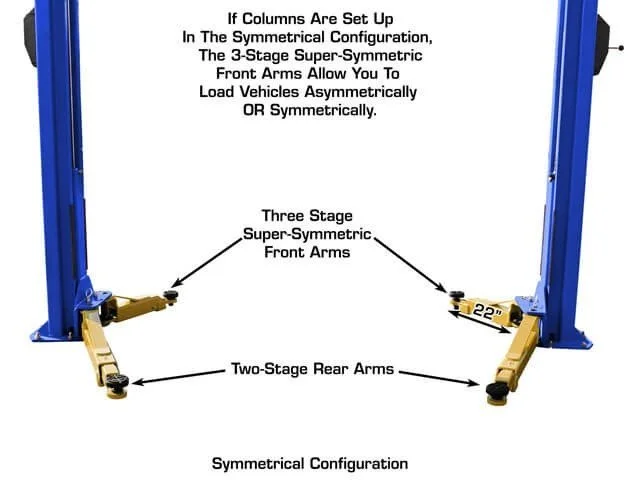

- Three-stage front arms and two-stage rear arms provide exceptional reach and adjustment range
- Professional-grade ALLY Hydraulic AL2850 Power Unit with two-year warranty and superior heat management
- Double S column design delivers proven strength and reliability trusted worldwide
- Complete mounting hardware for secure installation
- Truck adapter set for lifting larger vehicles
- Double screw-up adapter kit with multiple height options
- Padded carriages for vehicle protection
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Platinum |
|---|---|
| MPN / Model |
AP-PVL10 |
| Condition |
New |
| Capacity |
10,000 lbs |

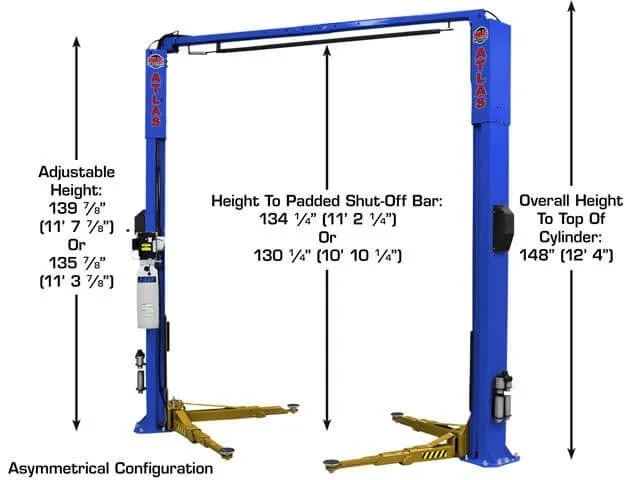

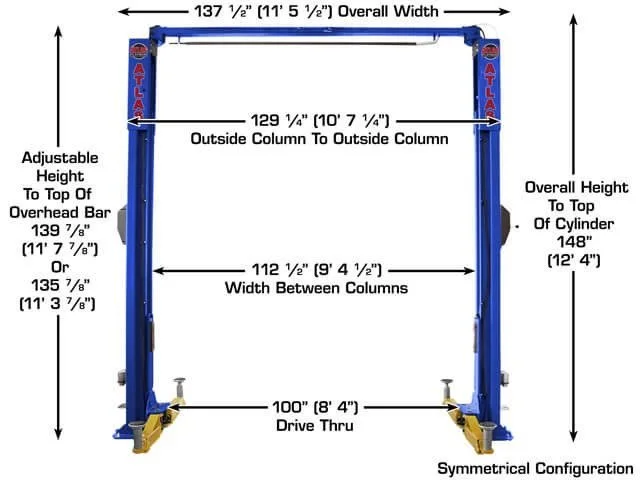

| Overall Height |
139 7/8" (11' 7 7/8") ‐ (Cylinder Extends to 12' 4") |
| Special Low Height* |
135 7/8" (11' 3 7/8") ‐ (CYLINDERS EXTEND TO 12' 4”) |

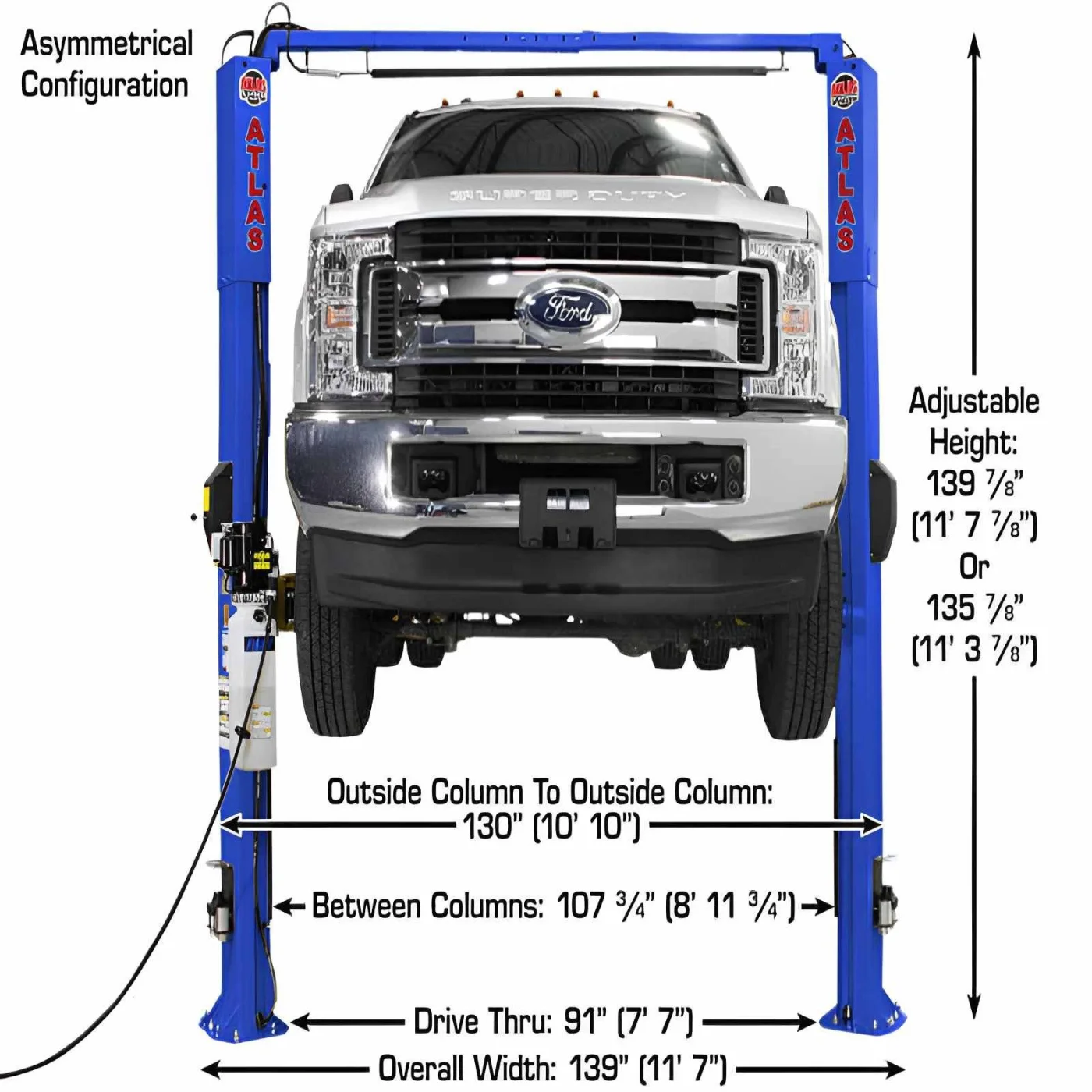

| Overall Width |
139" (11' 7") Asymmetric / 137 1/2' (11' 5 1/2") Symmetric |
| Outside Column to Outside Column |
130" (10' 10") Asymmetric/129 1/4” (10' 9 1/4") Symmetric |

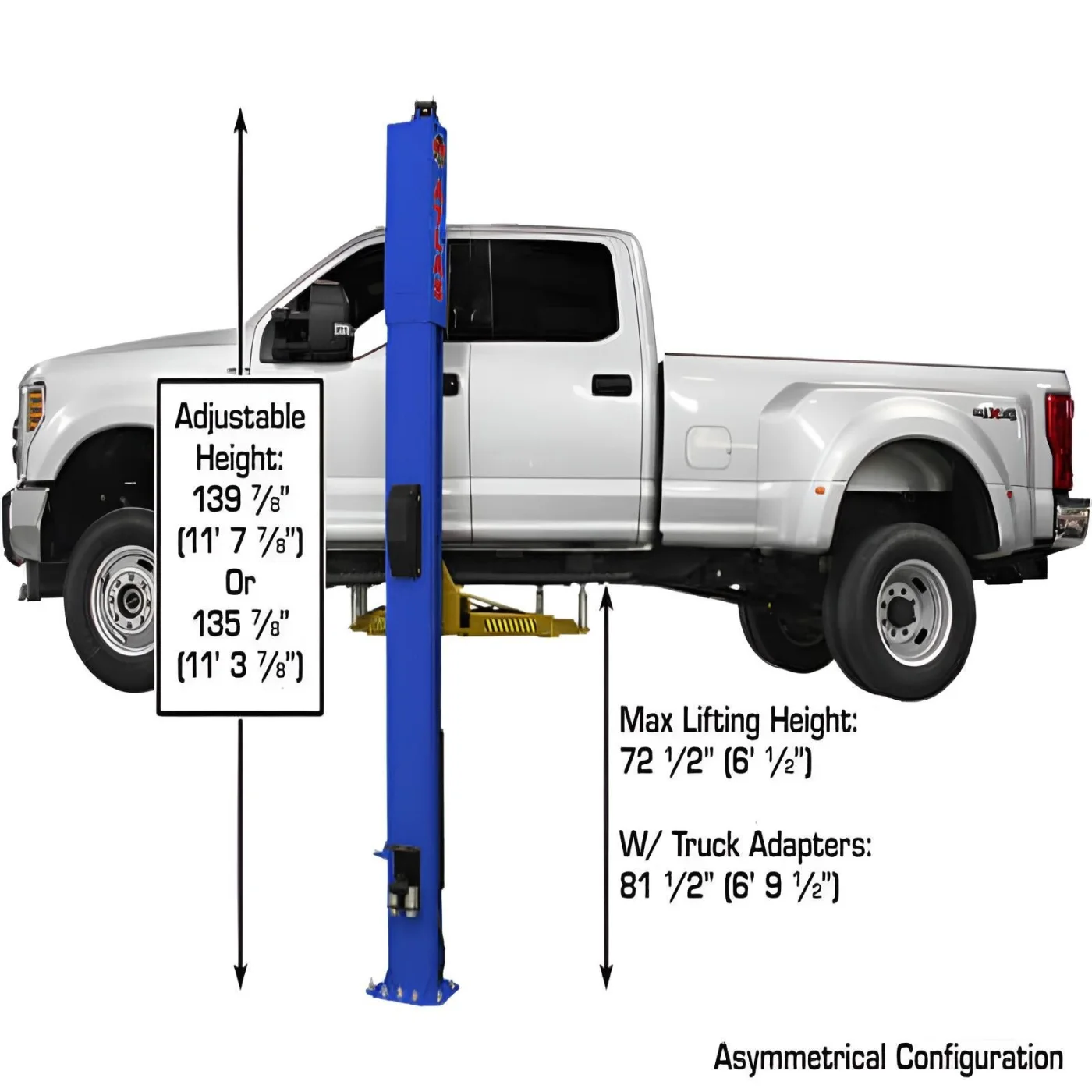

| Maximum Lift Height w/Adapters |
81 1/2" |
| Maximum Lift Height w/o Adapters |
72 1/2" |
| Minimum Arm Height |
4" |

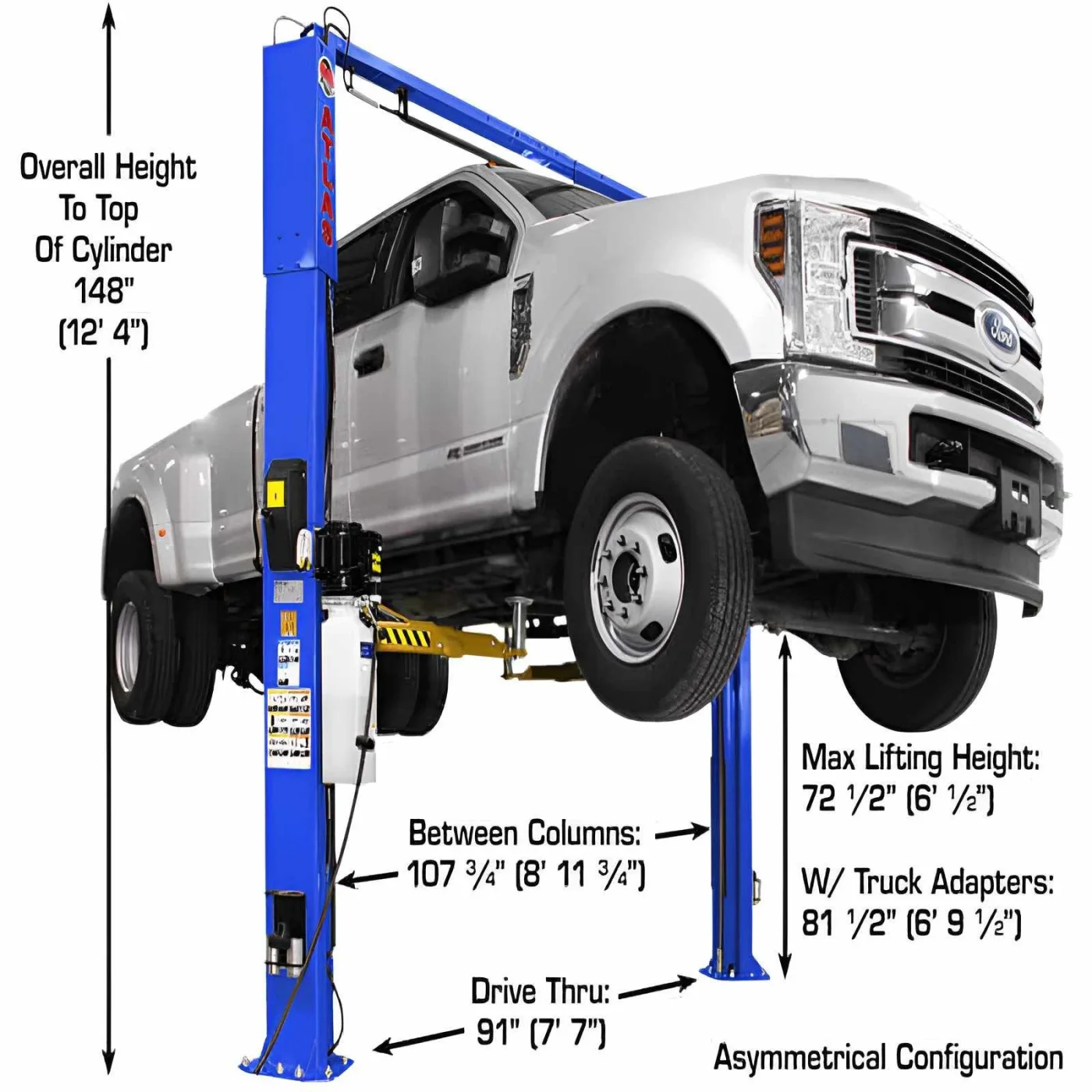

| Inside Column |
107 3/4” (8' 11 3/4”) Asymmetric / 112 1/2" (9' 4 1/2") Symmetric |
| Drive Thru |
91" Asymmetric / 99 1/2" Symmetric |
| Column Size |
7" x 10 1/4" |
| Column Thickness of Steel |
6mm |
| Base of Lift |
15" x 18" |
| Arm Hole/Adapter Peg Size |
2" |
| Adapter Heights |
4 Each – 3" & 6" |
| Motor/Electrical Requirement |
2 HP 220V (1) phase / 30 amp breaker is required |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight |
1,850 lbs. |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
