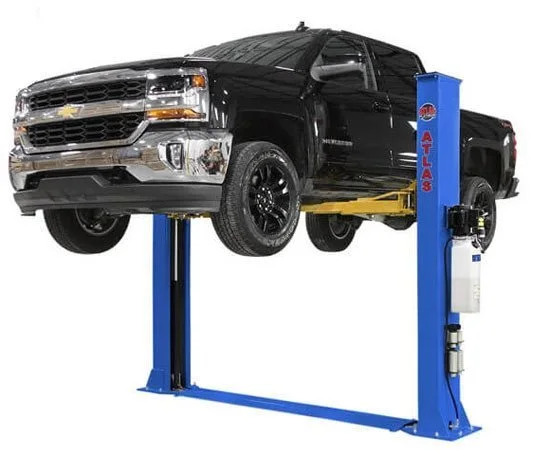

Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 lbs
$4,799.00
Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
- Lifting capacity: 9000 lb
Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 lbs
Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 lbs is part of our 2 post lifts selection from Atlas Platinum.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 9,000 lb capacity handles everything from compact cars to full-size pickups

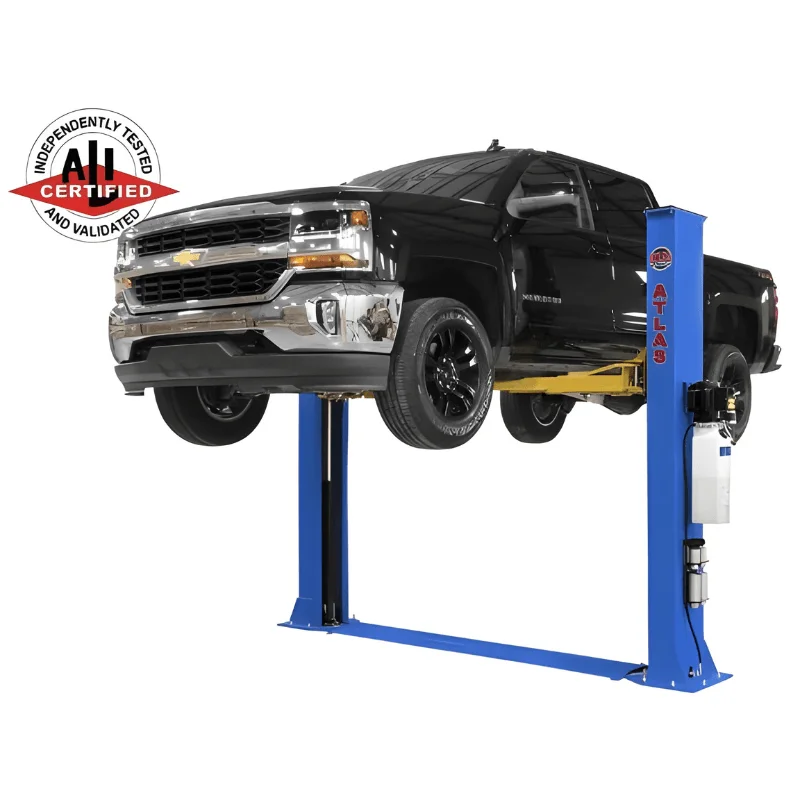

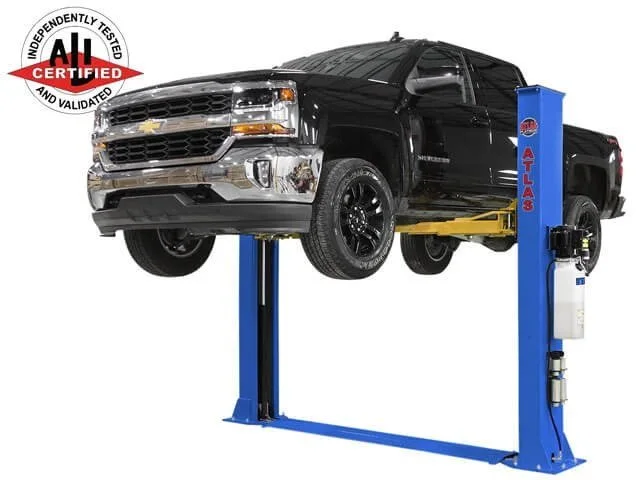

- ALI Certified meets rigorous safety and performance standards
- Base-plate design with symmetric arms ideal for balanced lifting and durability

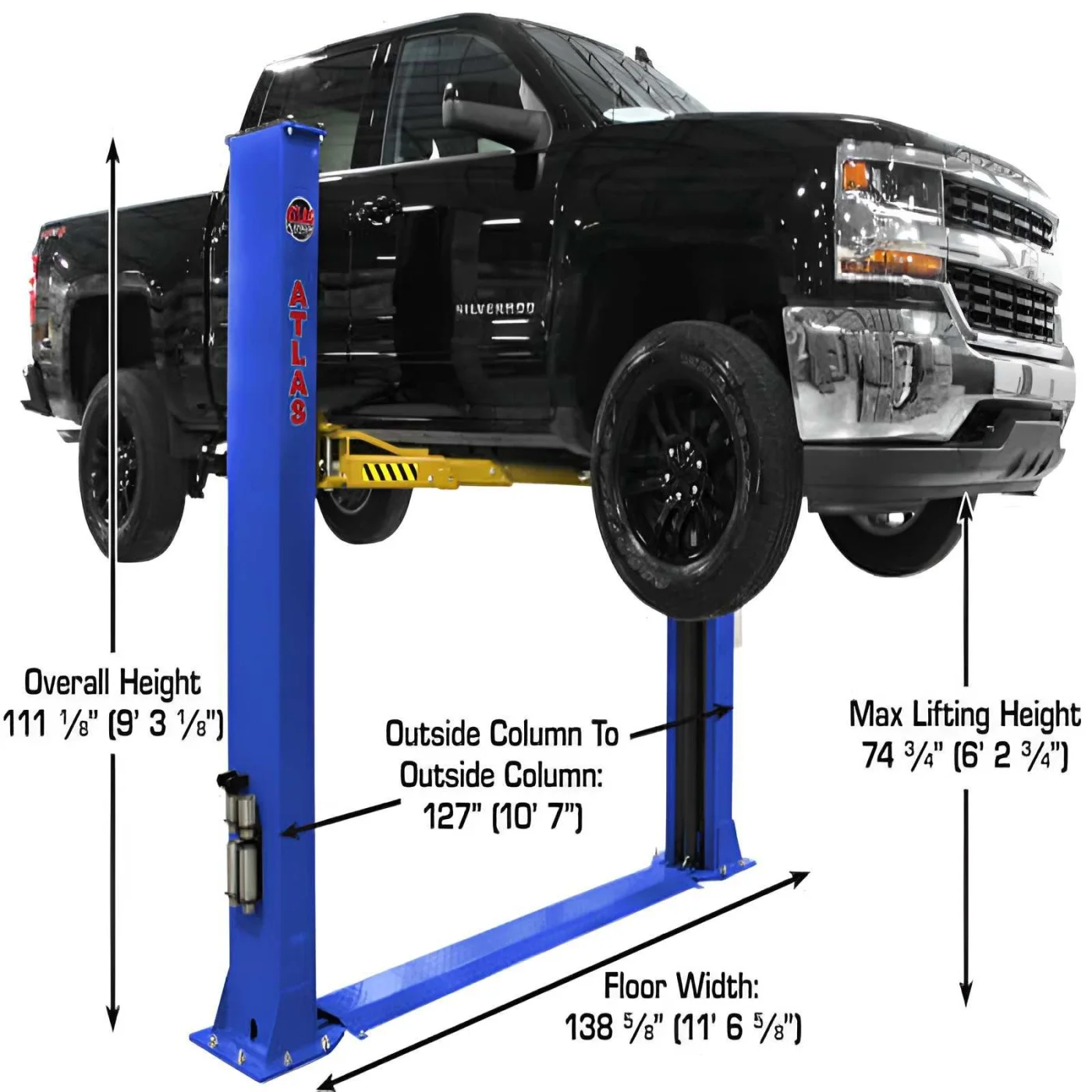

- Low ceiling design only 111 1/8" (9' 3 1/8") total column height for shops with limited overhead space

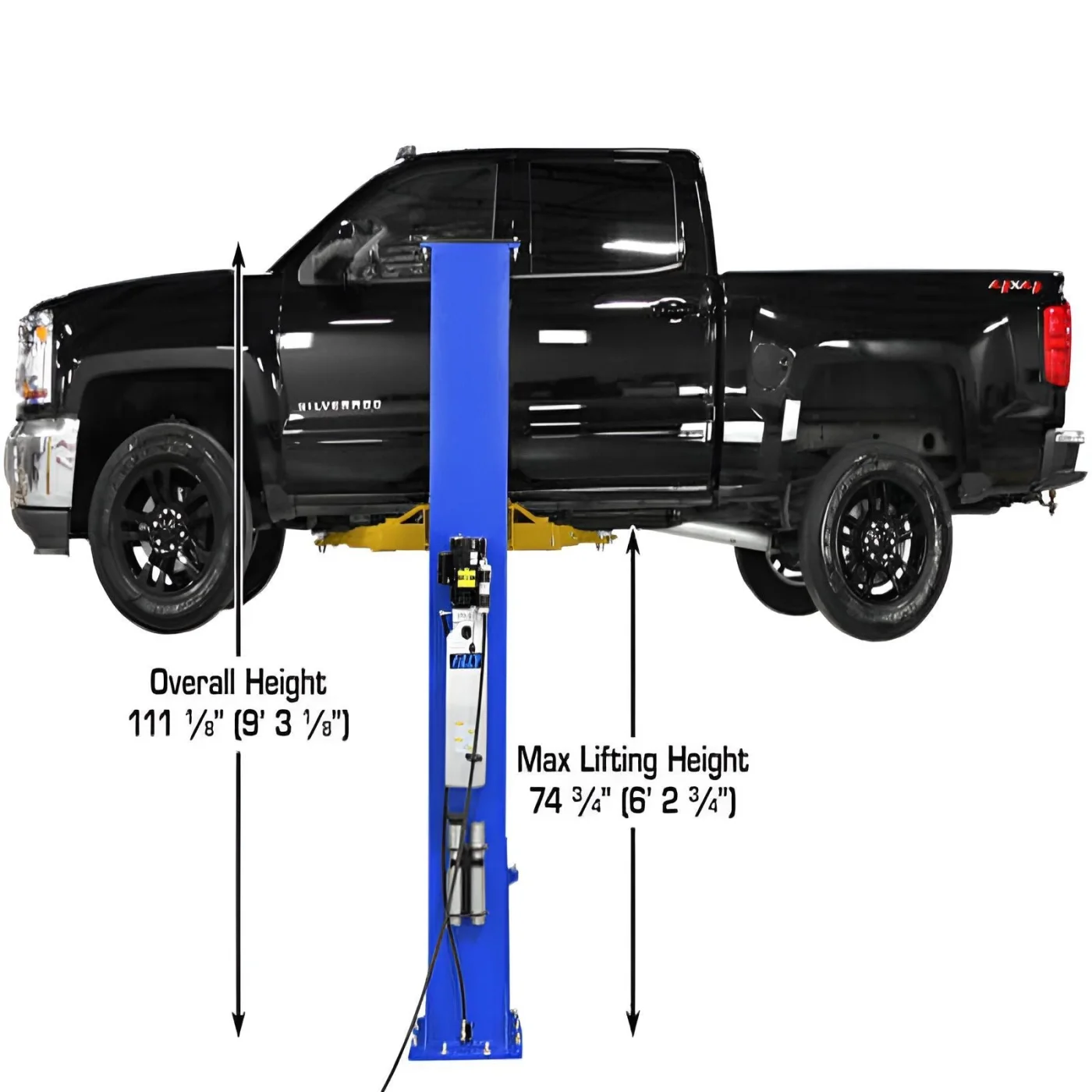

- Max lift height of 74 3/4" with a minimum lowered height of 5" excellent working range

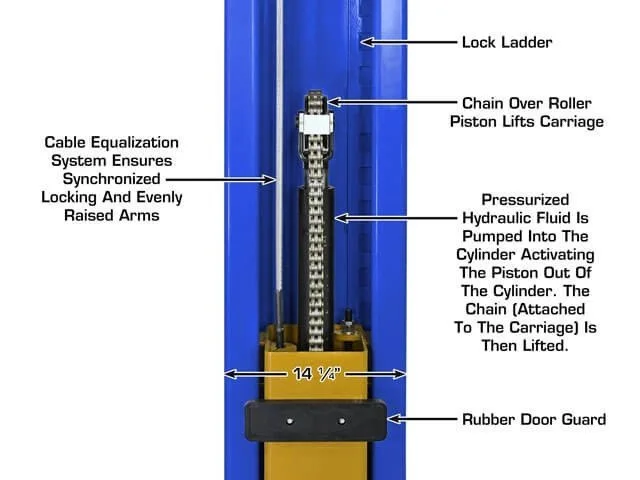

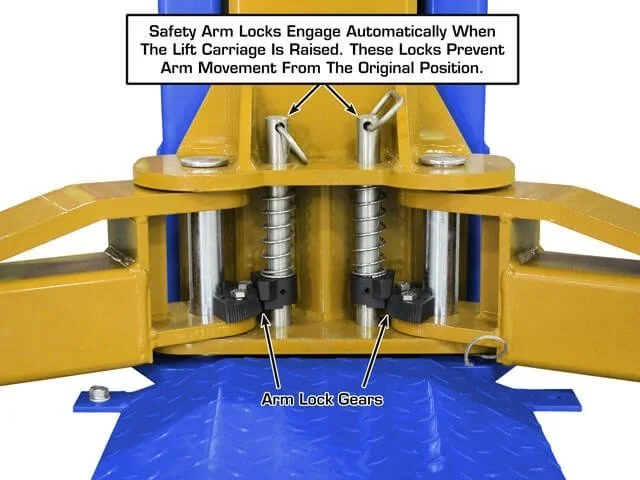

- Dual hydraulic chain-drive cylinders and Secondary Lock System (SLS) for safe, stable operation
- Includes 8-piece truck adapter set for versatile vehicle compatibility
- Requires 220V single-phase / 30 amp breaker
- Mounting hardware all necessary hardware for installation
- 8-piece truck adapter set includes both 3" and 6" adapters for versatile vehicle lifting
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Platinum |
|---|---|
| MPN / Model |
AP-PVL9BP |
| Condition |
New |
| Capacity |
9,000 lbs |

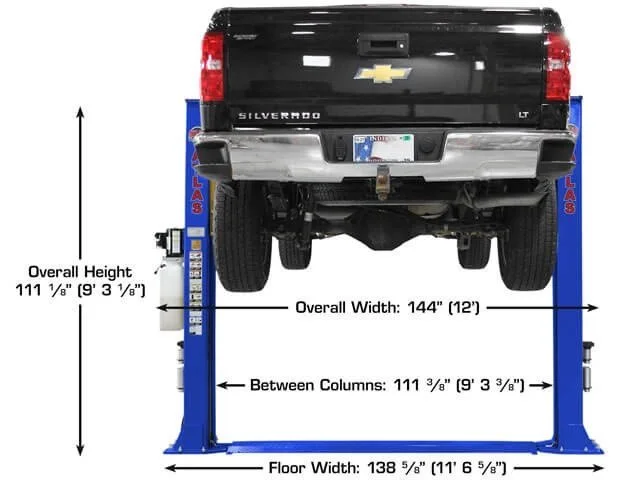

| Overall Height |
111 1/8" (9' 3 1/8") |
| Lifting Time |
N/A |
| Floor Width |
138 5/8" (11' 6 5/8") |

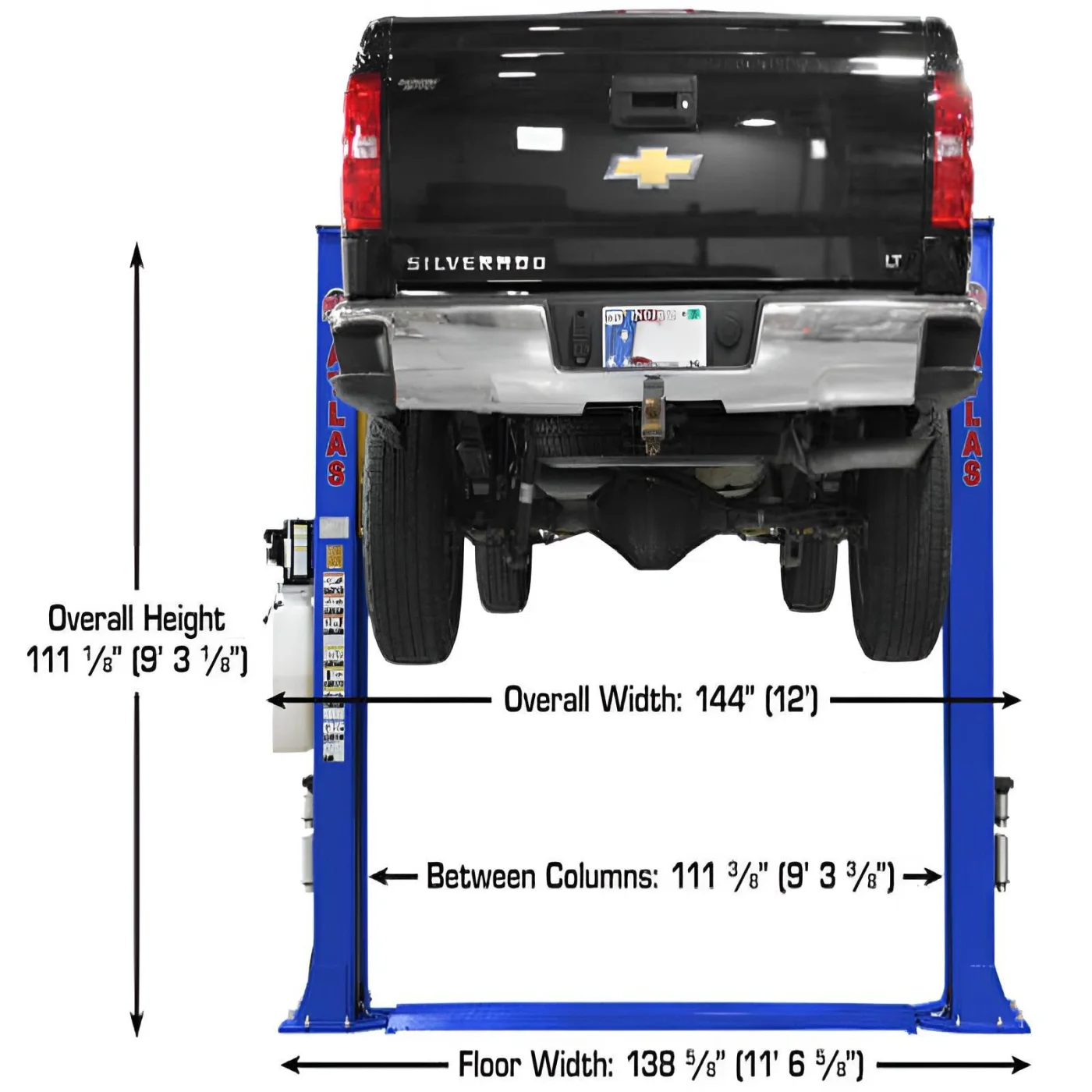

| Overall Width w/Power Unit |
144" (12') |

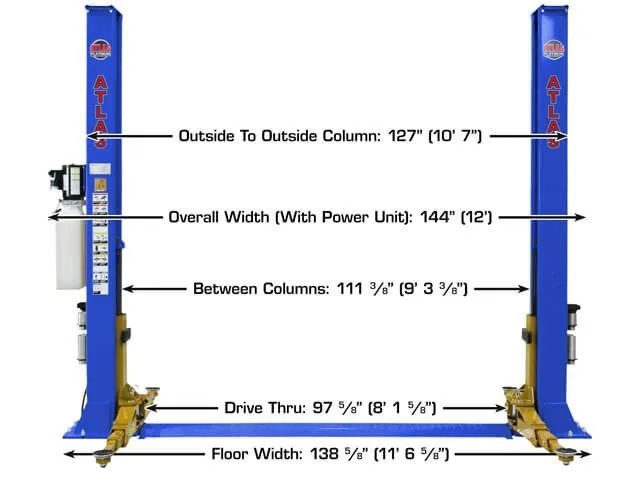

| Outside Column To Outside Column |
127" (10' 7") |
| Max Lift Height |
74 3/4" (6' 2 3/4") |
| Minimum Lowered Height |
5" |
| Adapter Height |
3" & 6" |
| Inside Column to Inside Column |
111 3/8" (9' 3 3/8") |
| Drive Thru |
97 5/8" (8' 1 5/8") |

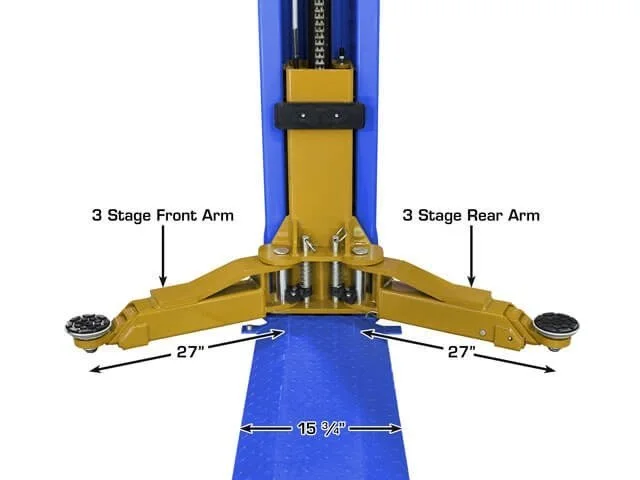

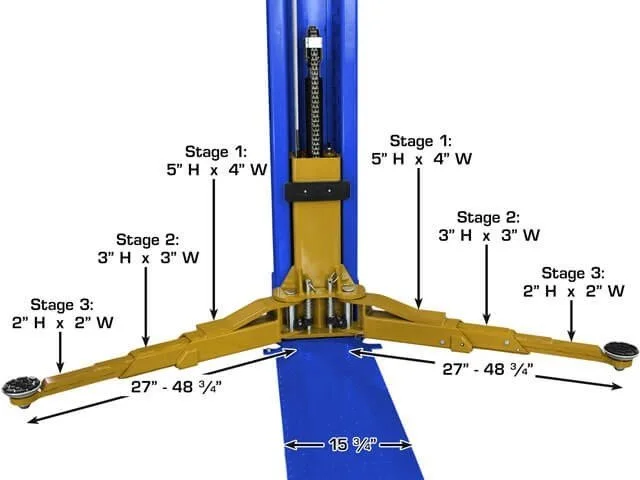

| Arm Length |
30 1/8" – 46" |
| Column Measurement |
14 1/4" x 7 5/8" |
| Base of Column Measurement |
20 1/2" x 19 1/2" |
| Motor/Electrical Requirement |
220V single (1) phase / 30 amp breaker is required. |
| Weight |
1,700 LB. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
