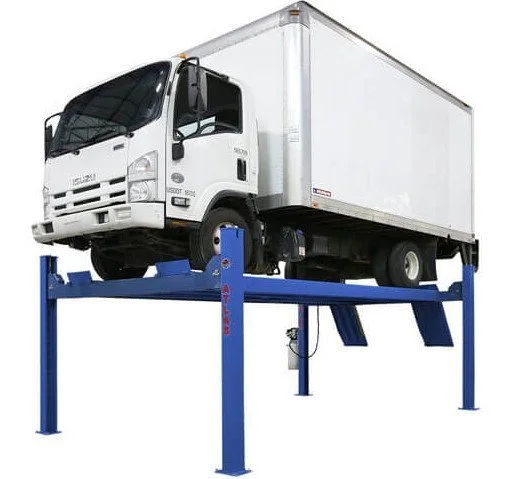

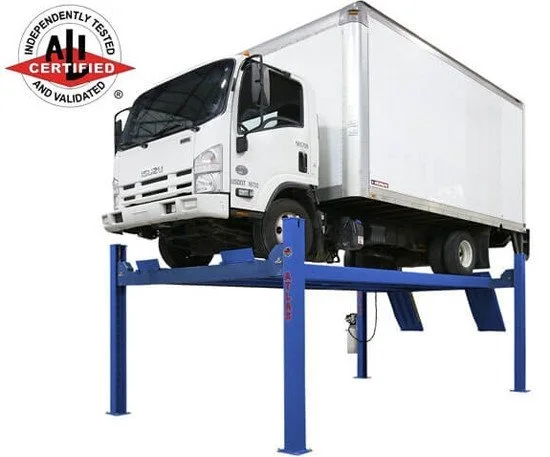

Atlas® Platinum AP-PVL14 ALI Certified 4 Post Lift 14,000 lbs
$8,299.00
Atlas® Platinum AP-PVL14 ALI Certified 4 Post Lift 14,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Platinum.
- Lifting capacity: 14000 lb
8 in stock
Atlas® Platinum AP-PVL14 ALI Certified 4 Post Lift 14,000 lbs
Atlas® Platinum AP-PVL14 ALI Certified 4 Post Lift 14,000 lbs is part of our 4 post lifts – heavy-duty selection from Atlas Platinum.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 14,000 lb capacity handles a wide variety of vehicles from passenger cars to light commercial trucks
- Extra tall, extra wide, and extra long provides generous working dimensions and vehicle compatibility

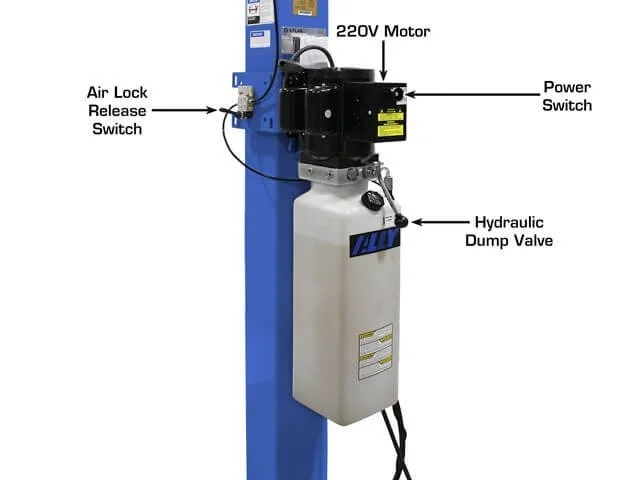

- Air-operated single point lock release (external air supply required) — for fast, convenient height adjustments
- Higher quality powder coat finish ensures durability and corrosion resistance for years of service
- Steel approach ramps included drive vehicles on and off safely and smoothly
- Steel approach ramps heavy-duty ramps for safe vehicle loading
- Airline kit complete air line accessories for the air-operated lock release system
- Mounting hardware all necessary anchors and fasteners for secure installation
- 14,000 lb. Capacity
- ALI Certified
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Platinum |
|---|---|
| MPN / Model |
AP-PVL14 |
| Condition |
New |
| Important Post-Installation Step: |
Atlas 4 Post Cylinder Bleeding Procedure (Do this immediately after installation) |
| Capacity |
14,000 lbs |

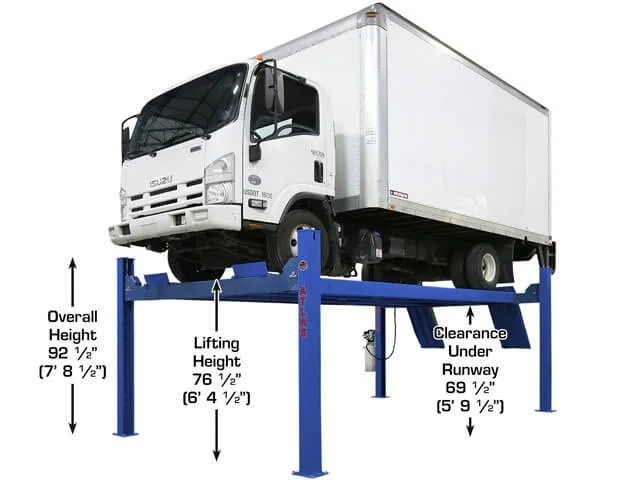

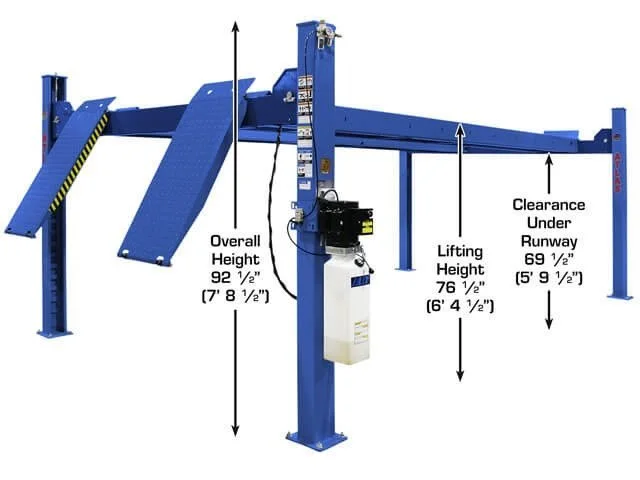

| Overall Height |
92 1/2" (7' 8 1/2") |
| Lifting Height |
76 1/2" (6' 4 1/2") |

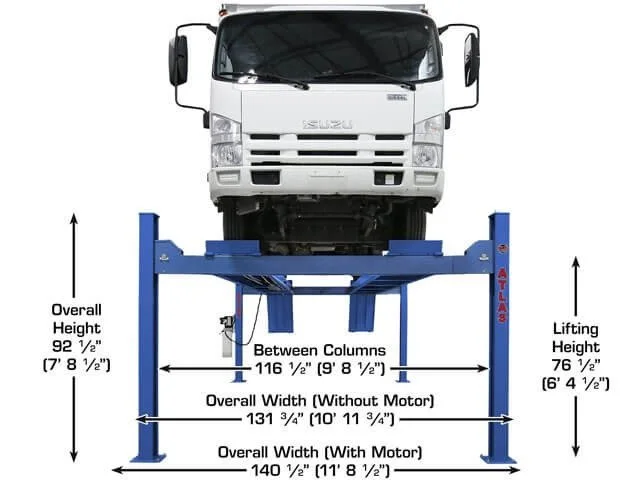

| Overall Width w/ Motor |
140 1/2" (11' 8 1/2") |
| Overall Width w/o Motor |
131 3/4" (10' 11 3/4") |

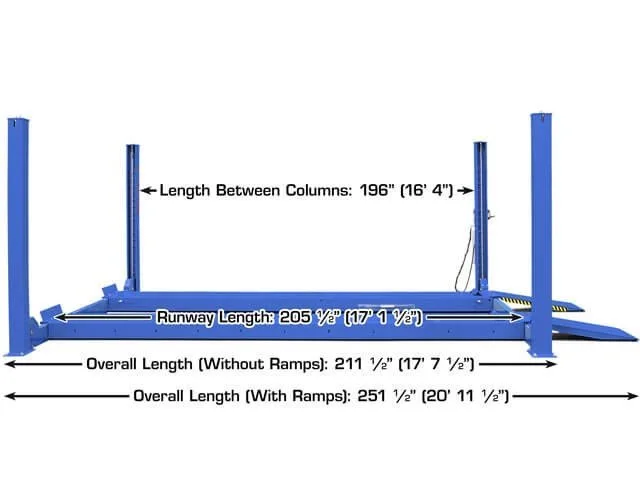

| Overall Length w/Approach Ramps |
251 1/2" (20' 11 1/2") |

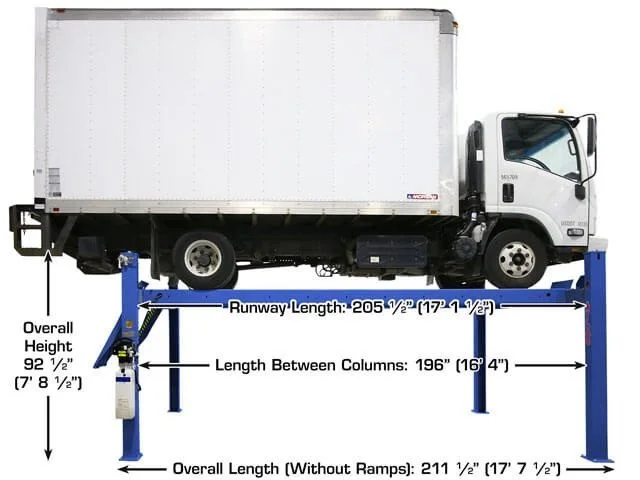

| Length Between Columns |
196" (16' 4") |
| Runway Length |
205 1/2" (17' 1 1/2") |
| Runway Width |
20" (1' 8") |
| Runway Thickness |
7" |
| Width Between Runways |
42 3/4" (w/ Rail 39 1/4") |
| Outside Runway to Outside Runway |
83 1/8" (6' 11 1/8") |
| Clearance Under Runways |
69 1/2" (5' 9 1/2") |
| Clearance Between Columns |
116 3/8" (9' 8 3/8") |
| Maximum Wheel Base |
195" (16' 3") |
| Drive Thru |
94 1/2" (7' 10 1/2") |

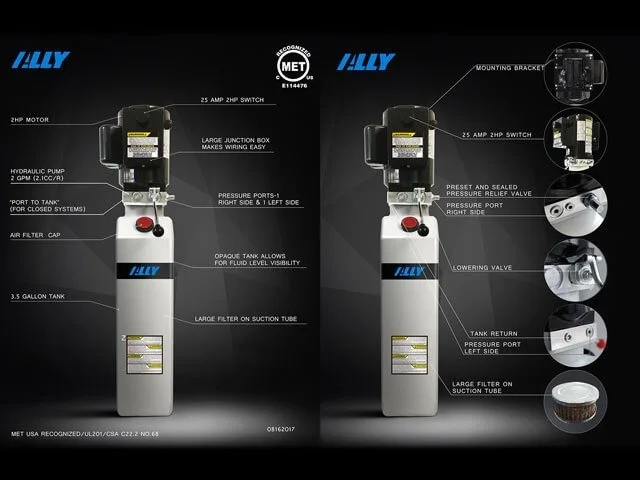

| Motor |
220V / 1 Phase / 30 amp breaker is required |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT Included) |
| Weight |
2,800 lbs. |
| Lifting capacity |
14,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
