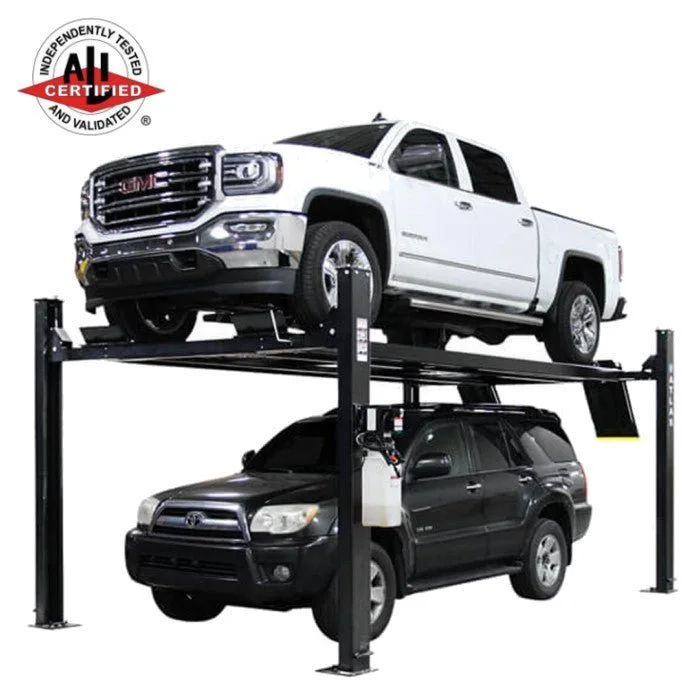

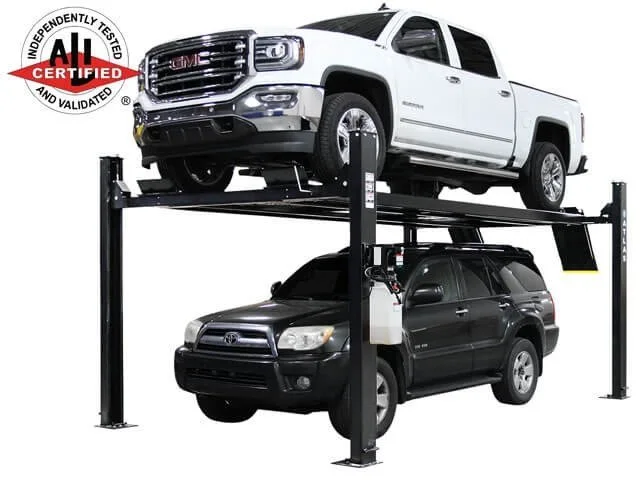

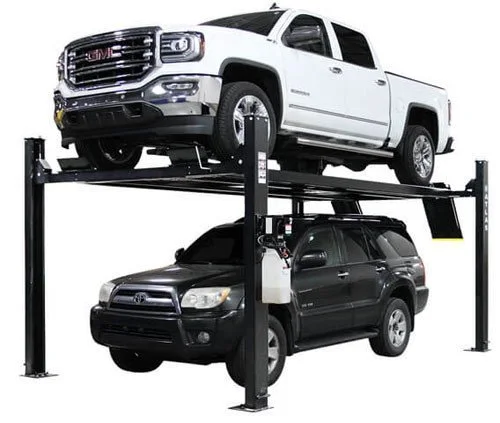

Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs
$6,999.00
Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 9000 lb
9 in stock
Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs
Atlas® Apex 9 ALI Certified 4 Post Hobbyist Parking Lift 9,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- ALI Certified for Safety: Meets the rigorous standards of the Automotive Lift Institute, ensuring reliable, tested performance and peace of mind.
- Durable Powder Coat Finish: Protects against corrosion and shop wear, maintaining a professional appearance for years to come.
- Diamond Plated Runways: Provide superior traction and a rugged, slip-resistant surface for safe vehicle positioning.
- Capacity: 9,000 lbs
- Maximum Wheelbase: 184 inches (15' 4")
- Drive-Thru Width: 98⅝ inches (8' 2⅝") outside tire to outside tire
- Overall Length with Approach Ramps: 227½ inches (18' 11½")
- Overall Width with Motor: 133⅞ inches (11' 1⅞")
- Height of Columns: 99 inches (8' 3")
- 1 Steel Jack Tray for secure tool and jack storage while working
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
APEX9 |
| Condition |
New |
| Capacity |
9,000 lbs |
| Lifting Height To Top of Runway |
86" (7' 2") |
| Clearance Under Runways |
81 1/4" (6' 9 1/4") |
| Height of Columns |
99" (8' 3") |
| Overall Width w/ Motor |
133 7/8" (11' 1 7/8") |

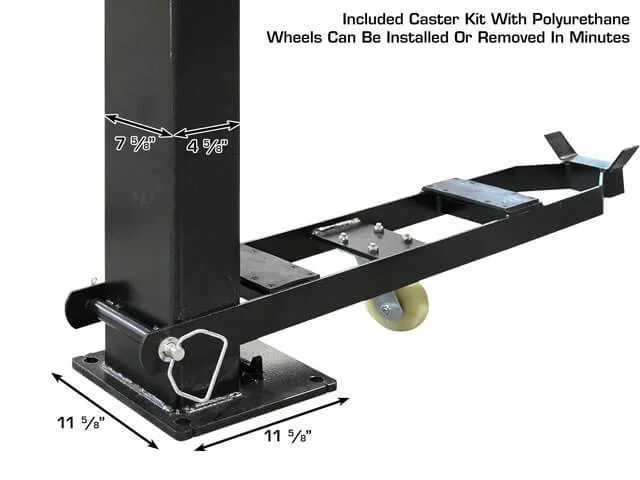

| Overall Width w/o Motor & Casters |
121 7/8" (10' 1 7/8") |
| Overall Length w/Approach Ramps |
227 1/2" (18' 11 1/2") |
| Overall Length w/o Approach Ramps |
204" (17') (Including Lock Release Bar) |

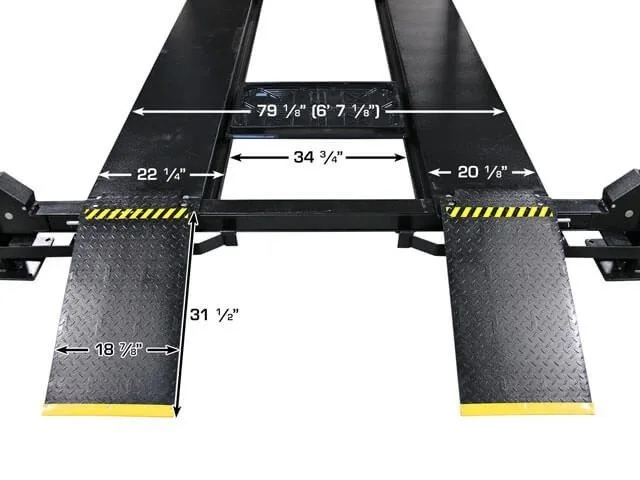

| Approach Ramps |
31 1/2" |

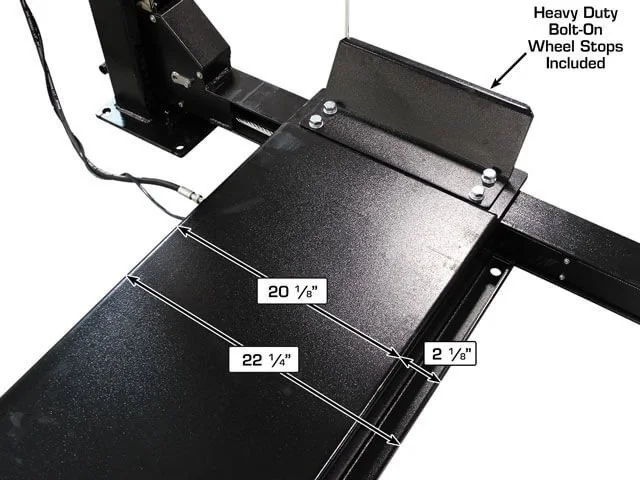

| Runway Width |
20 1/8" |
| Runway Rail Width |
2" |
| Runway Length |
196 1/2" (16' 4 1/2") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
38 7/8" (3' 2 7/8") |
| Width Between Runway Rails |
34 3/4" (2' 10 3/4") |
| Outside Runway to Outside Runway |
79" (6' 7") |
| Clearance Between Columns |
108 1/8" (9' 1/8") |
| Length Between Columns |
184 1/4" (15' 4 1/4") |
| Maximum Wheel Base |
184" (15' 4") |
| Drive Thru (Outside of tire to outside of tire) |
98 5/8" (8' 2 5/8") |

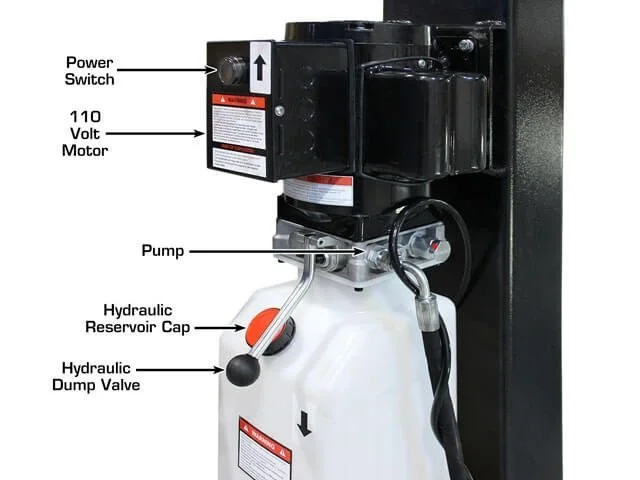

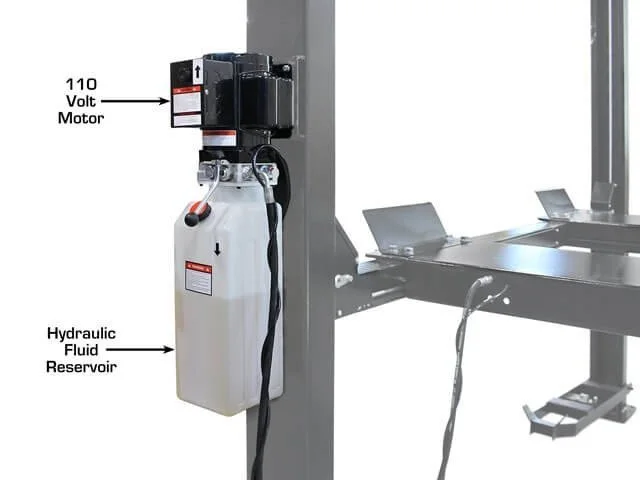

| Motor |
110 Volt / 30 amp breaker is Requried. |
| Oil Requirement |
2.6 Gallons AW32/AW46 (NOT Included) |
| Weight |
2,975 lbs |
| Lifting capacity |
9,000 lb |
| Lift type |
Parking Lifts |
| Voltage |
110 V |
