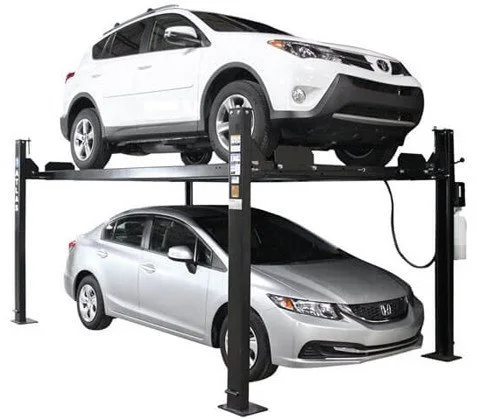

Atlas® Garage Apex 8 ALI Certified 4 Post Parking Lift 8,000 lbs
$5,199.00
Atlas® Garage Apex 8 ALI Certified 4 Post Parking Lift 8,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 8000 lb
7 in stock
Atlas® Garage Apex 8 ALI Certified 4 Post Parking Lift 8,000 lbs
Atlas® Garage Apex 8 ALI Certified 4 Post Parking Lift 8,000 lbs is part of our parking lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 8,000 lb. Capacity Accommodates a wide range of vehicles including full-size trucks, SUVs, classic cars, muscle cars, sports cars, and more.
- 4 Drip Trays Catch fluids and protect your garage floor from leaks or spills.
- Jack Tray Convenient storage for your floor jack, keeping tools organized and accessible.
- 2 Rubber Wheel Chocks Added security to prevent vehicle roll during loading and unloading.
- 4 Wheel Stops Precisely position vehicles on the runways for balanced, safe lifting.
- Steel Approach Ramps Durable, full-width ramps ensure smooth entry and exit for low-clearance vehicles.
- 1 Caster Kit with Polyurethane Wheels Mobility and flexibility for repositioning the lift as your needs change.
- ALI Certified
- 8,000 lb. Capacity
- Atlas® Powder Coat Finish
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-APEX8 |
| Condition |
New |
| Capacity |
8,000 lbs |

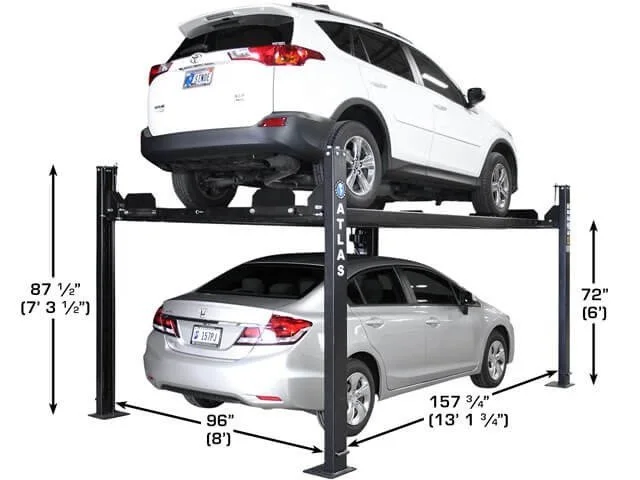

| Lifting Height To Top Of Runway |
72" (6') |

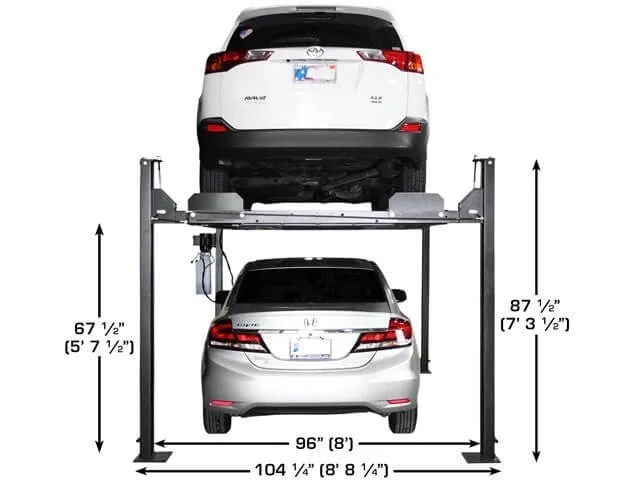

| Clearance Under Runways |
67" (5' 7") |
| Height of Columns w/Nuts |
86 5/8" (7' 2 5/8") |
| Overall Width w/ Motor |
114" (9' 6") |
| Overall Width w/o Motor & Casters |
104 1/4" (8' 8 1/4") |
| Overall Length w/Approach Ramps |
207 5/6" (17' 3 5/6") |
| Overall Length w/o Approach Ramps |
186 1/2" (15' 6 1/2") (Includes Lock Release Bar) |
| Approach Ramps |
37 1/2" (3' 1 1/2") |

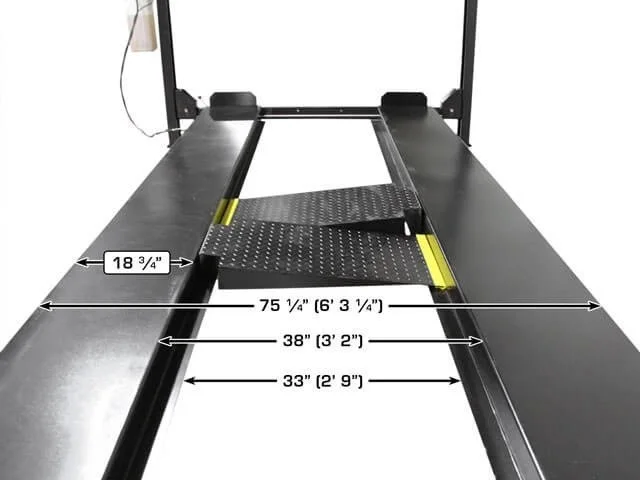

| Runway Width |
18 2/3" |
| Runway Rail Width |
2 1/2" |

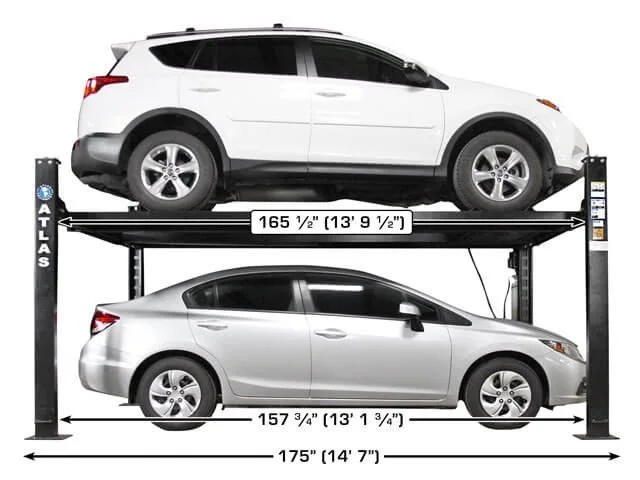

| Runway Length |
165 1/2" (13' 9 1/2") |
| Runway Thickness |
4 1/3" |
| Width Between Runways |
38" (3' 2") |

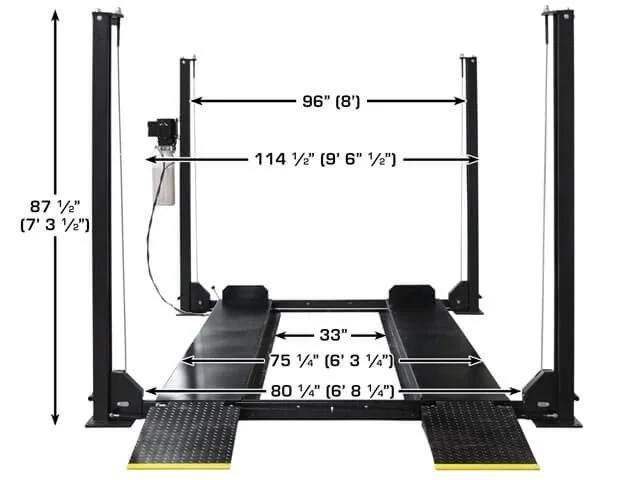

| Width Between Runway Rails |
33" (2' 9") |
| Outside Runway to Outside Runway |
75 1/4" (6' 3 1/4") |
| Clearance Between Columns |
94" (7' 10") |

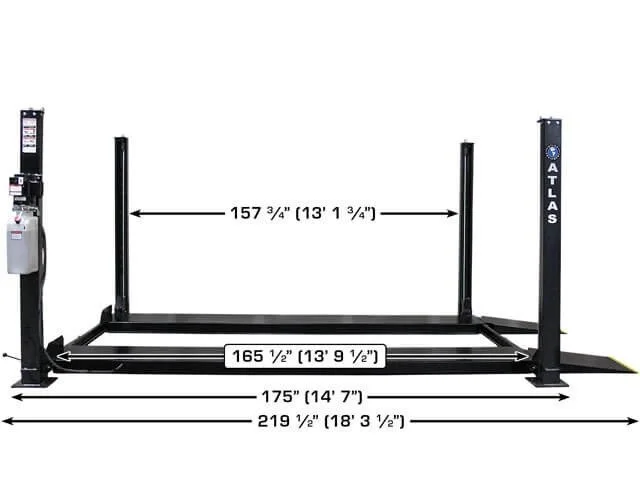

| Length Between Columns |
157 1/3" (13' 1 1/3") |
| Maximum Wheel Base |
154 (12' 9") |
| Drive Thru (Outside of tire to outside of tire) |
80 1/4" (6' 8 1/4") |

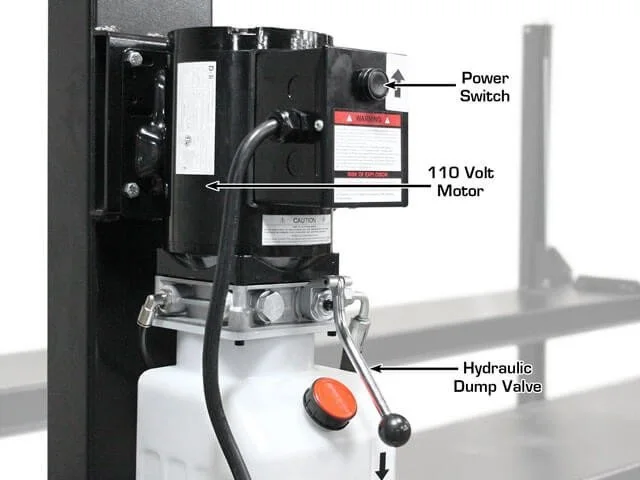

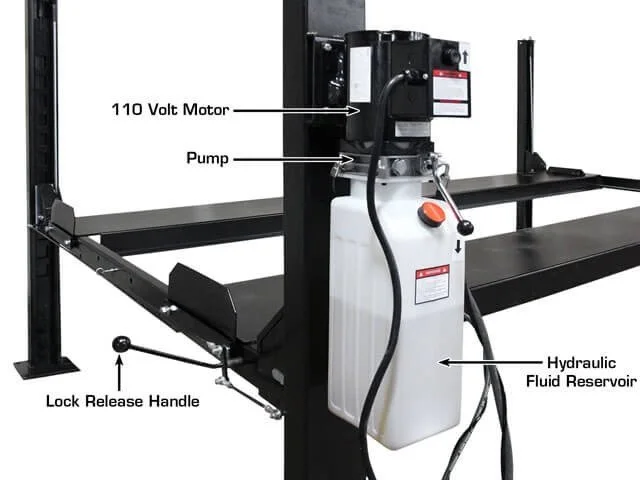

| Motor |
110 Volt, Single (1) Phase / 30 amp breaker is Recommended. |
| Oil Requirement |
2.6 Gallons AW32/AW46 (Not Included) |
| Weight |
2,000 lbs. |
| Lifting capacity |
8000 lb |
| Lift type |
Parking Lifts |
| Voltage |
110 V |
