Atlas® 414A Commercial Grade 4 Post Alignment Lift 14,000 lbs
$9,999.00
Atlas® 414A Commercial Grade 4 Post Alignment Lift 14,000 lbs is part of our alignment lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 14000 lb
9 in stock
Atlas® 414A Commercial Grade 4 Post Alignment Lift 14,000 lbs
Atlas® 414A Commercial Grade 4 Post Alignment Lift 14,000 lbs is part of our alignment lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 14,000 lb capacity handles trucks, SUVs, vans, and passenger vehicles with ease
- Integrated alignment slip plates and turntables professional alignment capability built right in

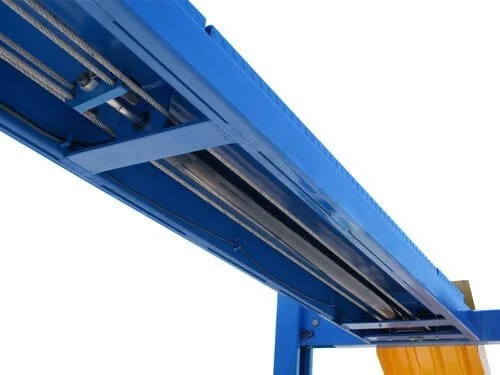

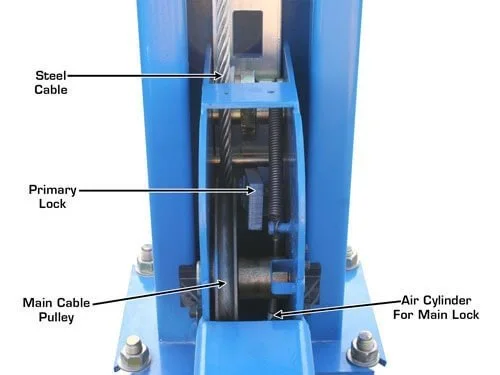

- Modern cable lift system with under-runway cylinder — smoother, safer, and more reliable than old-style chain lifts
- 80-inch lifting height provides comfortable working clearance for technicians
- Air-operated single point lock release fast, convenient operation saves time on every lift

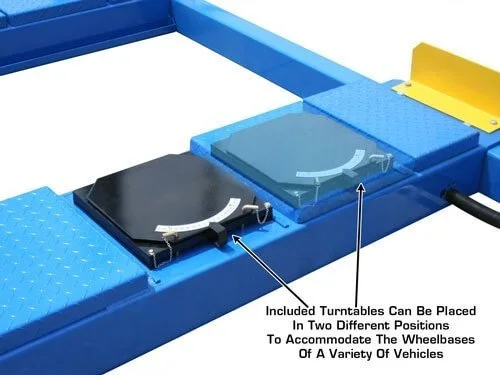

- Alignment slip plates and turntables (turntable color may vary)
- Mounting hardware everything you need for a complete installation

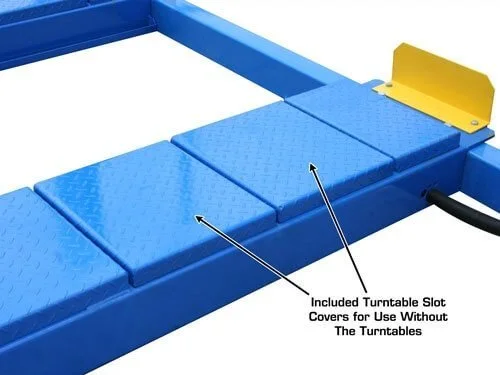

- Metal cover plates for turntable cutouts
- 14,000 lb. Capacity
- Alignment Slip Plates and Turntables
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-414AT |
| Condition |
New |
| Capacity |
14,000 lbs |
| Lifting Height |
80" (6' 8") |

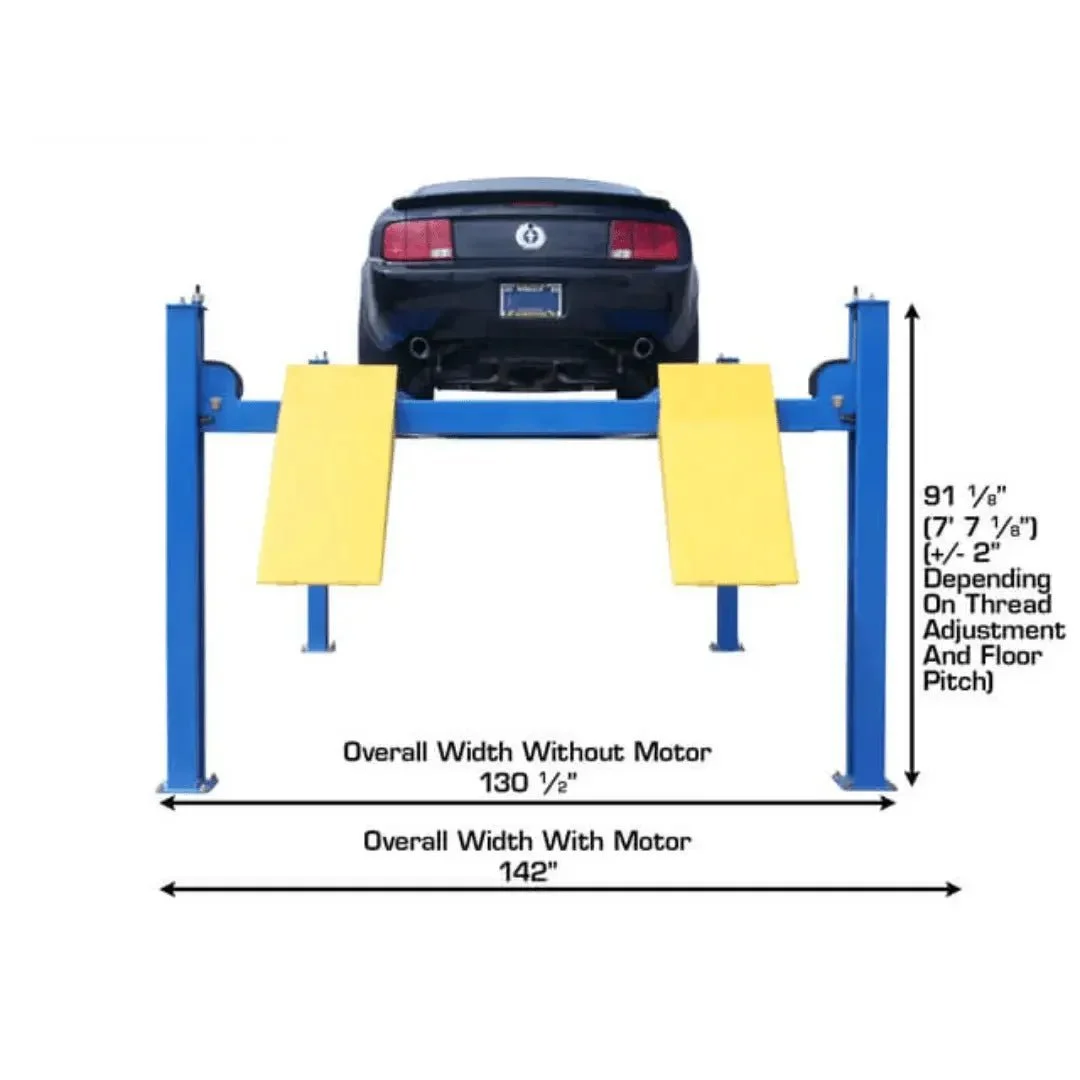

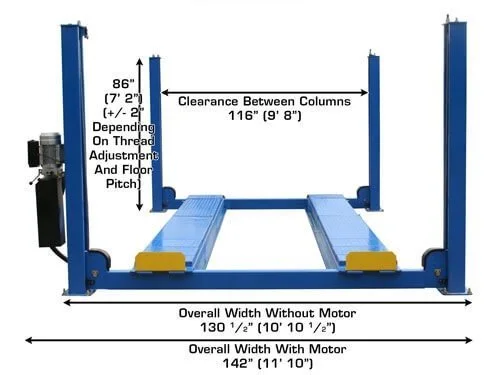

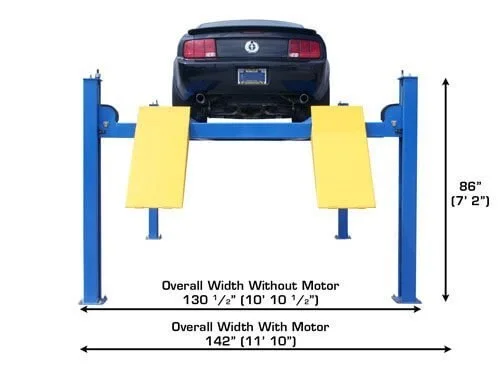

| Overall Width w/ Motor |
130 7/8" (10' 10 7/8") |
| Overall Width w/o Motor |
130 1/2" (10' 10 1/2") |
| Overall Length w/Approach Ramps |
255" (21' 3") |
| Length Between Columns |
197 1/4" (16' 5 1/4") |
| Runway Length |
208 5/8" (17' 4 5/8") |
| Runway Width |
20" |
| Thickness Of Runway |
8 3/4" |
| Width Between Runways |
46 7/8" (w/ Rail 44 3/8") |
| Outside Runway To Outside Runway |
86 7/8" (7' 2 7/8") |

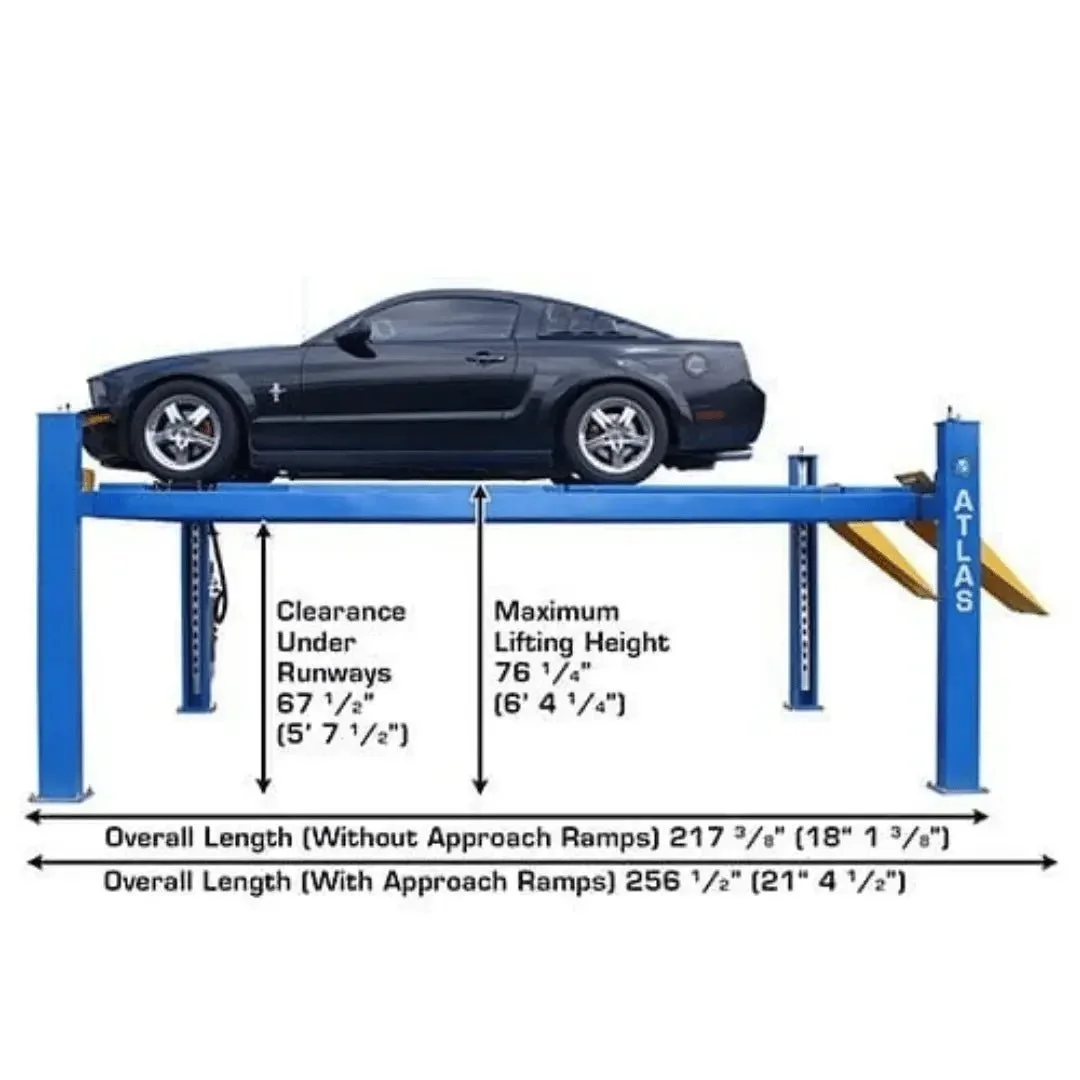

| Clearance Under Runways |
71 1/4" (5' 11 1/4") |

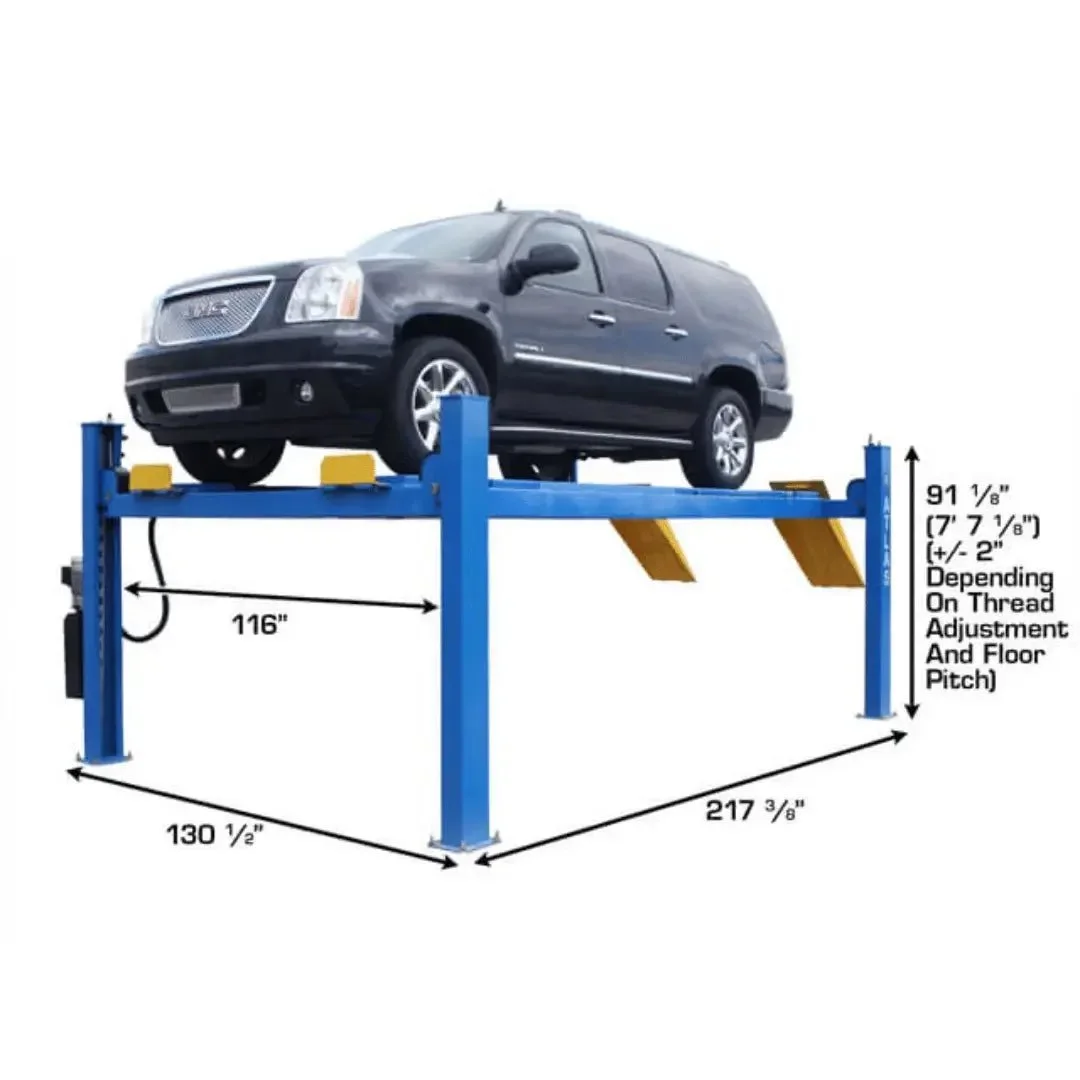

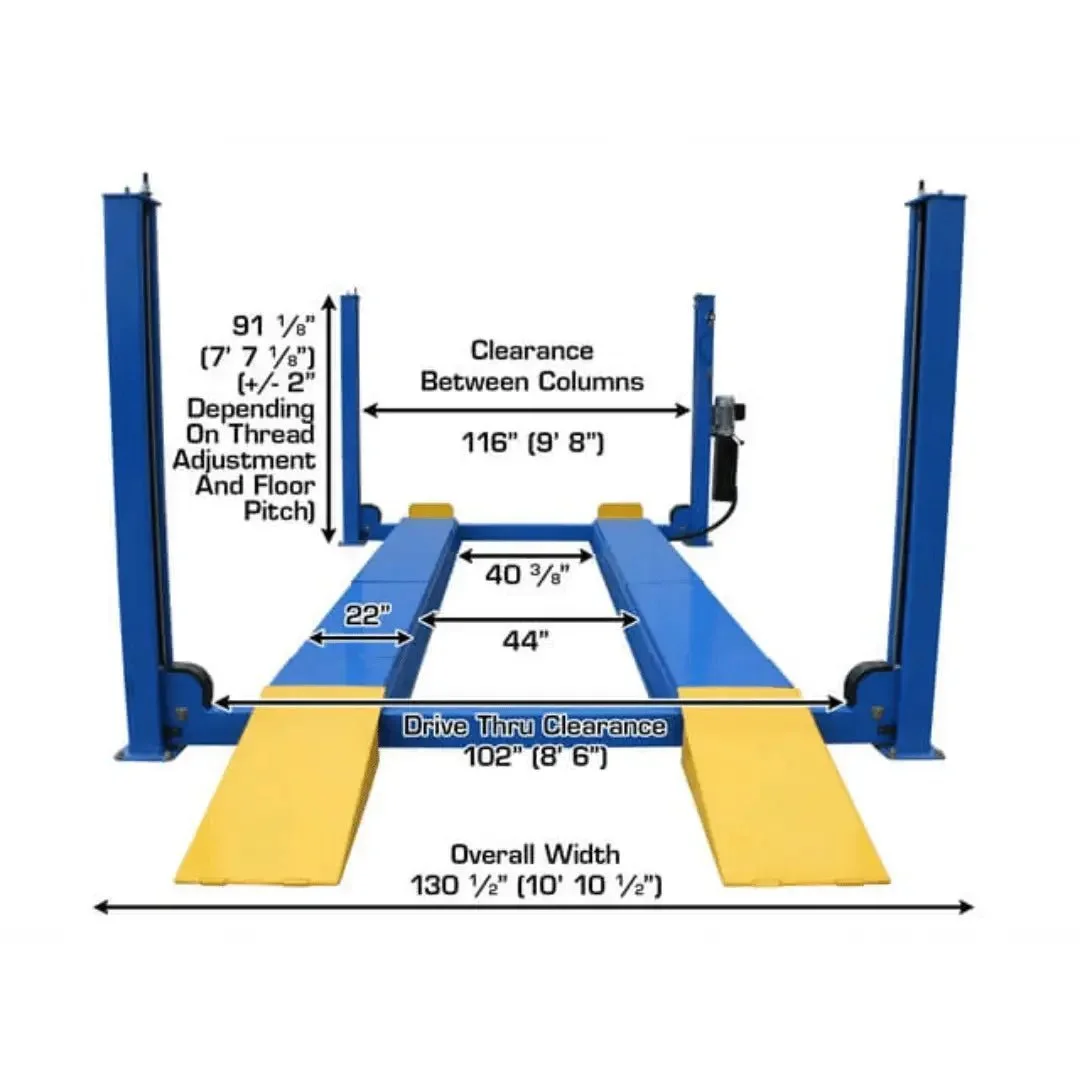

| Clearance Between Columns |
116" (9' 8") |

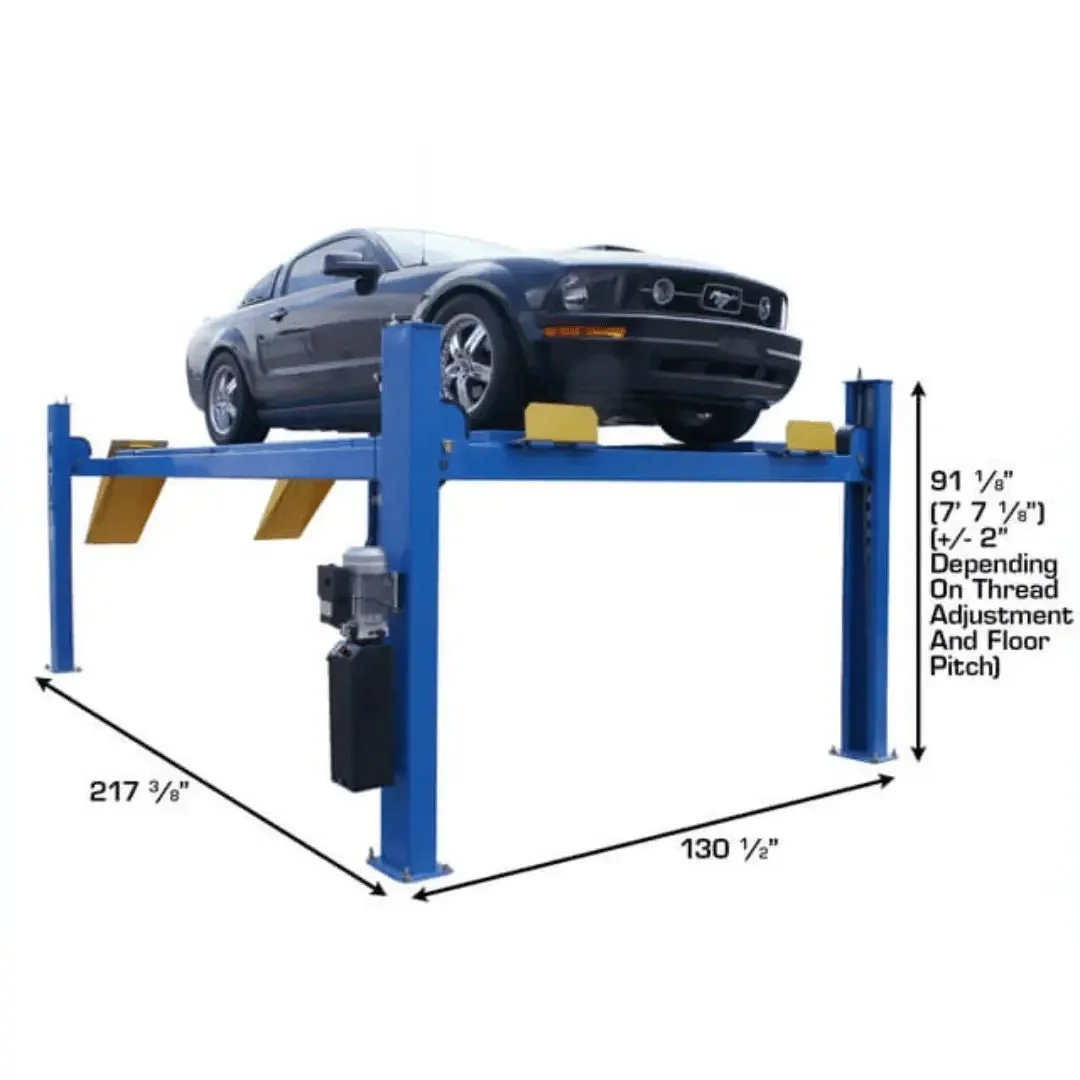

| Height Of Columns |
91 1/8" (7' 7 1/8") |
| Maximum Wheel Base |
197" (16' 5") |
| Drive Thru |
102 1/8" (8' 6 1/8") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |

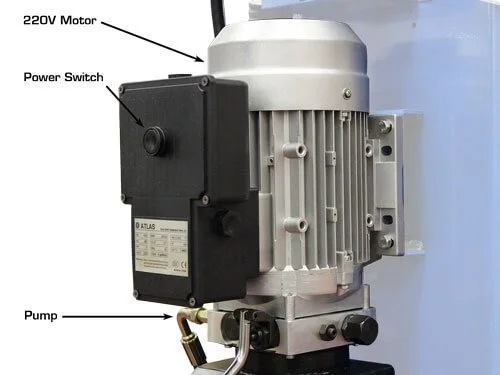

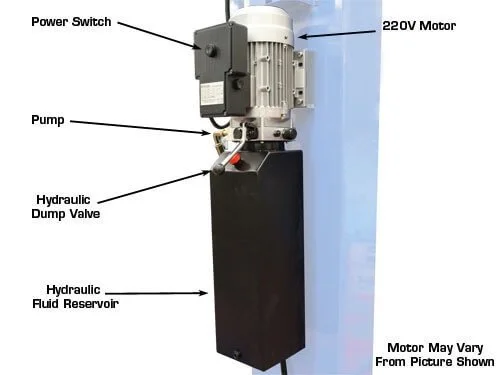

| Motor |
220V / 1 phase / 30 amp breaker is required. |
| Oil Requirement |
3-5 Gallons AW32/AW46 (Not Included) |
| Weight |
3,200 lbs |
| Lifting capacity |
14,000 lb |
| Lift type |
Alignment Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
