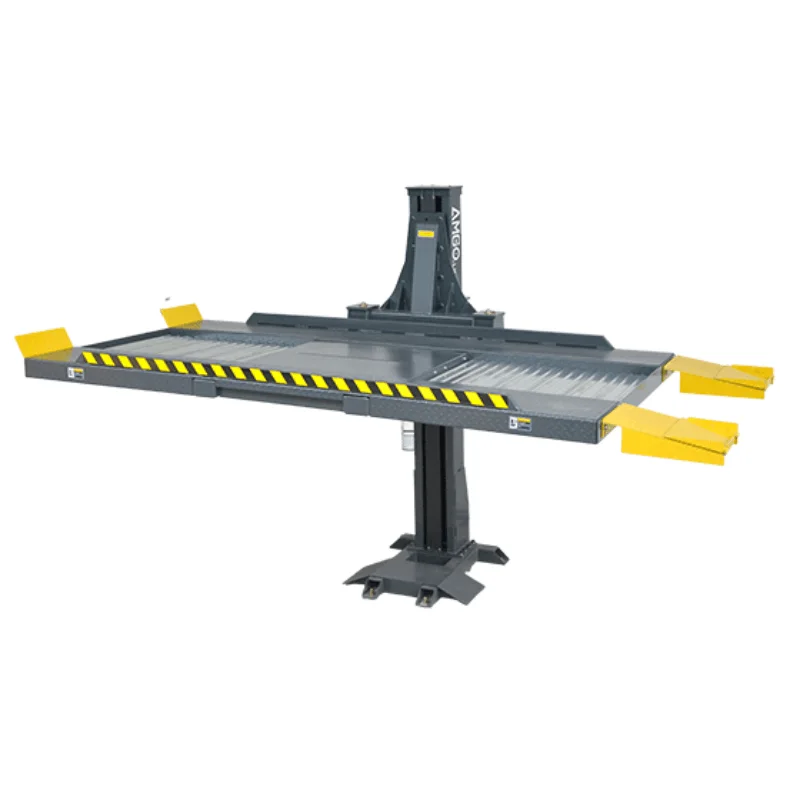

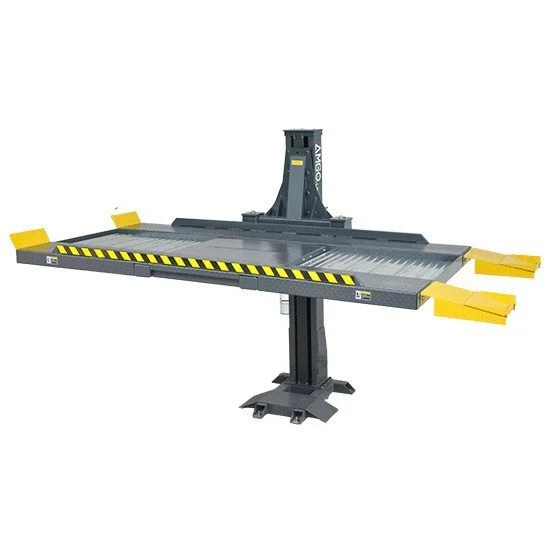

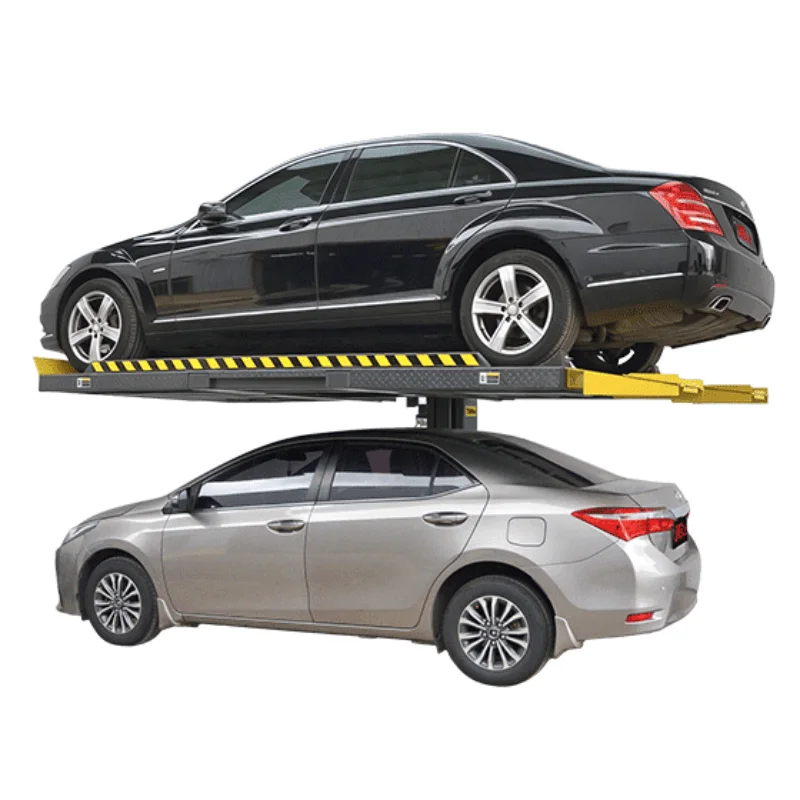

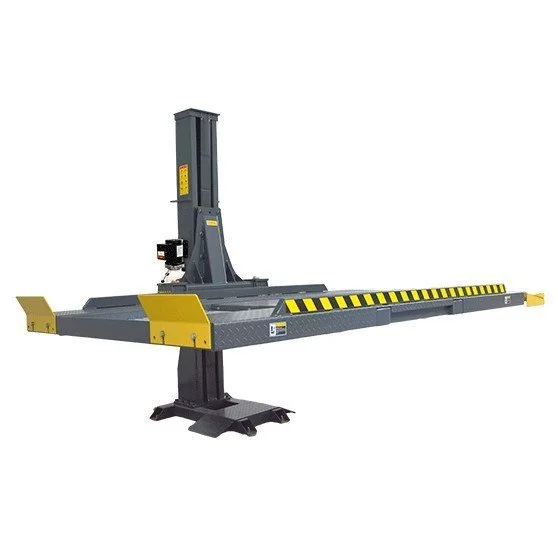

AMGO® Hydraulics SPL-7 Single Column Parking Lift 7,000 lbs
$4,500.00
AMGO® Hydraulics SPL-7 Single Column Parking Lift 7,000 lbs is part of our single-post lifts selection from AMGO Hydraulics.
- Lifting capacity: 7000 lb
9 in stock
AMGO® Hydraulics SPL-7 Single Column Parking Lift 7,000 lbs
AMGO® Hydraulics SPL-7 Single Column Parking Lift 7,000 lbs is part of our single-post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 6,000 lb capacity handles a wide range of vehicles from compact cars to full-size trucks
- Low ceiling compatibility with just 109 7/16" overall height and 74" max lifting height
- Space-saving single-column design maximizes usable floor space in your garage

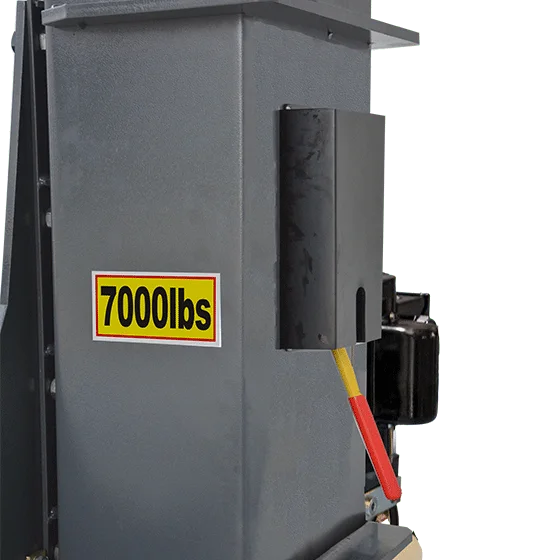

- ETL certified power unit for verified safety and reliable performance
- H-shaped platform with reinforced column ensures structural integrity and long-term durability
- 7,000 lb. lifting capacity
- Commercial-grade reinforced construction designed for professional shops and home garages
- Space-saving design compatible with ceilings as low as 110"
- Dual safety devices with single-point lock release system — no air source required

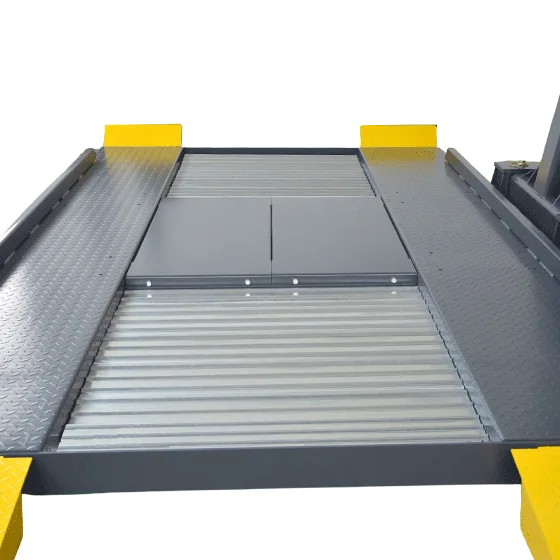

- Interchangeable H-shaped non-slip platforms for added versatility
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
SPL-7 |
| Condition |
New |
| Lifting Capacity |
7,000 lbs |
| A Overall Height |
109 7/16" |
| B Max. Lifting Height |
74" |
| B Max. Lock Height to Top of Runway |
70 3/16" |
| C Max. Height Underneath Runway |
69 5/16" |
| C Max. Lock Height Underneath Runway |
65 1/2" |
| D Minimum Height |
6 1/8" |
| E Overall Width |
111" |
| F Width Between Runways |
42 3/8" |
| G Overall Length |
192 1/8" |
| H Drive-Thru Clearance |
79 1/4" |
| Lift Time |
84s |
| Motor |
1.0HP, 110V / 60Hz |
| Gross Weight |
3,241 lbs |
| Lifting capacity |
7000 lb |
| Lift type |
Parking Lifts ,Single-Post Lifts |
| Voltage |
110 V |
