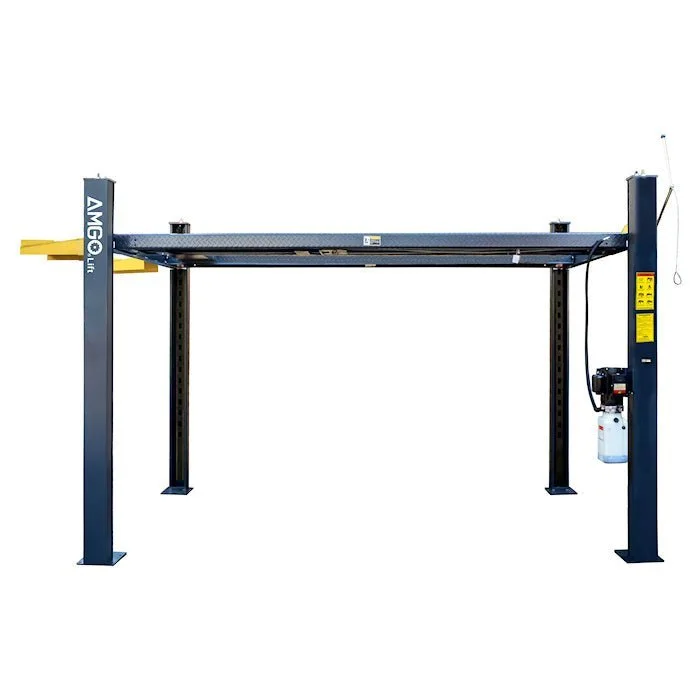

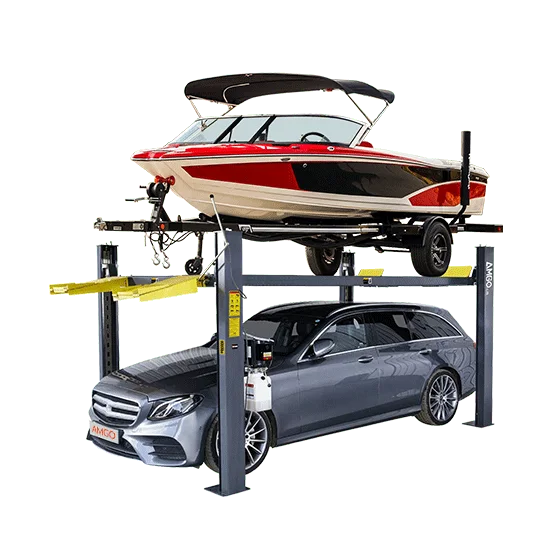

AMGO® Hydraulics 409-HPX 9,000 lbs Boat Storage 4 Post Lift w/Ex. Height
$4,980.00
AMGO® Hydraulics 409-HPX 9,000 lbs Boat Storage 4 Post Lift w/Ex. Height is part of our parking lifts selection from AMGO Hydraulics.
- Lifting capacity: 9000 lb
13 in stock
AMGO® Hydraulics 409-HPX 9,000 lbs Boat Storage 4 Post Lift w/Ex. Height
AMGO® Hydraulics 409-HPX 9,000 lbs Boat Storage 4 Post Lift w/Ex. Height is part of our parking lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Fast and Efficient Operation: Powered by a 2.0 HP, 220V motor, the lift raises your boat to full height in just 57 seconds.
- 9,000lbs Lifting capacity

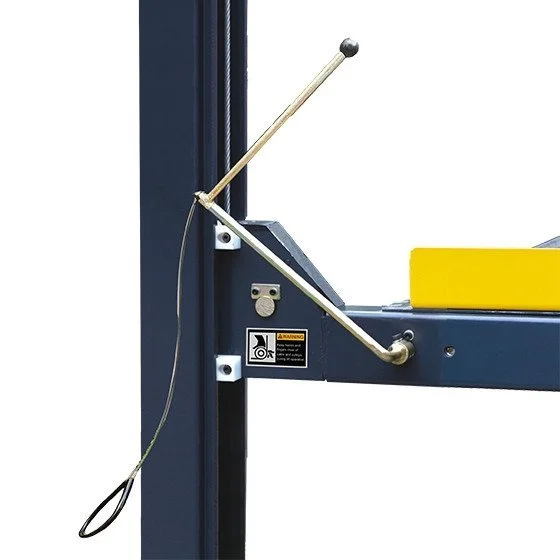

- AMGO’s proprietary concealed lock-control device with a manual single-point release (no air source required)

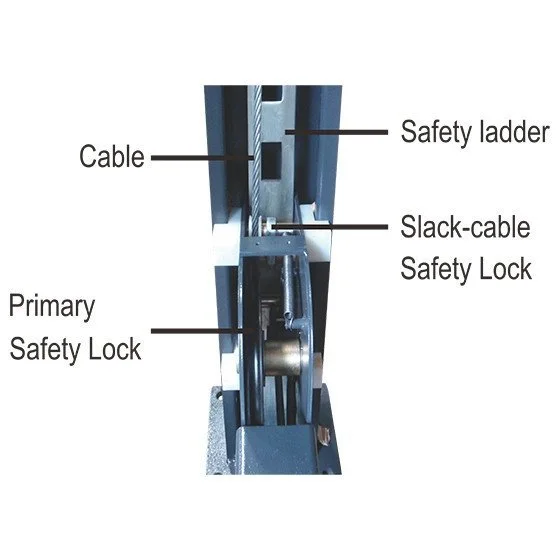

- Dual safety mechanisms with primary safety locks and cable-slack protection
- Integrated non-skid diamond platforms

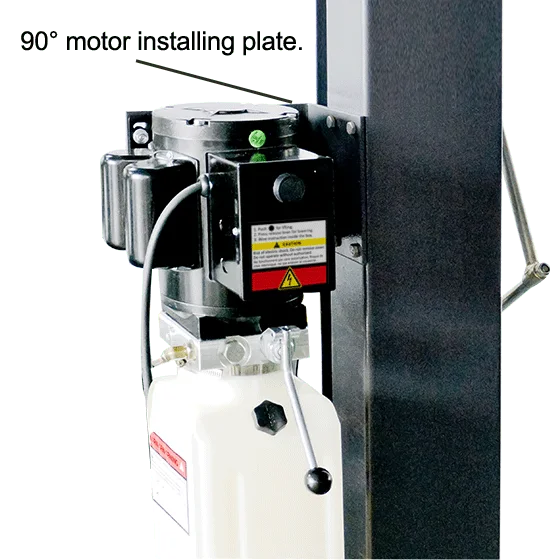

- Flexible installation with the power unit mountable at any corner

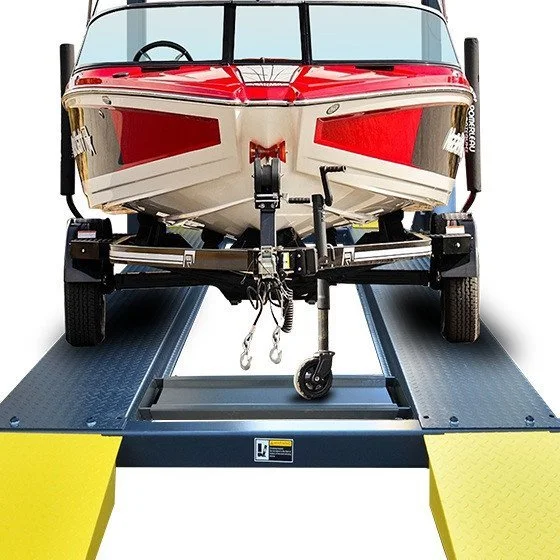

- Two-widths setting platforms accommodates various trailers

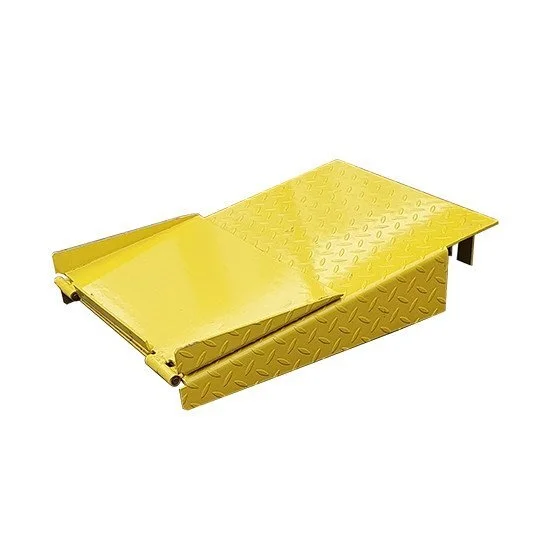

- Standard foldable drive-in ramps
- ETL certified Power unit
- 16" more in length than 408-HPX, is ideal for longer boats.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
409-HPX-V001 |
| Condition |
New |
| Lifting Capacity |
9,000 lbs |
| A Overall Length w/Ramp |
238 1/8" |
| B Overall Length w/o Ramp |
204 11/16" |
| C Overall Width |
131 7/8" |
| D Width Between Columns |
122 3/16" |
| E Max Lifting Height |
88 1/16" |
| E Max Lock Height |
85 5/16" |
| F Overall Height |
96 5/8" |
| G Minimum Height |
6 1/8" |
| H Max. Underneath Height |
82 9/16" |
| H Max. Lock Underneath Height |
79 13/16" |
| I Drive-Thru Clearance |
111" |
| J Width Between Runways |
46 1/2" – 64 15/16" |
| K Outside Edge of Runways |
86 1/2" – 104 15/16" |
| Lifting Time |
57s |
| Motor |
2.0HP,220V/60Hz |
| Shipping Weight |
2,061 lbs |
| Lifting capacity |
9,000 lb |
| Lift type |
Parking Lifts |
| Voltage |
220 V |
