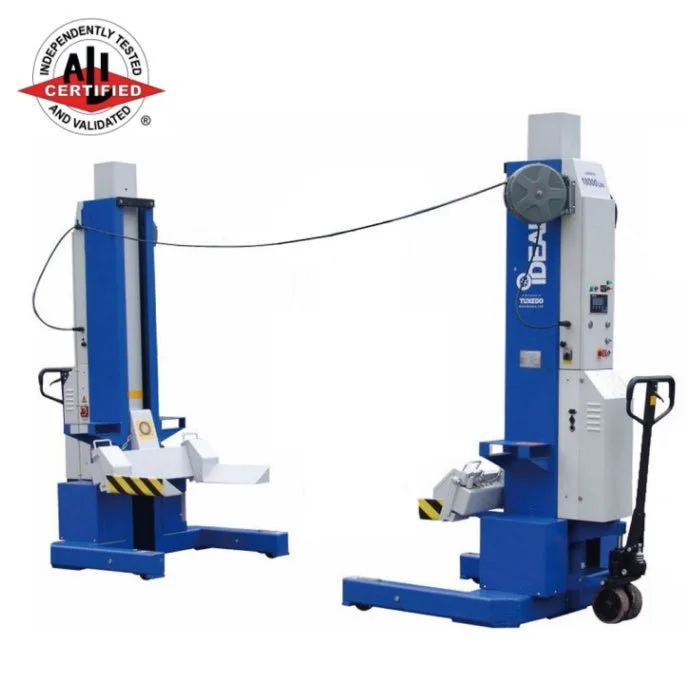

iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2)
$22,510.00
iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2) is part of our mobile column lifts selection from iDeal Lift.
- Lifting capacity: 18000 lb
8 in stock
iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2)
iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2) is part of our mobile column lifts selection from iDeal Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 18,000 lbs. capacity per column 36,000 lbs. total capacity for this 2-column set (also available in 4 or 6-column configurations)
- Mobile battery-powered design with 24VDC operation and onboard charging eliminates hardwired electrical requirements
- ALI-certified for safety and reliability, with independent mechanical locking and emergency stops at each column
- PLC and optical encoder synchronization ensures precise, safe lifting across all columns with continuous monitoring

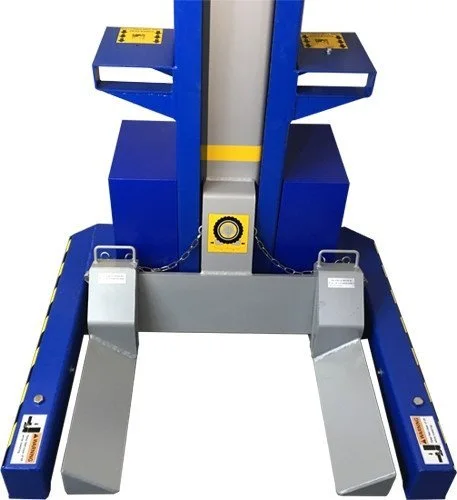

- Adjustable lifting forks (12.6" – 22") accommodate a wide range of wheel diameters for maximum versatility
- 18,000 lb lifting capacity per column. 2 Columns total capacity 36,000 lbs

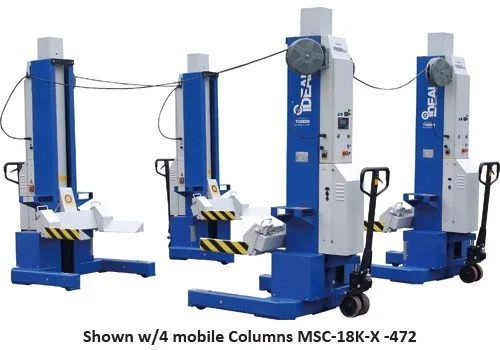

- Sold in Sets of 2 (MSC-18K-X-236), 4 (MSC-18K-X-472) or 6 (MSC-18K-X-6108)
- 24VDC Battery Operation with Onboard Charging System Batteries are NOT Included
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
iDeal Lift |
|---|---|
| MPN / Model |
MSC-18K-X-236 |
| Condition |
New |
| Capacity Per Column |
18,000 lbs. |
| Lifting Height |
67.1" |
| Column Height |
Min 88.6" / Max 155.5" |
| Column Width |
44.1" |
| Fork Adjustable Range |
12.6" – 22" |
| Fork Length |
17.9" |
| Fork to Column Clearance |
10" |
| Lifting / Lowering Time |
100 seconds / 60 sec at load of 18,000 lbs each column |
| Max Distance Betwwen Columns |
32' 8" |
| Min Concrete Surface Strength |
3,000 Psi |
| Set-Up Operation |
Indoor |
| Charging Voltage Input |
100-140 V / 6oHz / Single Phase |
| Charging Voltage Output |
24VDC, Max 15 Amp |
| *Battery Type (Recommended) |
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 |
| Battery (Not Included) Specifications |
MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries |
Type 27 or 31 Series |
| Requirement Voltage Per Column |
Qty 2 12V or Qty 1 24V |
| Rating |
120 AMP / HR |
| Starting Current |
350 CCA – 500 CCA |
| Battery Cover Size |
14.56" x 8.27" x 13" |
| Battery Dimension |
14.2" x 7.5" x 11.8" Tall Max |
| Lifting capacity |
18,000 lb |
| Lift type |
Mobile Column Lifts |
