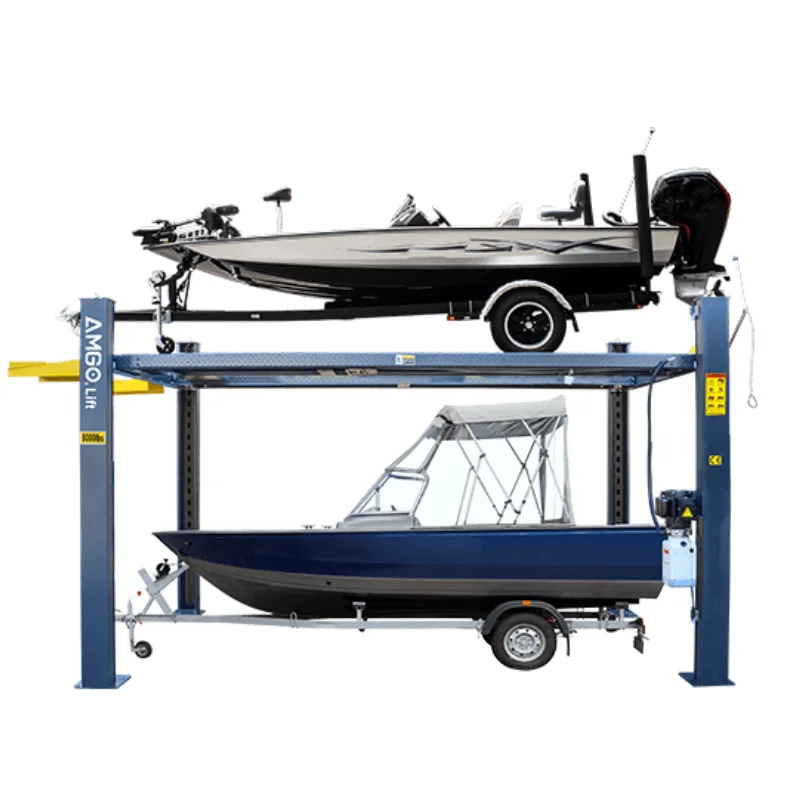

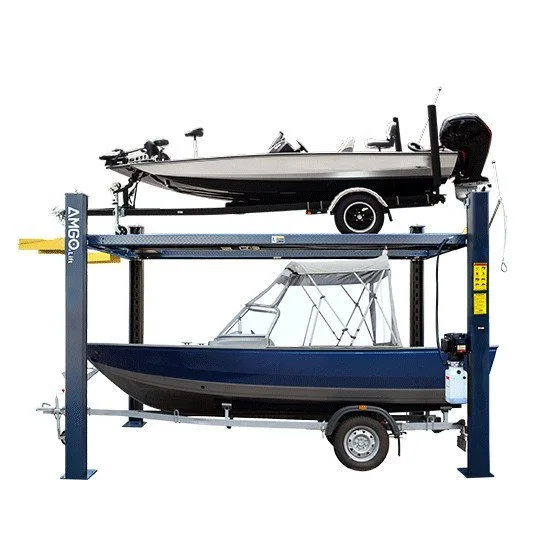

Hydraulics 408HLX 8,000 lbs Ex-Height Boat Storage Lift
$4,688.00
Hydraulics 408HLX 8,000 lbs Ex-Height Boat Storage Lift is part of our parking lifts selection from AMGO Hydraulics.
- Lifting capacity: 8000 lb
8 in stock
Hydraulics 408HLX 8,000 lbs Ex-Height Boat Storage Lift
Hydraulics 408HLX 8,000 lbs Ex-Height Boat Storage Lift is part of our parking lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 8,000 lbs Lifting capacity

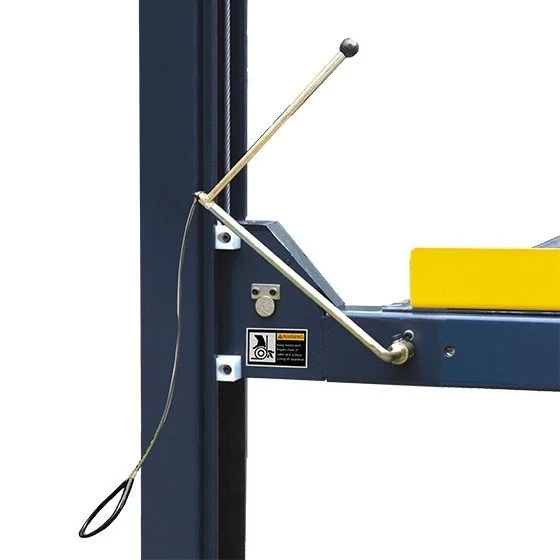

- AMGO’s proprietary concealed lock-control device with a manual single-point release (no air source required)

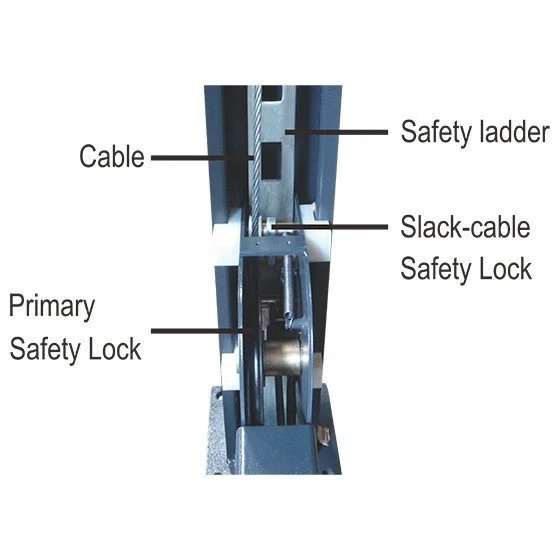

- Dual safety mechanisms with primary safety locks and cable-slack protection

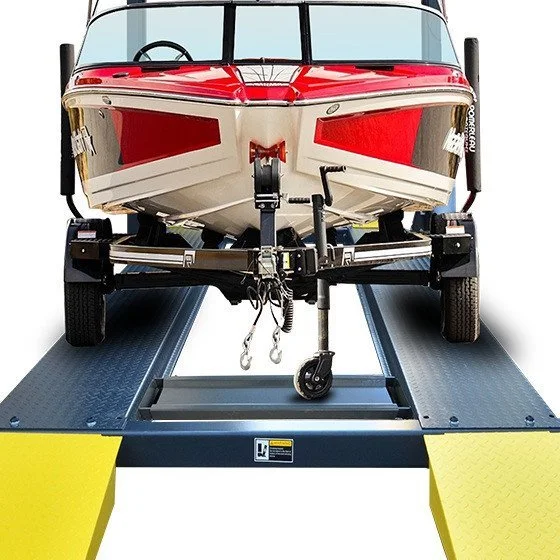

- Integrated non-skid diamond platforms
- Flexible installation with the power unit mountable at any corner
- Two-widths setting platforms accommodates various trailers, 42 3/8" ~ 66 1/4

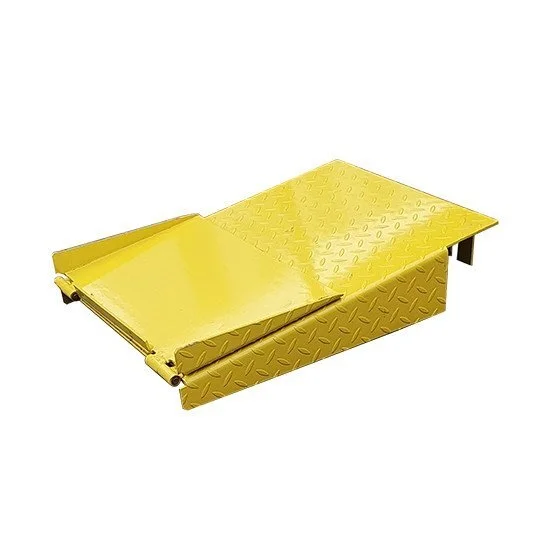

- Set of 2 foldable drive-on ramps

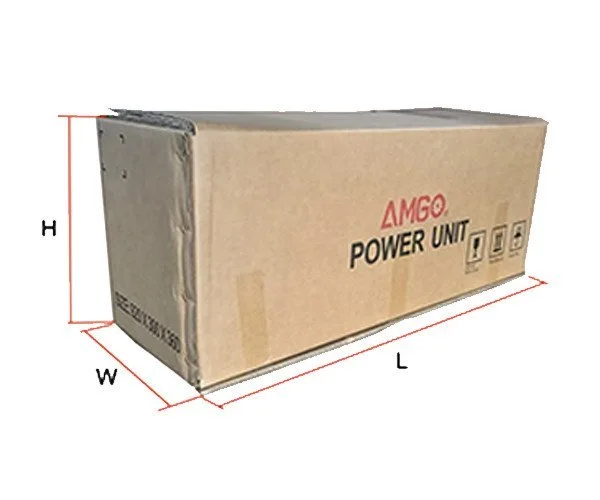

- ETL certified Power unit

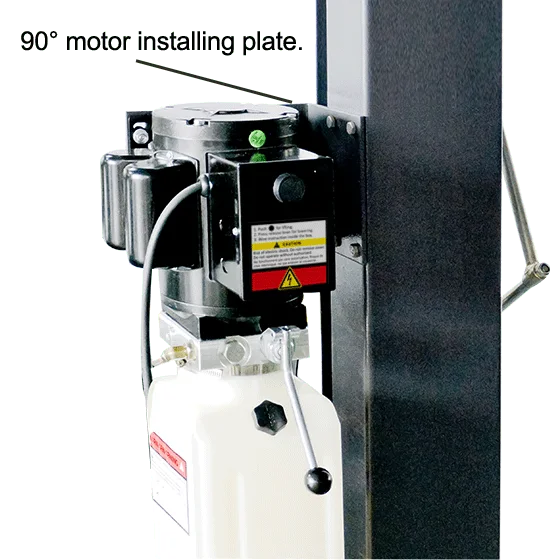

- Standard 90° motor installing plate
- 15 3/4" higher than 408-HPX, ideal for boats with extremely height
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
408HLX |
| Condition |
New |
| Lifting Capacity |
8,000 lbs |
| A Overall Length w/Ramp |
222 1/8" |
| B Overall Length w/o Ramp |
188 9/16" |
| C Overall Width |
131 7/8" |
| D Width Between Columns |
122 3/16" |
| E Max Lifting Height |
104 11/16" |
| E Max Lock Height |
101 15/16" |
| F Overall Height |
113" |
| G Minimum Height |
5 11/16" |
| H Max. Underneath Height |
99 15/16" |
| H Max. Lock Underneath Height |
97 3/16" |
| I Drive-Thru Clearance |
111" |
| J Width Between Runways |
46 1/2" (Narrow) – 66 3/8" (Wide) |
| K Outside Edge of Runways |
83 7/8" (Narrow) – 103 3/4" (Wide) |
| Lifting Time |
54s |
| Motor |
2.0HP, 220V/60Hz |
| Shipping Weight |
1,726 lbs |
| Lifting capacity |
8000 lb |
| Lift type |
Parking Lifts |
| Voltage |
220 V |
