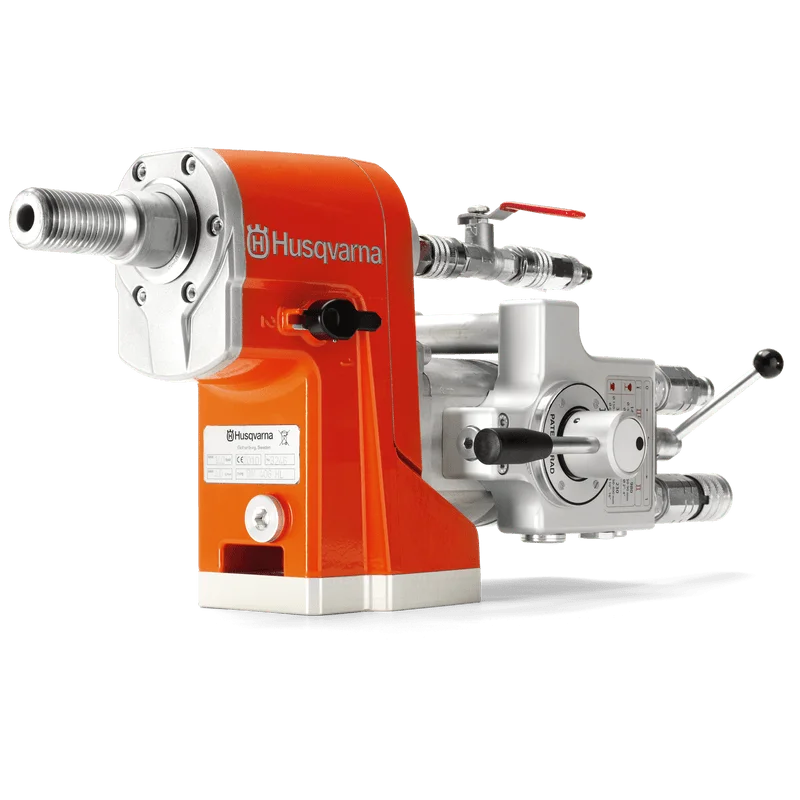

Husqvarna DM 406 H | Core Drill Motor
$9,813.92
Husqvarna DM 406 H | Core Drill Motor is part of our core drill motors selection from Husqvarna Construction.
- Equipment type: Core Drill
9 in stock
Husqvarna DM 406 H | Core Drill Motor
Husqvarna DM 406 H | Core Drill Motor is part of our core drill motors selection from Husqvarna Construction.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 25.6" drilling or boring capacity for selecting the right bit and setup
- 340 rpm speed range or gearbox detail supports bit-size control
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
- Site utility or fuel: Hydraulic
- Handling reference: 35 lbs
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Husqvarna Construction |
|---|---|
| Equipment type |
Core Drill |
| Recommended Bit Diameter |
1.97" – 25.6" |
| Tool Mount |
Rig-Mounted |
| Wet/Dry Use |
Wet |
| Illustrated part list |
Illustrated part list DM406, Husqvarna, EN, 2007-17 PDF ANY DM406 H, DM 406 H, Machine No. 3256 and forward, 2010-26 PDF ANY |
| WASHER QUICK RELEASE/COPPER D |
SKU: 543052878 |
| Rated input power |
125 hp |
| Drill bit diameter with stand, max |
25.6 in |
| Recommended drill bit diameter, min |
1.97 in |
| Drill bit diameter, max |
26 in |
| Coolant |
Wet |
| Number of gearbox speeds |
2 |
| Spindle speed unloaded gear 1 |
340 rpm |
| Spindle speed unloaded gear 2 |
1,400 rpm |
| Water connector |
R 1 / 2" |
| Water pressure, max |
116 psi |
| Spindle thread, outer |
1 1/4" 7 UNC |
| Hydraulic pressure, max |
2,030 psi |
| Product size length |
10.2 in |
| Product size width |
8.3 in |
| Product size height |
20.5 in |
| Weight |
35 lbs |
| Packaging length (Calc) |
22.047 in |
| Packaging width (Calc) |
9.055 in |
| Packaging height (Calc) |
15.551 in |
| Article gross weight (Calc) |
46.297 lbs |
| Sound power level, guaranteed (LWA) |
113 dB(A) |
| Sound power level, measured |
112 dB(A) |
| Sound pressure level at operators ear |
98 dB(A) |
| Warranty |
2 year limited |
| Store Title |
Husqvarna DM 406 H |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Hydraulic |
| Drilling diameter |
25.6 in |
