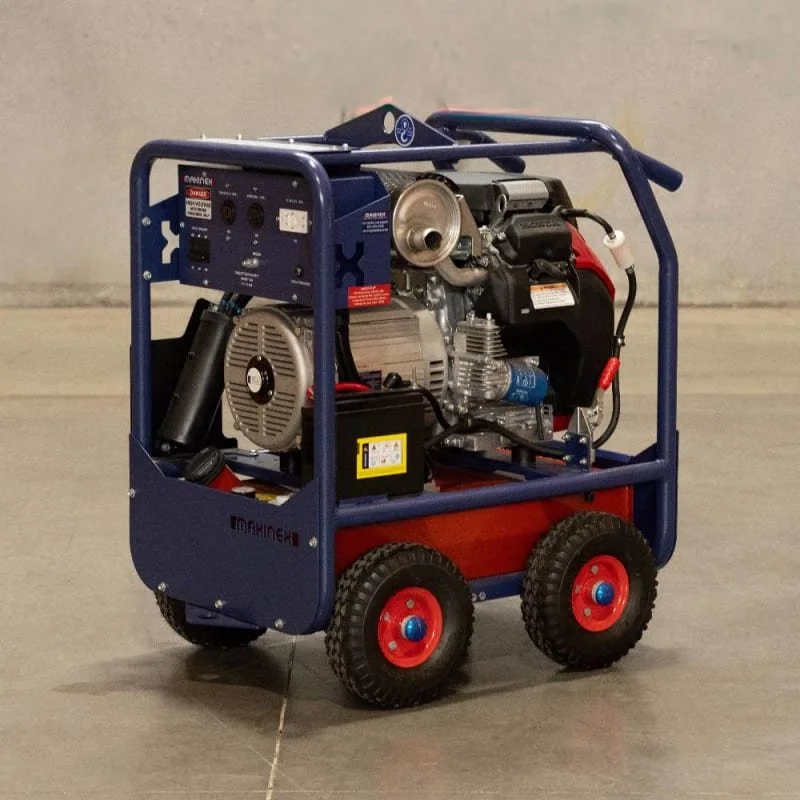

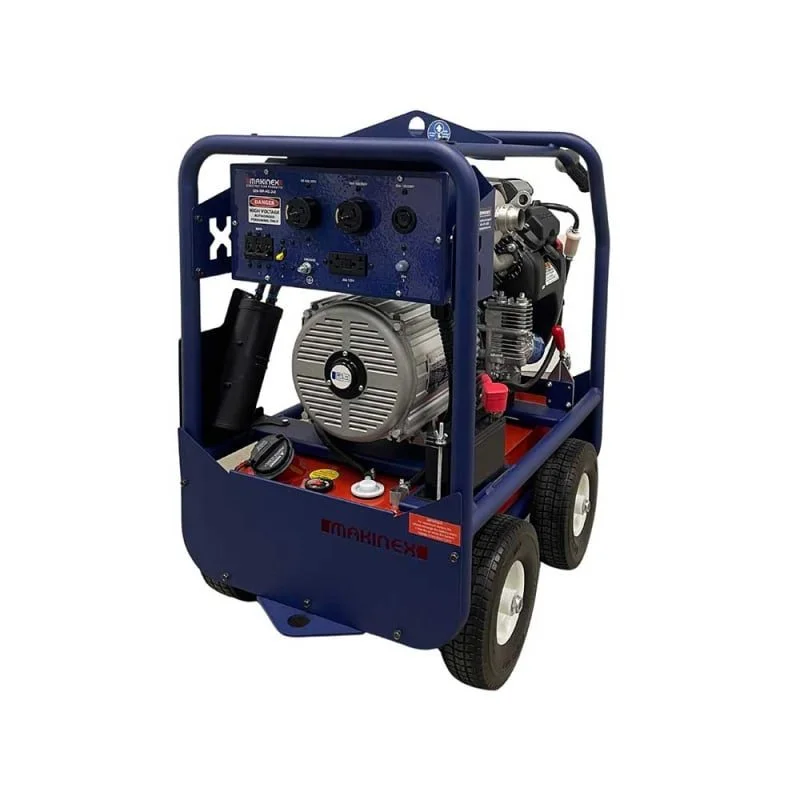

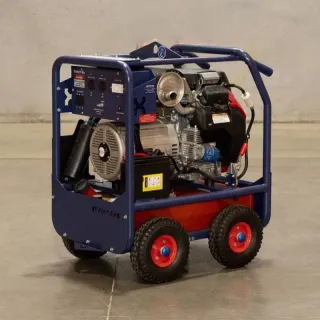

Generator 16kW | Honda | 480V USA-Spec
$10,797.00
Generator 16kW | Honda | 480V USA-Spec is part of our generators selection from Makinex.
- Voltage: 110V single phase; 480V three phase
8 in stock
Generator 16kW | Honda | 480V USA-Spec
Generator 16kW | Honda | 480V USA-Spec is part of our generators selection from Makinex.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details

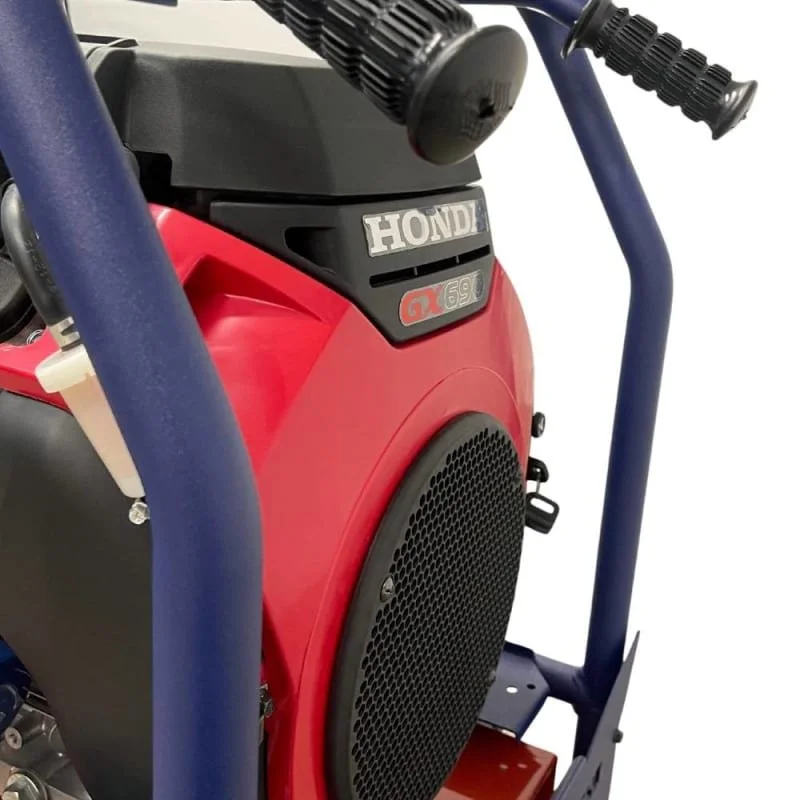

- Honda GX690 engine gives contractors a widely supported commercial engine platform.
- Dual-phase output can support 480V three-phase and 110V single-phase equipment.
- 342 lb dry weight is portable compared with larger towable generator options.
- Radial flux alternator helps deliver usable power in a smaller frame.
- CARB-compliant listing supports use across all 50 states.
- RCD and RCBO protection are highlighted by Makinex for user and equipment safety.
- Site utility or fuel: 110V single phase; 480V three phase
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Makinex |
|---|---|
| Manufacturer Product Code |
GEN-16P-MS-480 |
| Equipment Type |
Portable dual-phase gasoline generator |
| Output Class |
16 kW |
| Voltage |
110 V single phase; 480 V three phase |
| Frequency |
60 Hz |
| Three-Phase Power |
Max 13 kW / continuous 11.5 kW per current Makinex page |
| Single-Phase Auxiliary Power |
Max 2.2 kW / continuous 2 kW |
| Three-Phase Current |
Max 16.9 A / continuous 15 A |
| Single-Phase Current |
Max 30 A / continuous 30 A |
| Engine Type |
Twin-cylinder air-cooled petrol |
| Engine Model |
Honda GX690 |
| Displacement |
688 cc |
| Starting System |
Electric key start |
| Fuel Economy |
0.92 gal/hr at 50% load |
| Fuel Tank |
9.0 gal |
| Noise Level |
72 dB no-load at 7 m |
| Dry Weight |
342 lb |
| Dimensions |
30.4 x 20.8 x 35.5 in |
| CARB Compliance |
50-state CARB compliant per Makinex page |
| Warranty |
1-year warranty listed by Makinex |
| Phase |
Single phase ,Three phase |
