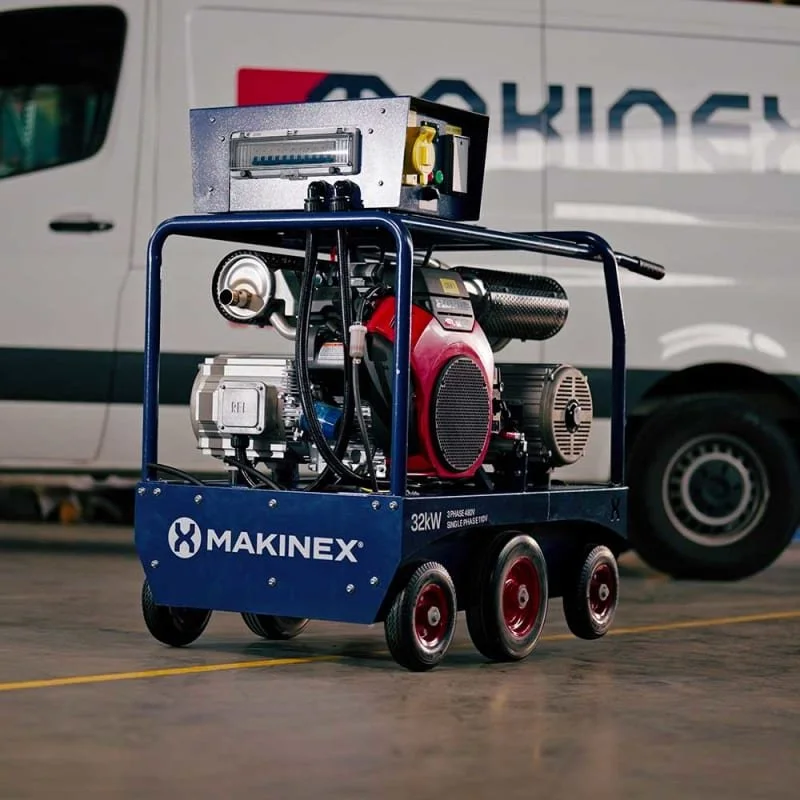

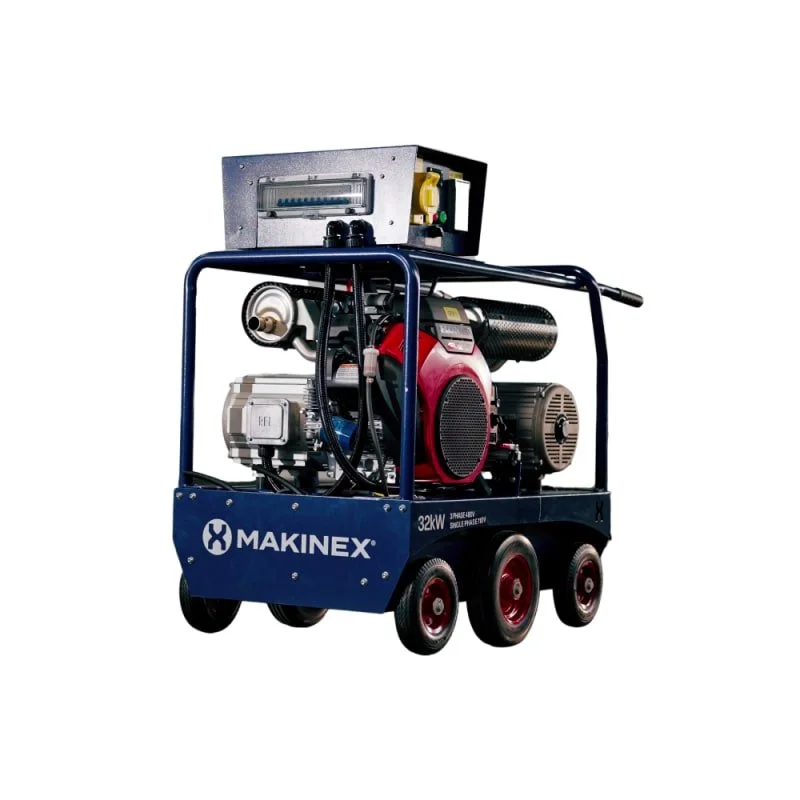

Generator 32kW | Honda | 480V USA-Spec
$23,997.00
Generator 32kW | Honda | 480V USA-Spec is part of our generators selection from Makinex.
- Voltage: 110V single phase; 480V three phase
13 in stock
Generator 32kW | Honda | 480V USA-Spec
Generator 32kW | Honda | 480V USA-Spec is part of our generators selection from Makinex.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- Compact 480V three-phase generator class built for concrete and flooring crews.

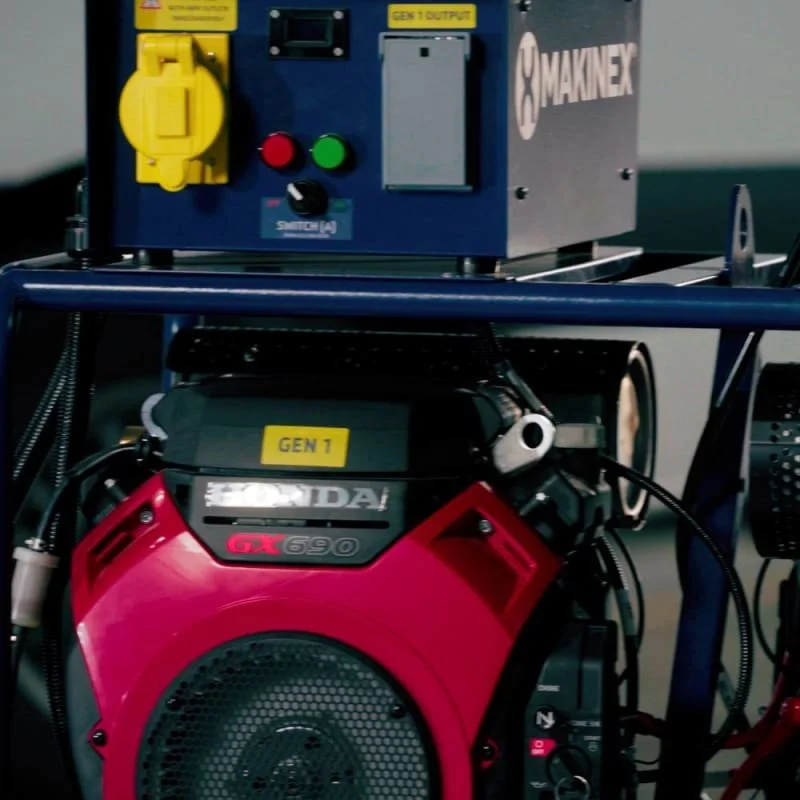

- Dual Honda GX690 engines support high-output portable power without a tow-behind format.
- Independent single-phase auxiliary and 480V three-phase output can run mixed loads.
- Radial flux alternator technology is designed to improve usable output from the engine package.
- Large 13.2 gal tank supports commercial jobsite run time.
- 772 lb dry weight is significant but compact versus towable generator setups.
- Site utility or fuel: 110V single phase; 480V three phase
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Makinex |
|---|---|
| Manufacturer Product Code |
GEN-32P-US-V2 |
| Equipment Type |
Portable dual-phase gasoline generator |
| Output Class |
32 kW |
| Voltage |
110 V single phase; 480 V three phase |
| Frequency |
60 Hz |
| Three-Phase Power |
Max 28 kW / continuous 25.2 kW |
| Single-Phase Auxiliary Power |
Max 2.2 kW / continuous 2 kW |
| Three-Phase Current |
Max 33.8 A / continuous 30.55 A |
| Single-Phase Current |
Max 20 A / continuous 18 A |
| Engine Type |
Twin-cylinder air-cooled petrol |
| Engine Model |
Honda GX690 x 2 |
| Displacement |
1,376 cc |
| Starting System |
Electric key start |
| Fuel Economy |
2.6 gal/hr at 50% load |
| Fuel Tank |
13.2 gal |
| Noise Level |
72-76 dB at 7 m |
| Dry Weight |
772 lb |
| Dimensions |
43 x 24.8 x 40.3 in |
| Warranty |
1-year Makinex warranty listed on generator pages |
| Phase |
Single phase ,Three phase |
