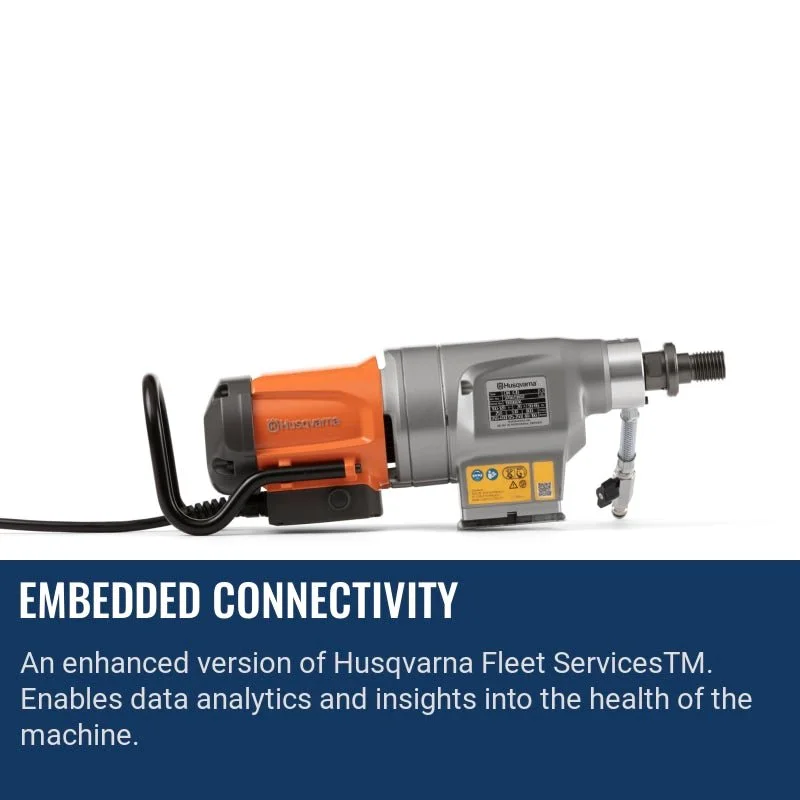

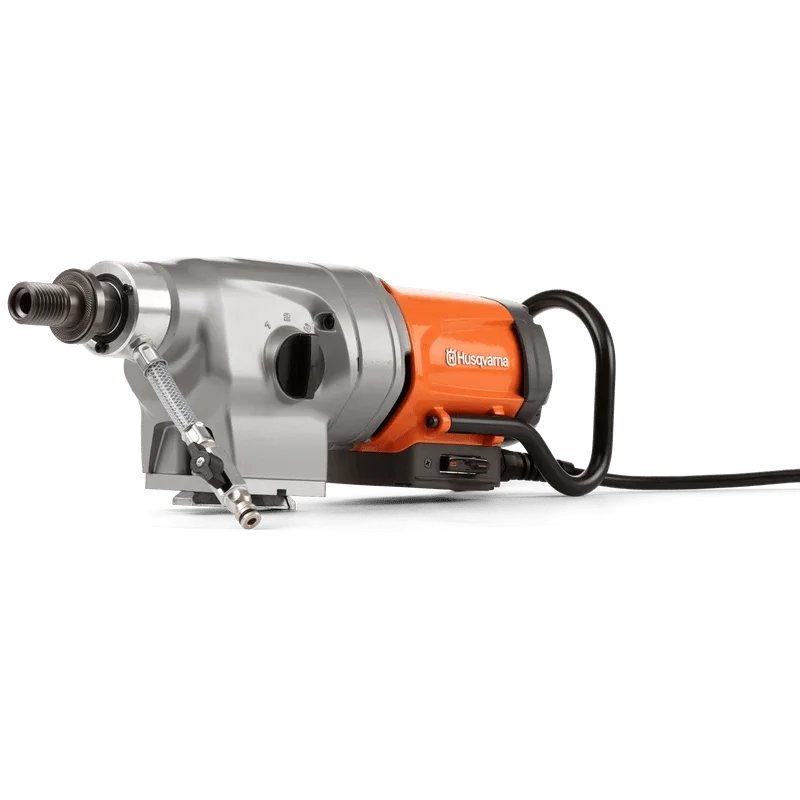

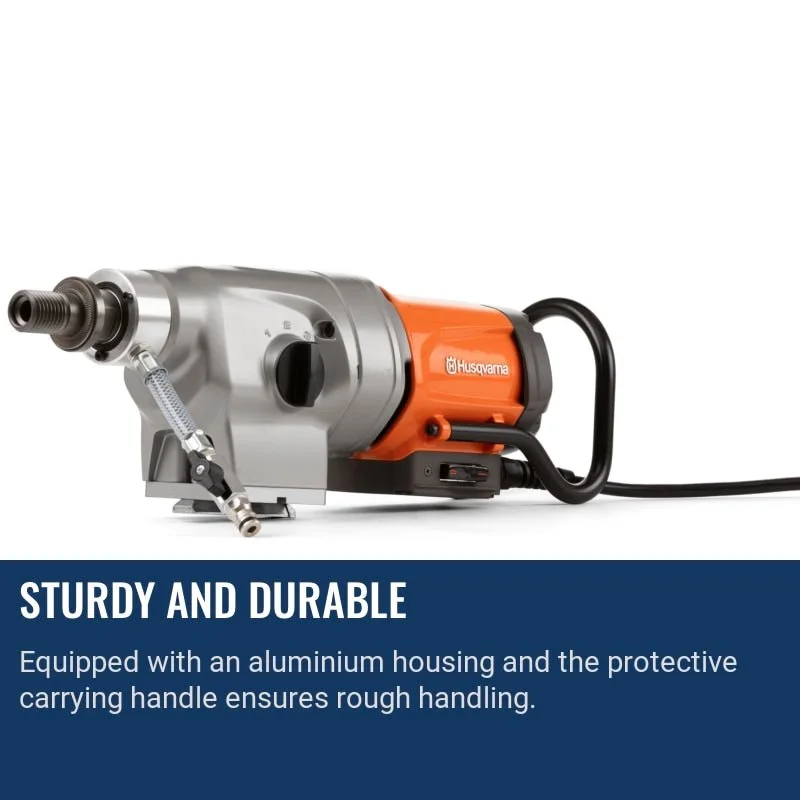

Husqvarna DM 430 | Core Drill Motor
$4,065.75
Husqvarna DM 430 | Core Drill Motor is part of our core drill motors selection from Husqvarna Construction.
- Voltage: 100-120 V
- Equipment type: Core Drill
Husqvarna DM 430 | Core Drill Motor
Husqvarna DM 430 | Core Drill Motor is part of our core drill motors selection from Husqvarna Construction.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 100-120 V power/drive requirement captured for jobsite planning
- 18" drilling or boring capacity for selecting the right bit and setup
- 250 rpm speed range or gearbox detail supports bit-size control
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Site utility or fuel: 100-120 V
- Handling reference: 34.2 lbs
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Husqvarna Construction |
|---|---|
| Equipment type |
Core Drill |
| Power Phase |
1PH |
| Recommended Bit Diameter |
4" – 18" |
| Tool Mount |
Rig-Mounted |
| Wet/Dry Use |
Wet |
| Illustrated part list |
Illustrated part list DM 430, 2020-02 PDF ANY |
| Rated input power |
4.29 hp |
| Frequency |
50-60 Hz |
| Voltage |
100-120 V |
| Phases |
1 ph |
| Drill bit diameter with stand, max |
18 in |
| Recommended drill bit diameter, min |
4 in |
| Coolant |
Wet |
| Number of gearbox speeds |
3 |
| Spindle speed unloaded gear 1 |
250 rpm |
| Spindle speed unloaded gear 2 |
510 rpm |
| Spindle speed unloaded gear 3 |
800 rpm |
| Water connector |
G 1 / 4" |
| Water pressure, max |
43.5 psi |
| Spindle thread, outer |
1 1/4" 7 UNC |
| Product size length |
23 in |
| Product size width |
5.5 in |
| Product size height |
7.3 in |
| Weight |
34.2 lbs |
| Packaging length (Calc) |
26.181 in |
| Packaging width (Calc) |
10.039 in |
| Packaging height (Calc) |
11.811 in |
| Article gross weight (Calc) |
38.581 lbs |
| Sound power level, guaranteed (LWA) |
112 dB(A) |
| Sound power level, measured |
110 dB(A) |
| Sound pressure level at operators ear |
92 dB(A) |
| Warranty |
2 year limited |
| Store Title |
Husqvarna DM 430 |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Electric |
| Drilling diameter |
<=18 in |
| Phase |
Single phase |
