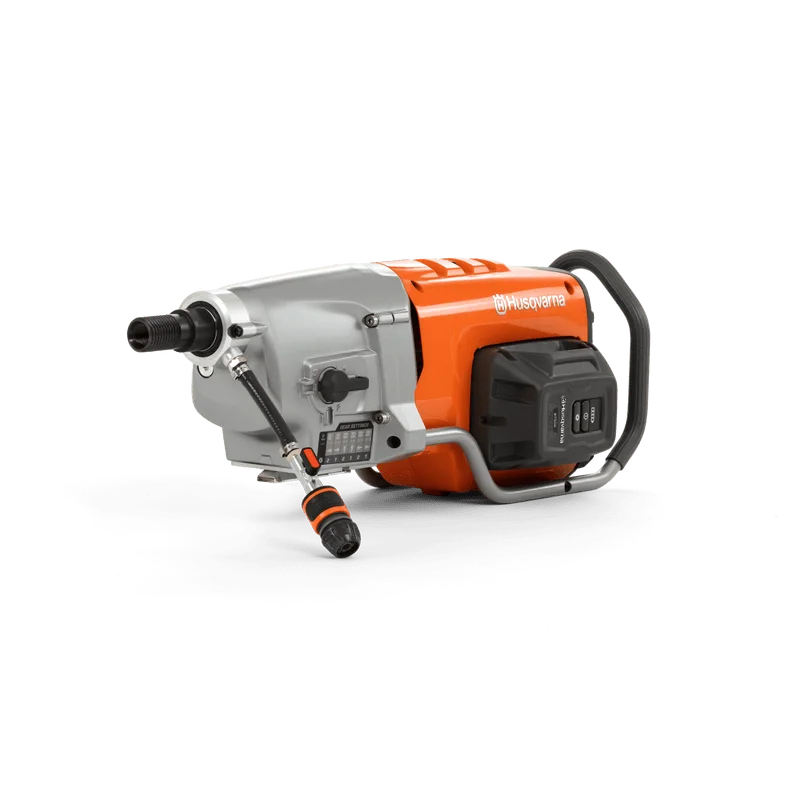

Husqvarna DM 1 PACE | Core Drill Motor
$2,582.67
Husqvarna DM 1 PACE | Core Drill Motor is part of our core drill motors selection from Husqvarna Construction.
- Equipment type: Core Drill
Husqvarna DM 1 PACE | Core Drill Motor
Husqvarna DM 1 PACE | Core Drill Motor is part of our core drill motors selection from Husqvarna Construction.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- PACE 94 V power/drive requirement captured for jobsite planning
- 16" drilling or boring capacity for selecting the right bit and setup
- 234 rpm speed range or gearbox detail supports bit-size control
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Site utility or fuel: Battery
- Handling reference: 26 lbs
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Husqvarna Construction |
|---|---|
| Equipment type |
Core Drill |
| Recommended Bit Diameter |
1" – 16" |
| Tool Mount |
Rig-Mounted |
| Wet/Dry Use |
Wet/Dry |
| Motor Type |
BLDC (brushless) |
| Output Power |
3.2 hp |
| Battery eco system |
PACE |
| Drill bit diameter with stand, max |
16 in |
| Recommended drill bit diameter, min |
1 in |
| Number of gearbox speeds |
3 |
| Numbers of electronical gearbox speeds |
2 |
| Spindle speed unloaded gear 1 |
234 rpm |
| Spindle speed unloaded gear 2 |
431 rpm |
| Spindle speed unloaded gear 3 |
888 rpm |
| Water connector |
Gardena Male |
| Water pressure, max |
43.5 psi |
| Spindle thread, inner |
G 1/2" |
| Spindle thread, outer |
1 1/4" -7 UNC |
| Product size length |
26.5 in |
| Product size width |
6.8 in |
| Product size height |
9.3 in |
| Weight |
26 lbs |
| Packaging length (Calc) |
30.315 in |
| Packaging width (Calc) |
10.039 in |
| Packaging height (Calc) |
13.189 in |
| Article gross weight (Calc) |
33.51 lbs |
| Sound power level, guaranteed (LWA) |
109.1 dB(A) |
| Sound power level, measured |
109.1 dB(A) |
| Sound pressure level at operators ear |
93.4 dB(A) |
| Warranty |
2 year limited |
| Store Title |
Husqvarna DM 1 PACE |
| Battery System |
PACE 94 V |
| Compatible Stand |
DS 500 drill stand |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Battery |
| Drilling diameter |
16 in |
