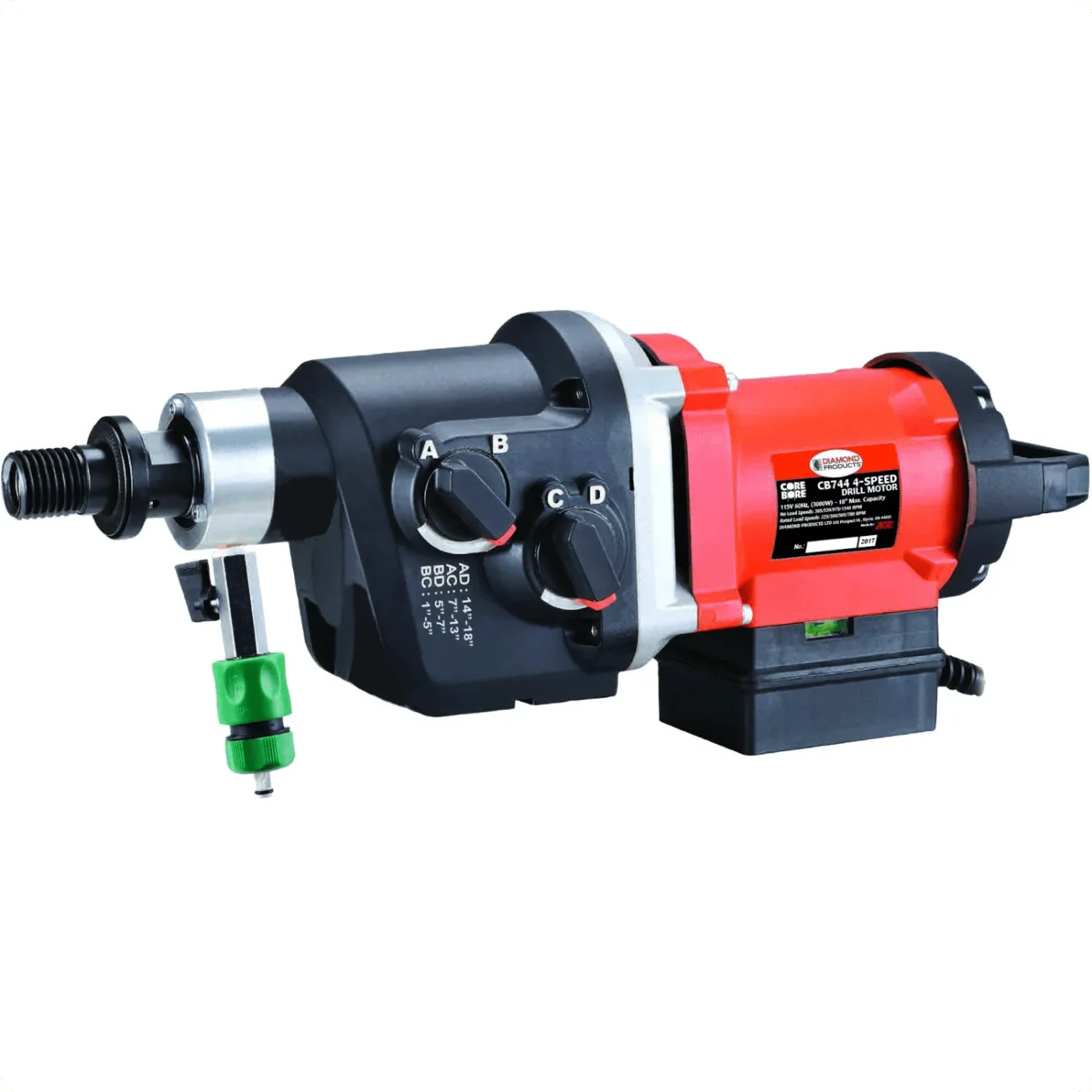

Core Bore Drill CB744 18″ – 25AMP|1PH – Rig-Mounted
$3,008.42
Core Bore Drill CB744 18″ – 25AMP|1PH – Rig-Mounted is part of our core drill motors selection from Core Bore.
- Voltage: 115V
- Equipment type: Core Drill
12 in stock
Core Bore Drill CB744 18″ – 25AMP|1PH – Rig-Mounted
Core Bore Drill CB744 18″ – 25AMP|1PH – Rig-Mounted is part of our core drill motors selection from Core Bore.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 115V power/drive requirement captured for jobsite planning
- 6" mounted / 3" hand-held; some retailer listings describe 5" bit capacity drilling or boring capacity for selecting the right bit and setup
- 2-speed, 1400 / 2300 RPM speed range or gearbox detail supports bit-size control
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
- Site utility or fuel: 115V
- Tooling or working setup: CB515 drill motor, plastic molded carrying case, side handle, 5/8-11 adapter, and wrench per Diamond Products source
- Handling reference: 10.5 lb
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Core Bore |
|---|---|
| Equipment type |
Core Drill |
| Amperage |
15 AMP |
| Power Phase |
1PH |
| Recommended Bit Diameter |
3" (Hand-Held) / 6" (Mounted) |
| Tool Mount |
Hand-Held |
| Wet/Dry Use |
Wet |
| Available Variants |
1 Phase – 115V 1 Phase – 230V |
| Model # |
CB515 |
| Product Type |
Core Drill |
| Product Subtype |
Hand-Held |
| Product Mount |
Hand-Held |
| Engine/Motor |
Electric Motor |
| Horse Power |
~2.4 HP (1800W) |
| Voltage |
115 V |
| Variable Speed |
2-Speed |
| Speed 1 Max RPM |
1400 RPM |
| Speed 2 Max RPM |
2300 RPM |
| Max Speed RPM |
2300 RPM |
| Drilling Depth per Pass |
User-Dependent |
| Spindle Features |
5/8"-11 |
| Weight (lbs) |
10.5 lb |
| Clutch |
Slip |
| Leveling Bubbles |
Bull's Eye Level |
| Thermal Protection |
Overload and Overheat Protection |
| Compact Design |
Yes |
| Applications |
Concrete, Masonry, Stone |
| Dry/Wet |
Wet |
| Power Compatibility |
Standard Electric Supply |
| Product Warranty |
1 Year |
| Store Title |
Core Bore Drill CB744 18″ – 25AMP |
| Manufacturer Part Number |
4244128 |
| Catalog Number |
98794 |
| Power |
1800 W / 115 V / 15 AMP |
| Speed |
2-speed, 1400 / 2300 RPM |
| Included |
CB515 drill motor, plastic molded carrying case, side handle, 5/8-11 adapter, and wrench per Diamond Products source |
| Power source |
Electric |
| Drilling diameter |
6 in mounted / 3 in hand-held; some retailer listings describe 5 in bit capacity |
| Phase |
Single phase |
