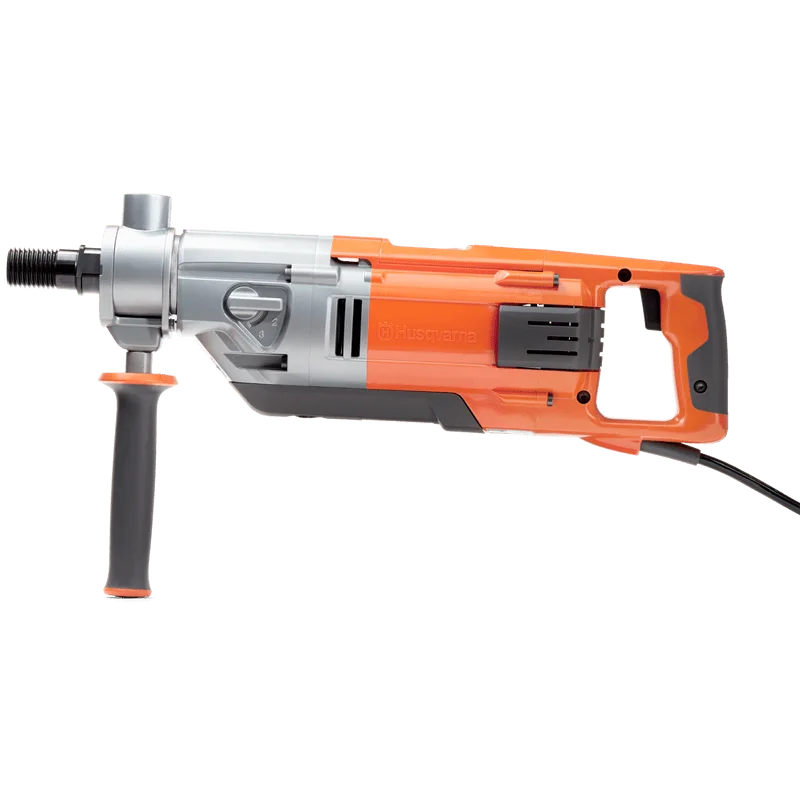

Husqvarna DM 220 | Handheld Core Drill
$3,321.50
Husqvarna DM 220 | Handheld Core Drill is part of our core drill motors selection from Husqvarna Construction.
- Voltage: 100-120 V
- Equipment type: Core Drill
Husqvarna DM 220 | Handheld Core Drill
Husqvarna DM 220 | Handheld Core Drill is part of our core drill motors selection from Husqvarna Construction.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 100-120 V power/drive requirement captured for jobsite planning
- 6" drilling or boring capacity for selecting the right bit and setup
- 730 rpm speed range or gearbox detail supports bit-size control
- Hand-Held mount/system configuration supports correct rig pairing

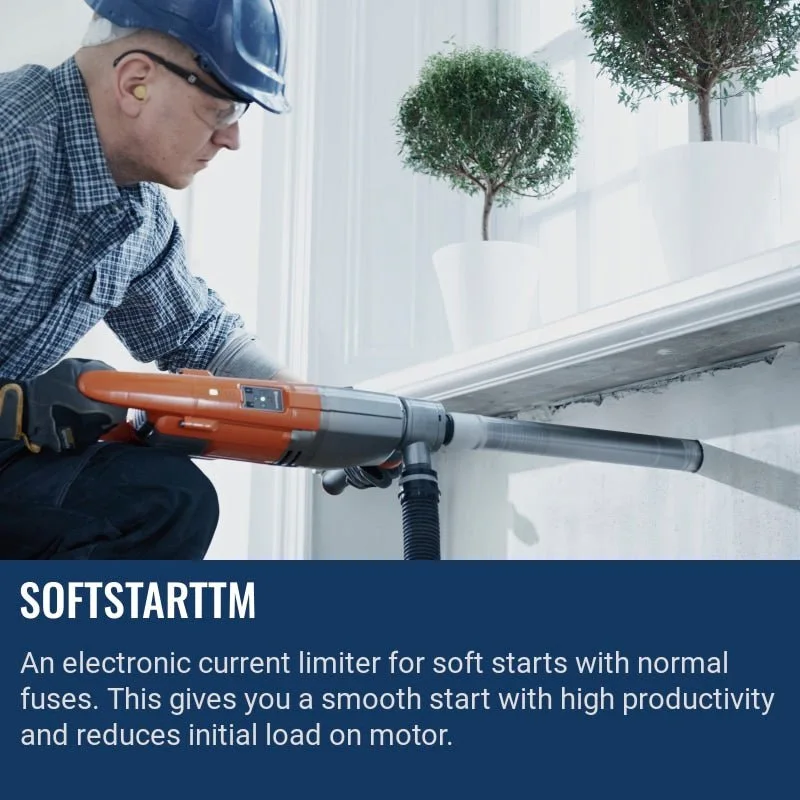

- Hand-held format supports fast setup for smaller penetrations and repair work
- Site utility or fuel: 100-120 V
- Handling reference: 16.5 lbs
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Husqvarna Construction |
|---|---|
| Equipment type |
Core Drill |
| Power Phase |
1PH |
| Recommended Bit Diameter |
1" – 6" |
| Tool Mount |
Hand-Held |
| Wet/Dry Use |
Wet/Dry |
| Illustrated part list |
Illustrated part list IPL, DM220, 2011-03 PDF ANY |
| WASHER QUICK RELEASE/COPPER D |
SKU: 543052878 Husqvarna Drill motor keys Accessories SKU: 531140951 |
| Rated input power |
2.5 hp |
| Frequency |
60 Hz |
| Voltage |
100-120 V |
| Phases |
1 ph |
| Drill bit diameter handheld, max |
4 in |
| Drill bit diameter with stand, max |
6 in |
| Recommended drill bit diameter, min |
1 in |
| Coolant |
Wet /dry |
| Number of gearbox speeds |
3 |
| Spindle speed unloaded gear 1 |
730 rpm |
| Spindle speed unloaded gear 2 |
1,700 rpm |
| Spindle speed unloaded gear 3 |
3,600 rpm |
| Water connector |
G 1 / 4" |
| Water pressure, max |
116 psi |
| Spindle thread, inner |
5/8" 11 UNC |
| Spindle thread, outer |
1 1/4" 7 UNC |
| Product size length |
22.4 in |
| Product size width |
4.2 in |
| Product size height |
15 in |
| Weight |
16.5 lbs |
| Packaging length (Calc) |
25.984 in |
| Packaging width (Calc) |
20.472 in |
| Packaging height (Calc) |
5.906 in |
| Article gross weight (Calc) |
31.306 lbs |
| Sound power level, guaranteed (LWA) |
108 dB(A) |
| Sound power level, measured |
107 dB(A) |
| Sound pressure level at operators ear |
93 dB(A) |
| Warranty |
2 year limited |
| Store Title |
Husqvarna DM 220 |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Electric |
| Drilling diameter |
6 in |
| Phase |
Single phase |
