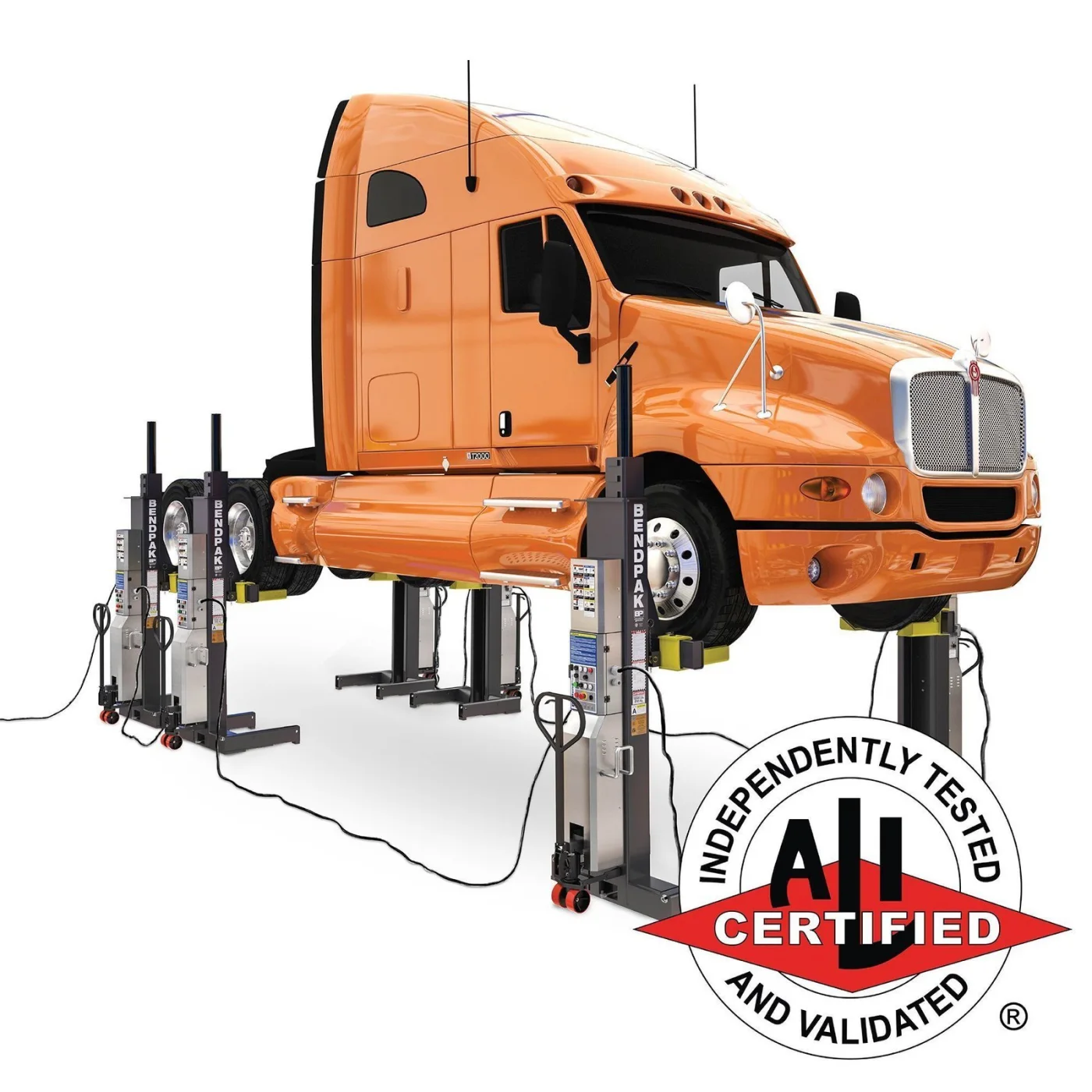

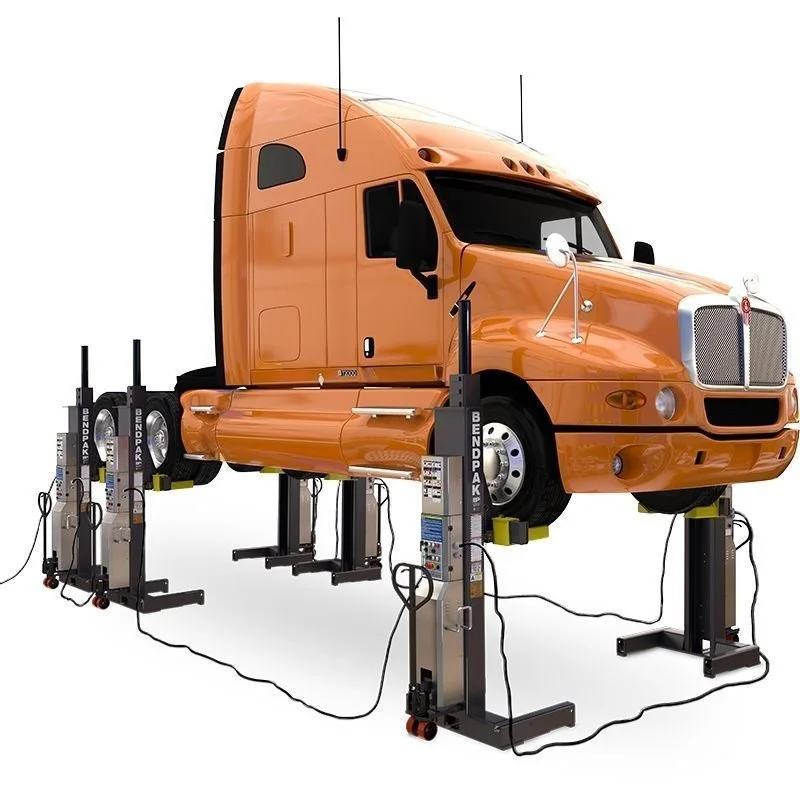

BendPak PCL-18B-6 18,000 lb. per Portable Column Lift (Set of 6) – New Gray
$93,095.00
BendPak PCL-18B-6 18,000 lb. per Portable Column Lift (Set of 6) – New Gray is part of our 4 post lifts – heavy-duty selection from BendPak.
- Lifting capacity: 18000 lb
BendPak PCL-18B-6 18,000 lb. per Portable Column Lift (Set of 6) – New Gray
BendPak PCL-18B-6 18,000 lb. per Portable Column Lift (Set of 6) – New Gray is part of our 4 post lifts – heavy-duty selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 108,000 lbs. total system capacity with six columns (18,000 lbs. per column)
- Meets or exceeds ANSI/ALI ALCTV-2011 standards and is ALI Certified
- Horseshoe wiring design uses just three 30' cables for four-column sets, leaving front or back clear of obstructions
- On-demand electric-hydraulic power system requires no recharging for around-the-clock operation
- Ergonomic pallet-jack-style steering with built-in hydraulic jack for effortless mobility and setup
- Inverted hydraulic cylinders protect chrome rods from debris and damage, reducing maintenance costs
- Off-the-shelf PLC and components ensure easy, affordable service and parts availability
- Smart electronics with self-diagnostics and fault code indicators for proactive maintenance
- Two-speed operation with turtle or rabbit speed settings for controlled descent
- Multi-width wheel forks with locking pins accommodate the widest range of wheels without specialty adapters
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175293-V001 |
| Condition |
New |
| Max Column Capacity |
18,000 lbs. / 8,165 kg (ea) |
| A Overall Height (Raised) |
101” (2,565 mm) |
| B Overall Height (Lowered) |
146.5” (3,721 mm) |
| C Max Lifting Height |
71.5” (1,889 mm) |
| D Overall Depth |
48.75” (1,238 mm) |
| E Overall Width |
45” (1,143 mm)/center> |
| C Chassis Length |
32.25” (819 mm) |
| G Min Lifting Fork Width |
9.5” (241 mm) |
| H Max Lifting Fork Width |
35” (889 mm) |
| I Lifting Fork Length |
11.5” (292 mm) |
| Turning Circle |
40" (1,016 mm) |
| Column Weight |
Each 1,450 lbs. (657 Kg) |
| Lifting Speed |
85 sec |
| Motor |
208 V – 240 V / 50 Hz – 60 Hz / 3 Ph |
| Shipping Weight |
1,450 lbs. / 657 kg (Ea. Column) |
| Lifting capacity |
18,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Three phase |
| Voltage |
208 V |
