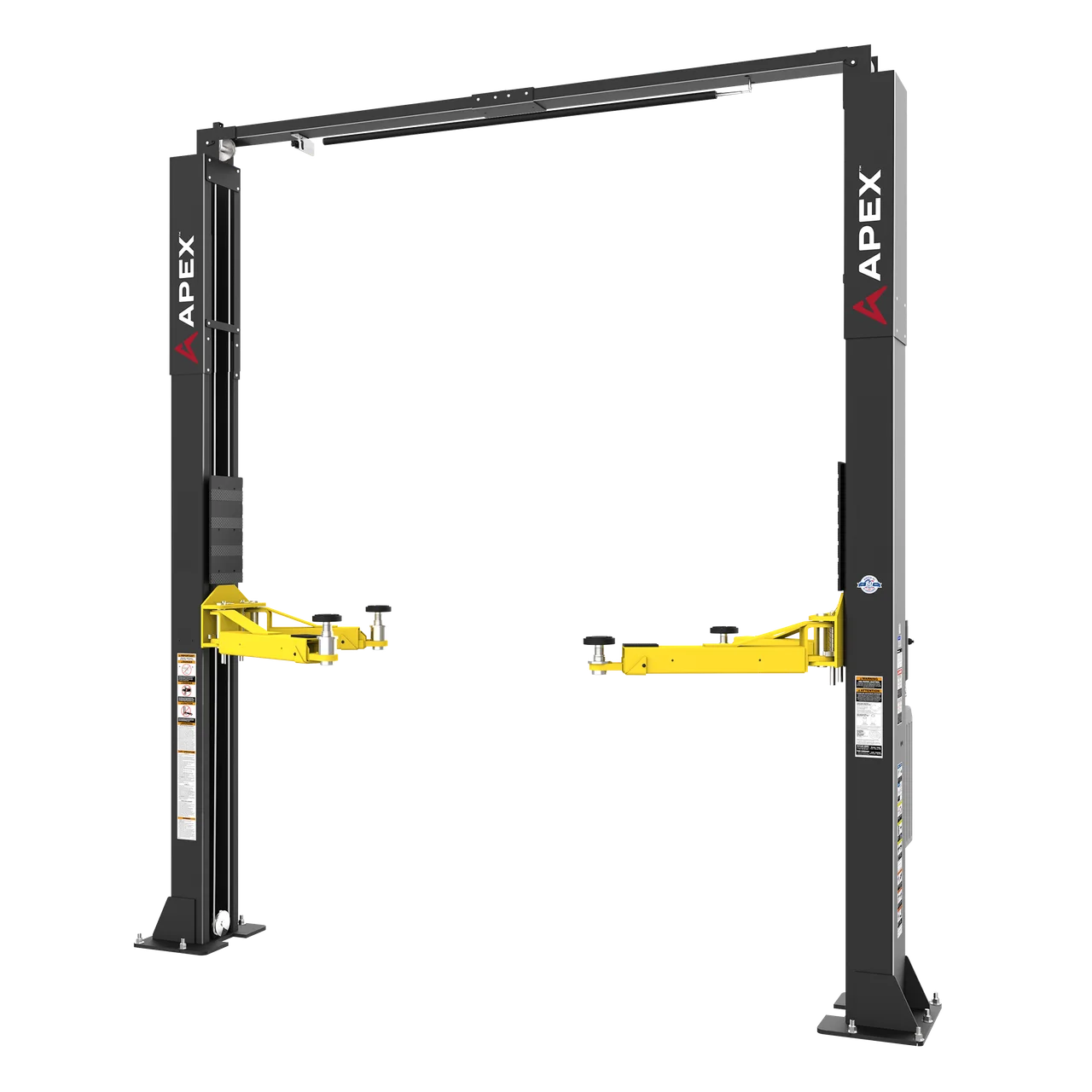

BendPak APEX AL10C Clearfloor 2 Post Lift 10,000 lbs
$4,195.00
BendPak APEX AL10C Clearfloor 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from Apex.
- Lifting capacity: 10000 lb
8 in stock
BendPak APEX AL10C Clearfloor 2 Post Lift 10,000 lbs
BendPak APEX AL10C Clearfloor 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from Apex.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000-lb Lifting Capacity Supports a wide range of passenger vehicles, performance cars, and light trucks

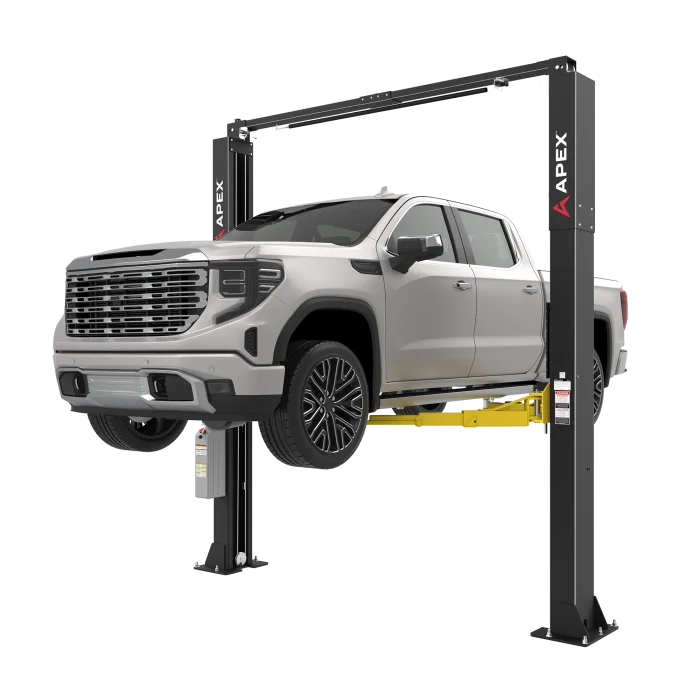

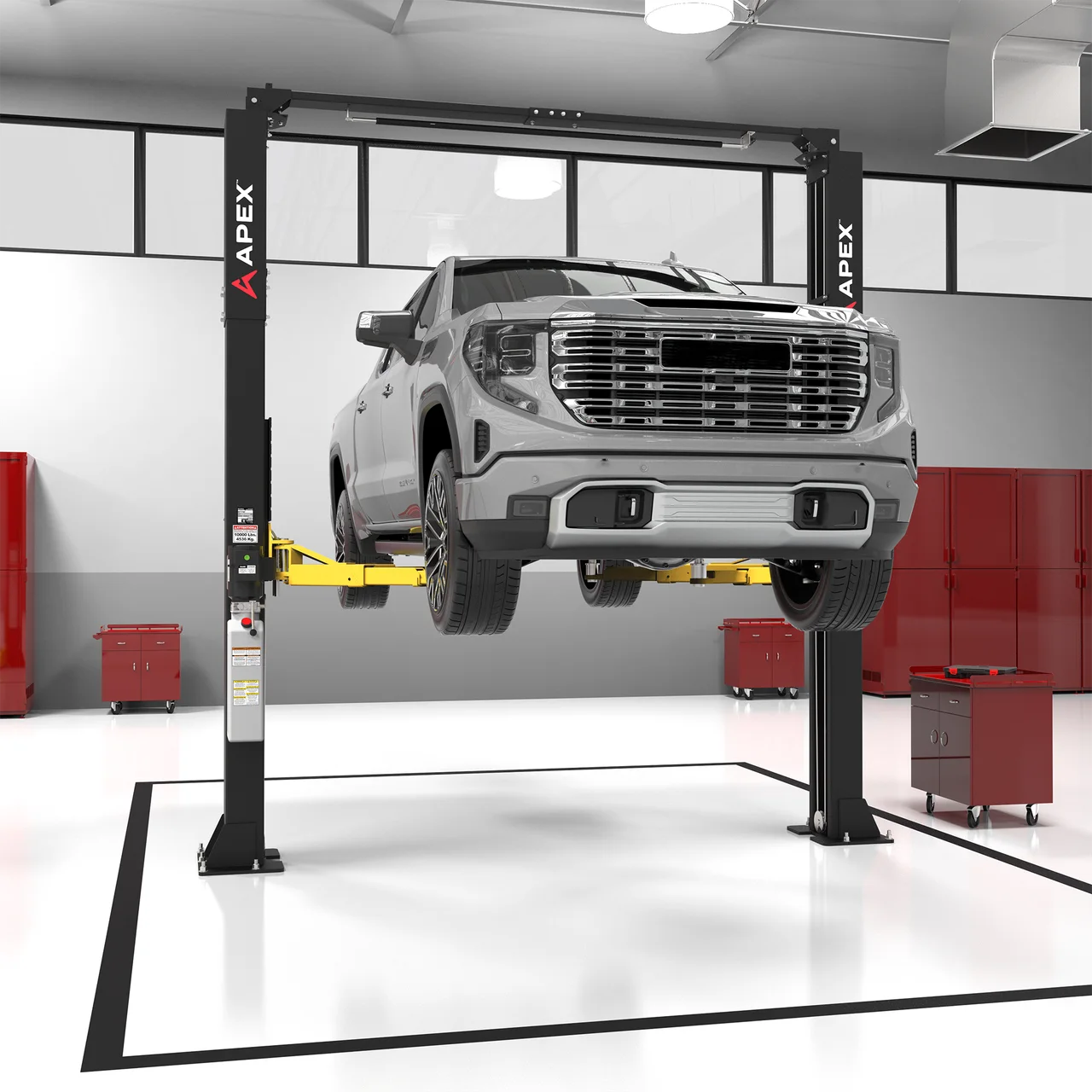

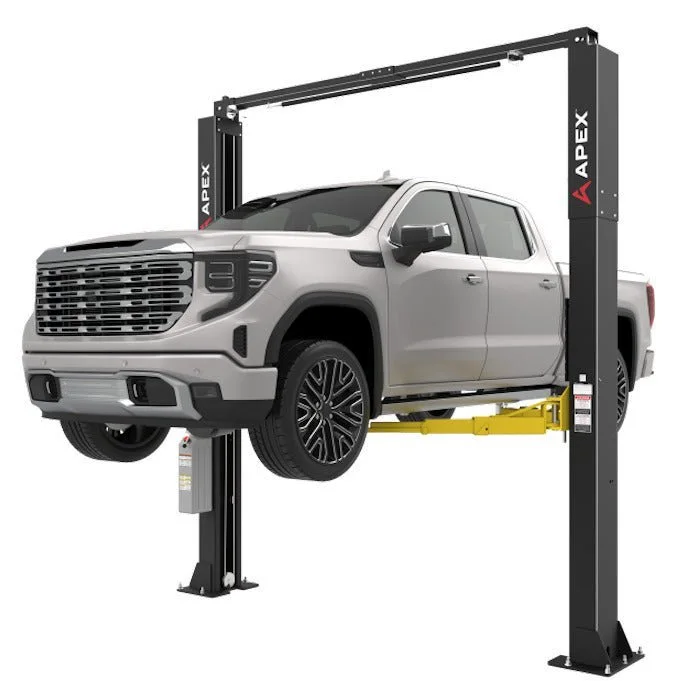

- Clearfloor Two-Post Design Provides unobstructed access beneath the vehicle for improved workflow

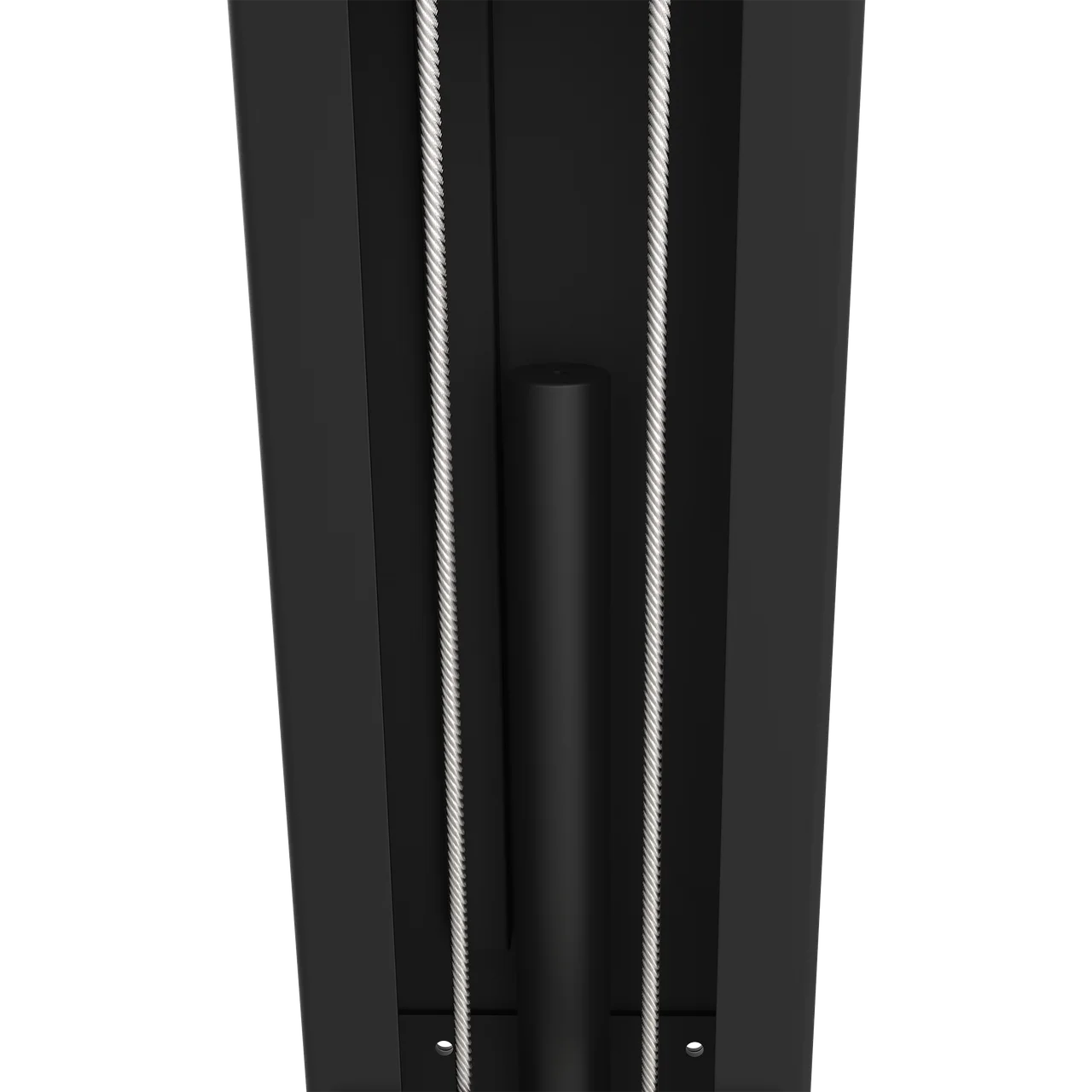

- Direct-Drive Dual Hydraulic Cylinders Reduce moving parts while delivering smooth, consistent lifting performance
- Rugged Overhead Box-Beam Construction Enhances structural stability and reduces column stress
- Padded Overhead Safety Shutoff Bar Automatically stops lift travel if a vehicle is raised too high
- Symmetric and Asymmetric Arm Configurations Allows fast, flexible vehicle positioning

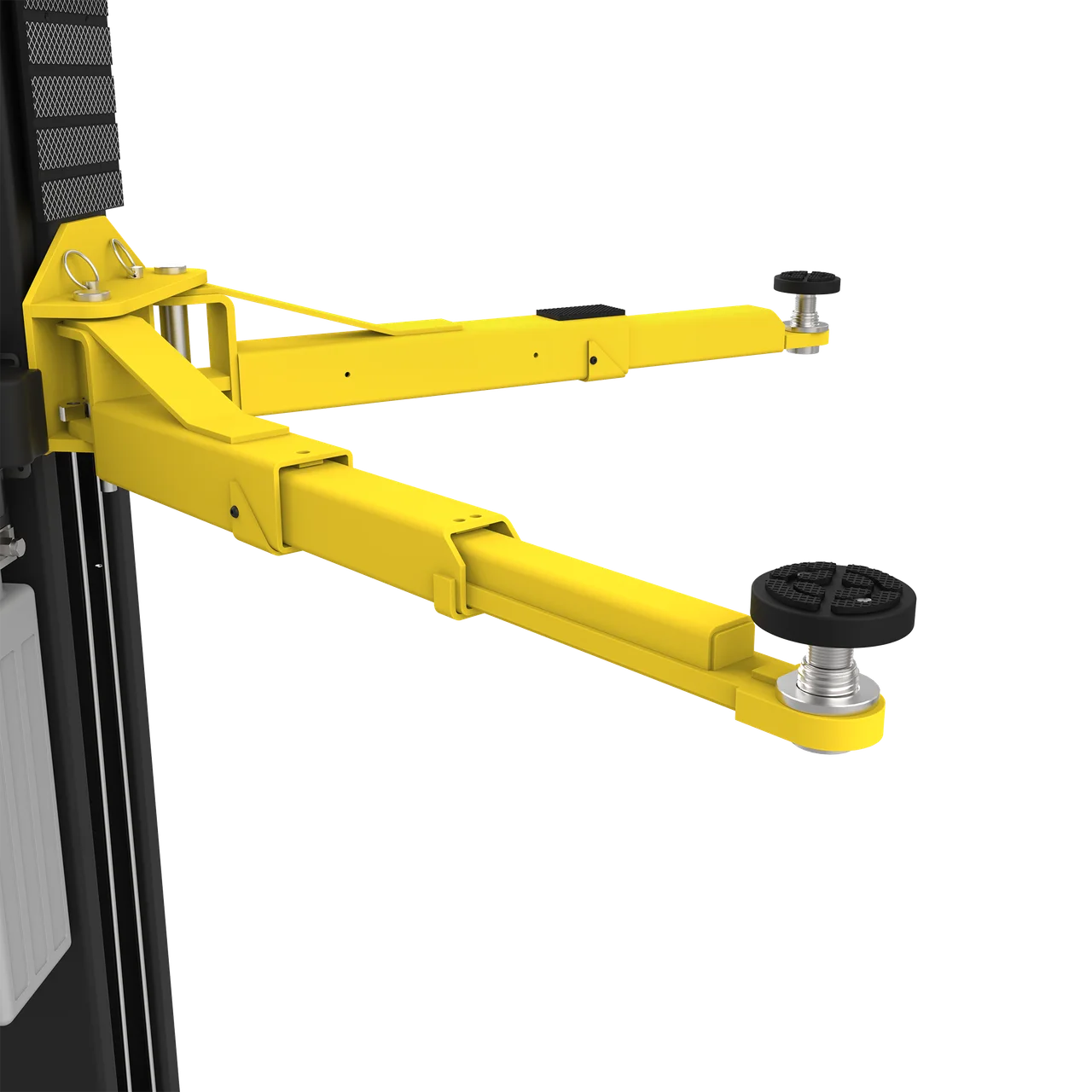

- Triple-Telescoping Front Arms and Extended Rear Arms Accommodates a wide range of wheelbases and frame designs
- Automatic Safety Locks Every 3 Inches Ensures secure load holding throughout the lift range

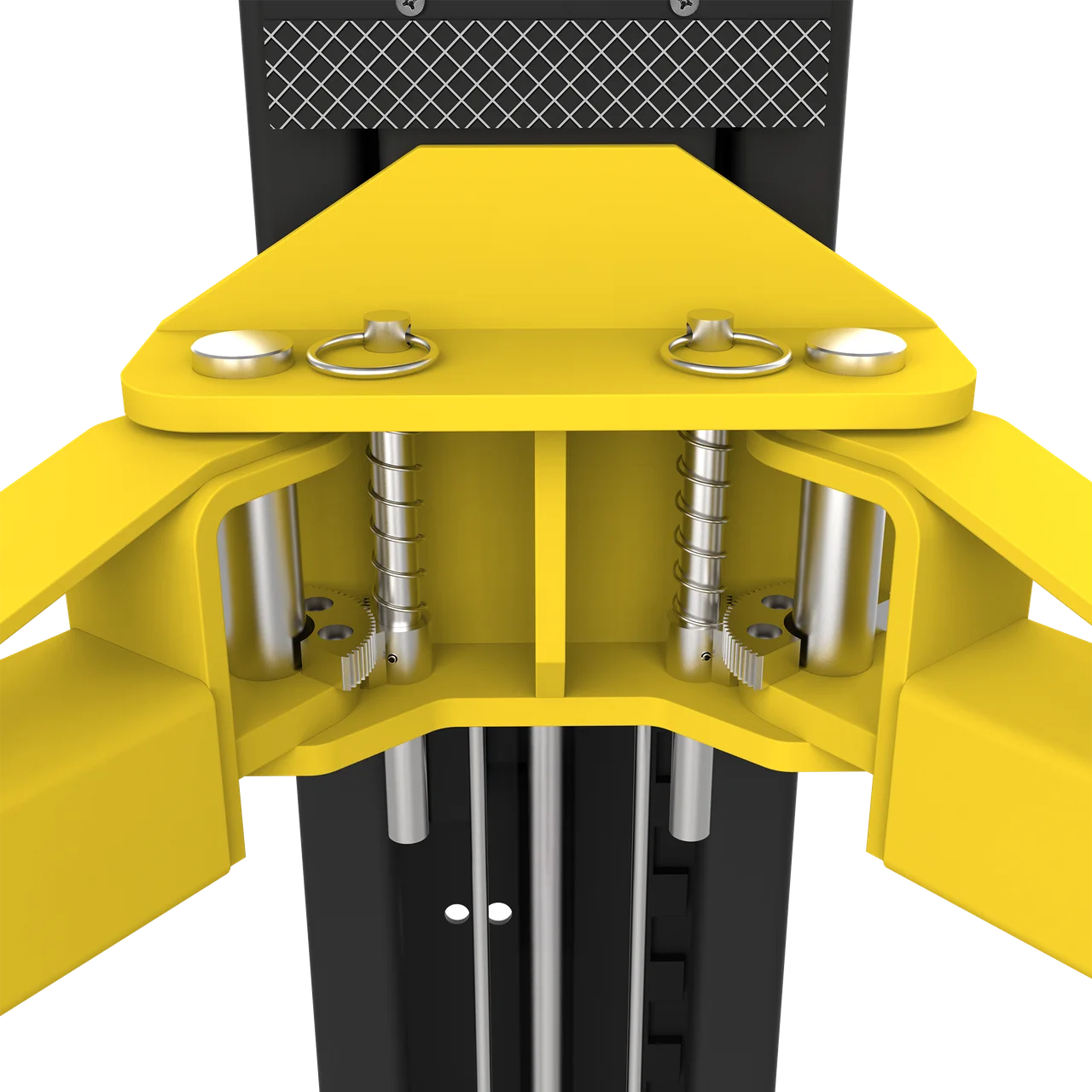

- Automatic Arm Restraints Prevent unintended arm movement during service
- Exact manufacturer model or part number: 5176251
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Apex |
|---|---|
| MPN / Model |
5176251 |
| Condition |
New |
| Model |
GP-10C |
| Lifting Capacity: (*) |
10,000 lbs. (4,536 kg) |
| *Max Capacity / Front Axle |
5,000 lbs. (2,268 kg) |
| *Max Capacity / Rear Axle |
5,000 lbs. (2,268 kg) |
| A Height Overall |
148″ (3,759 mm) |
| B Width Overall (at Baseplate) |
137.5″ (3,492 mm) |
| C Width Outside of Columns |
128.5″ (3,264 mm) |
| D Floor to Overhead Switch Bar |
142.5″ (3,619 mm) |
| E Width Inside Columns |
114.5″ (2,908 mm) |
| K Drive-Thru Clearance |
103″ (2,618 mm) |
| F Min Front Arm Reach |
22.5″ (571 mm) |
| F Max Front Arm Reach |
43.25″ (1,099 mm) |
| G Min Rear Arm Reach |
33.5″ (845 mm) |
| G Max Rear Arm Reach |
53.25″ (1,353 mm) |
| H Min. Pad Height |
3.9″ (100 mm) |
| I Rise Height |
70″ (1,778 mm) |

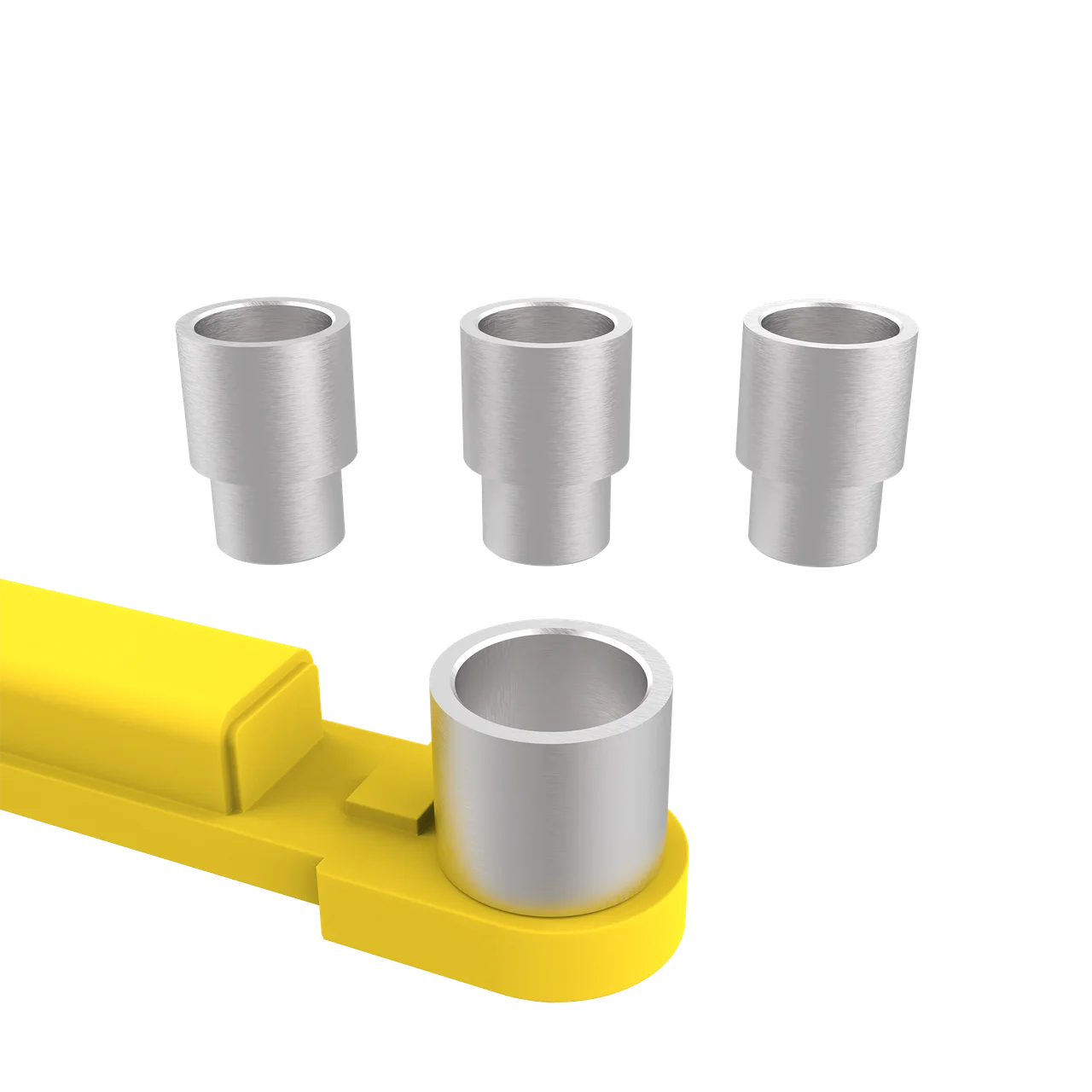

| J Max. Lift Height (Pad + 63mm Adapt.) |
76.5″ – 78.5″ (1,943 – 1,994 mm) |

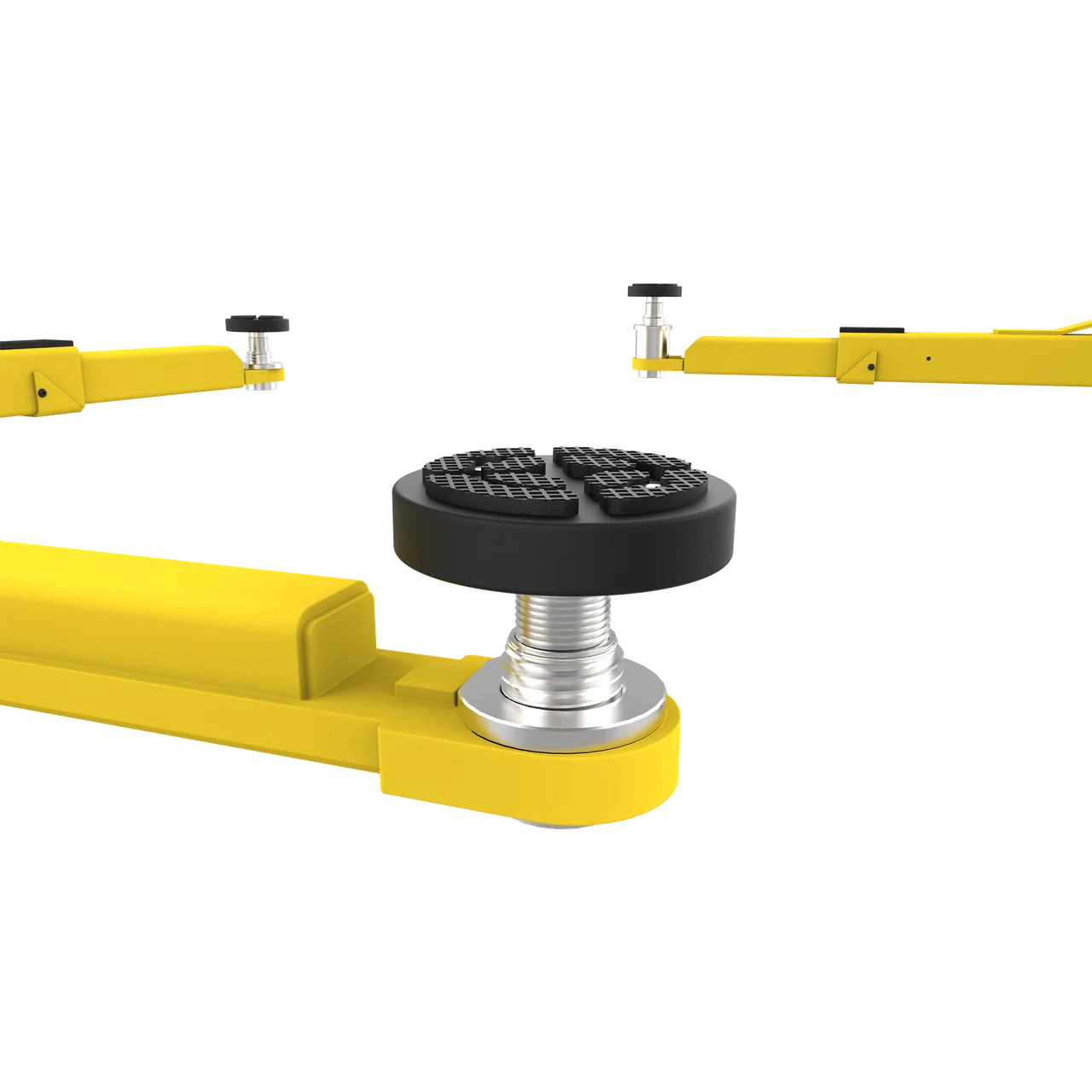

| Screw Pad Adjustment |
2″ (51 mm) |
| Max. Load Per Arm |
2,500 lbs. (1,134 kg) |
| Time to Full Rise |
65 seconds |
| Motor |
220 VAC / 60Hz / 1 Ph |
| Shipping Weight |
1,545 lbs. (703 kg) |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
