BendPak 9APF Floorplate Two-Post Lift for Low Ceilings 9,000 lbs
$6,295.00
BendPak 9APF Floorplate Two-Post Lift for Low Ceilings 9,000 lbs is part of our 2 post lifts selection from BendPak.
- Lifting capacity: 9000 lb
9 in stock
BendPak 9APF Floorplate Two-Post Lift for Low Ceilings 9,000 lbs
BendPak 9APF Floorplate Two-Post Lift for Low Ceilings 9,000 lbs is part of our 2 post lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Open-top floorplate design eliminates overhead beam for low-ceiling installations and accommodates tall vehicles with ease
- Extra-low 1.4-inch steel floorplate protects hydraulic and equalizer lines while allowing jacks and equipment to roll freely across the bay

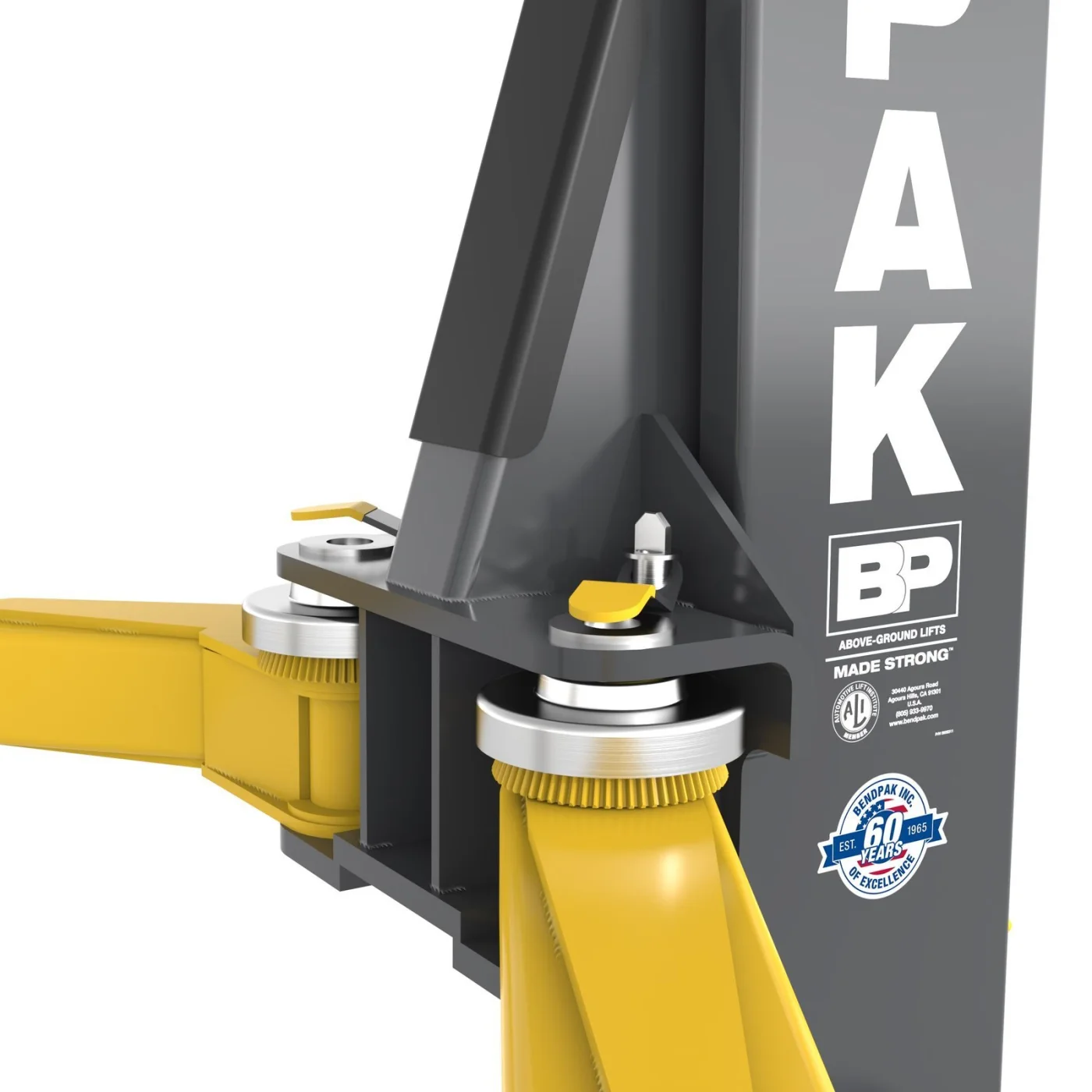

- Automatic Swing Arm Restraint System (ASARS) with 360-degree grip delivers secure arm locking and fast, one-hand quick release
- Adjustable installation width 136-inch or 146-inch overall width options to fit varied drive-thru and bay configurations
- 9,000-lb lifting capacity for cars, SUVs, and light trucks
- Open-top, floorplate design for low-ceiling installations and tall vehicle clearance
- Extra-low steel cover plate with contained hydraulic and equalizer lines for a clean, safe bay
- AP-Series triple-telescoping, low-profile swing arms for exceptional reach and retraction
- Bi-Metric arm geometry for symmetric or asymmetric spotting flexibility
- Automatic Swing Arm Restraint System with 360-degree grip and quick-release lever
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175617 |
| Condition |
New |
| Model |
9APF |
| Lifting Capacity: (*) |
9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle |
4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle |
4,500 lbs. (2,041 kg) |
| Maximum Capacity Per Lift Arm |
2,250 lbs. (1,021 kg) |

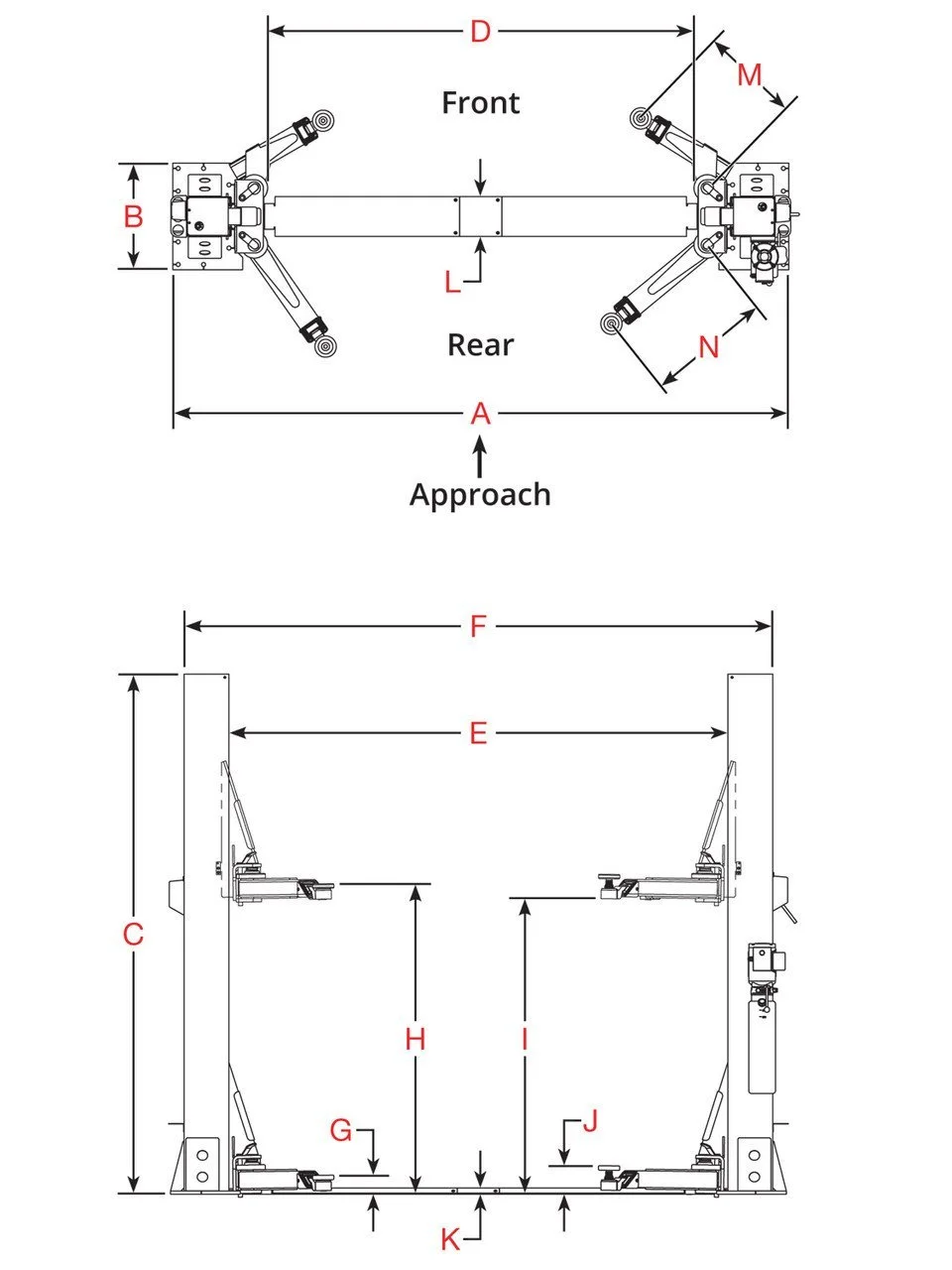

| A Width Overall |
136" or 146" (3,453 or 3,707 mm) |
| B Base Plate Width |
25.25" (642 mm) |
| C Post Height |
123" (3,128 mm) |
| D Drive-Thru |
91" or 101" (2,311 or 2,565 mm) |
| E Width Inside Columns |
108.25" or 118.25" (2,749 or 3,003 mm) |
| F Outside Posts |
129.5" or 139.5" (3,289 or 3,543 mm) |
| G Min. Height w/Cradle Pad |
4.5" (114 mm) |
| F Max. Lift Height 1 |
73.5 in. (1,865 mm) |
| I Maximum Rise 2 |
70" (1,780 mm) |
| J Maximum Pad Adjustment |
2.25" (55 mm) |
| K Floor Plate Height |
1.4" (36 mm) |
| L Floor Plate Width |
9.5" (240 mm) |
| M Front Arm Reach (Min – Max) 3 |
22.25" – 47.5" (562 – 1,205 mm) |
| N Rear Arm Reach (Min – Max) 4 |
29.5" – 57" (745 – 1,446 mm) |
| Safety Lock Position |
14 Positions Spaced Every 3.6" (92 mm) |
| Time to Full Rise |
≈60 Seconds |
| Operating Hydraulic Pressure Under Max. Load |
2,170 psi |
| Standard Motor 5 |
208-240 VAC, 50/60 Hz, 1 Phase, Approx. 11 Amps |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
