Auto Lift AL2-15K-CX 15,000 lb. Capacity Heavy Duty Two Post Car Lift
$7,609.00
Auto Lift AL2-15K-CX 15,000 lb. Capacity Heavy Duty Two Post Car Lift is part of our 2 post lifts selection from Auto Lift.
- Lifting capacity: 15000 lb
Auto Lift AL2-15K-CX 15,000 lb. Capacity Heavy Duty Two Post Car Lift
Auto Lift AL2-15K-CX 15,000 lb. Capacity Heavy Duty Two Post Car Lift is part of our 2 post lifts selection from Auto Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 15,000 lb. capacity handles heavy-duty trucks, SUVs, and commercial vehicles with ease
- 5-inch minimum pad height accommodates low-clearance sports cars and performance vehicles

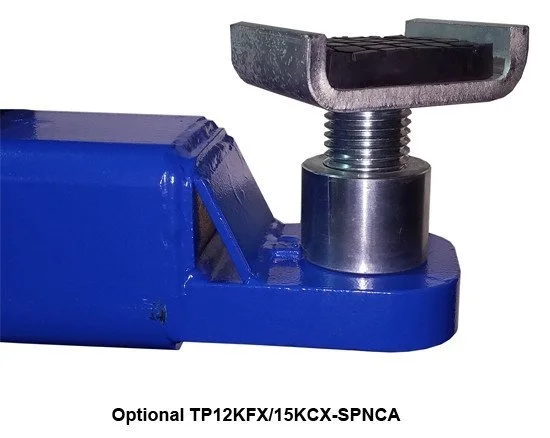

- Drop-in swivel pad system with stackable 3" and 5" height adapters for ultimate versatility
- Internal hose routing protects hydraulic lines and creates a cleaner shop appearance
- Clear floor symmetric design with 109" drive-through clearance and no tripping hazards
- Heavy-duty 8mm steel construction throughout columns, carriages, and arms
- Fast 50-second lifting speed maximizes shop productivity
- 220V single-phase power (20 AMP) fits most shop electrical systems
- Free installation hardware included with all necessary mounting components
- 15,000 lb lifting capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Auto Lift |
|---|---|
| MPN / Model |
AL2-15K-CX |
| Condition |
New |
| Capacity |
15,000 lbs. |
| Overall Height |
179.4" |
| Width Overall |
148.4" |
| Max Lift Height |
76.5" |
| Width Between Columns |
120.8" |
| Min Pad Height |
5" |
| Drive thru Clearance |
109" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Front Arm Reach – min/max |
37" – 52" |
| Rear Arm Reach – min/max |
Same |
| Max Load Per Arm |
3,750 lbs |
| Cable Diameter |
3/8" |
| Column Size |
7.75" x 14.5" |
| Column Steel Thickness |
8mm |
| Carriage Steel Thickness |
8mm |
| Arm Steel Thickness |
8mm |
| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
2,575 lbs. |
| Lifting capacity |
15,000 lb |
| Lift type |
2 Post Lifts |
