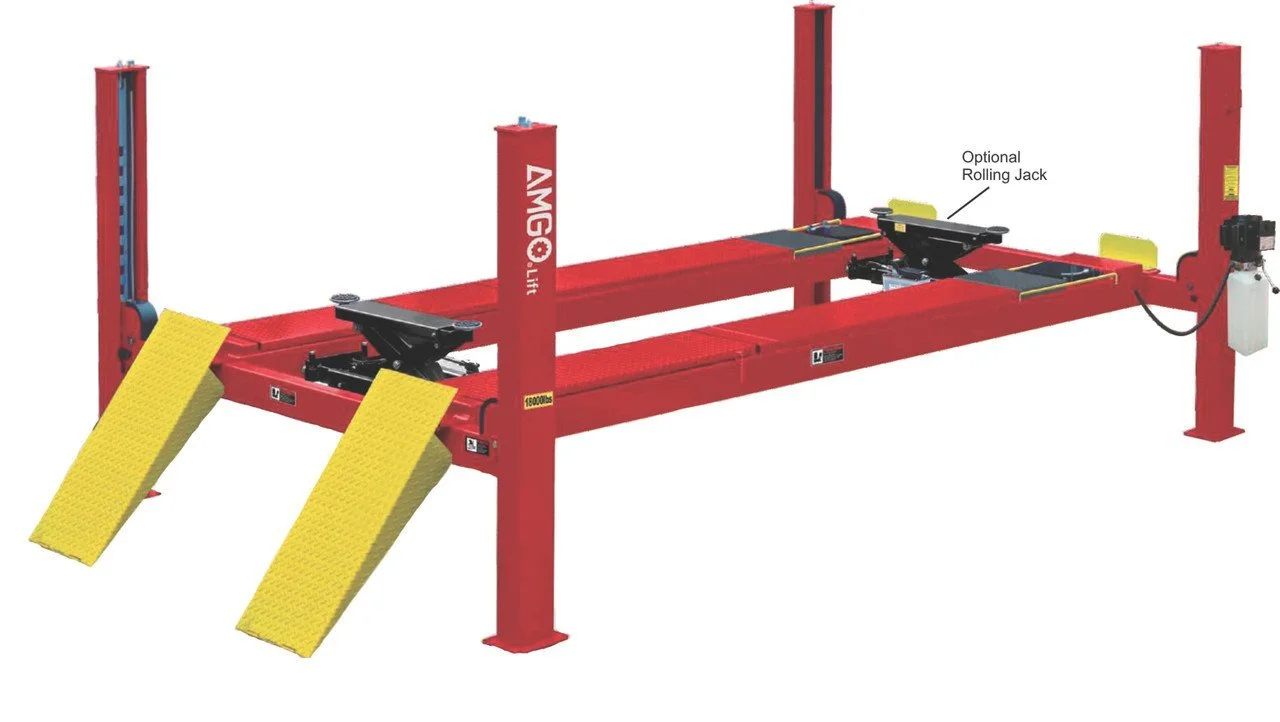

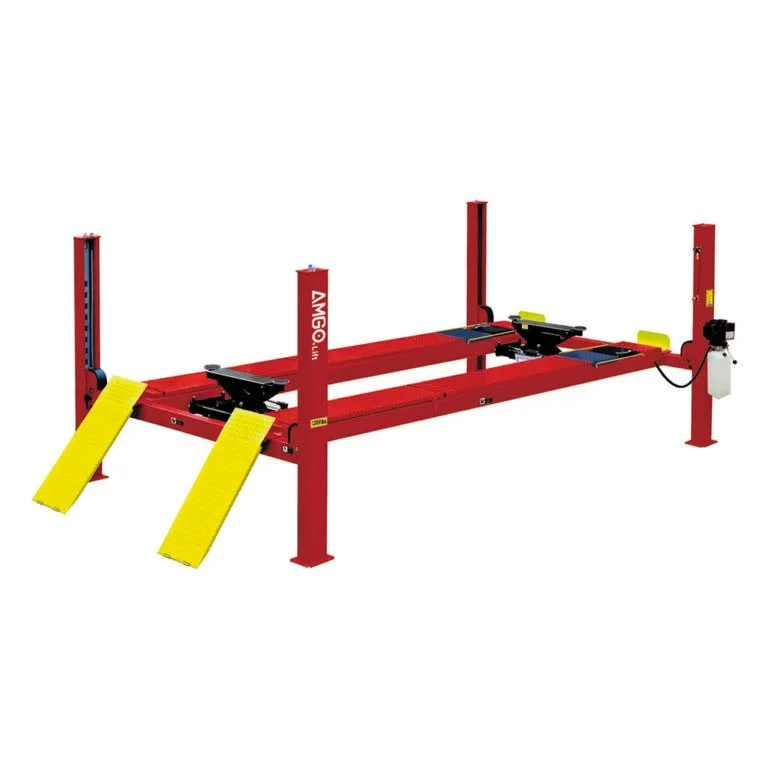

AMGO® Hydraulics PRO-18A 4 Post Truck Alignment Lift 18,000 lbs
$10,845.00
AMGO® Hydraulics PRO-18A 4 Post Truck Alignment Lift 18,000 lbs is part of our alignment lifts selection from AMGO Hydraulics.
- Lifting capacity: 18000 lb
10 in stock
AMGO® Hydraulics PRO-18A 4 Post Truck Alignment Lift 18,000 lbs
AMGO® Hydraulics PRO-18A 4 Post Truck Alignment Lift 18,000 lbs is part of our alignment lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

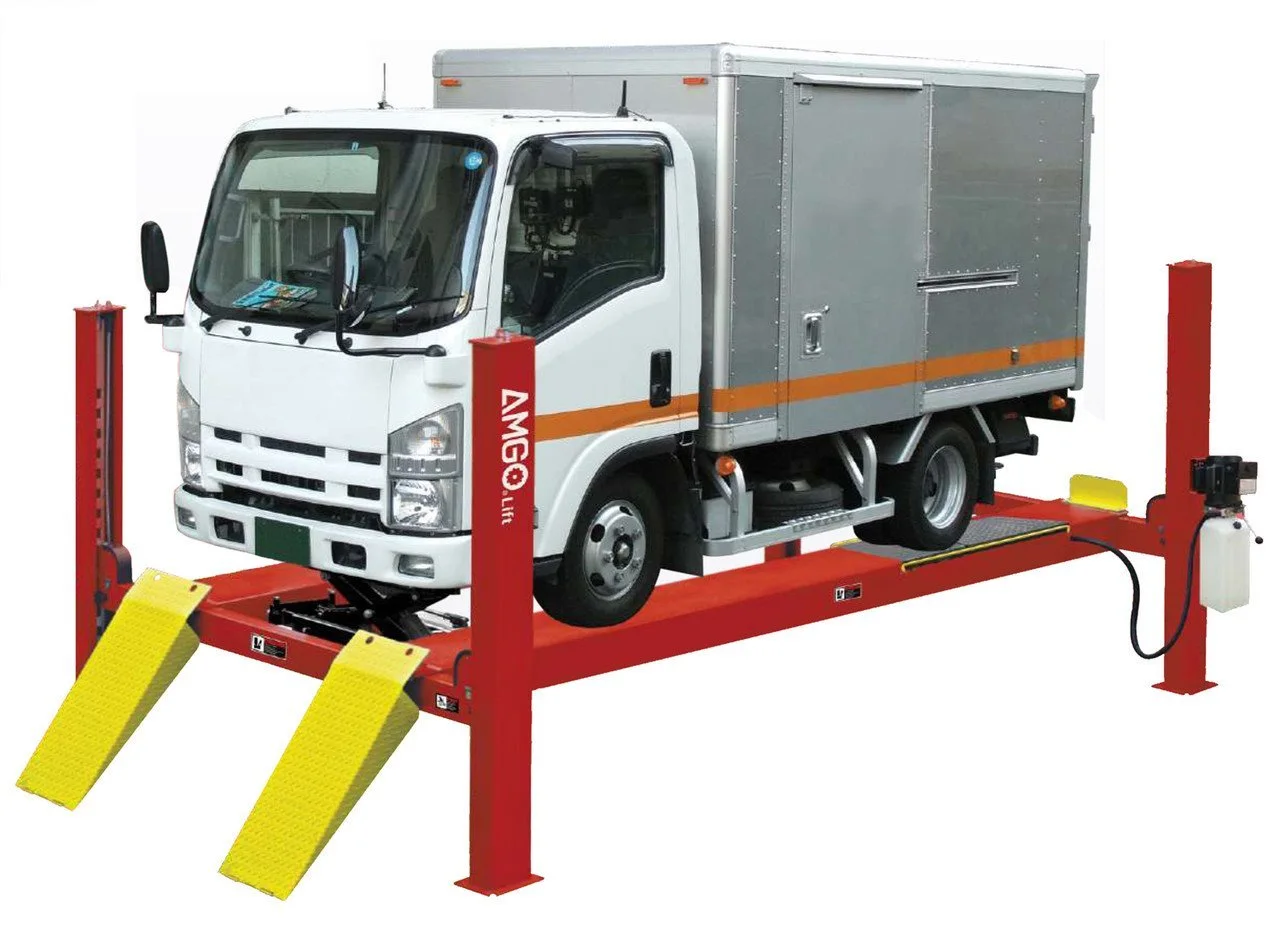

- 18,000 lb lifting capacity handles heavy trucks, vans, and commercial vehicles with ease
- Alignment-ready design with integrated slip plates and adjustable turnplate pockets for precise wheel alignment services
- Impressive lifting height of 75 3/8" provides ample clearance for comprehensive undercarriage access
- Wide 108 1/4" drive-thru clearance accommodates large vehicles and allows easy access for rolling jacks and equipment

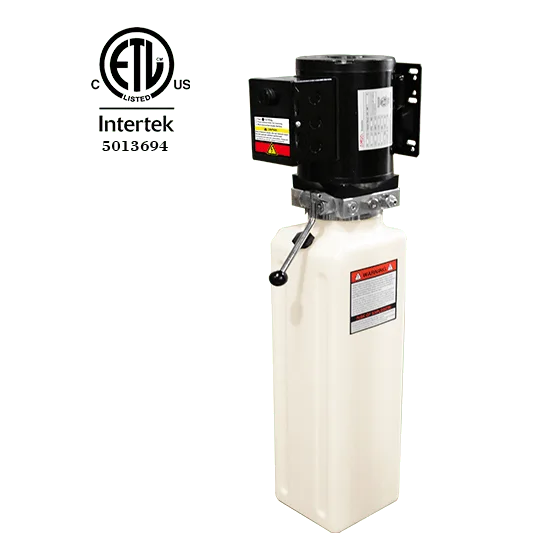

- Fast 81-second lifting time powered by a reliable 2.0HP, 220V single-phase motor maximizes shop productivity

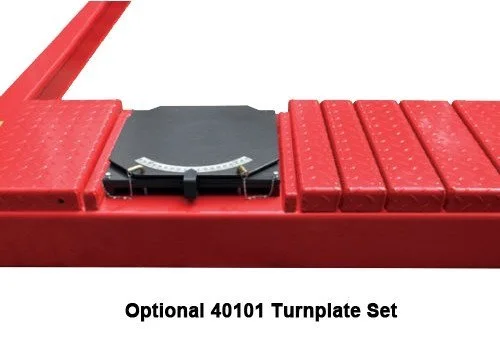

- 40101 Adjustable Turnplate Blocks for the PRO-18A
- RJ-10A Pneumatic 10,000 lbs Rolling Jacks
- 40106 Airline Kit for 4 Post Lifts less than 18K
- 41801 Extension Kit adds an extra 29" (737mm) length to the platform
- 18,000 lbs capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-18A |
| Condition |
New |
| Style |
Alignment |
| Lifting Capacity |
18,000 lbs |
| A Overall Length w/Ramp |
293 1/4" |
| A Overall Length w/o Ramp |
N/A |
| B Runway Length |
236 1/4" |
| C Overall Width |
137 1/16" |
| D Width Between Columns |
122 3/8" |
| E Max Lifting Height |
77 9/16" |
| E Max. Lock Height (to Top of Runway) |
74 7/16" |
| F Overall Height |
86 13/16" |
| G Minimum Height |
9 13/16" |
| H Max. Underneath Height |
68 7/8" |
| H Max. Lock Underneath Runway |
65 3/4" |
| I Drive-Thru Clearance |
108 1/4" |
| J Width Between Runways |
46" |
| K Outside Edge of Runways |
89 15/16" |
| L Min. Four Wheel Align |
99 13/16" |
| M Max. Four Wheel Align |
190 3/8" |
| N Max. Two Wheel Align |
191 3/4" |
| Lifting Time |
81 S |
| Motor |
2.0HP, 220V/60Hz Single Phase |
| Gross Weight |
4,367 lbs |
| Lifting capacity |
18,000 lb |
| Lift type |
Alignment Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
