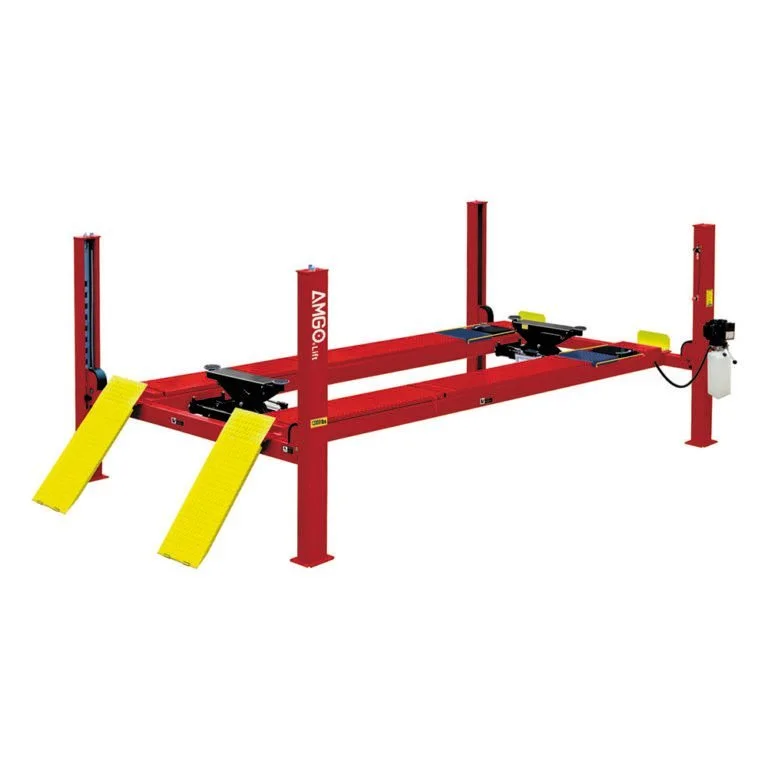

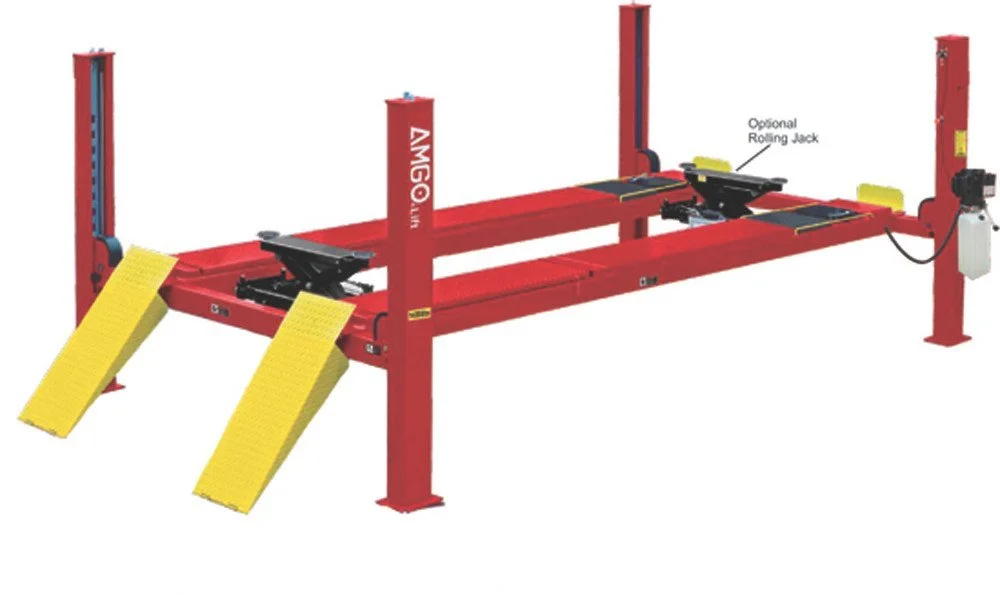

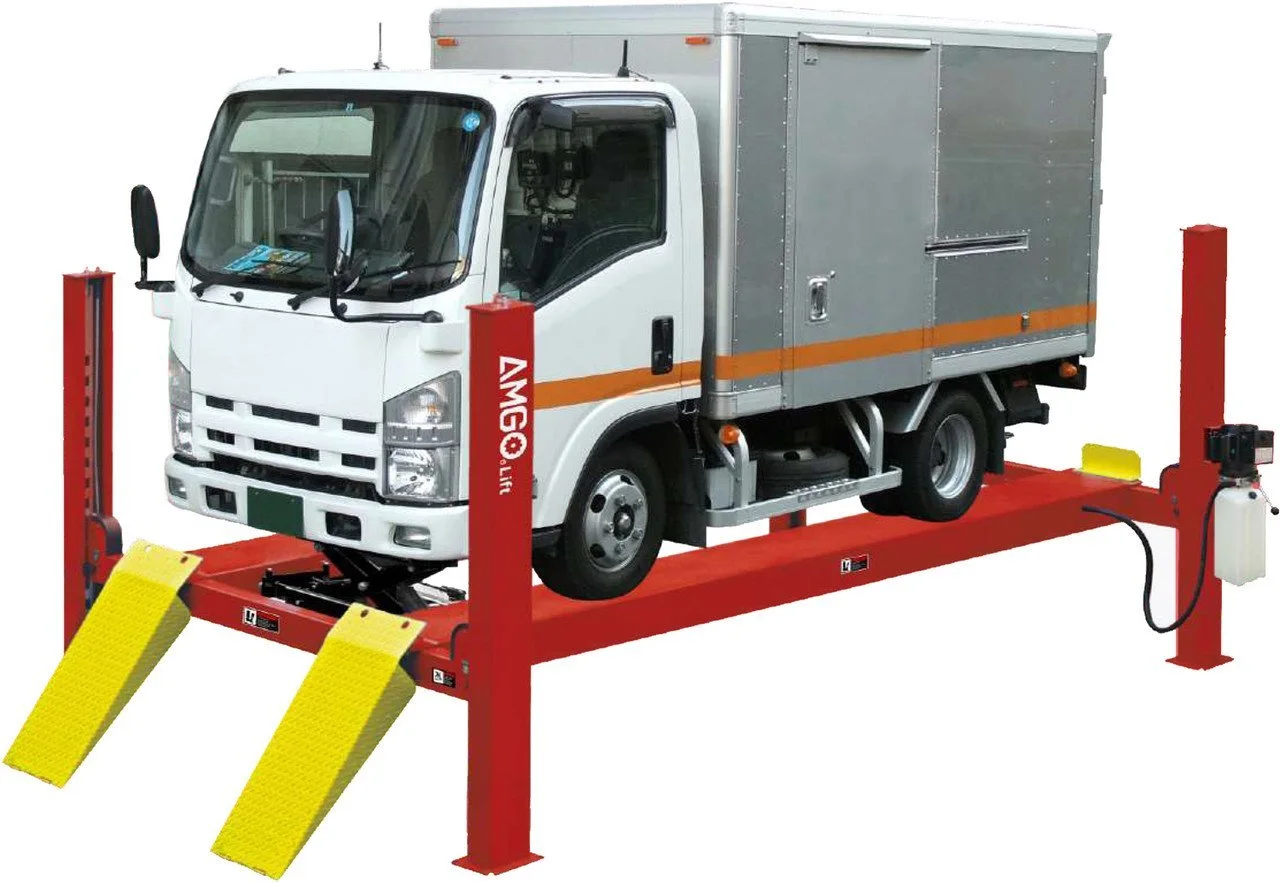

AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs
$8,720.00
AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs is part of our alignment lifts selection from AMGO Hydraulics.
- Lifting capacity: 14000 lb
10 in stock
AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs
AMGO® Hydraulics PRO-14A 4 Post Alignment Lift 14,000 lbs is part of our alignment lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 14,000 lbs capacity handles a wide range of passenger vehicles and light trucks with confidence
- Alignment-ready design built specifically for wheel alignment work (turn plates sold separately)

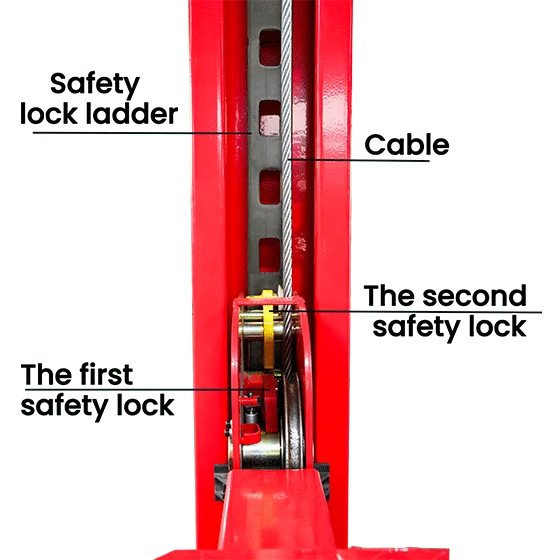

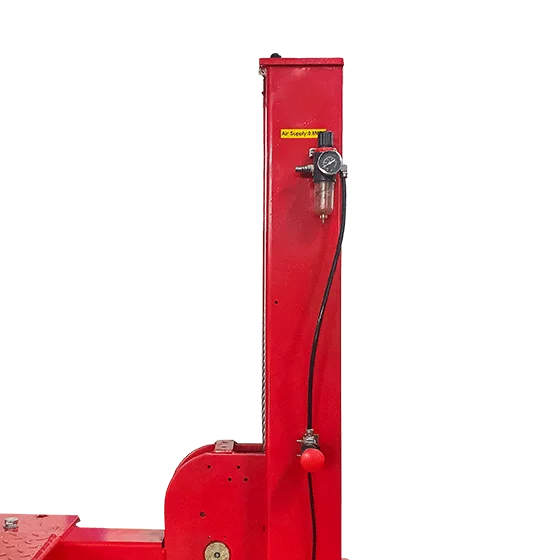

- Air-released safety lock system provides convenient operation with exceptional reliability and mechanical self-locking protection

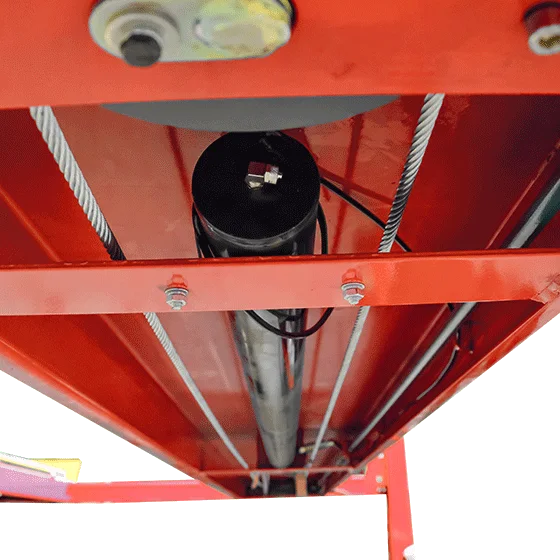

- High-quality hydraulic cylinders with flow restrictors ensure stable, smooth lifting and lowering operations
- 1/2-inch aircraft quality cable with cable-breaking protection for enhanced safety and durability

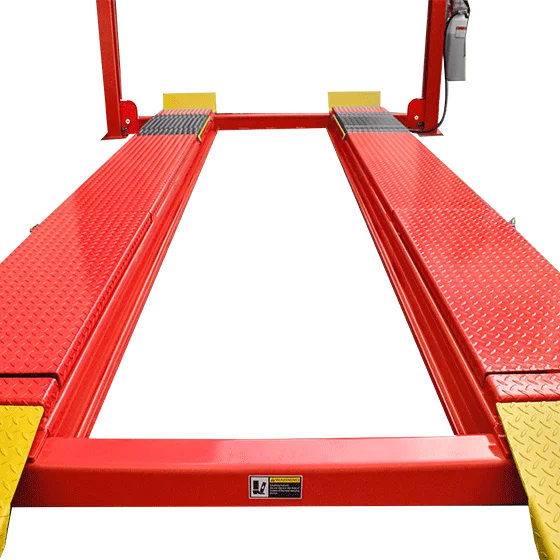

- Skid-proof diamond platform provides secure footing and vehicle traction throughout the lift cycle
- Runway width accommodates various vehicle track widths 46 inches between runways

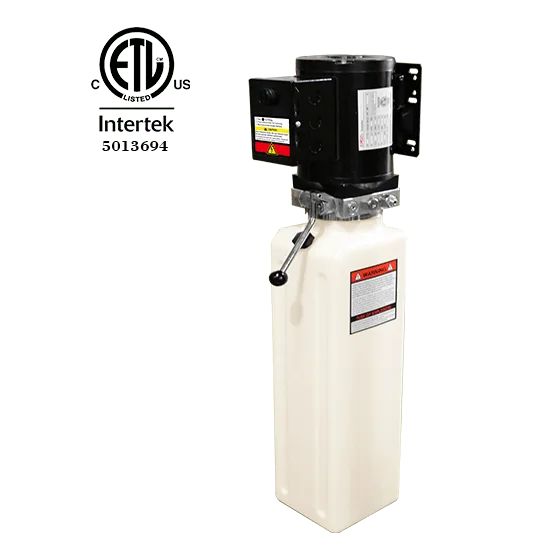

- Powered by 2.0HP motor on 220V/60Hz single phase power for efficient operation

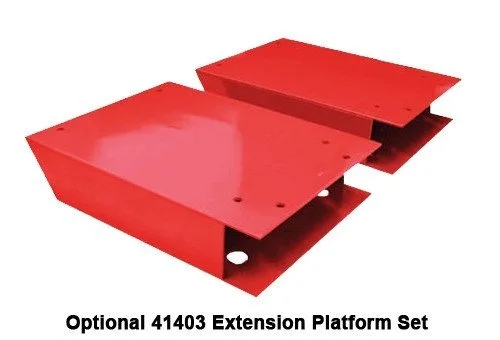

- 41403 Extension Platform Set for PRO-14 & PRO-14A (2 pieces) – extends usable platform length

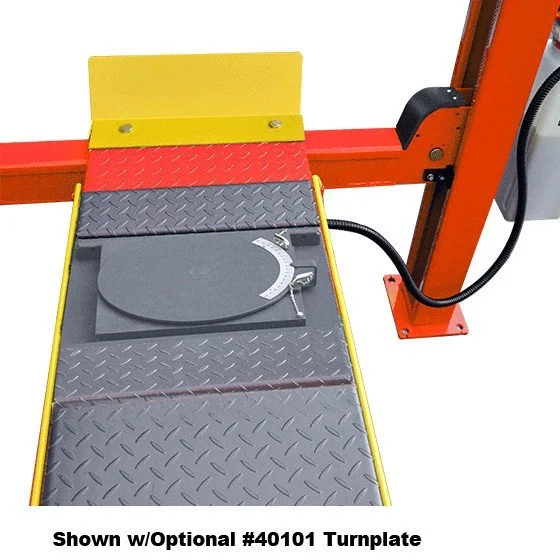

- 40101 Front Turnplate Kit essential for performing alignment services
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-14A |
| Condition |
New |
| Style |
Alignment |
| Lifting Capacity |
14,000 lbs |
| A Overall Length w/Ramp |
257 1/2" |
| A Overall Length w/o Ramp |
N/A |
| B Runway Length |
200 1/2" |
| C Overall Width |
130 7/8" |
| D Width Between Columns |
116" |
| E Max Lifting Height |
77 9/16" |
| E Max. Lock Height (to Top of Runway) |
74 7/16" |
| F Overall Height |
86 3/16" |
| G Minimum Height |
9 13/16" |
| H Max. Underneath Height |
68 7/8" |
| H Max. Lock Underneath Height |
65 3/4" |
| I Drive-Thru Clearance |
102 1/16" |
| J Width Between Runways |
46" |
| K Outside Edge of Runways |
86" |
| L Min. Four Wheel Align |
92 5/8" |
| M Max Four Wheel Align |
177 3/16" |
| N Max. Two Wheel Align |
178 9/16" |
| Lifting Time |
81 S |
| Motor |
2.0HP, 220V/60Hz Single Phase |
| Gross Weight |
3,560 lbs |
| Lifting capacity |
14,000 lb |
| Lift type |
Alignment Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
