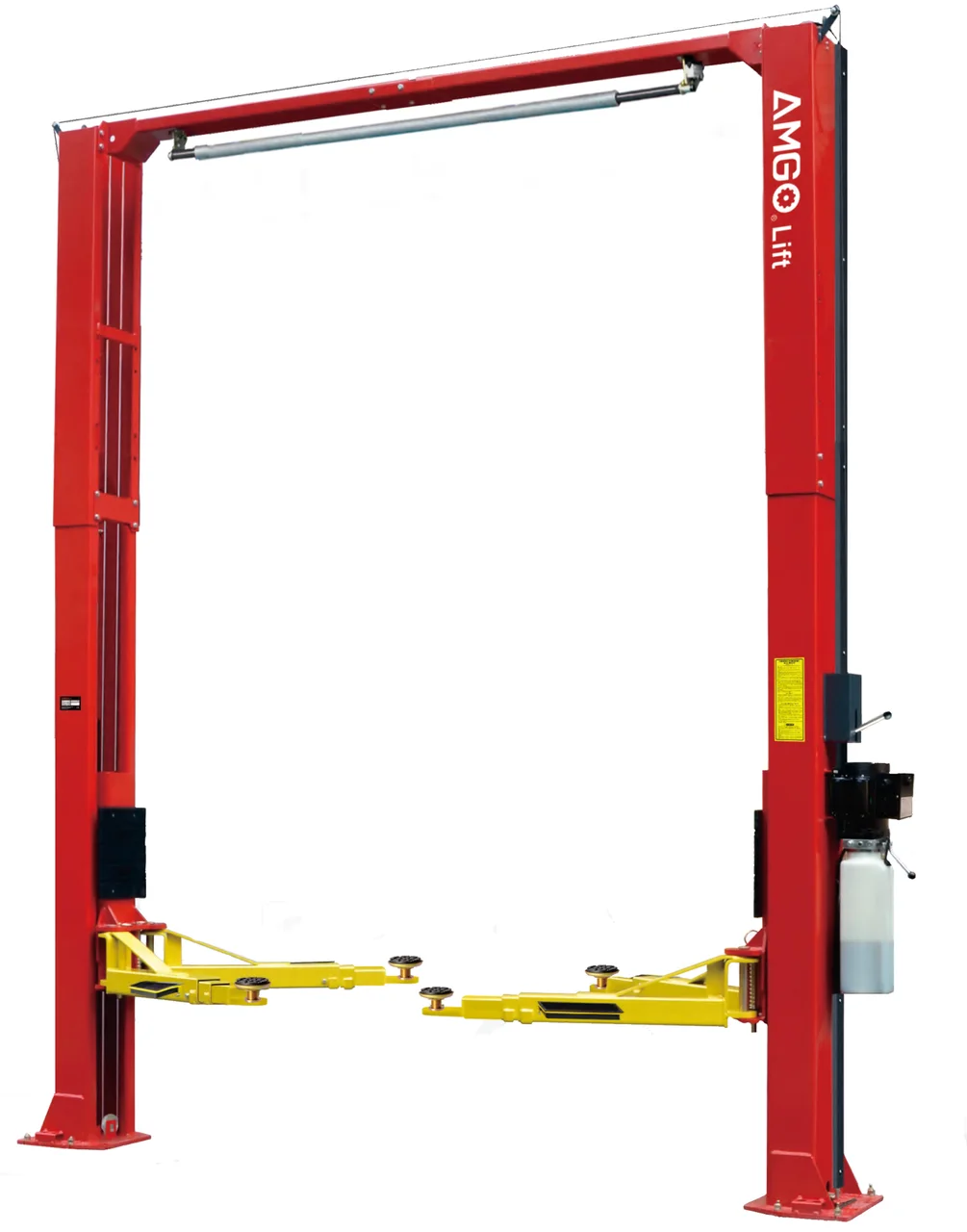

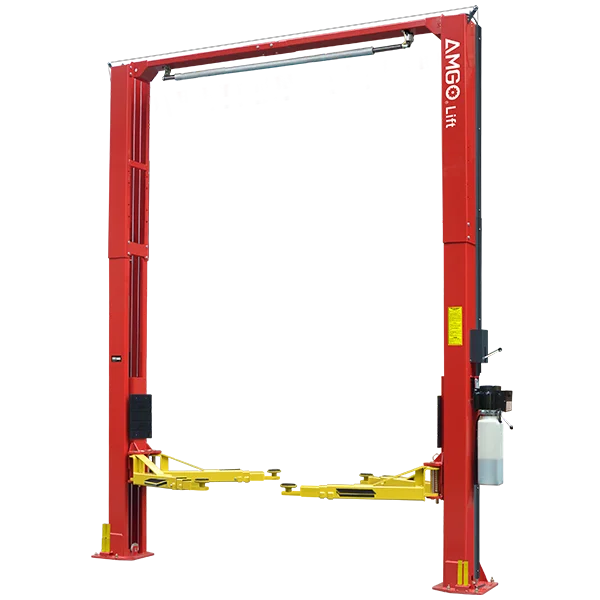

AMGO Hydraulics OH-12 Heavy-Duty 2 Post Lift – 12,000 lb Capacity
$4,950.00
AMGO Hydraulics OH-12 Heavy-Duty 2 Post Lift – 12,000 lb Capacity is part of our 2 post lifts selection from AMGO Hydraulics.
- Lifting capacity: 12000 lb
7 in stock
AMGO Hydraulics OH-12 Heavy-Duty 2 Post Lift – 12,000 lb Capacity
AMGO Hydraulics OH-12 Heavy-Duty 2 Post Lift – 12,000 lb Capacity is part of our 2 post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

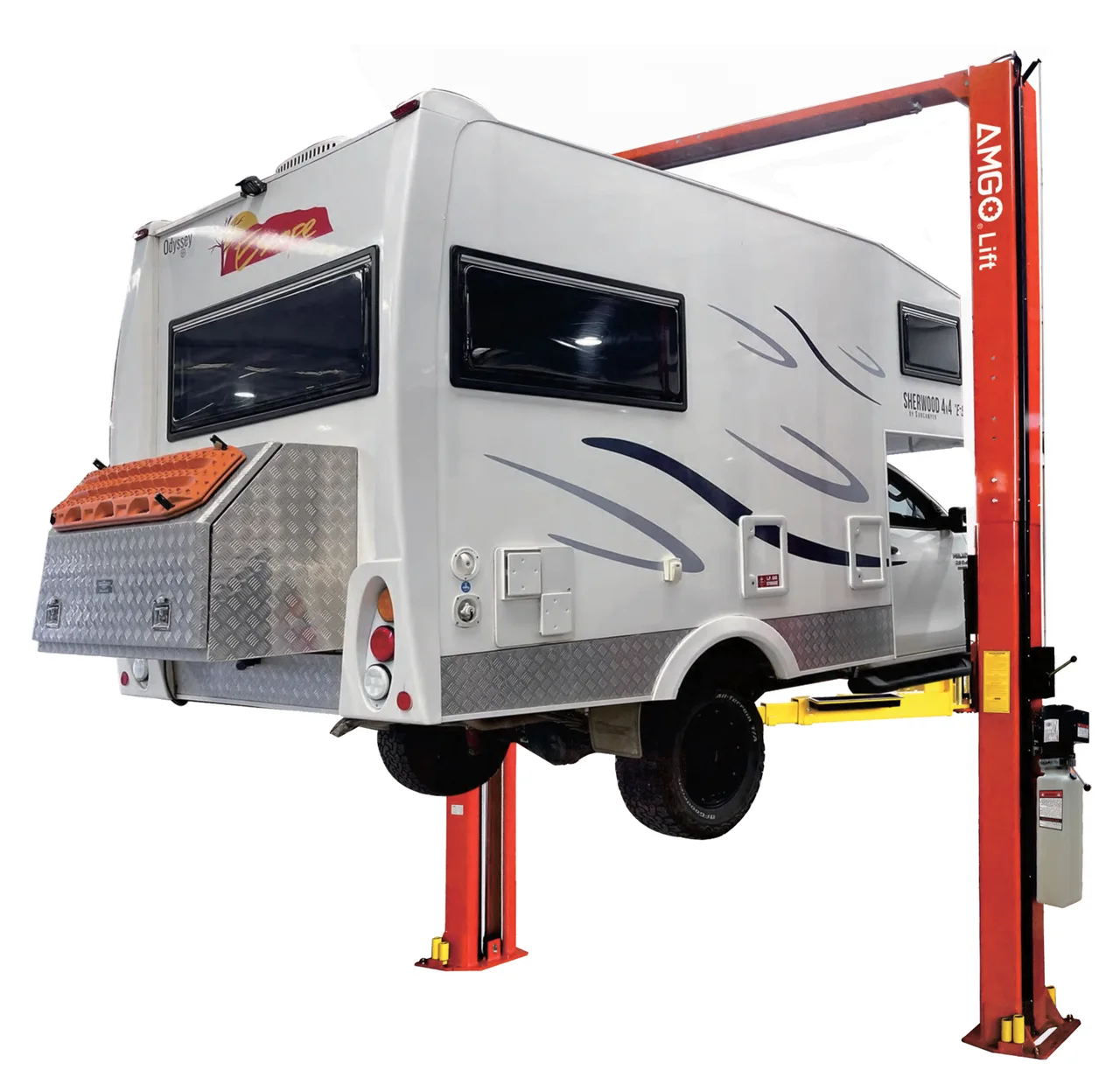

- 12,000 lb lifting capacity handles heavy-duty trucks and commercial vehicles with confidence
- Four three-stage arms accommodate short to long wheelbase vehicles with ease
- Single-point safety release for fast, safe, one-column unlocking
- Adjustable two-height settings to match your shop's ceiling height requirements

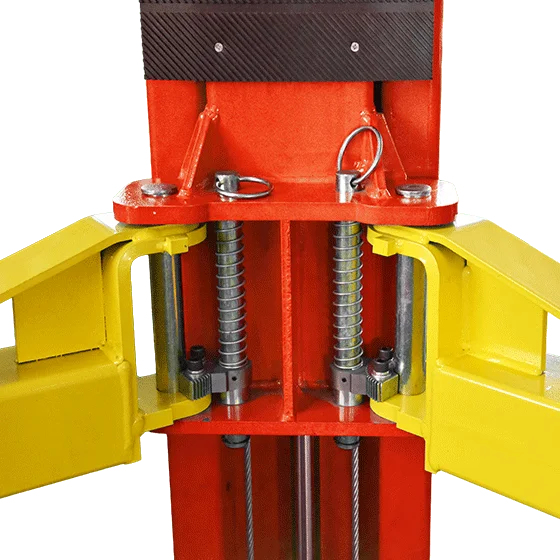

- Self-lubricating sliders and bronze bushings reduce maintenance and extend component life
- Lifting Capacity: 12,000 lbs
- Lifting Height: 72 1/2" to 82 7/8"
- Overall Height: 174" / 198" (4420 / 5030mm) — adjustable for your ceiling
- Overall Width: 150.75" (3829mm)
- Drive-Thru Clearance: 109.75" (2787mm)
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
OH-12 |
| Condition |
New |
| Lifting Capacity |
12,000 lbs |
| A Max Lifting Height w/o Adapters |
72 1/2" ~ 73 7/8" |

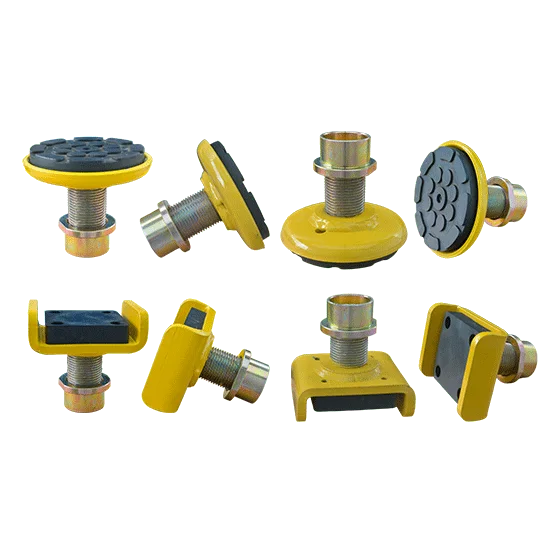

| A Max Lifting Height w/Adapters |
81 9/16" ~ 82 7/8" |
| A Max Lock Height w/o Adapters |
70 9/16" ~ 71 7/8" |
| A Max Lock Height w/Adapters |
79 9/16" ~ 80 15/16" |
| B Overall Height (Low Setting) |
174" |
| B Overall Height (Medium Setting) |
186" |
| B Overall Height (High Setting) |
198" |
| C Overall Width |
150 3/4" |
| D Drive-Thru Clearance |
109 3/4" |
| E Width Between Columns |
123 1/2" |
| F Minimum Pad Height |
4 1/2" |
| Lifting Time |
69 S |

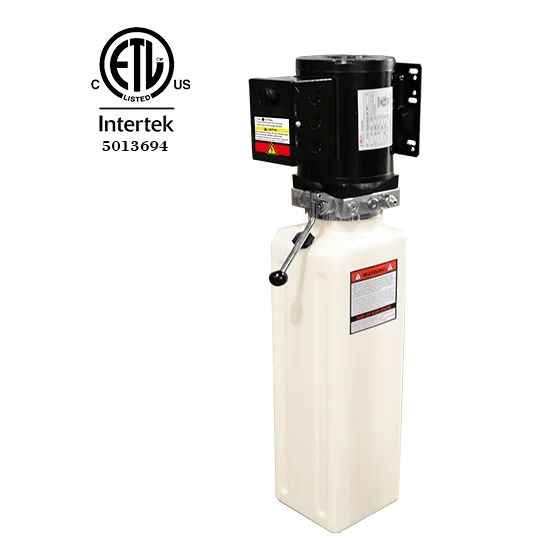

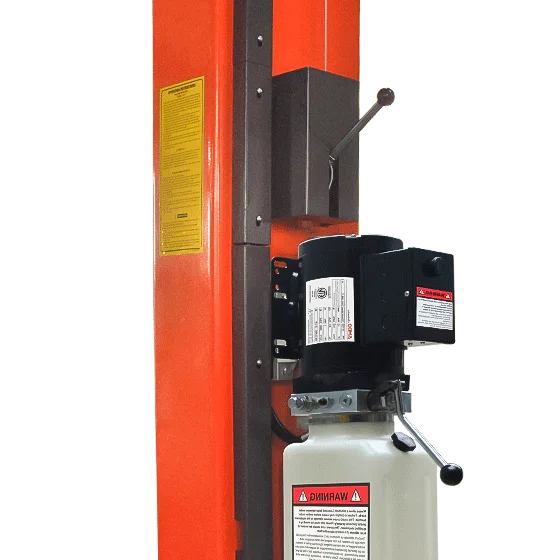

| Motor |
2 HP / 220V |
| Gross Weight |
2,436 lbs |
| Lifting capacity |
12000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
