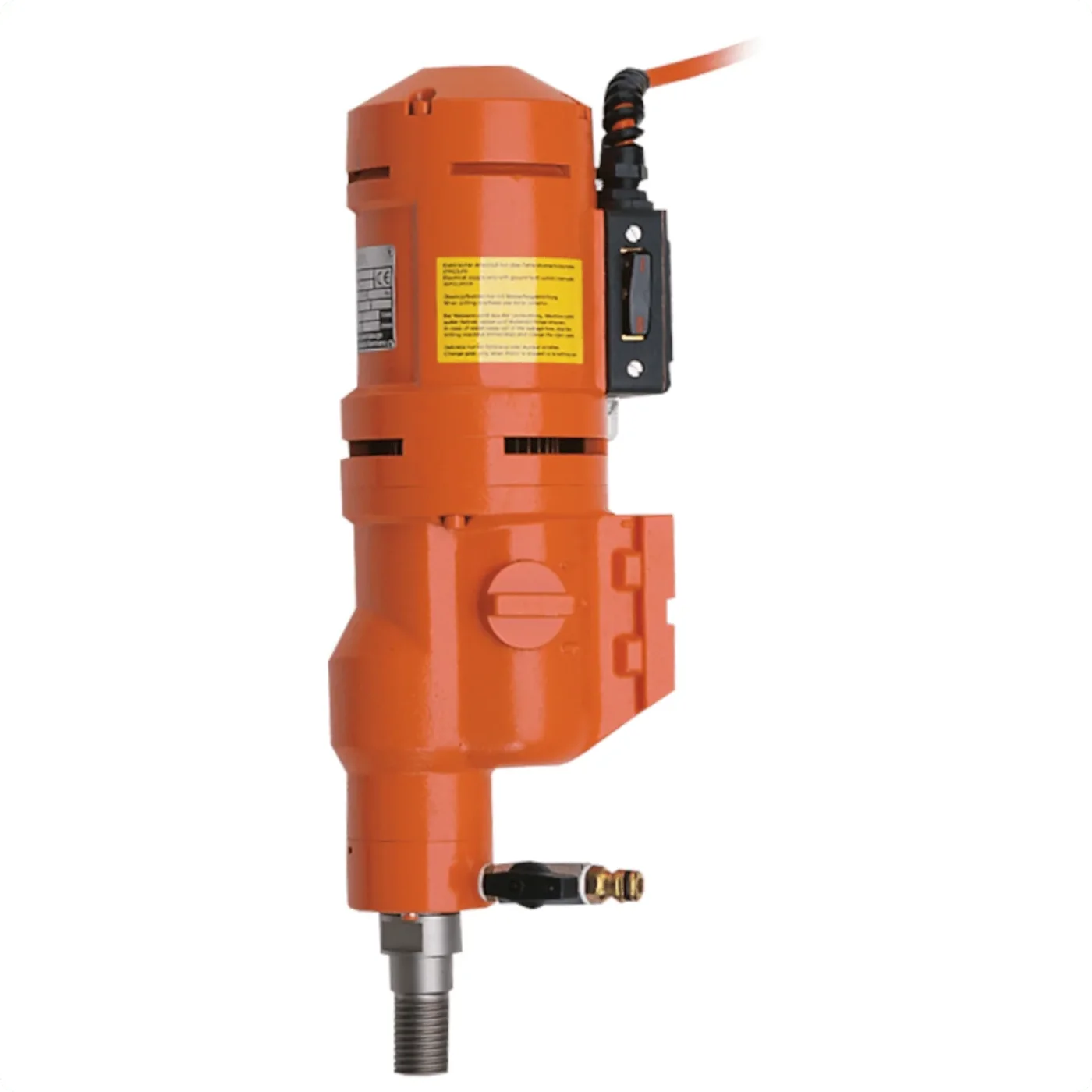

WEKA DK22 Series Core Drill Motor
$4,171.92
WEKA DK22 Series Core Drill Motor is part of our core drill motors selection from Weka.
- Voltage: 230V
- Equipment type: Core Drill
WEKA DK22 Series Core Drill Motor
WEKA DK22 Series Core Drill Motor is part of our core drill motors selection from Weka.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 230V power/drive requirement captured for jobsite planning
- 16" drilling or boring capacity for selecting the right bit and setup
- 960 RPM speed range or gearbox detail supports bit-size control
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Site utility or fuel: 230V
- Handling reference: 13 lb
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Weka |
|---|---|
| Equipment type |
Core Drill |
| Tool Mount |
Rig-Mounted |
| Available Variants |
DK22 230 V 11 A; DK22 110 V 23 A; DK22L 110 V 23 A; DK22S 230 V 11 A; DK22S 110 V 23 A |
| Model # |
DK22 |
| Product Type |
Core Drill |
| Product Subtype |
Drill Motor |
| Product Mount |
Rig-Mounted |
| Engine/Motor |
Electric Motor |
| Horse Power |
Heavy Duty |
| Voltage |
230 V |
| Amperage |
11 AMP |
| Power Phase |
1PH |
| Variable Speed |
3-Speed |
| Speed 1 Max RPM |
300 RPM |
| Speed 2 Max RPM |
640 RPM |
| Speed 3 Max RPM |
960 RPM |
| Max Speed RPM |
960 RPM |

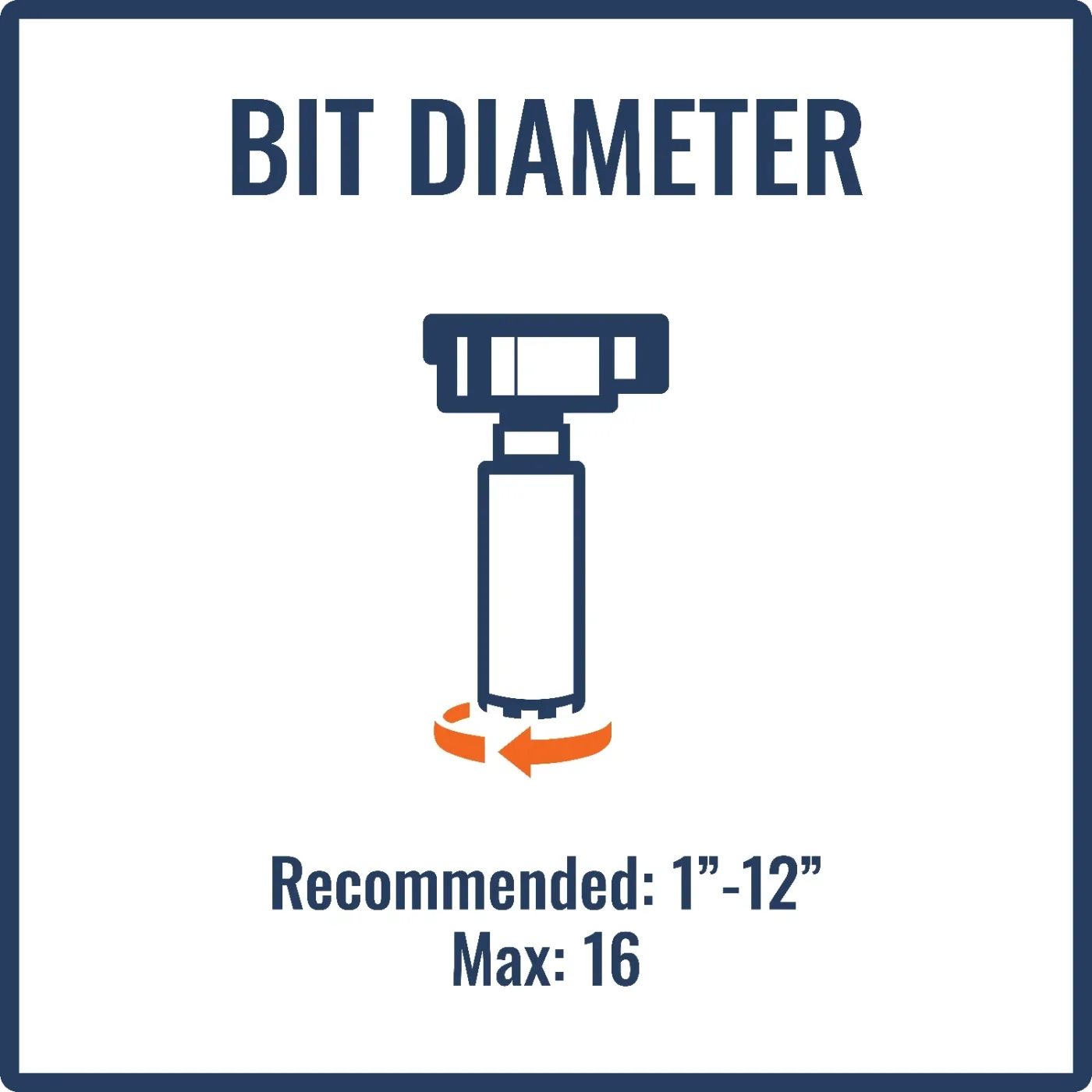

| Recommended Bit Diameter |
1" – 12" |
| Drilling Depth per Pass |
User-Dependent |
| Spindle Features |
1.250"-7 |
| Weight (lbs) |
13 lb |
| Shipping Weight |
28.3 |
| Clutch |
Slip |
| Compact Design |
Yes |
| Applications |
Concrete, Masonry, Stone |
| Dry/Wet |
Wet |
| Power Compatibility |
Standard Electric Supply |
| Product Warranty |
1 Year |
| Store Title |
WEKA DK22 Series Core Drill Motor |
| Manufacturer Part Number |
4244016 for listed DK22 230 V variant |
| Spindle Thread |
1.250"-7 |
| Included |
Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated |
| Power source |
Electric |
| Drilling diameter |
16 in |
| Phase |
Single phase |
