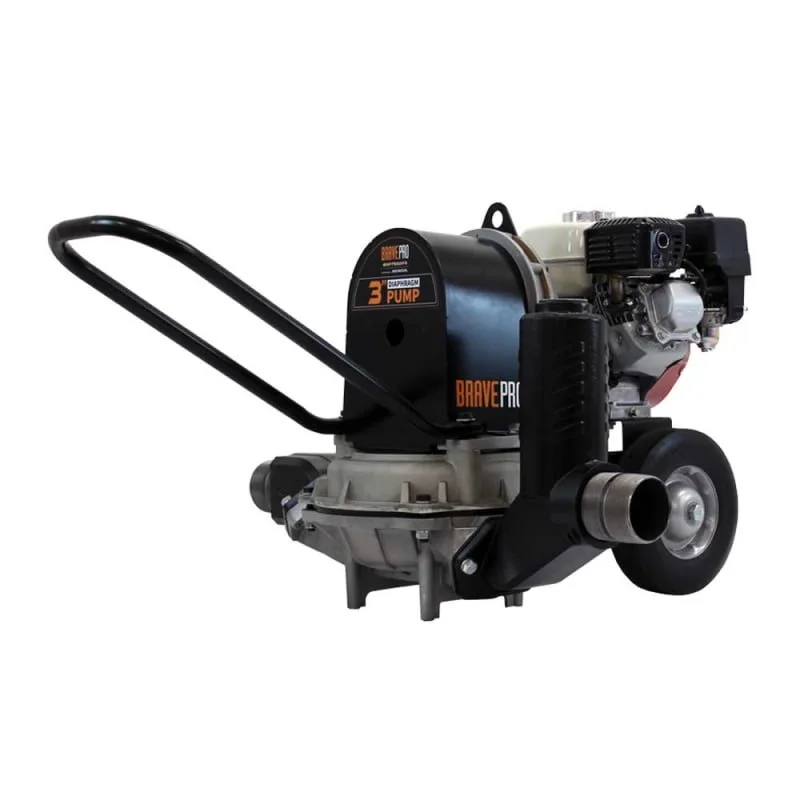

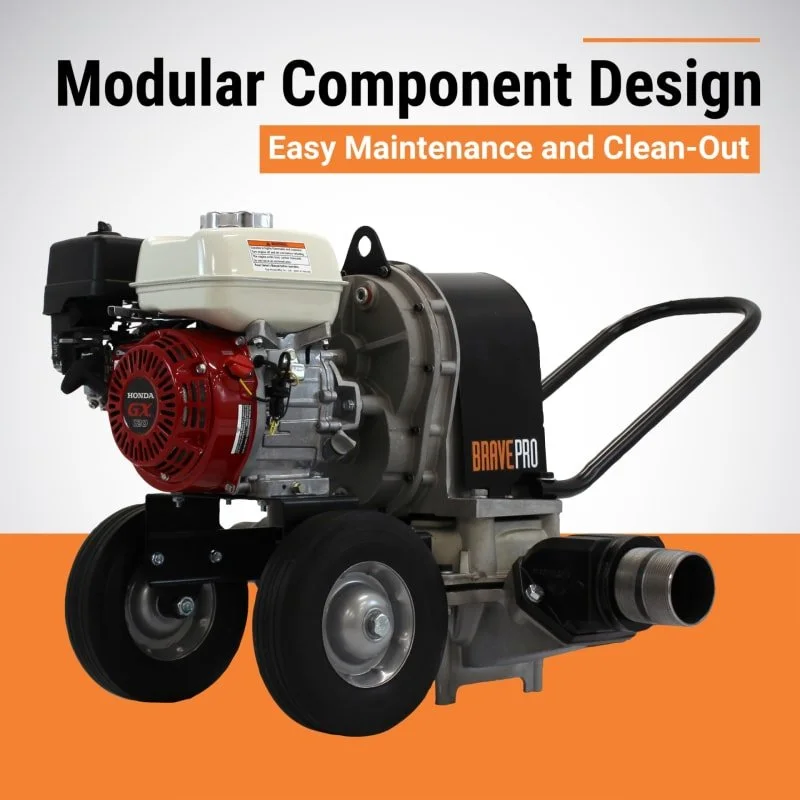

BravePro Diaphragm Pump | 3 In. | Honda GX120
$2,499.00
BravePro Diaphragm Pump | 3 In. | Honda GX120 is part of our diaphragm pumps selection from Brave.
8 in stock
BravePro Diaphragm Pump | 3 In. | Honda GX120
BravePro Diaphragm Pump | 3 In. | Honda GX120 is part of our diaphragm pumps selection from Brave.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- Diaphragm design is suited to mud, slurry, silt, sand, and abrasive water mixtures.
- 89 GPM capacity supports controlled dewatering where trash pumps are not ideal.
- Honda GX120 engine provides compact gasoline power.

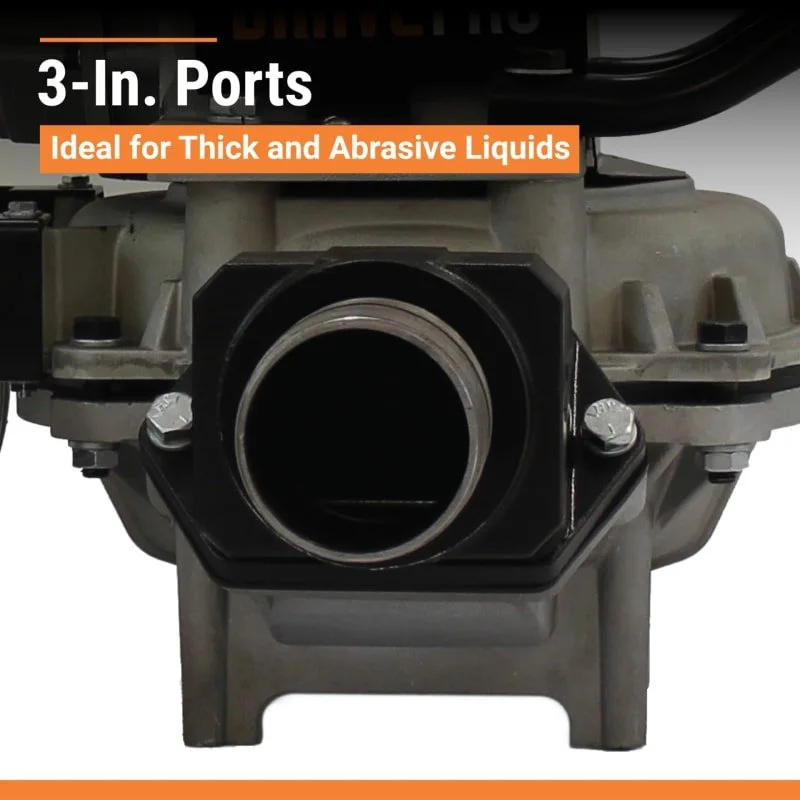

- 3 in NPT suction and discharge ports match common hose kits.
- 175 lb dry weight and standard assembled unit details support freight planning.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Brave |
|---|---|
| Manufacturer Model |
BRP750DP3 |
| Equipment Type |
3 in gas diaphragm pump |
| Engine |
Honda GX120 |
| Engine Brand |
Honda |
| Engine Displacement |
122 cc |
| Pump Type |
Diaphragm pump |
| Material |
Aluminum |
| Diaphragm |
Thermoplastic/TPE |
| Check Valve |
Neoprene |
| Gearbox |
Oil bath |
| Bearings |
Needle |
| Discharge Capacity |
89 gal/min |
| Suction Port Diameter |
3 in NPT |
| Discharge Port Diameter |
3 in NPT |
| Pressure |
11 psi max / 10.9 psi manual caution |

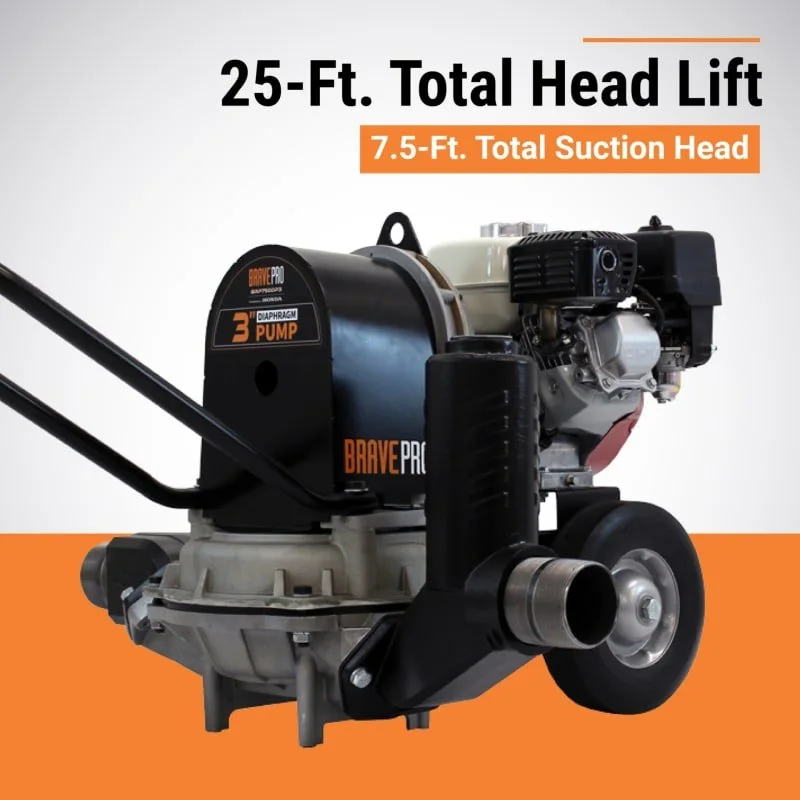

| Total Head Lift |
25 ft |
| Suction Head Lift |
7.5 ft listed by retailers |
| Solids Handling |
Up to 1-5/8 in diameter |
| Liquid Temperature Range |
40-180 deg F |
| Dry Weight |
175 lb |
| Warranty |
1-year limited manufacturer warranty listed by Northern Tool; other retailers list 2-year limited / 1-year commercial |
