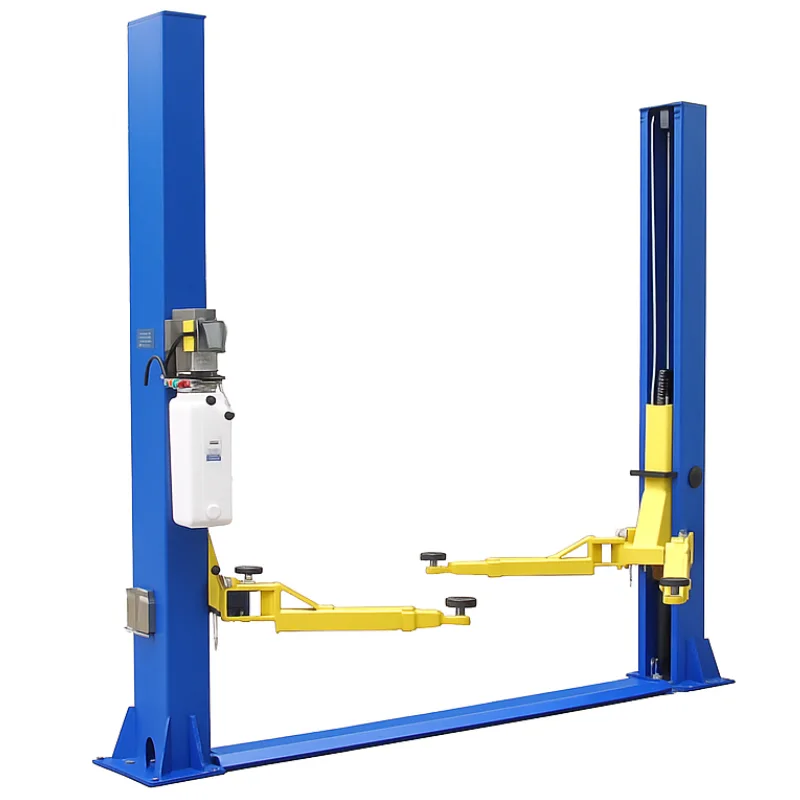

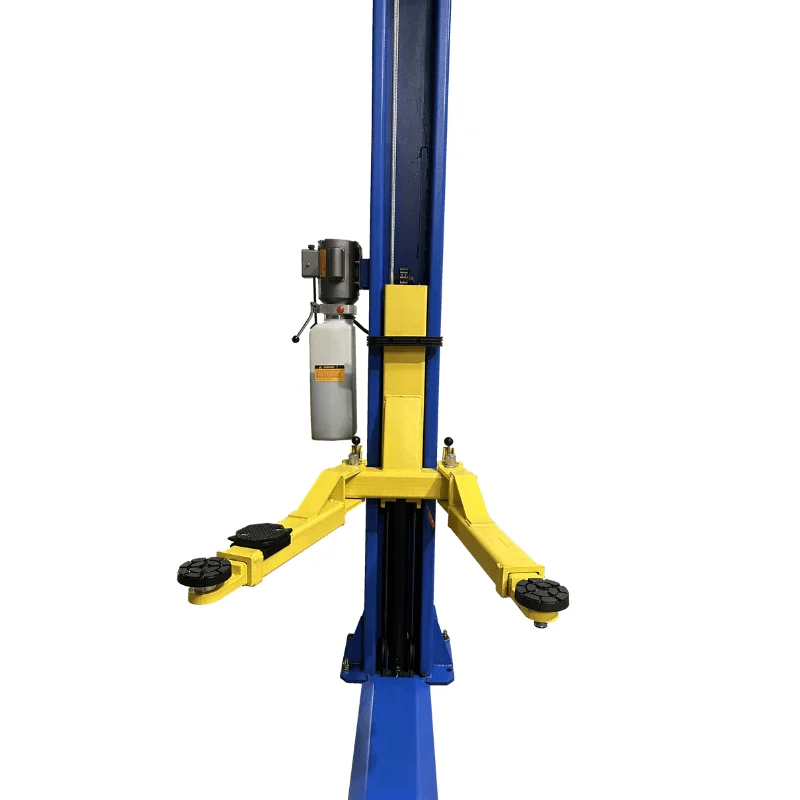

Tuxedo TP9KFX 9,000 lb. Capacity Symmetric Two Post Lift
$2,995.00
Tuxedo TP9KFX 9,000 lb. Capacity Symmetric Two Post Lift is part of our 2 post lifts selection from Tuxedo.
- Lifting capacity: 9000 lb
6 in stock
Tuxedo TP9KFX 9,000 lb. Capacity Symmetric Two Post Lift
Tuxedo TP9KFX 9,000 lb. Capacity Symmetric Two Post Lift is part of our 2 post lifts selection from Tuxedo.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

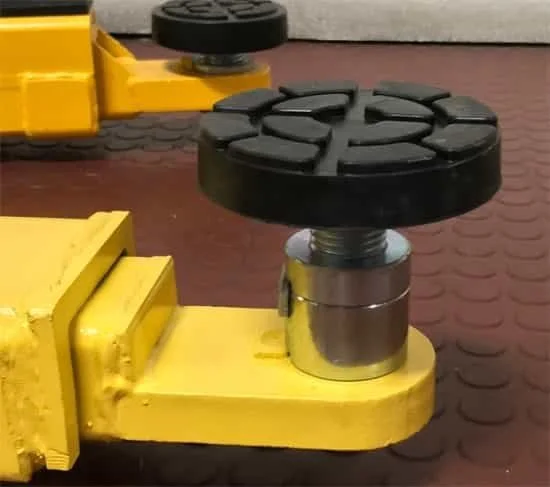

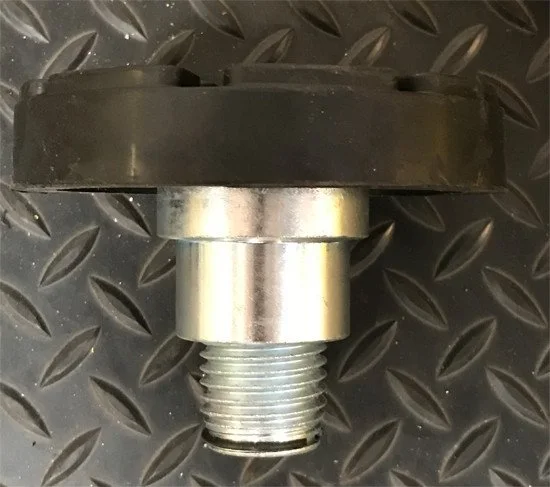

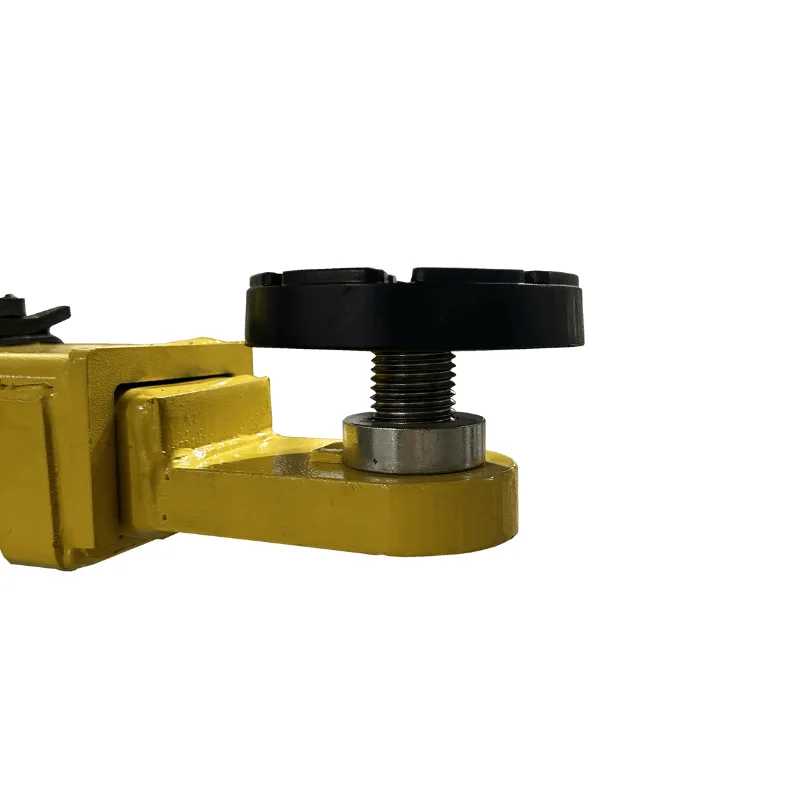

- Low-profile drop-in swivel pads with 1-1/2" adjustable height for precise vehicle positioning

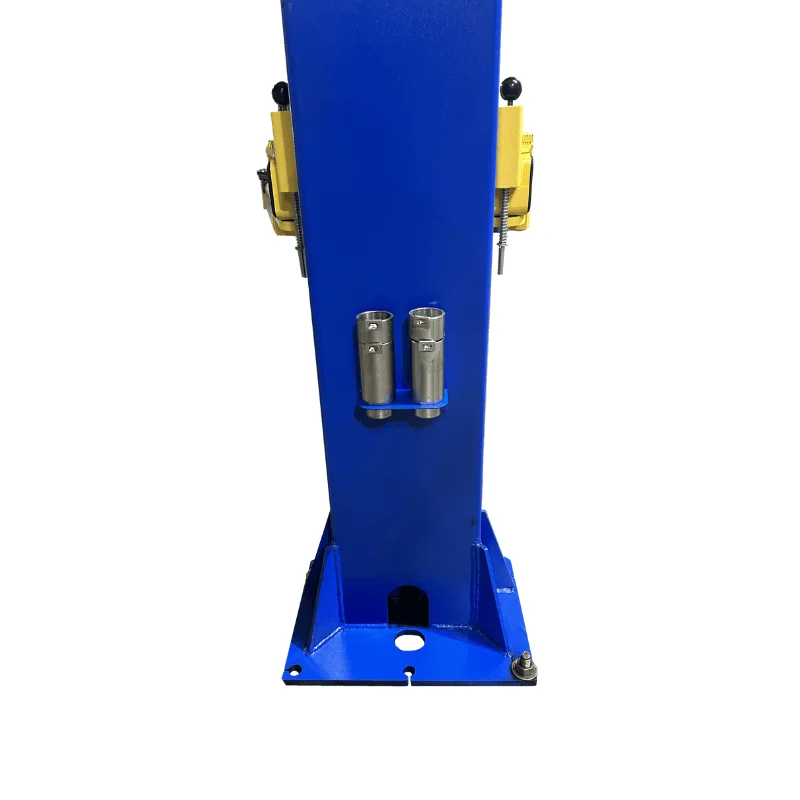

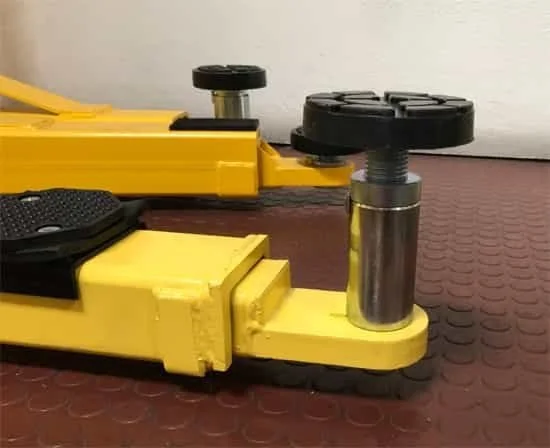

- Free set of stackable height adapters 4 each of 1-3/8" and 4" drop-in adapters for lifting trucks and high-ground-clearance vehicles
- Dual-point lock release system with single-point manual release for enhanced safety and operator convenience

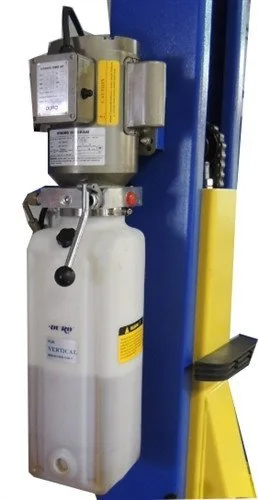

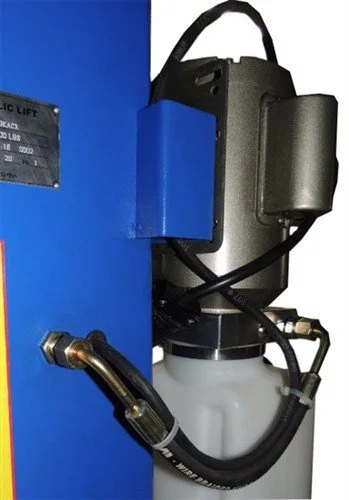

- Fast 50-second lifting speed powered by 220V, 20 AMP, single-phase motor
- 9,000 lb lifting capacity
- High Quality Construction
- Chain Drive
- Dual Point Lock Release
- Saddle Pad Adapters included (1 pair
- Powder coat finish
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Tuxedo |
|---|---|
| MPN / Model |
TP9KFX-V001 |
| Condition |
New |
| Free Drop-In Stackable Height Adapters |
Set of 4 each: 1-3/8" & 4" |
| Capacity |
9,000 lbs. |
| Overall Height |
111.9" |
| Width Overall w/Power Unit |
134.6" |
| Max Lift Height |
72" |
| Width Between Columns |
110.4" |
| Min Pad Height |
4" |
| Drive thru Clearance |
101" |
| Lifting speed |
50 sec |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Floor Plate |
| Front Arm Reach – min/max |
31" – 45" |
| Rear Arm Reach – min/max |
31" – 45" |
| Max Load Per Arm |
2,250 lbs. |
| Cable Diameter |
3/8" |
| Column Size |
7.25" x 10.87" |
| Column Steel Thickness |
5mm |
| Carriage Steel Thickness |
5mm |
| Arm Steel Thickness |
6mm |
| Power |
220V – 20 AMP – 1 PH |
| Ship Weight |
1,265 lbs. |
| Lifting capacity |
9,000 lb |
| Lift type |
2 Post Lifts |
Free shipping across the USA
Heavy equipment shipping generally takes 10 to 21 days after order placement. Small items may travel by parcel carrier; larger machines and trailers require freight coordination.
Use a physical delivery address and a reachable phone number. For freight deliveries, tell us about receiving hours, truck access, forklift or dock availability, and any unloading requirements. A delivery appointment may be required.
Inspect the shipment before signing where possible. Photograph damage, retain all packaging and pallets, and report freight damage within 48 hours. Contact us before returning any equipment.
