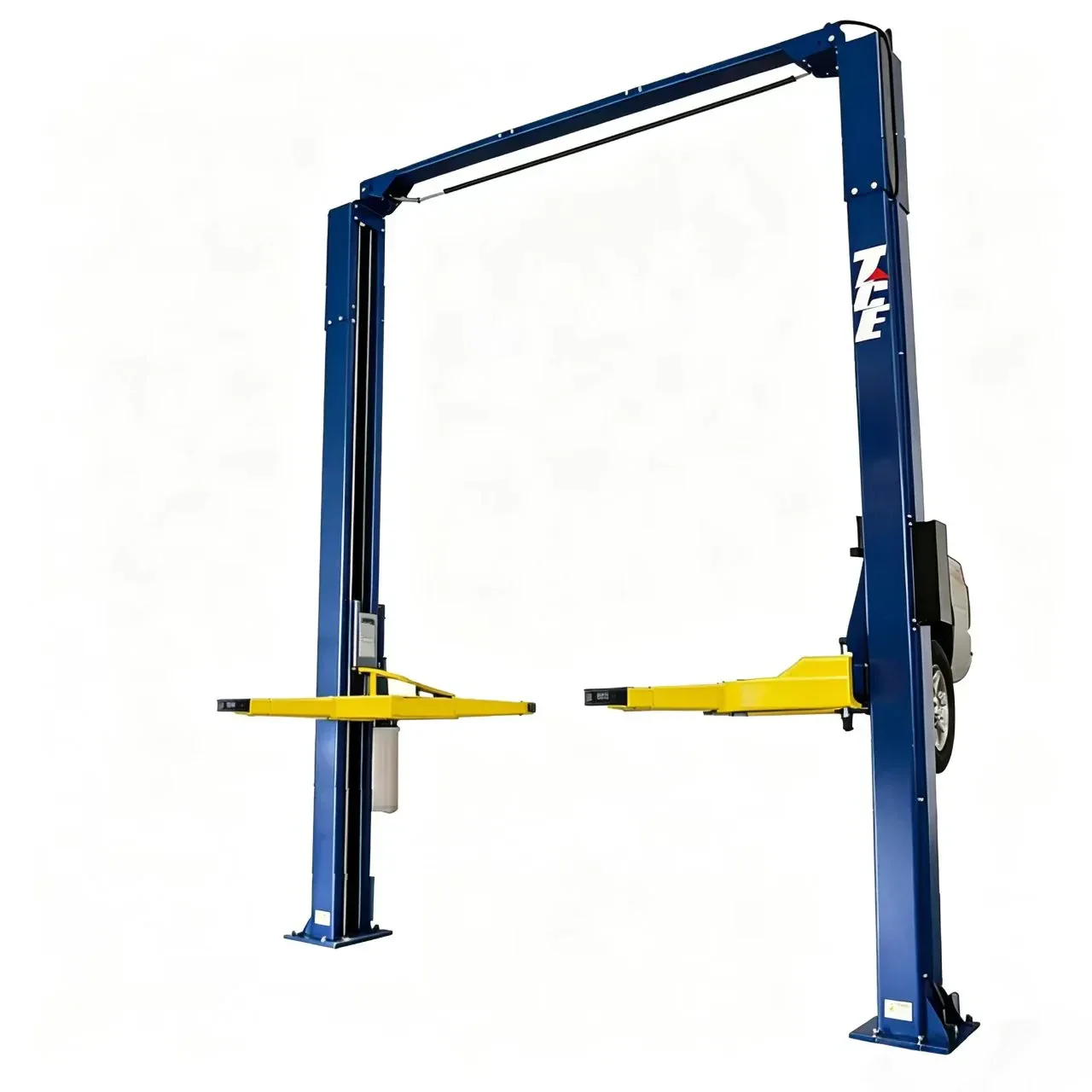

Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb.
$3,999.00
Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb. is part of our 2 post lifts selection from Torin USA.
- Lifting capacity: 10000 lb
13 in stock
Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb.
Torin QJY245DX TCE 220V ALI 2 Post Lift 10,000 lb. is part of our 2 post lifts selection from Torin USA.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Exact manufacturer model or part number: QJY245DX
- Condition: New
Check the configuration

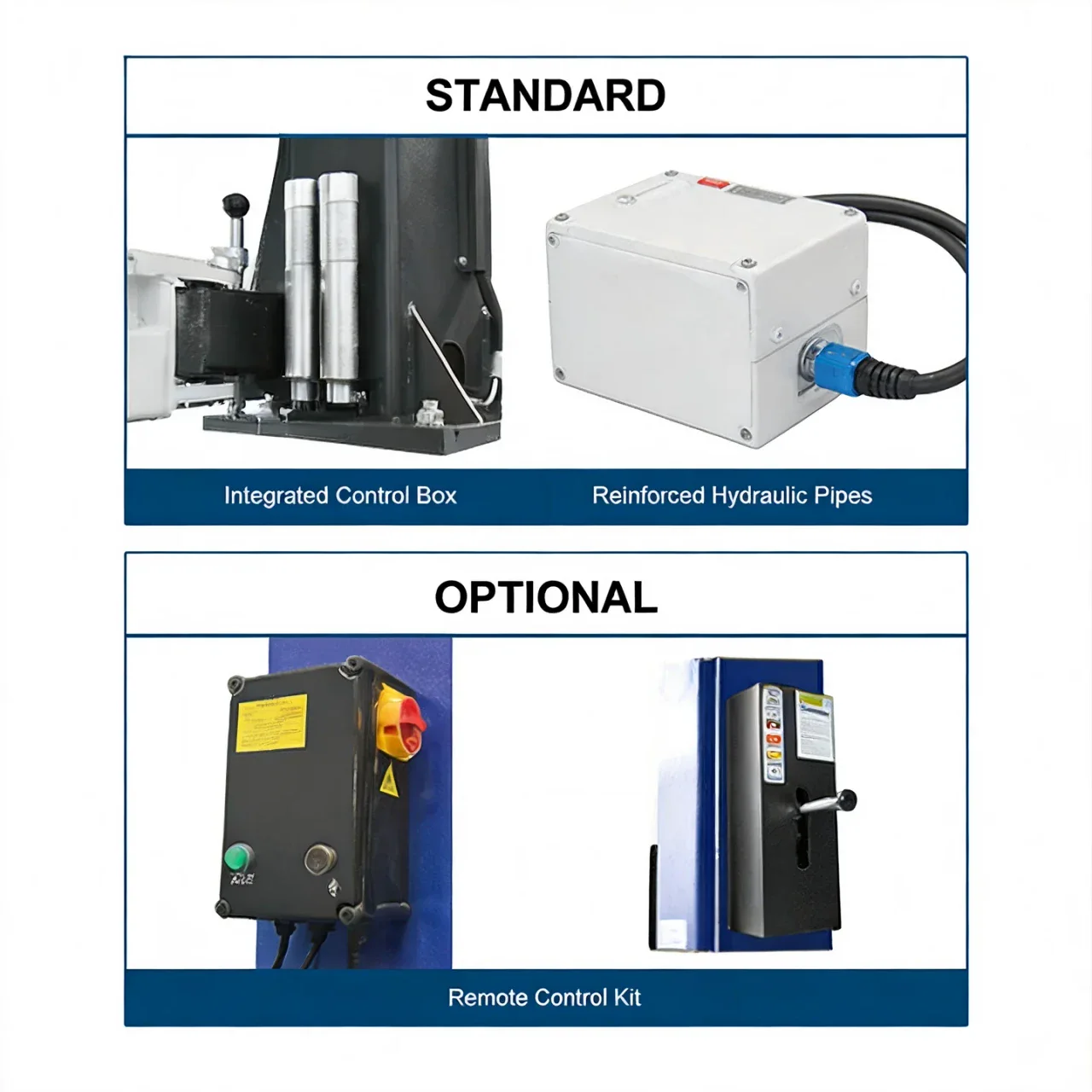

Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Torin USA |
|---|---|
| MPN / Model |
QJY245DX |
| Condition |
New |
| Capacity |
10,000 lbs. / 4.5 Tons |
| Overall Height |
143.7" (11,97ft) / 3650mm |
| Ceiling Height Requirement |
144" (12ft) / 3658mm |
| Max Lift Height |
69" |
| Max Lift Height w/Adapters |
78" |
| Max Rise from the Ground |
72.75" |
| Min Height of Adjustable Pads from Ground |
4" |
| Driving Mode |
Direct Drive |
| Front / Rear Arms |
3 Stages |
| Front Arm Reach |
19.3" to 41.85" / 492 to 1063mm |
| Rear Arm Reach |
37.3" to 60.20" / 948 to 1529mm |
| Width Arms Open Symmetric Setting |
122.09" / 3101mm |
| Width Arms Open Asymmetric Setting |
82.64" / 2099mm |
| Width Arms Centered |
34.45' / 875mm |
| Max Load Per Arm |
Single Point Release |
| Lock Release |
2500 lbs. / 1136 kg |
| Rising Time |
50s |

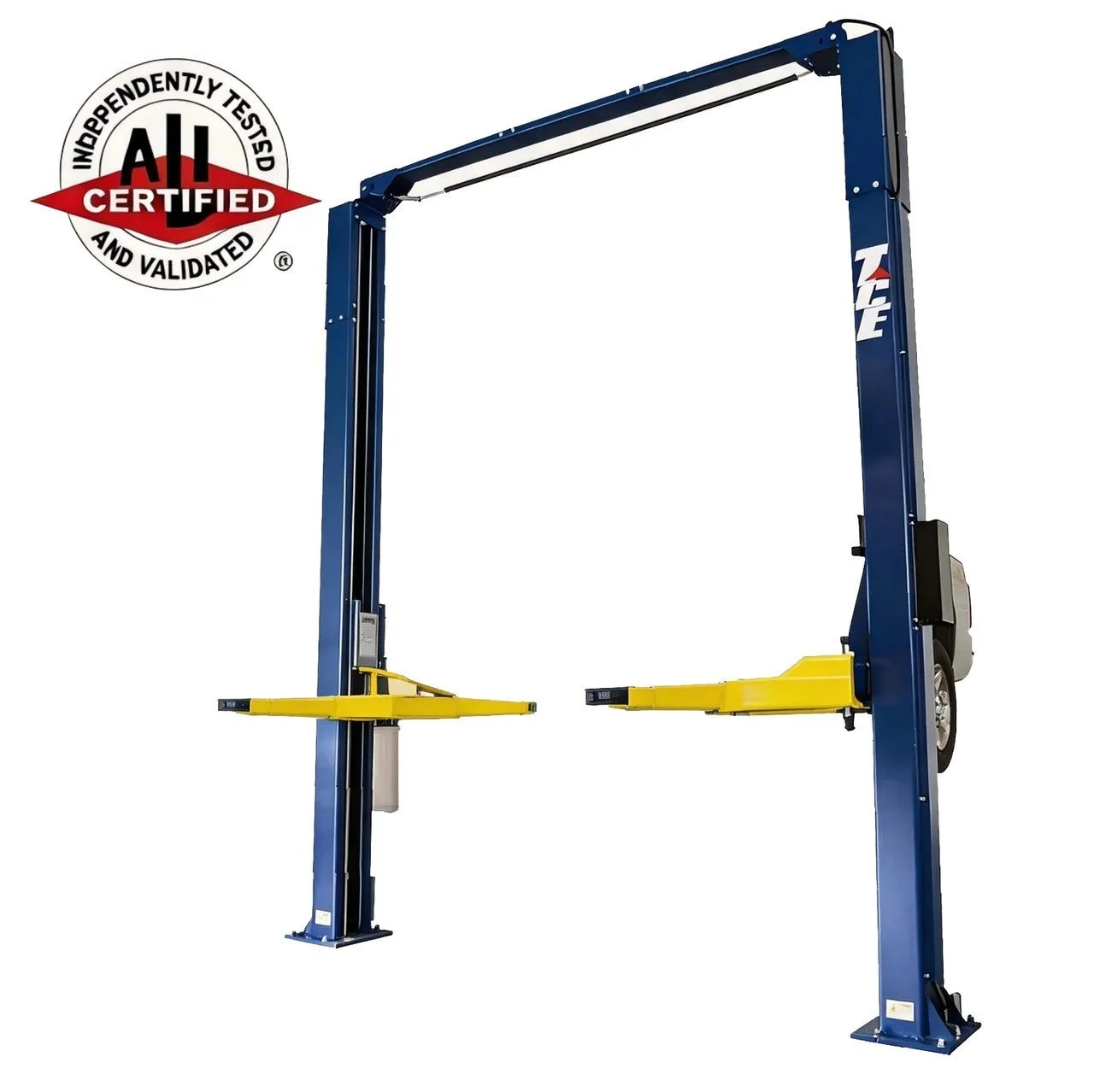

| Certified |
ALI Certified |
| Motor |
220VAC /60HZ / 3HP |
| Shipping Dimensions |
118.11" x 17.72" x 34.4" |
| Shipping Weight |
1,437.4 lbs. |
| Concrete Requirement |
6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LBs and below) |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
