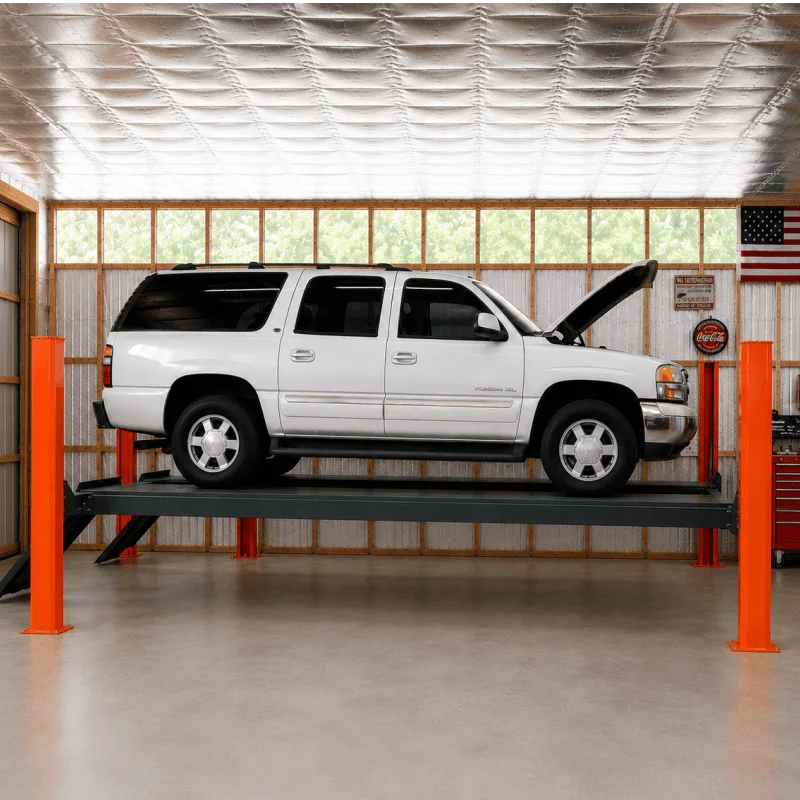

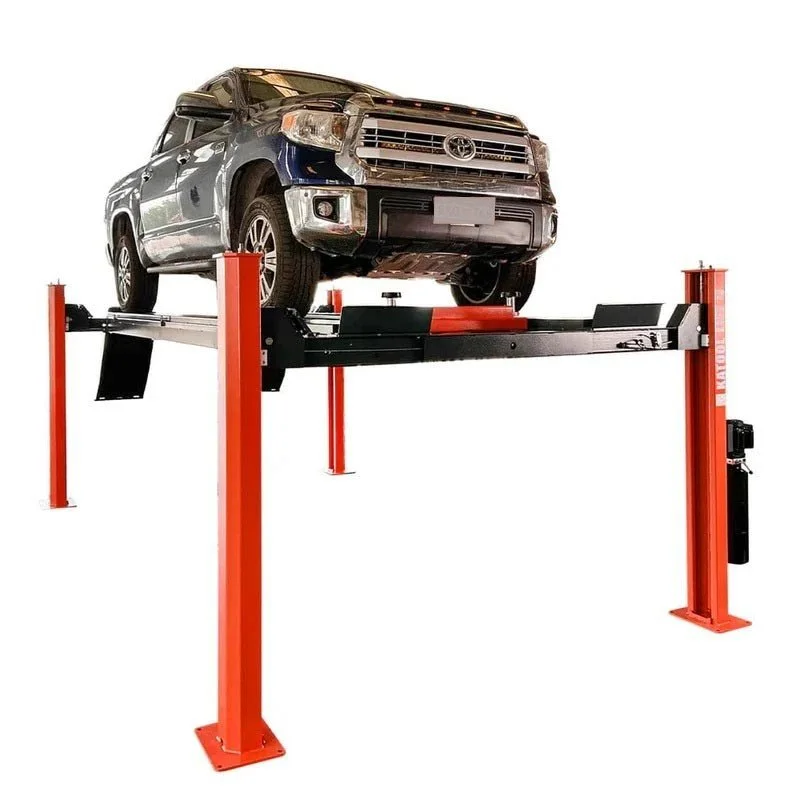

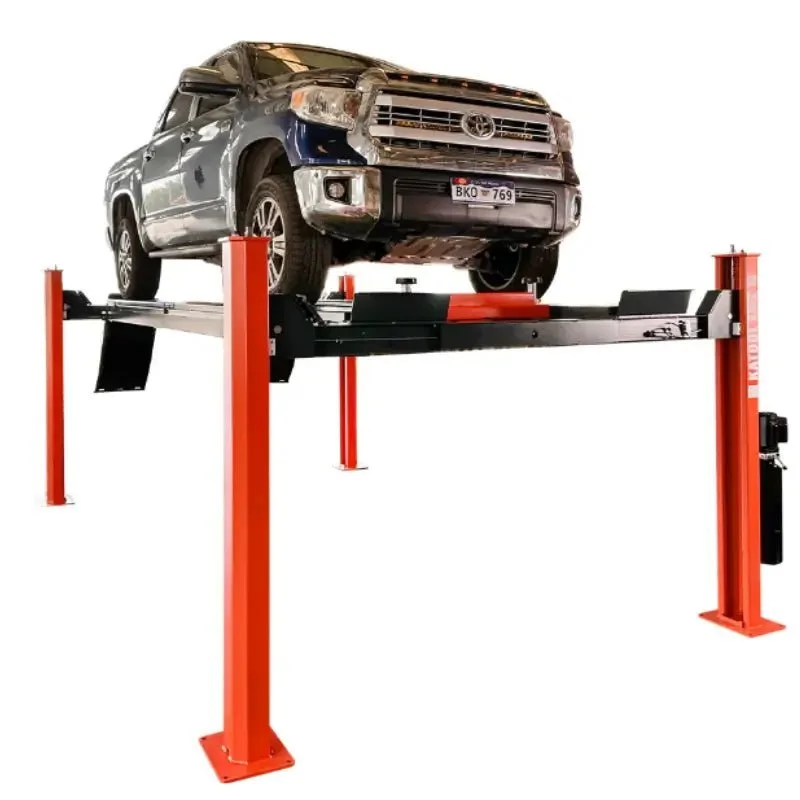

Katool KT-4H150 Four Post Alignment Vehicle Lift 15,000lbs
$5,700.00
Katool KT-4H150 Four Post Alignment Vehicle Lift 15,000lbs is part of our alignment lifts selection from Katool.
- Lifting capacity: 15000 lb
15 in stock
Katool KT-4H150 Four Post Alignment Vehicle Lift 15,000lbs
Katool KT-4H150 Four Post Alignment Vehicle Lift 15,000lbs is part of our alignment lifts selection from Katool.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 15,000-lb lifting capacity with CE approval and rigorous 115% dynamic / 150% static load testing for ultimate shop safety and confidence
- Multiple adjustable height positions with push-button pneumatic release for all four locks—fast, convenient, and safe operation
- Flexible power column installation (front, rear, or either side) adapts to any shop layout and workflow

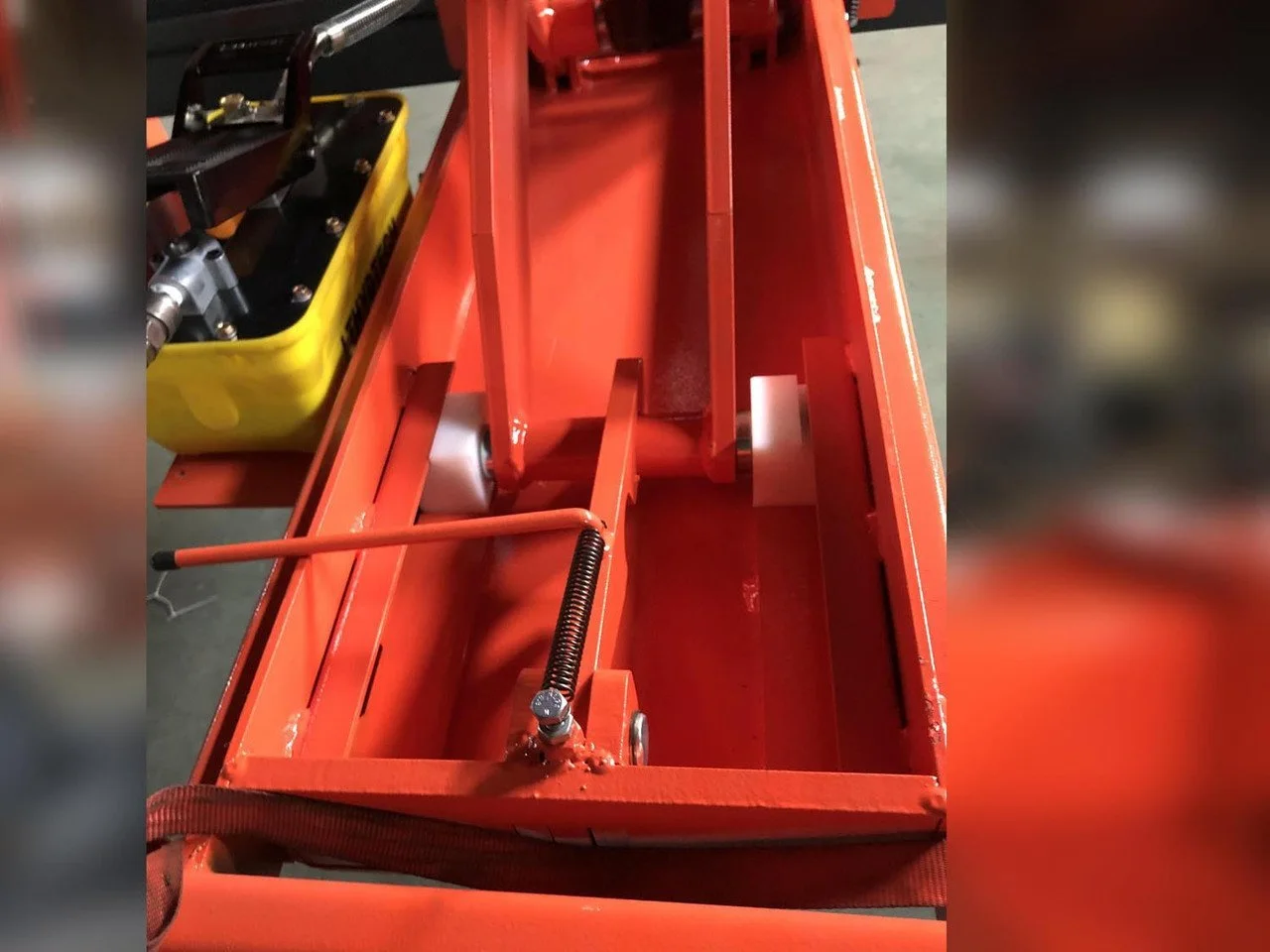

- One (1) RJ60 6,000-lb rolling jack for individual axle lifting and wheel service

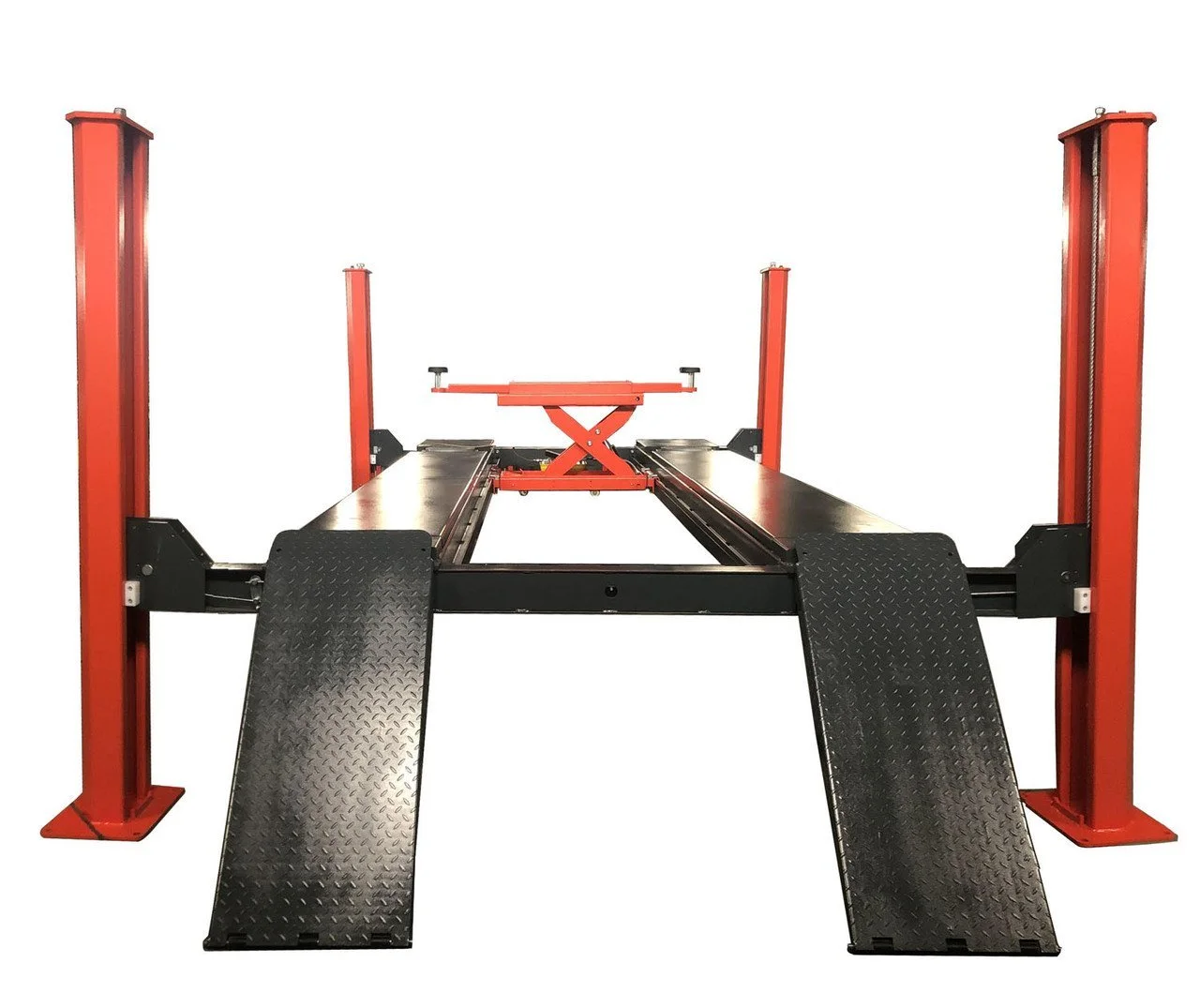

- Non-skid diamond-texture ramps for safe, confident vehicle loading
- Non-slip coated runways for maximum traction and safety
- 15000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Power side column can be installed at both sides, front or rear
- Non-skid diamond texture ramps and non-slip coated runways.
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Katool |
|---|---|
| MPN / Model |
KT-4H150-V001 |
| Condition |
New |
| Lifting Capacity |
15,00 lbs. |
| Max. Lifting Height |
75" / 1,905mm |
| Height of Posts |
86" / 2184mm |
| Overall Width |
136" / 3,454mm |
| Overall Length |
208" / 5,238mm |
| Overall Length w/ Ramps |
245" / 6223mm |
| Min. Runway Height |
9" / 228mm |
| Width between Columns |
118.11" |
| Drive thru Clearance |
99.5" |
| Lifting Time |
95s Up / 55s Down |
| Motor |
220VAC/4PH |
| Net Weight |
4,450 lbs |
| Lifting capacity |
15,000 lb |
| Lift type |
Alignment Lifts |
| Voltage |
220 V |
