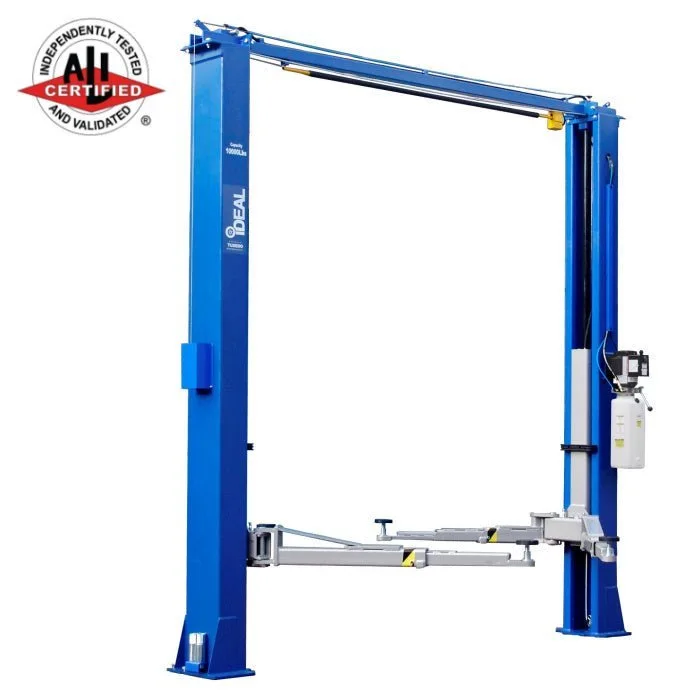

iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified
$4,800.00
iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified is part of our 2 post heavy duty lifts selection from iDeal Lift.
8 in stock
iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified
iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified is part of our 2 post heavy duty lifts selection from iDeal Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000 lb lifting capacity handles a wide variety of vehicles from sports cars to light-duty trucks
- Bi-symmetric arm design offers both asymmetric and symmetric configurations for maximum flexibility
- Low 4-inch pad height with offset three-stage short arms reaches modern low-profile vehicles with ease
- ALI Certified and ETL listed for proven safety and compliance with industry standards
- Clear floor design with no base plates—clean workspace and easy vehicle positioning
- Single point lock release for fast, user-friendly safety lock operation
- Rigid single-piece column construction with direct pull hydraulic cylinder for dependable performance

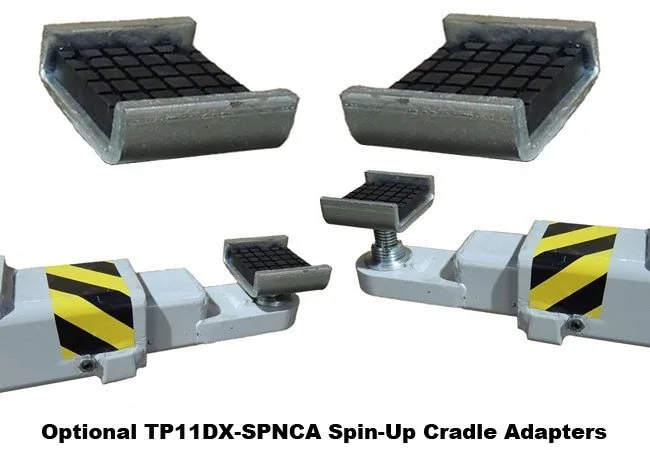

- Adjustable spin-up pads and included truck adapters accommodate diverse vehicle types and lift points
- Requires only 12-foot minimum ceiling height, making it ideal for many garage and shop environments
- Backed by 1-year parts warranty and 5-year structural warranty for long-term peace of mind
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
iDeal Lift |
|---|---|
| MPN / Model |
TP10KAC-DX |
| Condition |
New |
| Capacity |
10,000 lbs. |
| Overall Height |
144" |
| Width Overall |
137 3/16" |
| Width Overall W/Power Lift |
145 1/2" |
| Min Ceiling Height |
12' |
| Max Lift Height |
71" |
| With Tallest Adapter |
76 1/2" |
| Low Pad Height |
4" |
| Drive thru Width |
104" |
| Width Between Columns |
116" |
| Floor to Overhead Shutoff |
136" |
| Arm Reach Front |
23" – 45" |
| Arm Reach Rear |
41" – 57" |
| Ma Load Per Arm |
2,500 lbs |
| Lifting Speed |
50 sec |
| Asymmetric / Symmetric |
Both (Bi-Symmetric) |
| Clear Floor / Floor Plate |
Clear Floor |
| Minimum Concrete Requirements |
4 1/4" / 3000 PSI |
| Operating Pressure |
3,050 PSI |
| Power |
220V – 20 AMP – 1 PH |
| Shipping Dimensions |
140" L x 19" W x 40" H |
| Ship Weight |
1,750 lbs. |
| Lift type |
2 Post Heavy Duty Lifts |
Free shipping across the USA
Heavy equipment shipping generally takes 10 to 21 days after order placement. Small items may travel by parcel carrier; larger machines and trailers require freight coordination.
Use a physical delivery address and a reachable phone number. For freight deliveries, tell us about receiving hours, truck access, forklift or dock availability, and any unloading requirements. A delivery appointment may be required.
Inspect the shipment before signing where possible. Photograph damage, retain all packaging and pallets, and report freight damage within 48 hours. Contact us before returning any equipment.
