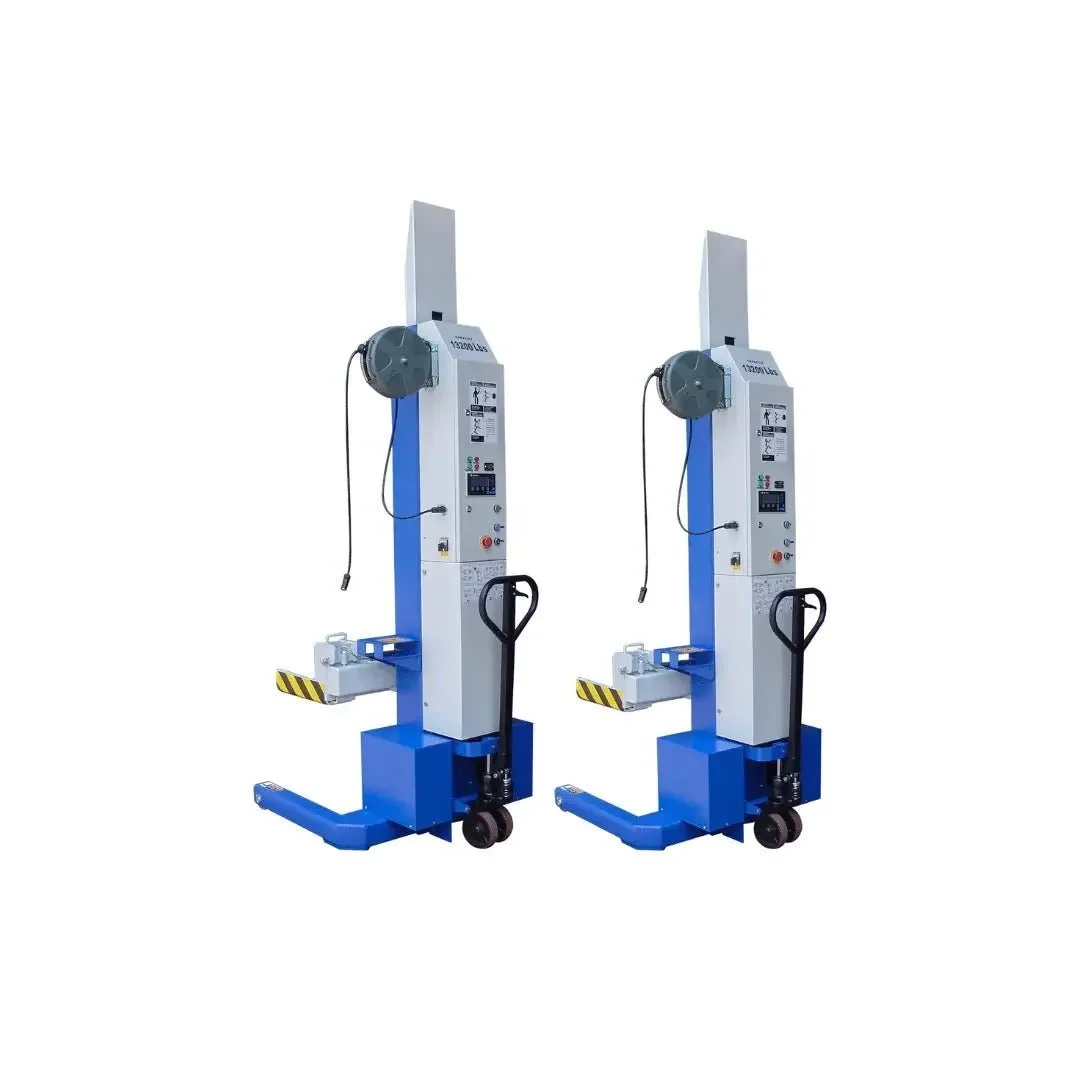

iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2)
$18,130.00
iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2) is part of our mobile column lifts selection from iDeal Lift.
- Lifting capacity: 13200 lb
11 in stock
iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2)
iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2) is part of our mobile column lifts selection from iDeal Lift.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 13,200 lbs. capacity per column with 26,400 lbs. total system capacity for versatile commercial vehicle lifting
- Siemens PLC and Electro-Optical encoder technology ensures precise, continuous synchronization across all columns for balanced, safe lifting
- Easy positioning with pallet jack-style wheels and accommodates column spacing up to 32 feet 8 inches for maximum vehicle compatibility
- Independent mechanical locking systems and emergency stops on each column for maximum operator safety and fail-safe protection
- 13,200 lb lifting capacity per column. Total capacity 26,400 lbs

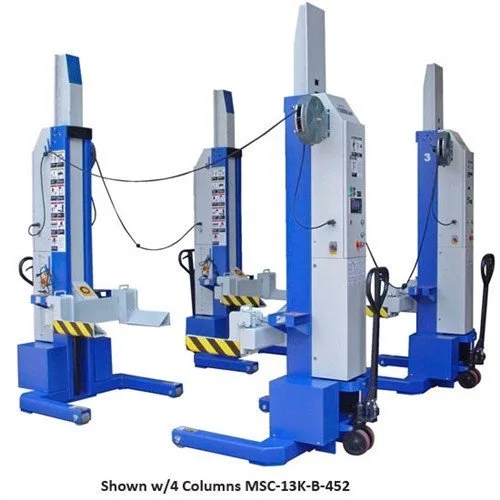

- Sold in Sets of 2 (MSC-13K-B-226), 4 (MSC-13K-B-452) or 6 (MSC-13K-B-678)

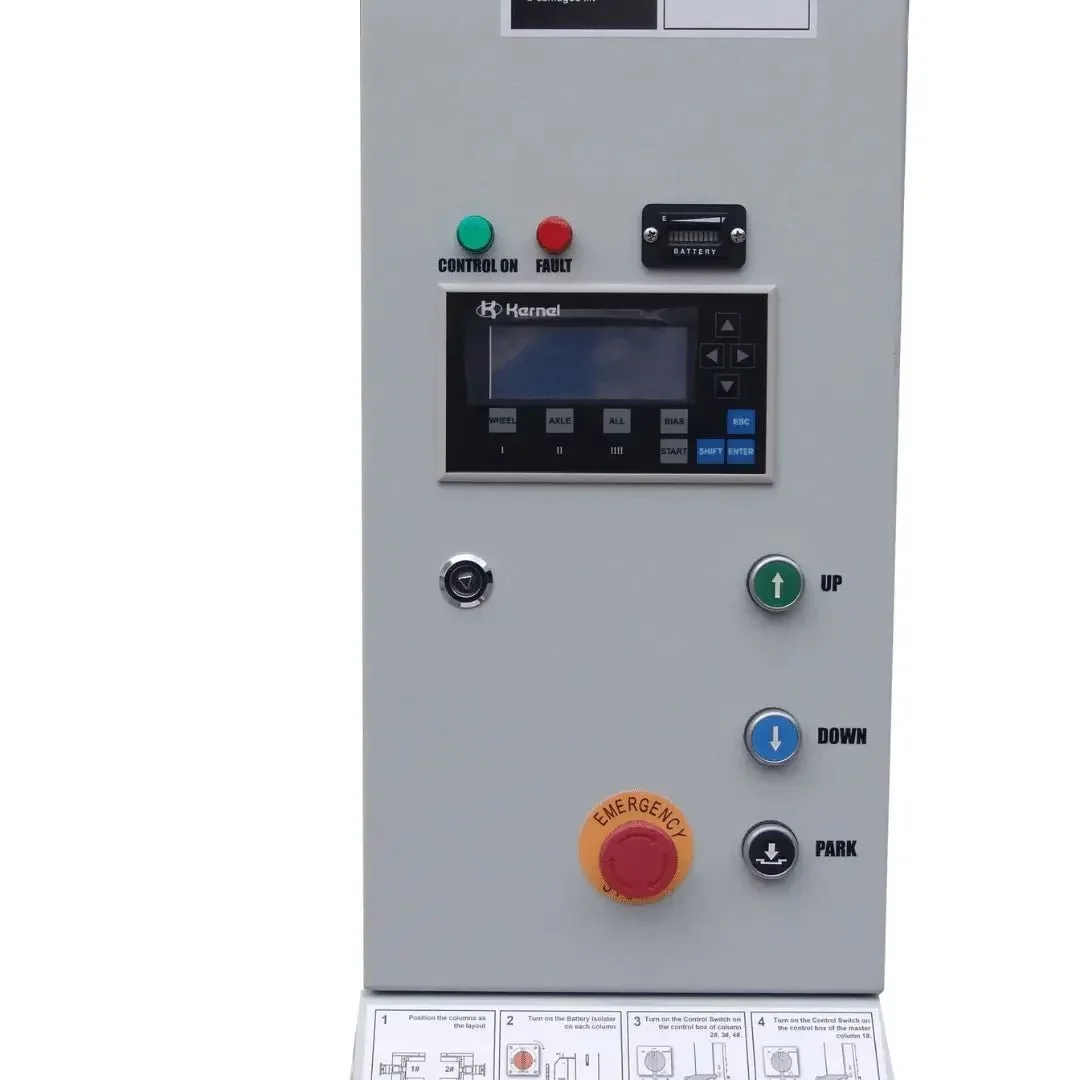

- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

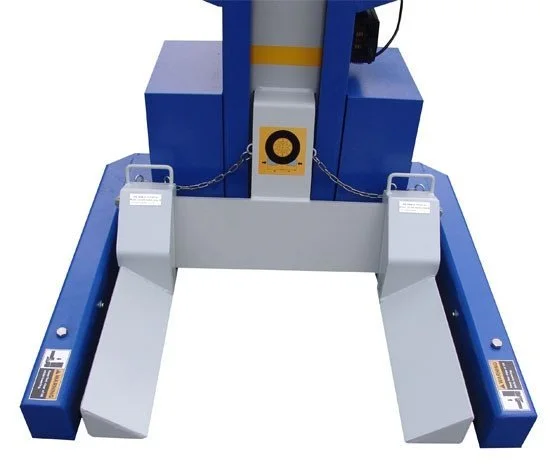

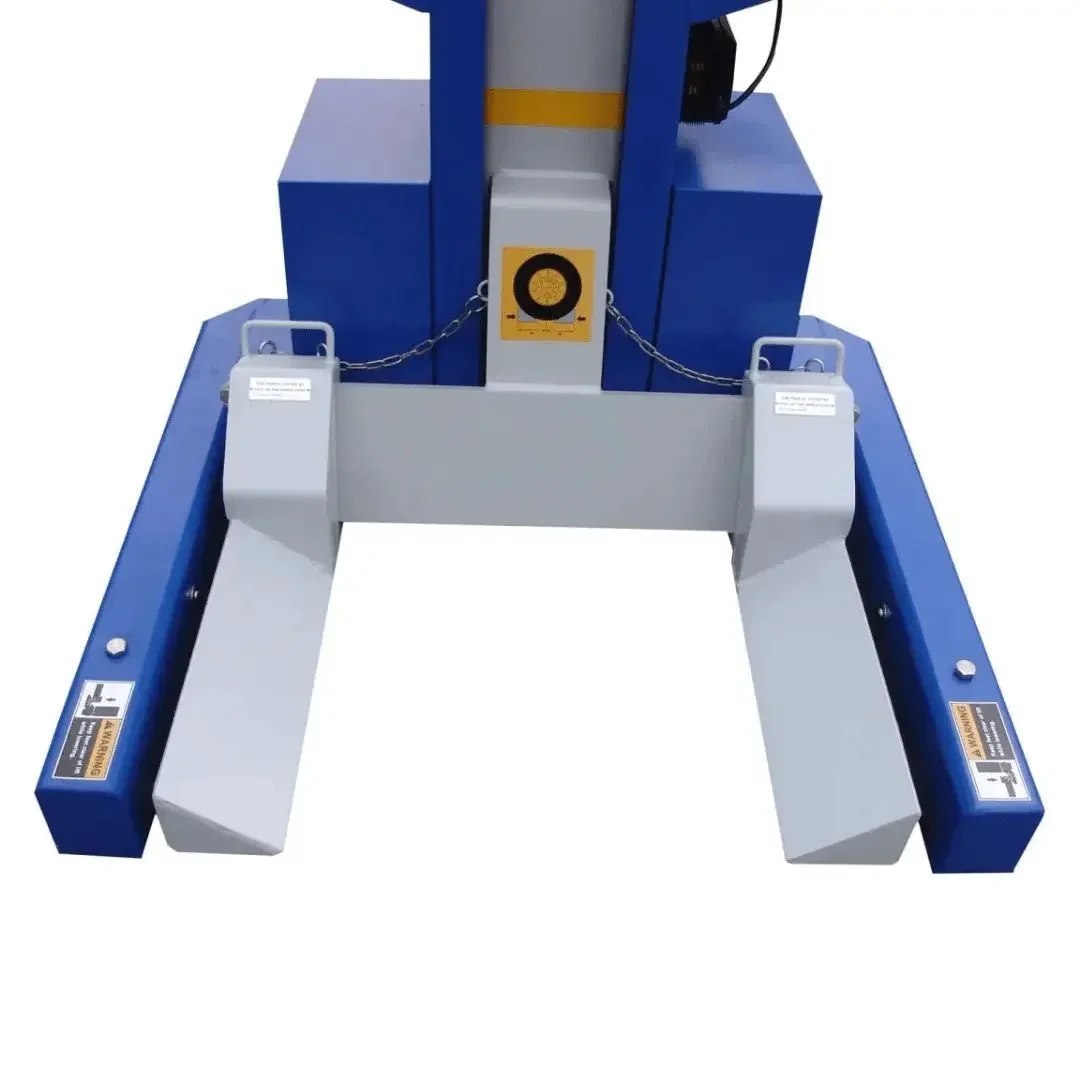

- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
iDeal Lift |
|---|---|
| MPN / Model |
MSC-13K-B-226 |
| Condition |
New |
| Capacity Per Column |
13,200 lbs. |
| Overall Height Per Column |
88.5" |
| Overall Width Per Column |
44" |
| Maximum Distance Between Columns |
32'-8" |
| Fork Length |
14" |
| Lifting/Lowering Time |
75/60 sec |
| Power Pack |
24VDC/3HP |
| Noise Level |
70dB(A) |
| Net Weight Per Column |
1,210 lbs |
| Battery (Not Included) Specifications |
MSC-13K-B & MSC-18K-X |
| Deep Cycle Batteries |
Type 27 or 31 Series |
| Requirement Voltage Per Column |
Qty 2 12V or Qty 1 24V |
| Rating |
120 AMP / HR |
| Starting Current |
350 CCA – 500 CCA |
| Battery Cover Size |
14.56" x 8.27" x 13" |
| Battery Dimension |
14.2" x 7.5" x 11.8" Tall Max |
| Lifting capacity |
13,200 lb |
| Lift type |
Mobile Column Lifts |
