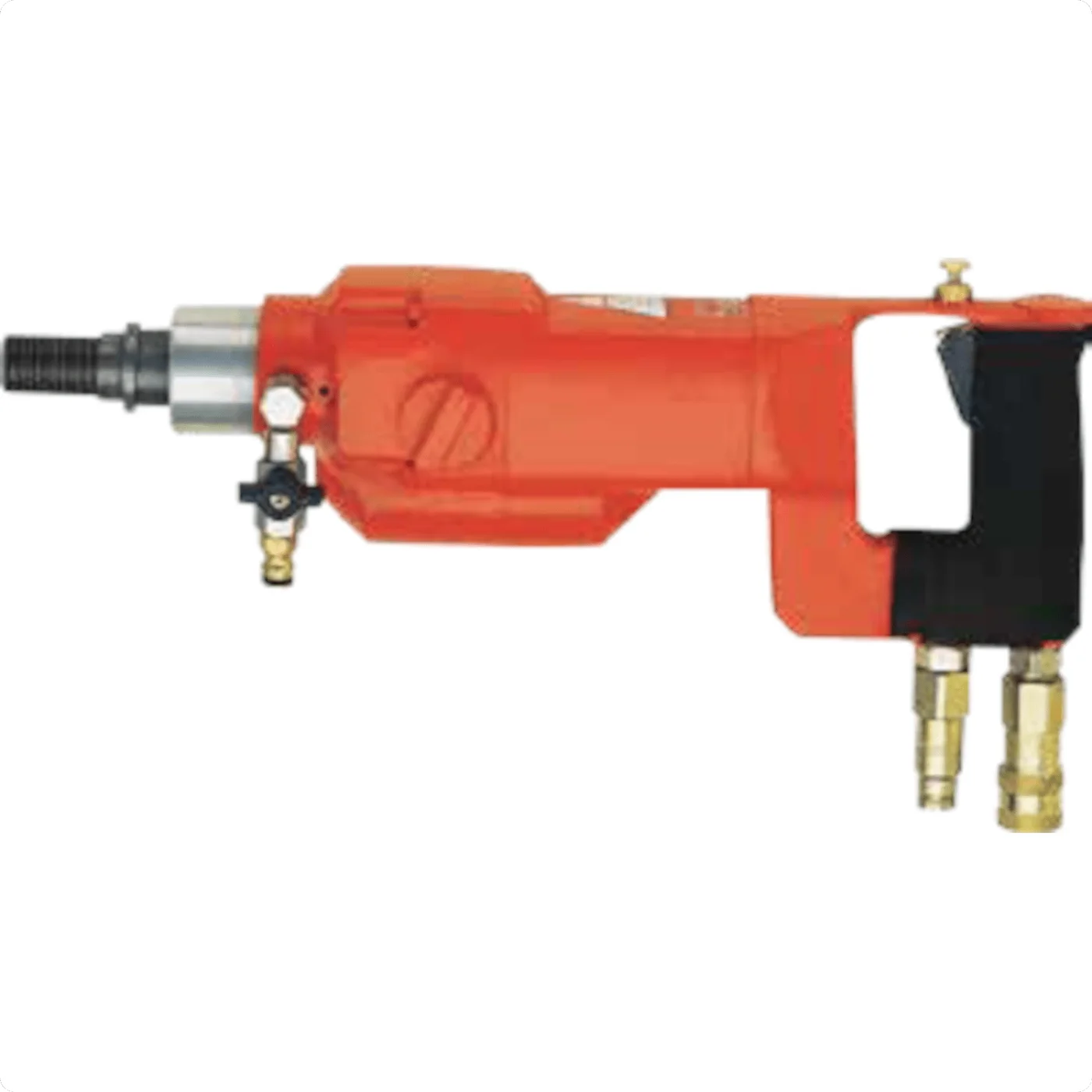

Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held
$8,750.08
Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held is part of our core drill motors selection from Core Bore.
- Equipment type: Core Drill
Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held
Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held is part of our core drill motors selection from Core Bore.
Plan your cutting, drilling, mixing or surface work around the machine’s listed operating requirements. Match the tooling and utility supply to the task before purchase.
Equipment details
- 13 GPM maximum power/drive requirement captured for jobsite planning
- 6" drilling or boring capacity for selecting the right bit and setup
- 300 / 800 / 1600 RPM speed range or gearbox detail supports bit-size control
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
- Site utility or fuel: Hydraulic
- Tooling or working setup: Hydraulic drill motor in listed configuration; power pack, hoses, and core bits sold separately unless stated
- Handling reference: 15 lb
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Core Bore |
|---|---|
| Equipment type |
Core Drill |
| Tool Mount |
Hand-Held |
| Wet/Dry Use |
Wet |
| Model # |

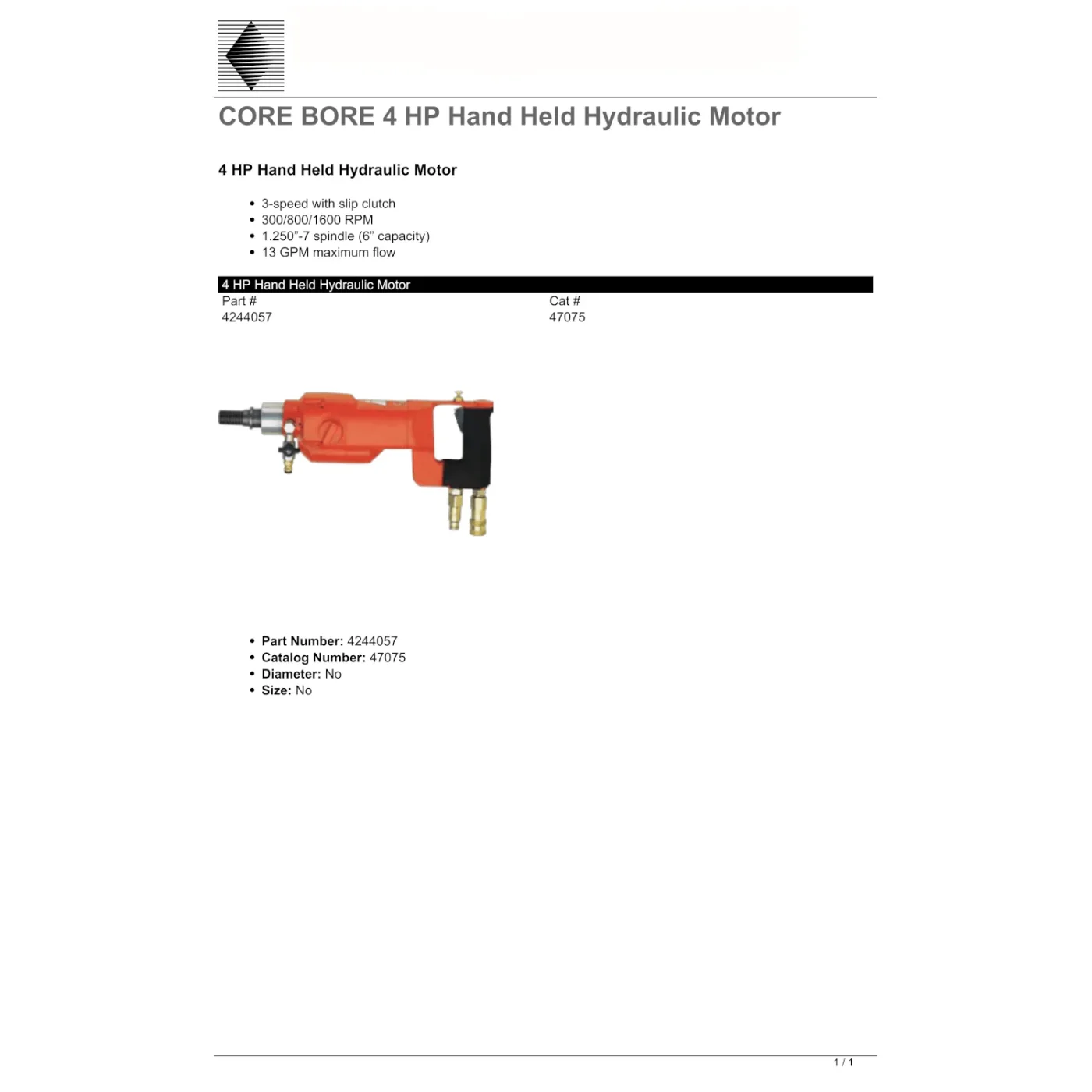

CORE BORE 4HP |
| Product Type |
Core Drill |
| Product Subtype |
Hand-Held |
| Product Mount |
Hand-Held |
| Engine/Motor |
Hydraulic Motor |
| Flow |
13 GPM maximum |
| Variable Speed |
3-Speed |
| Speed 1 Max RPM |
300 RPM |
| Speed 2 Max RPM |
800 RPM |
| Speed 3 Max RPM |
1600 RPM |
| Max Speed RPM |
1600 RPM |
| Drilling Depth per Pass |
User-Dependent |
| Spindle Features |
1.250"-7 |
| Weight (lbs) |
15 lb |
| Clutch |
Slip |
| Applications |
Concrete, Masonry, Stone |
| Dry/Wet |
Wet |
| Power Compatibility |
Hydraulic |
| Product Warranty |
1 Year |
| Store Title |
Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held |
| Power |
4 HP hydraulic |
| Speed |
300 / 800 / 1600 RPM |
| Spindle Thread |
1.250"-7 |
| Included |
Hydraulic drill motor in listed configuration; power pack, hoses, and core bits sold separately unless stated |
| Power source |
Hydraulic |
| Drilling diameter |
6 in |
