Challenger CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2)
$32,960.66
Challenger CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2) is part of our 4 post lifts – heavy-duty selection from Challenger.
Challenger CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2)
Challenger CLHM-190W ALI HD Wide Mobile Column Lifts (Set of 2) is part of our 4 post lifts – heavy-duty selection from Challenger.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

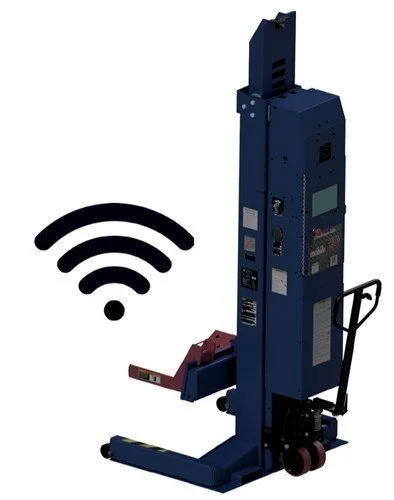

- Linear position transducers maintain system synchronization and ensure maximum reliability during lifting operations

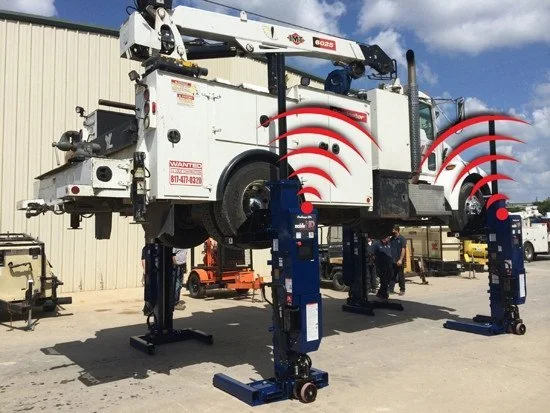

- Wireless system eliminates trip hazards and cable damage risks for a clutter-free work area
- Each column exerts a ground pressure of only 34.3 psi at maximum load, distributing weight safely across the footprint

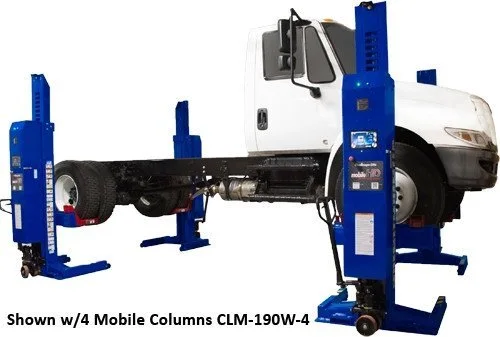

- 19,000 lbs. capacity per column 38,000 lbs. total for set of 2, expandable to 152,000 lbs. with 8 columns
- 49" wide base model accommodates oversized wheels from 4" to maximum tire size for heavy commercial vehicles

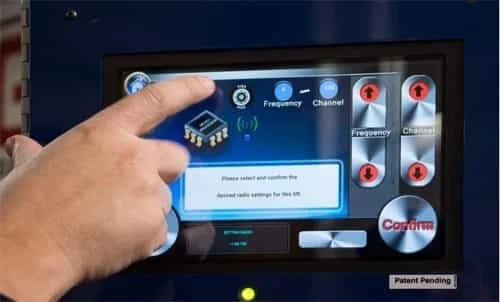

- Wireless operation with 10" Android touch screen clutter-free workspace, real-time weight/height monitoring, on-board training

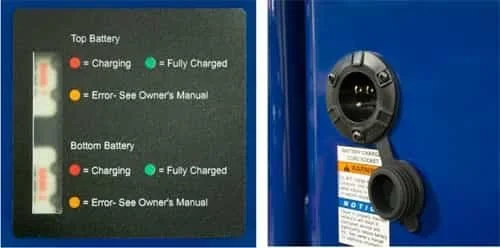

- Integrated 110V charging system with AGM batteries 2-year warranty, charging status indicator, 26 VDC operation
- ALI/ETL Certified with advanced safety features linear position transducers, integrated weight gauges, lock engagement verification
- 110 volt built in multi-stage charging system

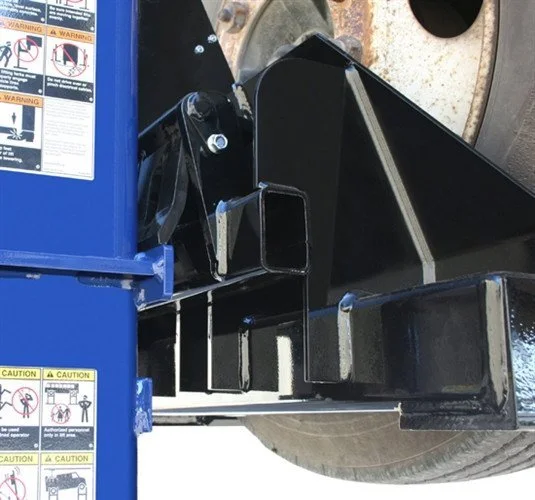

- Adjustable wheel carriages fits a range of wheels
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Challenger |
|---|---|
| MPN / Model |
CLHM-190W-2 |
| Condition |
New |
| E Maximum Lift Height |
(4 or more units) |
| Maximum Lift Height |
(2 units – Normal Mode) |
| Ground Pressure for Each Lift |
(Max. Load) |
| Lift type |
4 Post Lifts – Heavy-Duty |
