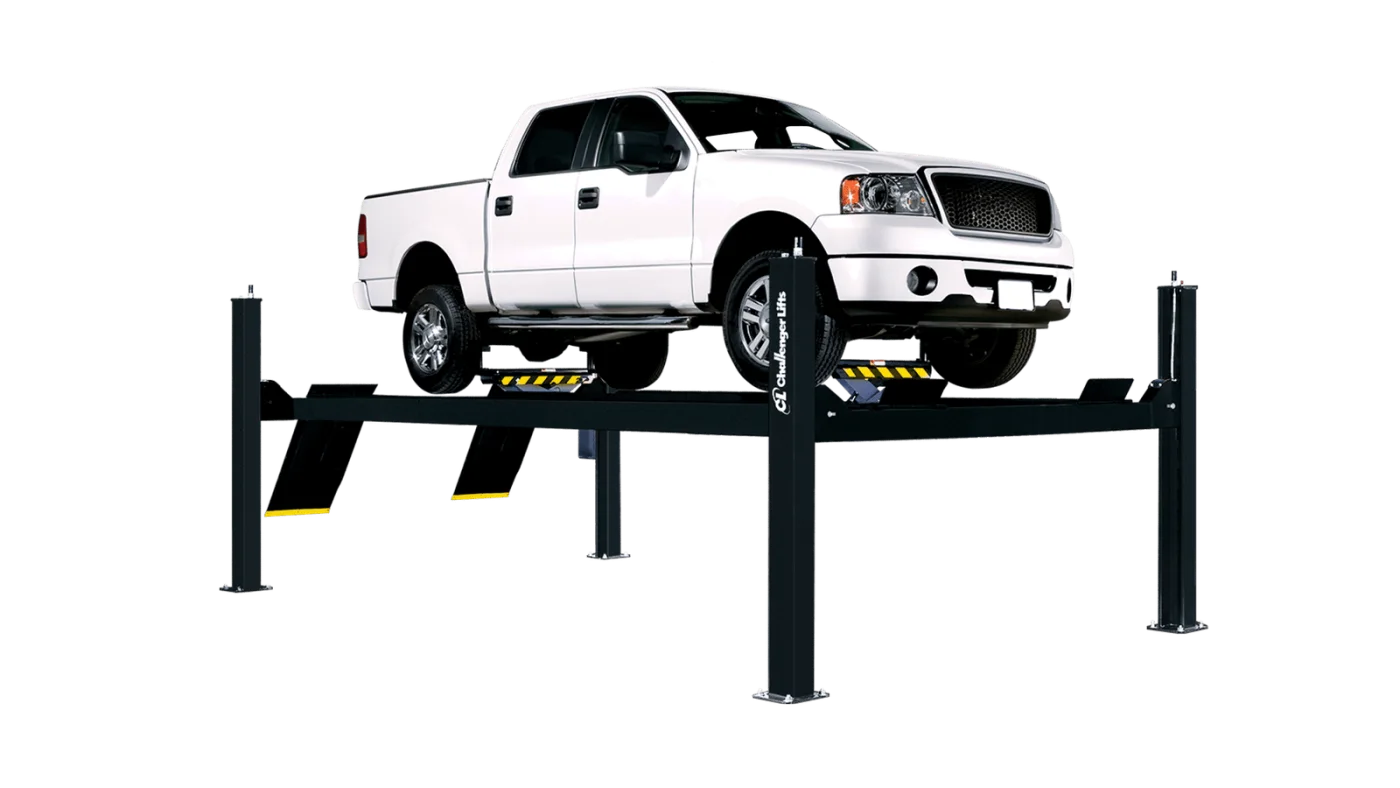

Challenger 4018XFX Heavy-Duty ALI 4-Post Lift 18,000 lb
$38,141.55
Challenger 4018XFX Heavy-Duty ALI 4-Post Lift 18,000 lb is part of our 4 post lifts – heavy-duty selection from Challenger.
- Lifting capacity: 18000 lb
8 in stock
Challenger 4018XFX Heavy-Duty ALI 4-Post Lift 18,000 lb
Challenger 4018XFX Heavy-Duty ALI 4-Post Lift 18,000 lb is part of our 4 post lifts – heavy-duty selection from Challenger.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 18,000 lb lift capacity (8165 kg) handles light and medium-duty vehicles with ease
- 72-inch maximum lifting height (1829 mm) ample clearance for undercarriage work and maintenance
- 24-inch wide runways with 40-inch spacing accommodates a broad range of wheelbases up to 220 inches (7706 mm)
- ALI-certified meets industry safety and performance standards for professional use
- Cable design with single-point mechanical lock release reliable operation and streamlined safety controls
- Cable design
- Single-point mechanical lock release
- Recommended bay width 18'
- Recommended bay depth 30'
- Exact manufacturer model or part number: 4018XFX
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
Challenger |
|---|---|
| MPN / Model |
4018XFX |
| Condition |
New |
| Lift Capacity |
18,000 lbs. (8165kg) |
| Overall Height |
98.625" |
| Max. Wheelbase |
220" (7706mm) |
| Overall Length |
303-3/8" (7706mm) |
| Overall Width |
152-1/8" (3864mm) |
| Maximum Lifting Height (to runway surface) |
72" (1829 mm) |
| Lowered Runway Height |
9-1/2" (241 mm) |
| Width of Runways |
24" |
| Width Between Runways |
40" |
| Inside Columns |
128.8125 |
| Between Columns |
229.125" |
| Rise Time |
70 s |
| Maximum Operating Pressure (Full Load) |
2650 psi (183 bar) |
| Air Supply Requirements |
90 – 120 psi (6 – 8 bar) |
| Standard Motor/Voltage |
208-230v / 60hz / 1ph |
| Shipping Weight |
5465 lbs (2484 kg) |
| Lifting capacity |
18,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
