BendPak PL-6000DC 2-Post Parking Lift / Shared Columns 6,000 lbs
$9,995.00
BendPak PL-6000DC 2-Post Parking Lift / Shared Columns 6,000 lbs is part of our 2 post lifts selection from BendPak.
- Lifting capacity: 6000 lb
12 in stock
BendPak PL-6000DC 2-Post Parking Lift / Shared Columns 6,000 lbs
BendPak PL-6000DC 2-Post Parking Lift / Shared Columns 6,000 lbs is part of our 2 post lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 6,000 lbs lifting capacity (2,722 kg) accommodates SUVs, sedans, sports cars, pickups, and vans
- 82.5-inch (2,100 mm) maximum lifting height and usable platform width for versatile vehicle parking

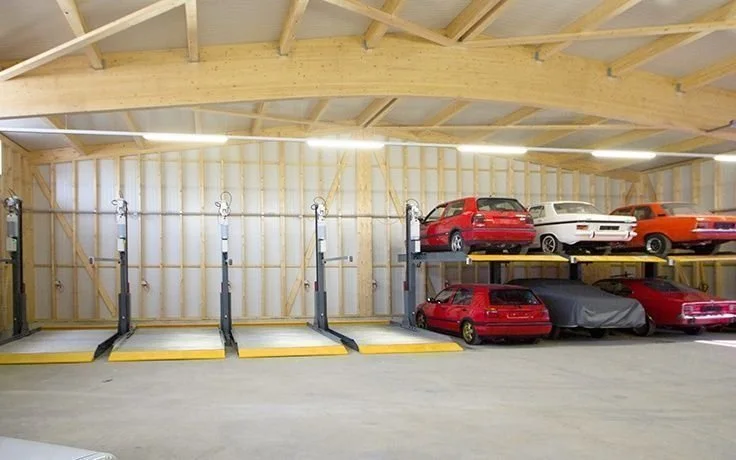

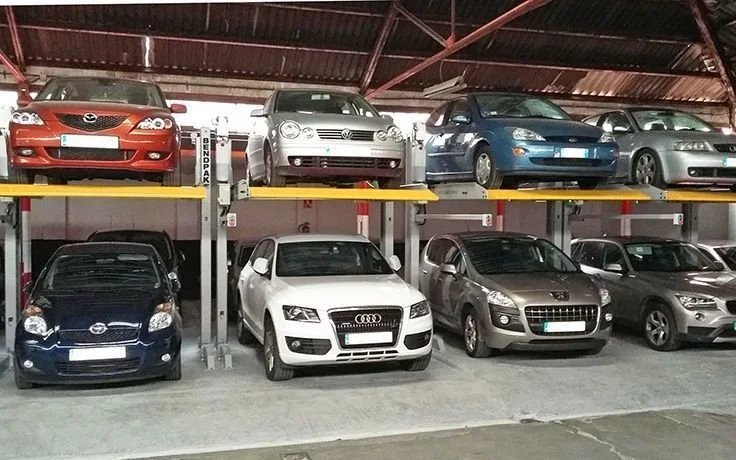

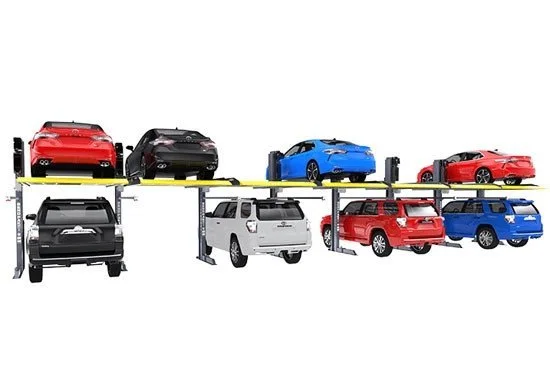

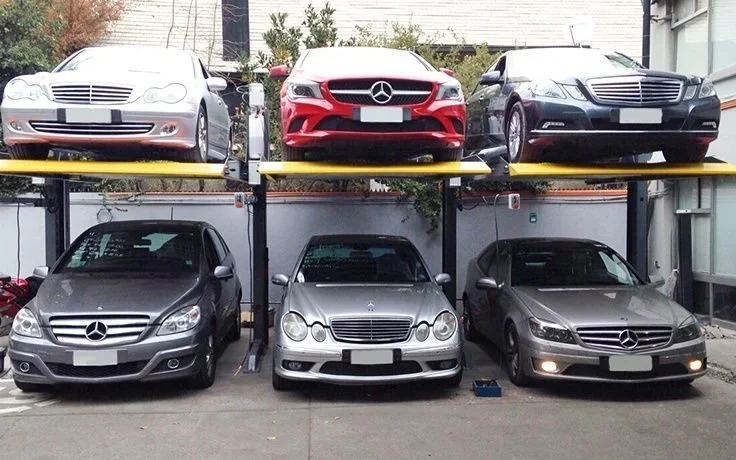

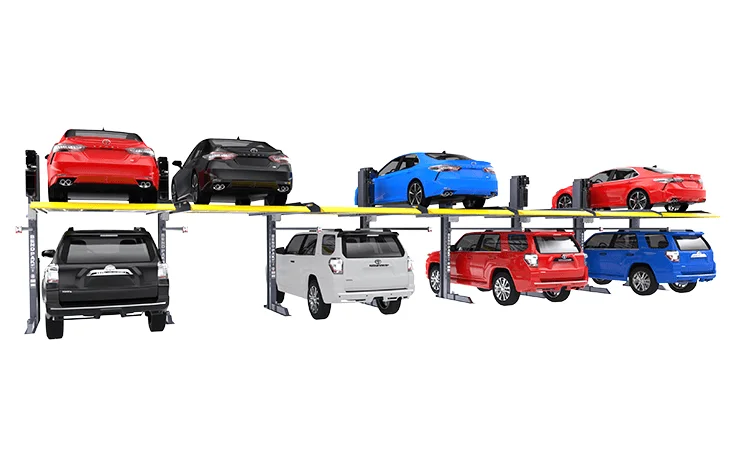

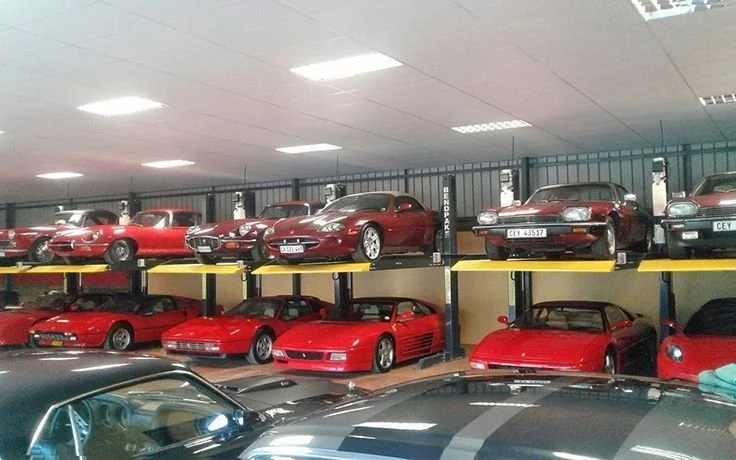

- Ganged column design with shared posts reduces space requirements and installation costs significantly

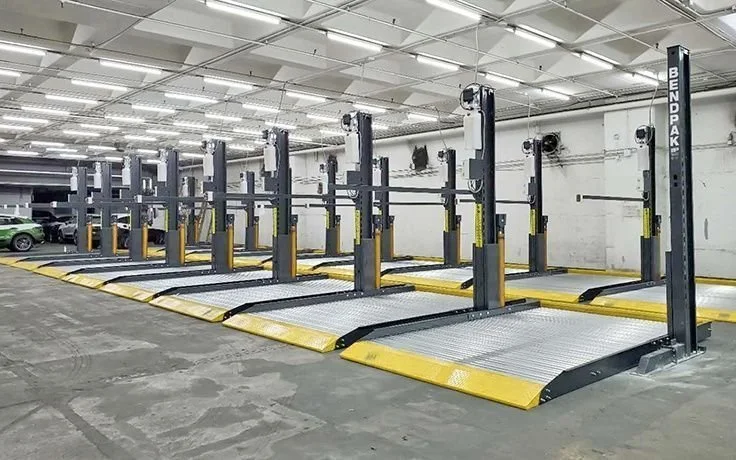

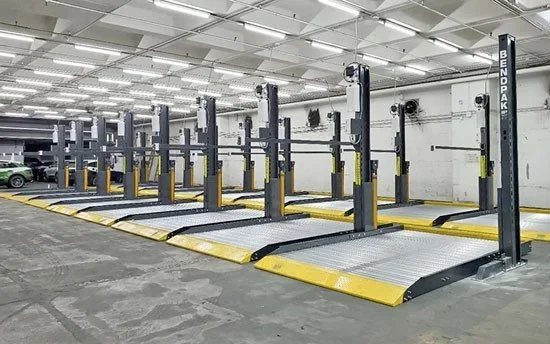

- Freestanding design when ganged two or more units wide simplifies structural requirements
- Dual direct-drive hydraulic cylinders with overhead power unit for smooth, reliable, quiet operation
- Photocell sensor protection prevents lowering when vehicle is parked below, avoiding collisions
- Automatic safety locks every 4 inches with electric auto release and 24V control power
- Energy-efficient gravity descent eliminates motor consumption during lowering, reducing operating costs

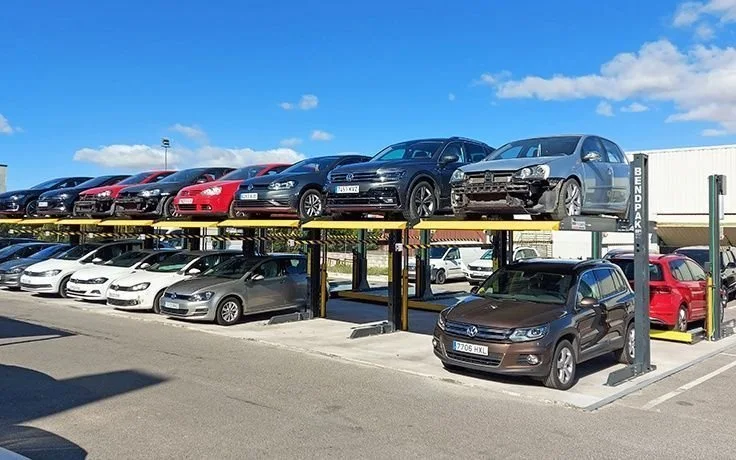

- Suitable for indoor and outdoor installation with galvanized anti-slip platform surface
- Fast 50-second lifting / 45-second lowering time for efficient vehicle retrieval
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5176260 |
| Condition |
New |
| Lifting Capacity |
6,000 lbs. (2,722 kg) |
| Overall Height |
126.5” (3,221 mm) |
| Overall Length |
148.25” (3,766 mm) |
| Overall Width |
100.25” (2,547 mm) |
| Usable Platform Width |
82.5” (2,100 mm) |
| Lifting Height |
82.5” (2,100 mm) |
| Lifting / Lowering Time |
50 / 45 sec |
| Electrical Required |
220-420V, 1 or 3 Phase, 50/60Hz |
| Control Power |
24V |
| Lock Release |
Electric Auto Release |
| Power Pack |
2.2kw Hydraulic Power Pump |
| Lifting capacity |
6000 lb |
| Lift type |
2 Post Lifts ,Parking Lifts |
