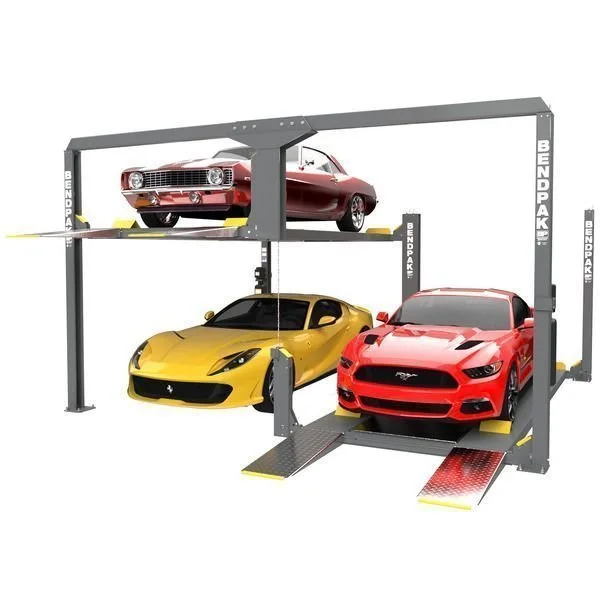

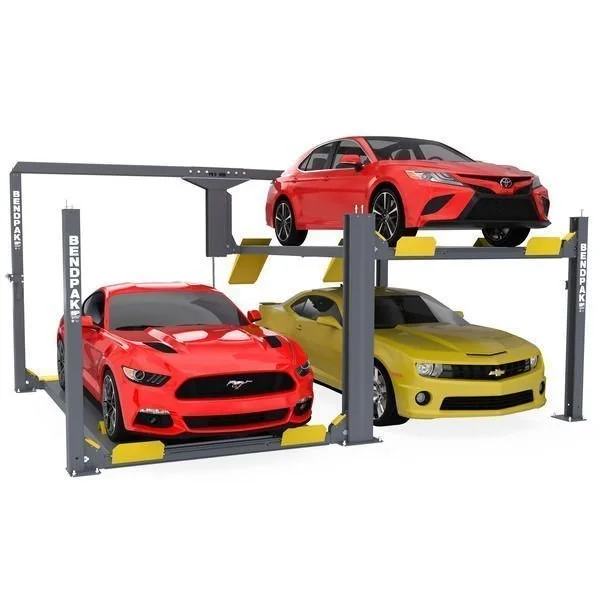

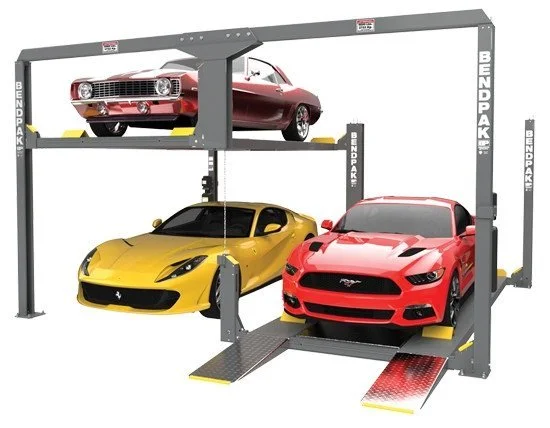

BendPak PL-12000DPS Standard Rise Tandem/Independent Platforms Parking Lift w/Short Runways
$24,095.00
BendPak PL-12000DPS Standard Rise Tandem/Independent Platforms Parking Lift w/Short Runways is part of our parking lifts selection from BendPak.
6 in stock
BendPak PL-12000DPS Standard Rise Tandem/Independent Platforms Parking Lift w/Short Runways
BendPak PL-12000DPS Standard Rise Tandem/Independent Platforms Parking Lift w/Short Runways is part of our parking lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 6,000 lbs. lifting capacity per platform handles cars, light trucks, motorcycles, and ATVs with ease
- Standard rise with short runways ideal for facilities with limited ceiling height ( 118.5" total height, 70.2" max rise )
- Independent platform operation raise or lower each side separately, eliminating vehicle shuffling
- Fast 45-second lifting time high-speed hydraulic system for efficient operation
- 6 safety lock positions secure multi-height parking with multiple locking points
- Dual hydraulic cylinders with galvanized cables precise, equalized lifting with long-lasting components
- Full-width platforms with protective deck options keeps lower vehicles shielded and secure
- Heavy-duty powder-coated steel construction built to last with corrosion-resistant finish
- 6,000‐lb. lifting capacity per side/platform
- Standard rise, standard length model – PL-12000DPS
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175552 |
| Condition |
New |
| Tall Rise & Extended Length |
Standard Rise & Short Runways |
| Lifting Capacity* |
6,000 lbs. / 2,722 kg |
| Number of Platforms 1 |
2 |
| Total Width 2 |
221.5" / 5,624 mm |
| Min. Runway Height |
4.75" / 121 mm |
| Width Between Posts |
211" / 5,362 mm |
| Width Between Short & Double Posts |
100.25" / 2,546 mm |
| Width Between Platforms |
29" / 739 mm |
| Width Between Runways |
35" or 41" / 887 or 1,045 mm |
| Runway Width |
19" / 482 mm |
| Outside Edge of Runways |
76" or 82" / 1,930 or 2,083 mm |
| Safety Lock Positions |
6 |
| Lifting Time |
≈45 Seconds |
| Motor 3 |
220 VAC / 50/60 Hz / 1 Ph |
| Lift type |
Parking Lifts |
