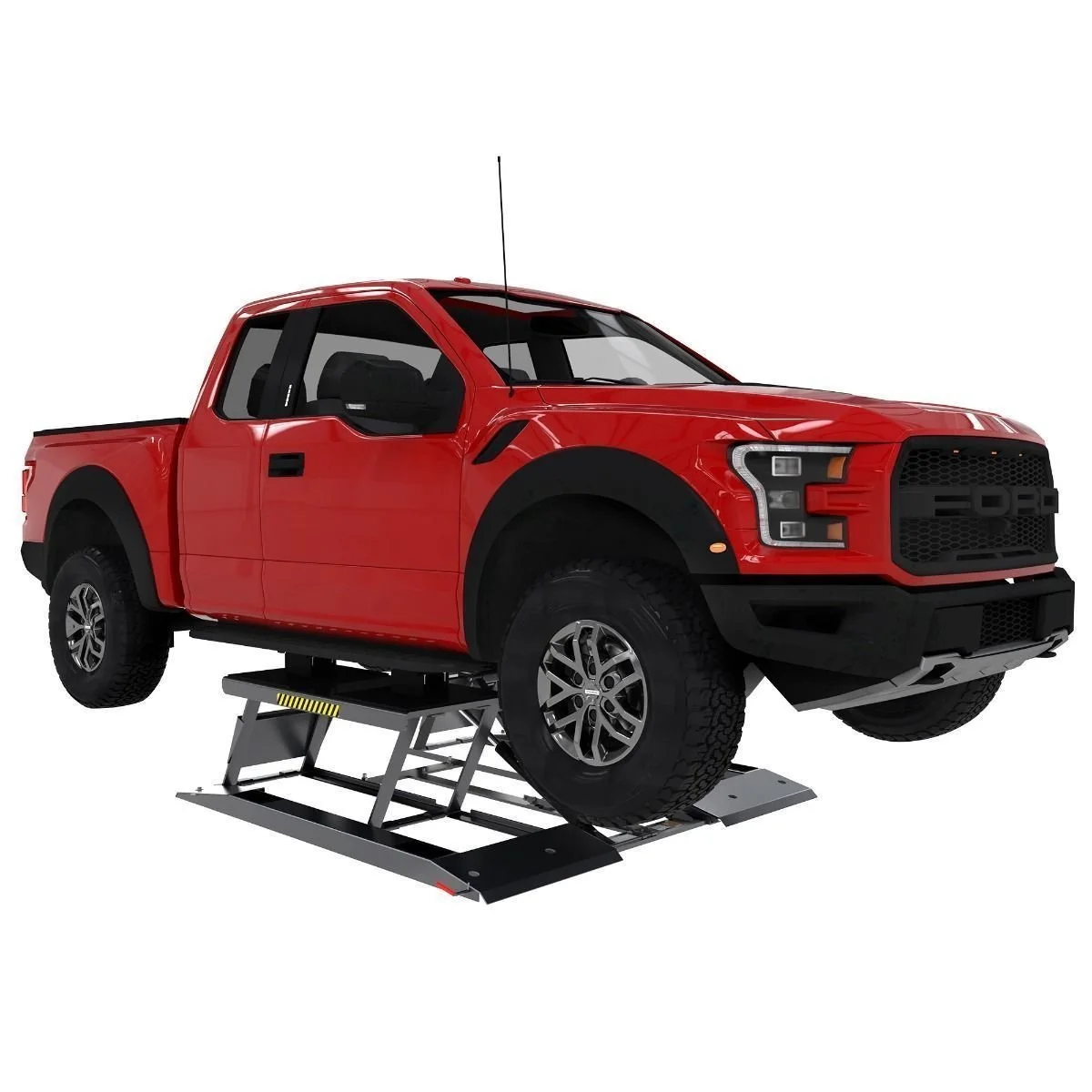

BendPak LR10000 Low-Rise ALI Lift 10,000 Capacity
$5,495.00
BendPak LR10000 Low-Rise ALI Lift 10,000 Capacity is part of our low-rise lifts selection from BendPak.
5 in stock
BendPak LR10000 Low-Rise ALI Lift 10,000 Capacity
BendPak LR10000 Low-Rise ALI Lift 10,000 Capacity is part of our low-rise lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000 lbs. total capacity ( 5,000 lbs. per axle ) for trucks, SUVs, sports cars, and everything in between
- Low 4.5" collapsed height accommodates low-clearance vehicles and saves shop space
- 23" full rise (32" with blocks) with five locking positions for ergonomic work heights
- Four parallelogram frame support bars per platform the strongest design in its class
- Fast 35-second lift cycle keeps productivity high and wait times low
- 110V single-phase power easy to install in any shop or garage

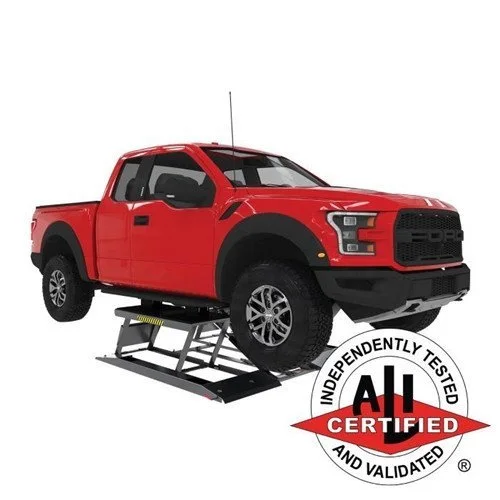

- ALI-certified for safety and compliance with industry standards
- Built-in storage trays keep lug nuts and small parts organized during service
- Diamond-plated approach ramps and drive-over rails for safe, slip-resistant vehicle loading
- Each lift platform features four parallelogram frame support bars making it the strongest 10,000-pound low-rise lift in its class
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175232 |
| Condition |
New |
| Lifting Capacity |
10,000 lbs. / 2,724 kg |
| Max Capacity / Front Axle |
5,000 lbs. (2,273 kg) |
| Max Capacity / Rear Axle |
5,000 lbs. (2,273 kg) |
| Lifting Height |
23" (584 mm) |
| Lifting Height w/Blocks |
32” (813 mm) |
| Fully Lowered |
4.5" (114 mm) |
| 1st Lock Position |
14" (356 mm) |
| 2nd Lock Position |
18" (457 mm) |
| 3rd Lock Position |
20.75" (527 mm) |
| 4th Lock Position |
22.75” (578 mm) |
| Full Rise |
23" (584 mm) |
| Overall Length |
82.65" (2,094 mm) |
| Overall Pad Length |
53” (1,346 mm) |
| Overall Width |
85" (2,159 mm) |
| Overall Pad Width |
24" (610 mm) |
| Lowered Height |
4.5" (114 mm) |
| Motor |
110 VAC / 50/60 Hz / 1 Ph |
| Lifting Time |
35 Seconds |
| Shipping Weight |
1,332-lbs. (604 kg) |
| Shipping Dimensions |
88" x 85" x 24 (2,235 mm x 2,159 mm x 609 mm) |
| Lift type |
Low-Rise Lifts |
| Phase |
Single phase |
| Voltage |
110 V |
