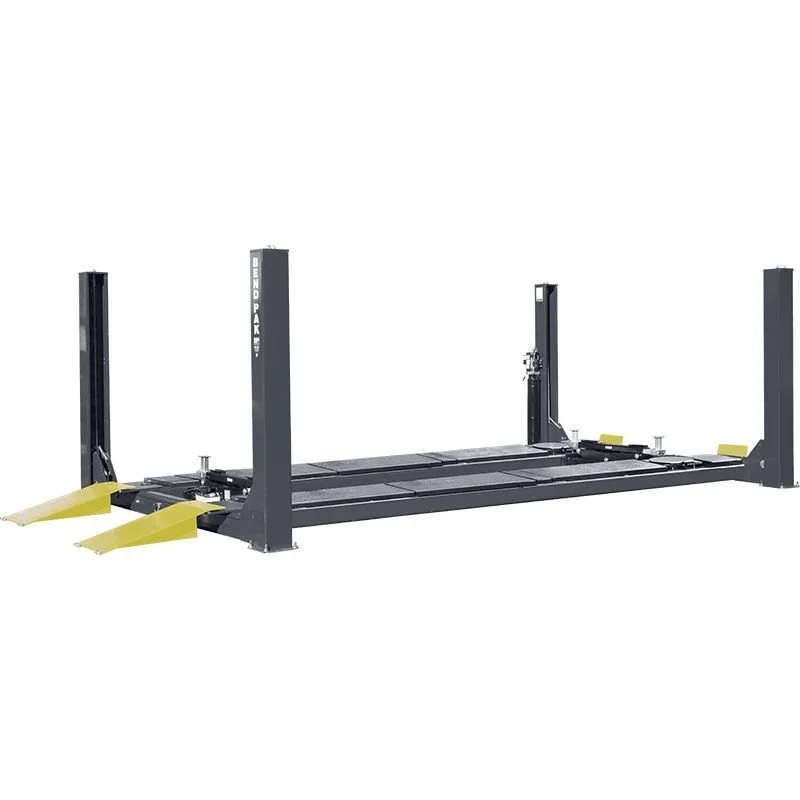

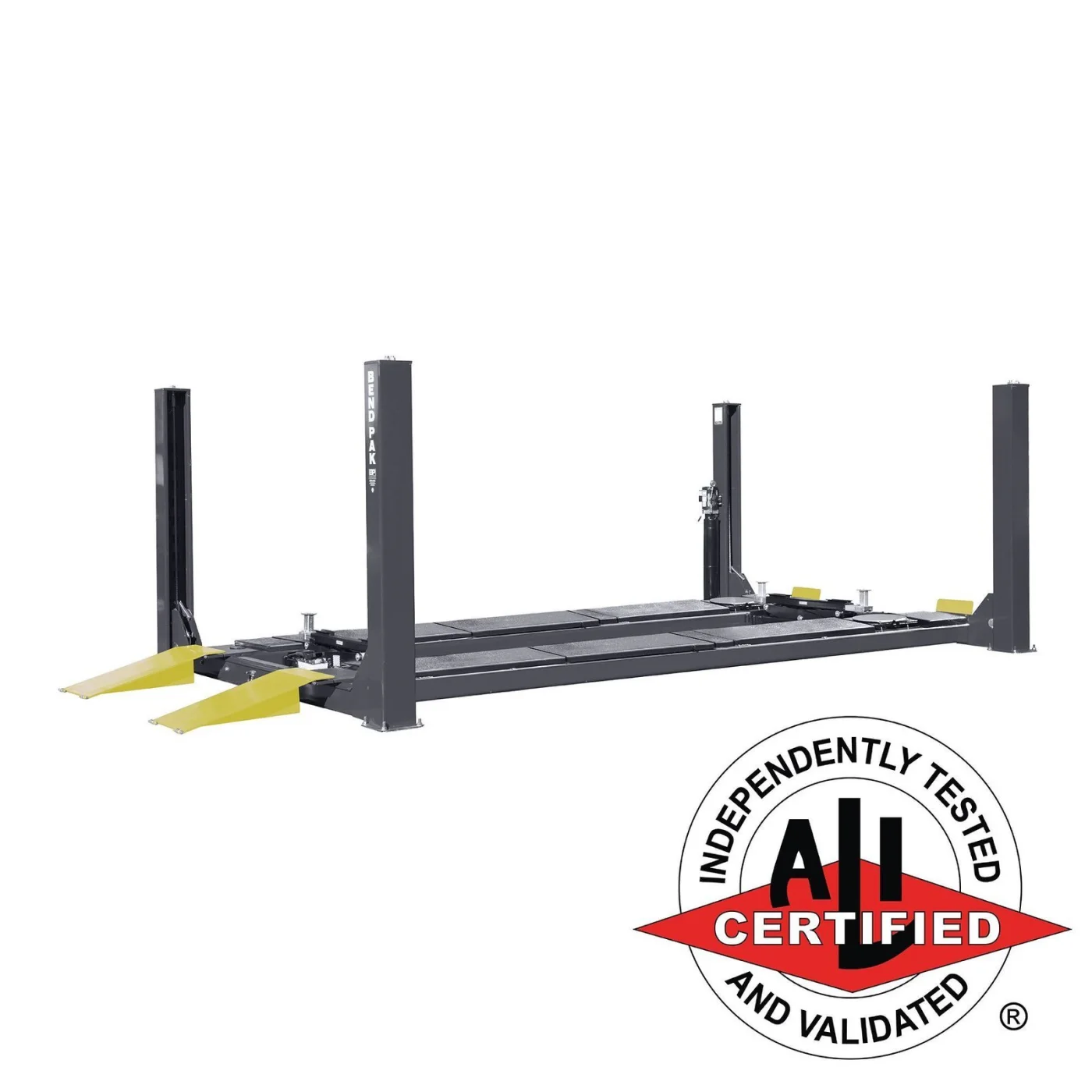

BendPak HDS-18EA Alignment 4 Post Car Lift 18,000 lb. – New Gray
$23,805.00
BendPak HDS-18EA Alignment 4 Post Car Lift 18,000 lb. – New Gray is part of our alignment lifts selection from BendPak.
- Lifting capacity: 18000 lb
5 in stock
BendPak HDS-18EA Alignment 4 Post Car Lift 18,000 lb. – New Gray
BendPak HDS-18EA Alignment 4 Post Car Lift 18,000 lb. – New Gray is part of our alignment lifts selection from BendPak.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 18,000 lb. lifting capacity handles everything from sports cars to heavy trucks and SUVs
- CE Approved and Certified meets or exceeds European Standard EN 1493

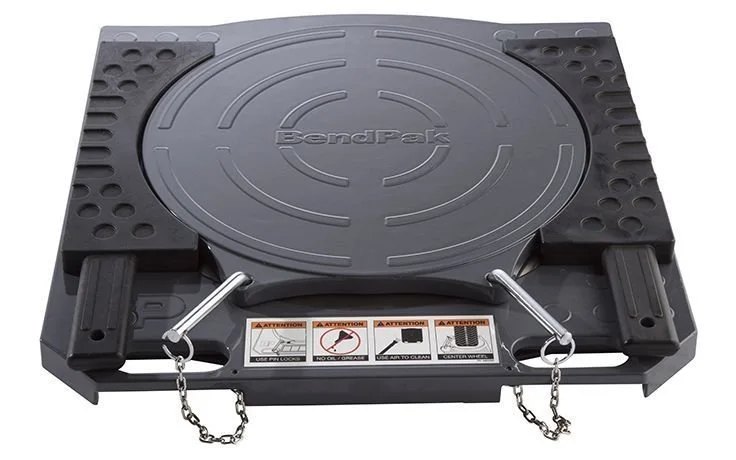

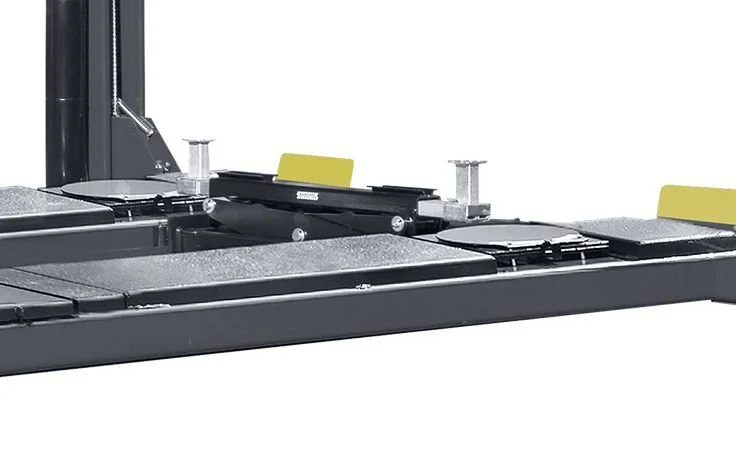

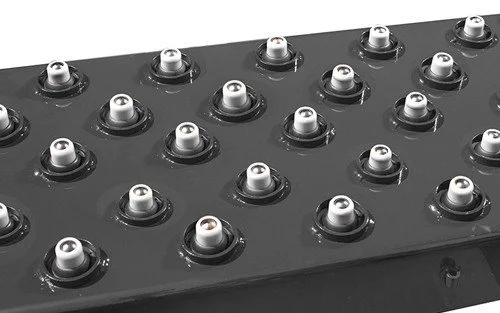

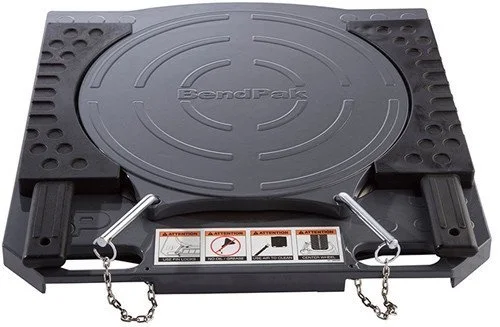

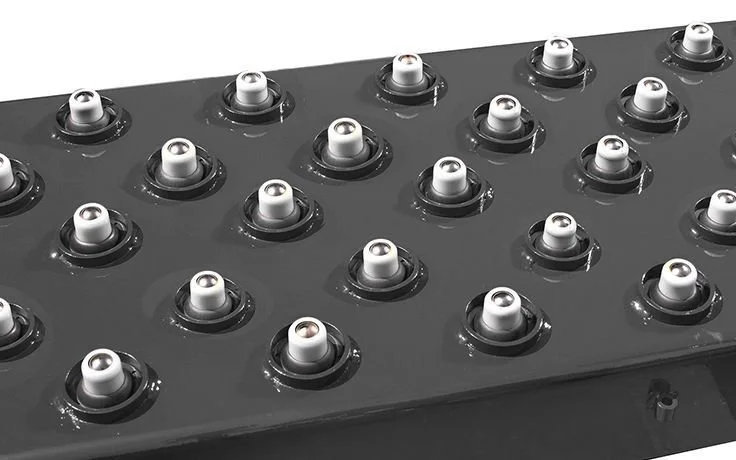

- Multi-caster slip plates and front turn plates included professional-grade alignment capability out of the box

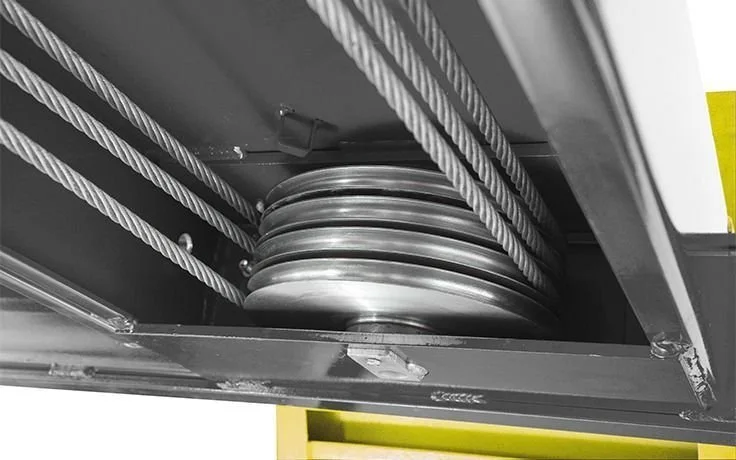

- Massive 12-inch cable sheaves and aircraft-quality stainless-steel cables engineered for decades of reliable service
- Spring-loaded automatic safety locks with push-button pneumatic release fast, safe, and easy operation
- Secondary slack-cable detection system additional layer of safety protection
- Integrated flow restrictor ensures controlled lowering even in the event of hydraulic failure
- 75-second full rise time maximum productivity in high-volume shops
- Fully enclosed cables, airlines, and hydraulics protected from shop hazards for long life
- Durable powder coat finish in new gray professional appearance that lasts
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
BendPak |
|---|---|
| MPN / Model |
5175969 |
| Condition |
New |
| Lifting Capacity: (*) |
18,000 lbs. (8,165 kg) |
| *Max Capacity / Front Axle |
9,000 lbs. (4,082 kg) |
| *Max Capacity / Rear Axle |
9,000 lbs. (4,082 kg) |
| A Min. Runway Height |
10.5" (267 mm) |
| B Max. Rise |
59" (1,499 mm) |
| C Max. Lifting Height |
71.5" (1,822 mm) |
| Time to Full Rise |
75 seconds |
| D Overall Width |
153.5" (3,899 mm) |
| E Outside Length |
257" (6,528 mm) |
| F Overall Length |
312.75" (7,944 mm) |
| G Height of Columns |
91.25" (2,318 mm) |
| H Width Between Columns |
133.5" (3,391 mm) |
| I Drive-Thru Clearance |
109" (2,769 mm) |
| J Runway Width |
22" (559 mm) |
| K Length of Runways |
257.5" (6,541 mm) |
| L Width Between Runways |
40" or 45.5" (1,016 or 1,156 mm) |
| M Min. 4-Wheel Alignment |
83" (2,108 mm) |
| N Max 4-Wheel Alignment |
138" (3,505 mm) |
| O Max 2-Wheel Alignment |
211" (5,359 mm) |
| Rated Capacity |
185" (4,699 mm) |
| 75% Capacity |
160" (4,064 mm) |
| 50% Capacity |
135" (3,429 mm) |
| 25% Capacity |
110" (2,794 mm) |
| Locking Positions |
9 |
| Lock Spacing |
6 |
| Motor |
220 VAC / 60 Hz / 1 Ph |
| Noise |
45 dB |
| Dimensions |
265" x 26" x 38" (6,731 mm x 660 mm x 965 mm) |
| Weight |
6,790-lbs. (3,079 kg) |
| Lifting capacity |
18,000 lb |
| Lift type |
Alignment Lifts |
| Phase |
Single phase |
| Voltage |
220 V |
