Atlas® Kwik Bay Open Center Portable Lift 7,000 lbs
$5,299.00
Atlas® Kwik Bay Open Center Portable Lift 7,000 lbs is part of our portable vehicle lifts selection from Atlas Automotive Equipment.
- Lifting capacity: 7000 lb
Atlas® Kwik Bay Open Center Portable Lift 7,000 lbs
Atlas® Kwik Bay Open Center Portable Lift 7,000 lbs is part of our portable vehicle lifts selection from Atlas Automotive Equipment.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Extended Runway Options: Lock ramps horizontally to extend effective lifting surface from 57½" to 78", accommodating longer wheelbases.

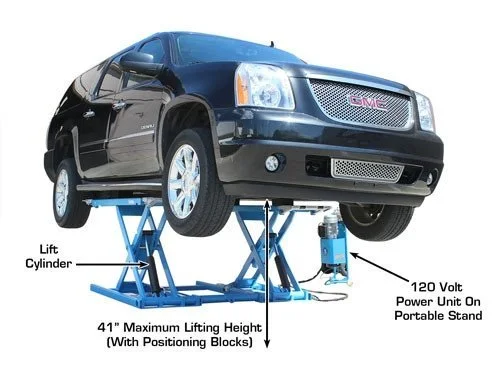

- Rock-Solid Stability: Large 72" x 77½" footprint and dual power cylinders provide exceptional stability at all lift heights up to 41" with blocks.
- 7,000 LB. Capacity
- One set (4) of positioning blocks
- Portable

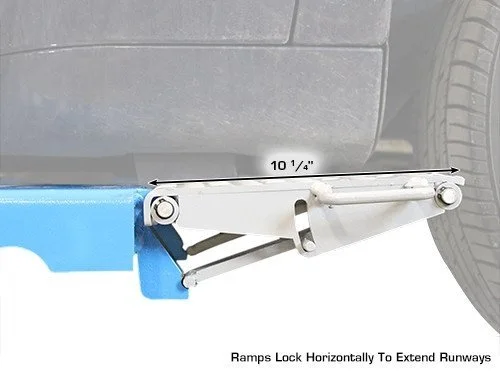

- Ramps lock horizontally to extend runway length

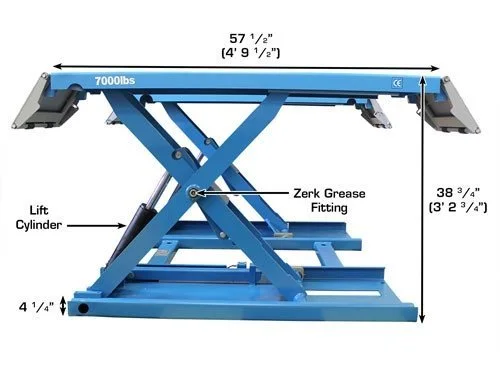

- Zerk grease fittings at hinge points
- Open middle for easy access.

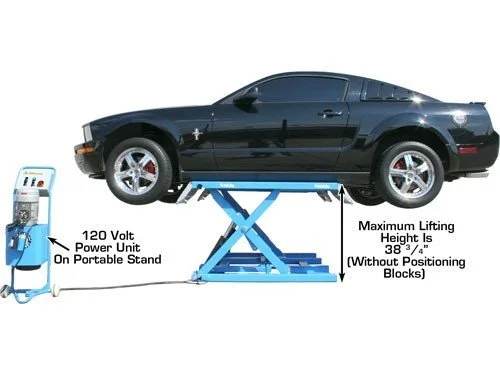

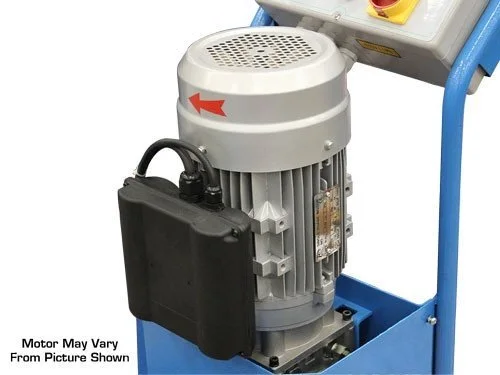

- 120V motor

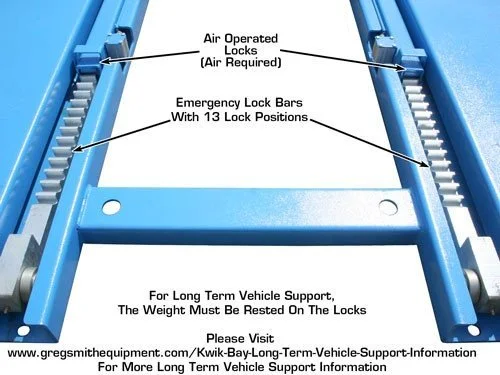

- Air operated locks
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Atlas Automotive Equipment |
|---|---|
| MPN / Model |
ATTD-7K-KWIK-BAY |
| Condition |
New |
| Capacity |
7,000 lbs |
| Max Lift Height w/Blocks |
41" |
| Min Lift Height |
4 ¼" |

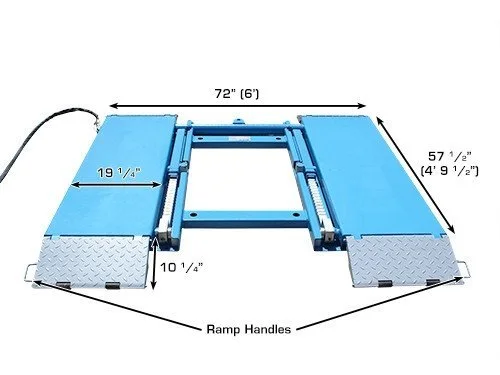

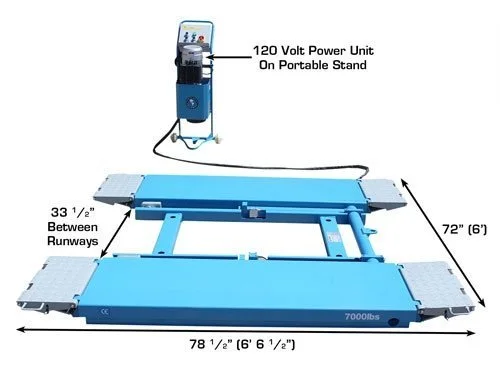

| Overall Width |
72" (6') |
| Overall Length |
77 ½" (6' 5 ½") |
| Platform Dimensions |
57 1/2" (4' 9 1/2") L x 19 ¼" (1' 7 ¼") W |
| Ramps |
10 ¼" x 19 ¼" |
| Between Runways |
33 ½" (2' 9 ½") |

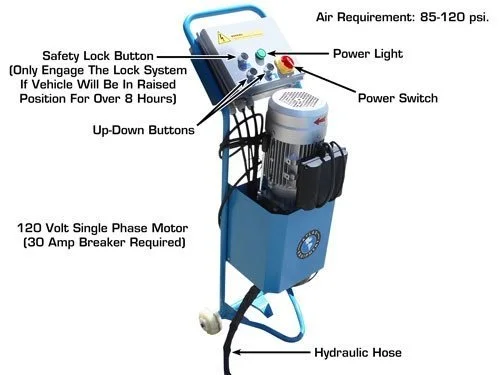

| Air Requirement |
85-120 psi. |
| Motor/Electrical Requirement |
120 volt single (1) phase / A 30 amp breaker is required. |
| Oil Requirement |
3.5 Gallons AW32/AW46 |
| Shipping Weight |
1,441 lbs |
| Lifting capacity |
7000 lb |
| Lift type |
Portable Vehicle Lifts |
