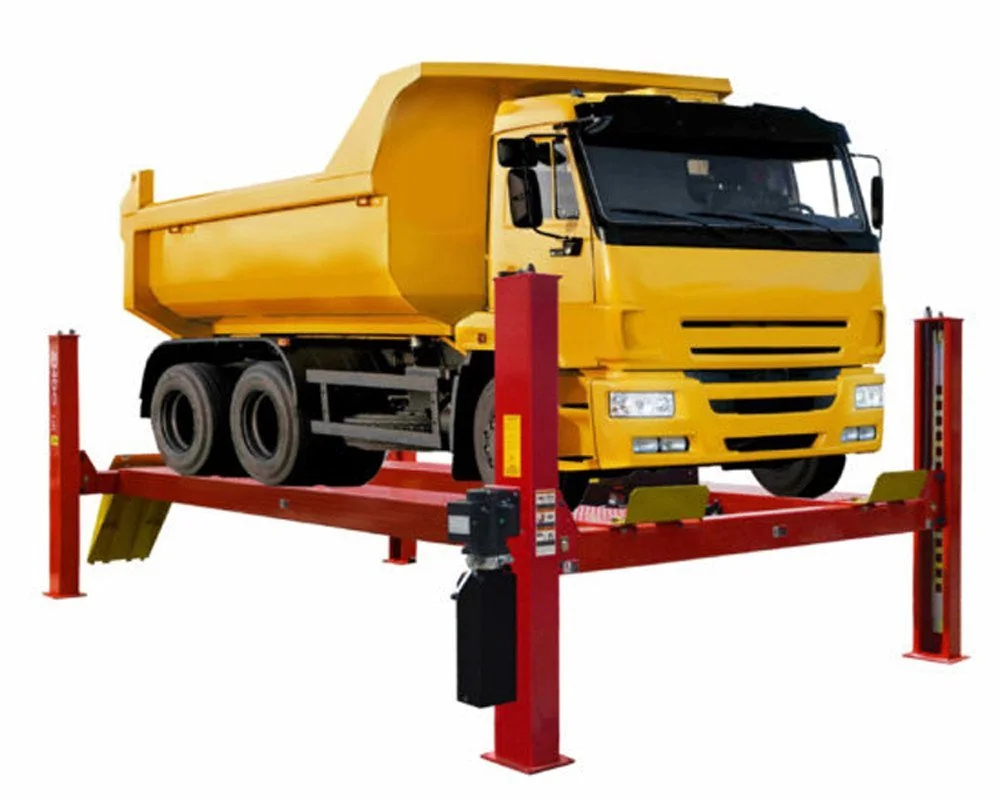

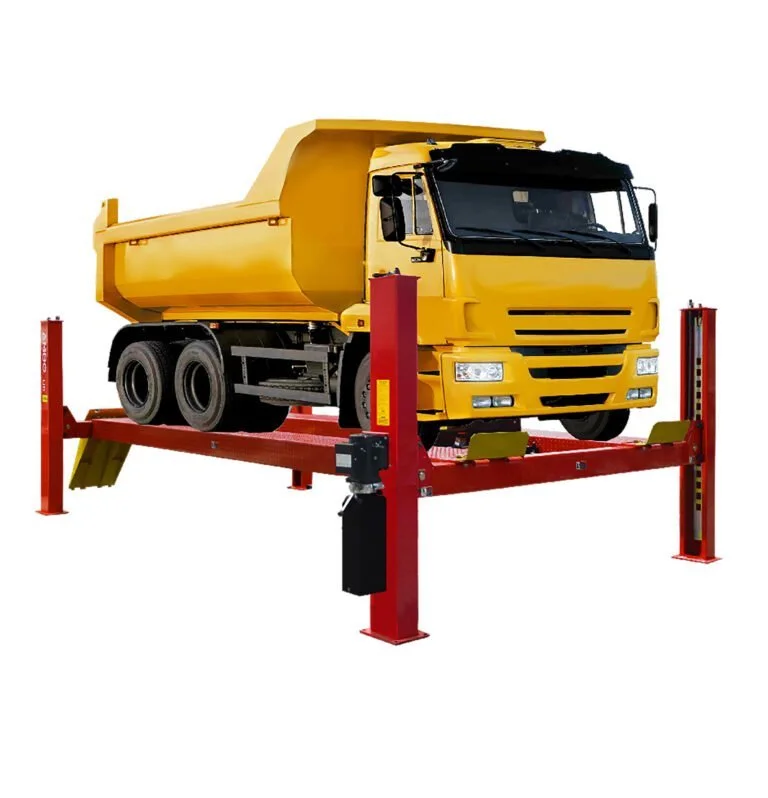

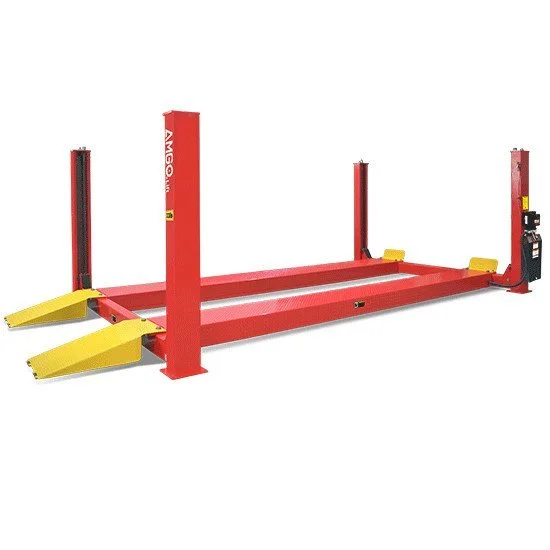

AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs
$12,375.00
AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
- Lifting capacity: 30000 lb
5 in stock
AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs
AMGO® Hydraulics PRO-30 Heavy-Duty 4 Post Truck Lift 30,000 lbs is part of our 4 post lifts – heavy-duty selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

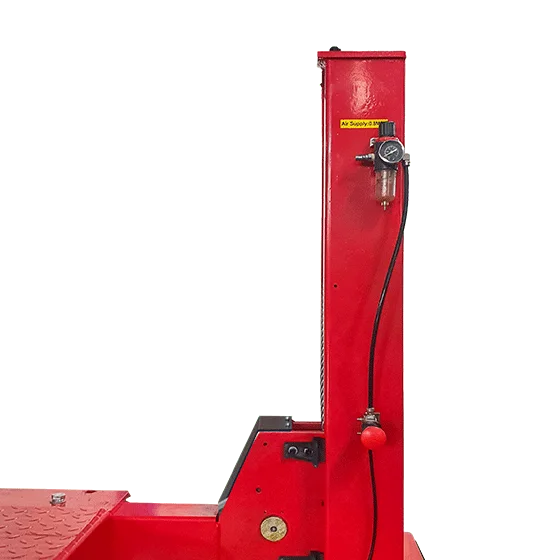

- Air-Released Safety Lock System Convenient operation with reliable safety mechanisms for every lift cycle

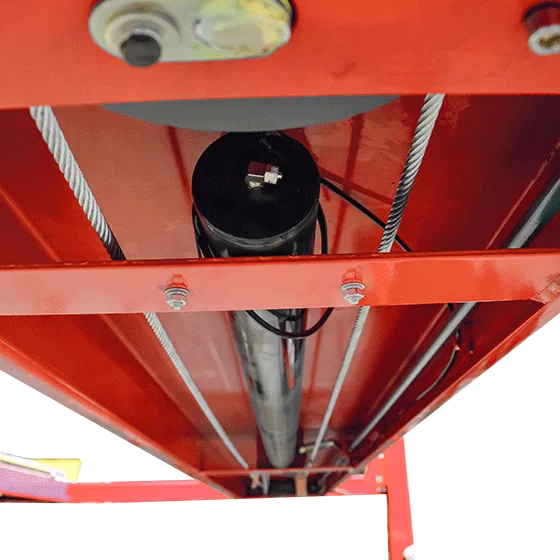

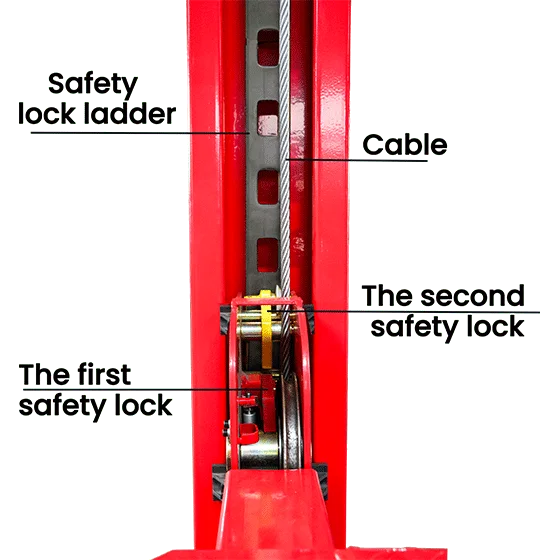

- Mechanical Self-Lock & Cable-Breaking Protection Redundant safety systems provide peace of mind when working under heavy vehicles
- Precision Hydraulic Control Flow restrictor ensures stable, smooth operational speed throughout the lifting range
- Low Profile Design Only 10 1/4" minimum height accommodates a wide variety of vehicle ground clearances
- Capacity: 30,000 lbs (13,600 kg)
- Overall Length with Ramp: 307 1/16" (25' 6")
- Overall Width: 147 9/16" (12' 3")
- Drive-Thru Clearance: 115 3/8" (9' 6")
- Lifting Height: 75 3/16" (6' 3")
- Overall Height: 92" (7' 7")
Check the configuration

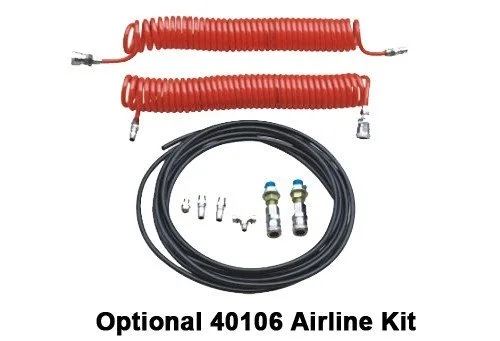

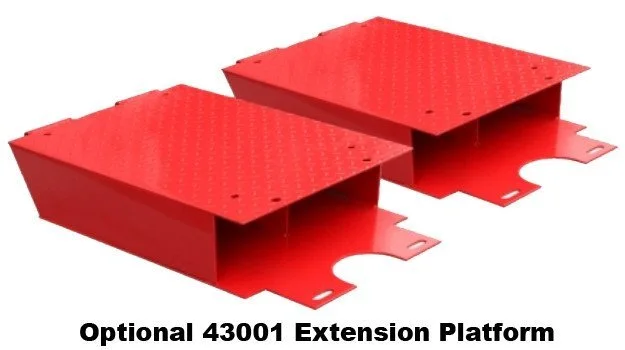

Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
PRO-30 |
| Condition |
New |
| PRO-30 |
PRO-30E |
| Lifting Capacity |
30,000lbs |
| A Overall Length w/o Ramp |
N/A |
| C Overall Width |
147 9/16" |
| D Width Between Columns |
130" |
| E Max Lifting Height |
75 3/16" |
| F Overall Height |
92" |
| G Minimum Height |
10 1/4" |
| H Max. Underneath Height |
66 5/16" |
| H Max. Lock Underneath Runway |
63 3/16" |
| I Drive-Thru Clearance |
115 15/16" |
| J Width Between Runways |
46" Narrow / 54 1/16" Wide |
| K Outside Edge of Runways |
94" Narrow / 102 1/8" Wide |
| Lifting Time |
133 S |
| Motor |

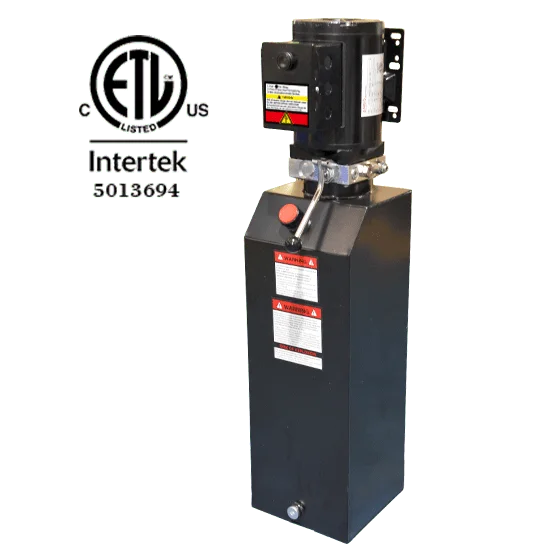

2.0HP, 220V/60Hz Single Phase |
| Lifting capacity |
30,000 lb |
| Lift type |
4 Post Lifts – Heavy-Duty |
| Phase |
Single phase |
| Voltage |
220 V |
Free shipping across the USA

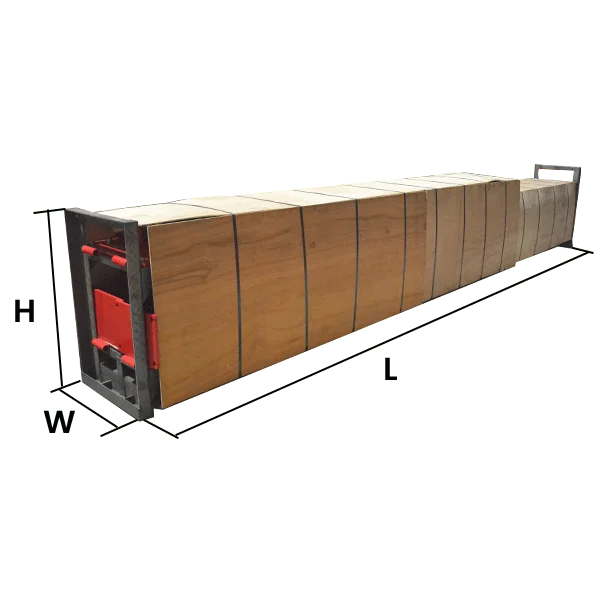

Heavy equipment shipping generally takes 10 to 21 days after order placement. Small items may travel by parcel carrier; larger machines and trailers require freight coordination.
