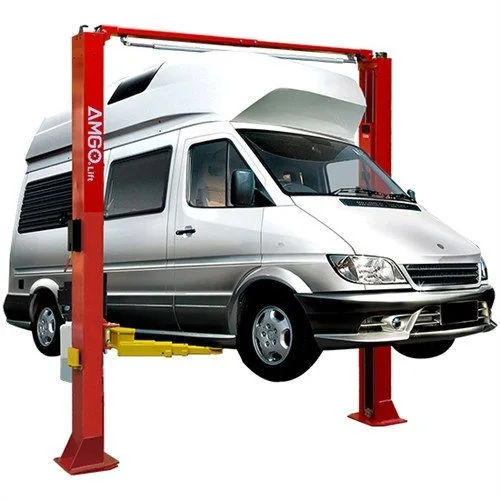

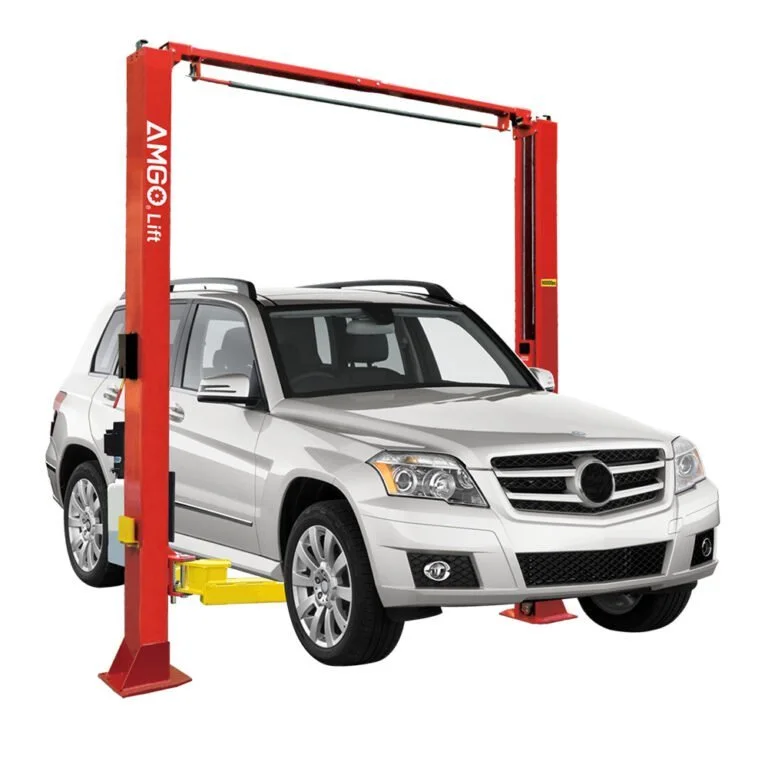

AMGO® Hydraulics OHX-10H Ex-Tall Super-Asymmetric® 2 Post Lift 10,000 lbs
$4,250.00
AMGO® Hydraulics OHX-10H Ex-Tall Super-Asymmetric® 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
- Lifting capacity: 10000 lb
15 in stock
AMGO® Hydraulics OHX-10H Ex-Tall Super-Asymmetric® 2 Post Lift 10,000 lbs
AMGO® Hydraulics OHX-10H Ex-Tall Super-Asymmetric® 2 Post Lift 10,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

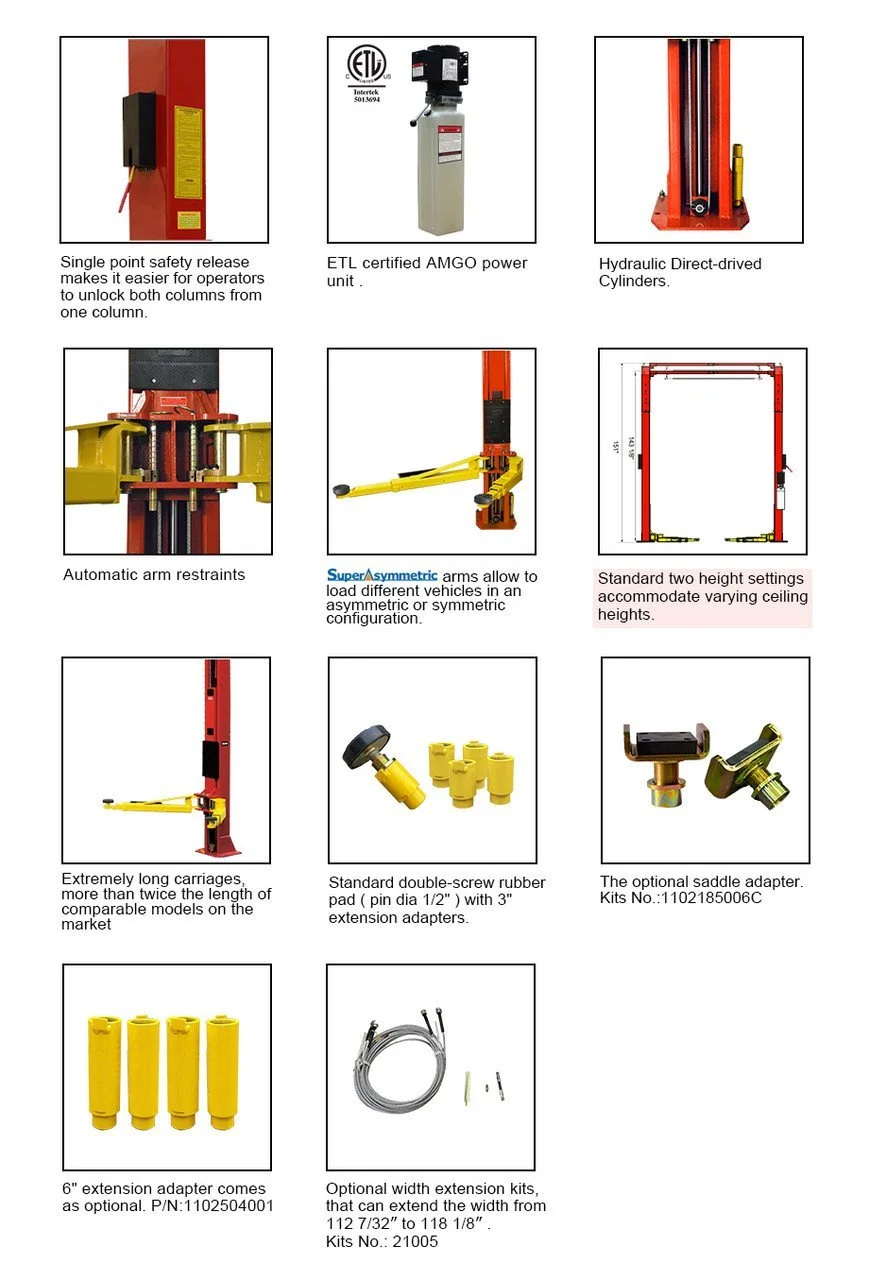

- One-Piece Columns: Simplified installation process compared to traditional two-piece column lifts, saving time and reducing setup complexity
- Super-Asymmetric® Technology: Load vehicles asymmetrically or symmetrically for optimal balance and access, adapting to each job's unique needs
- Heavy-Duty Construction: Extremely long carriages reduce column stress, delivering twice the durability of typical market offerings

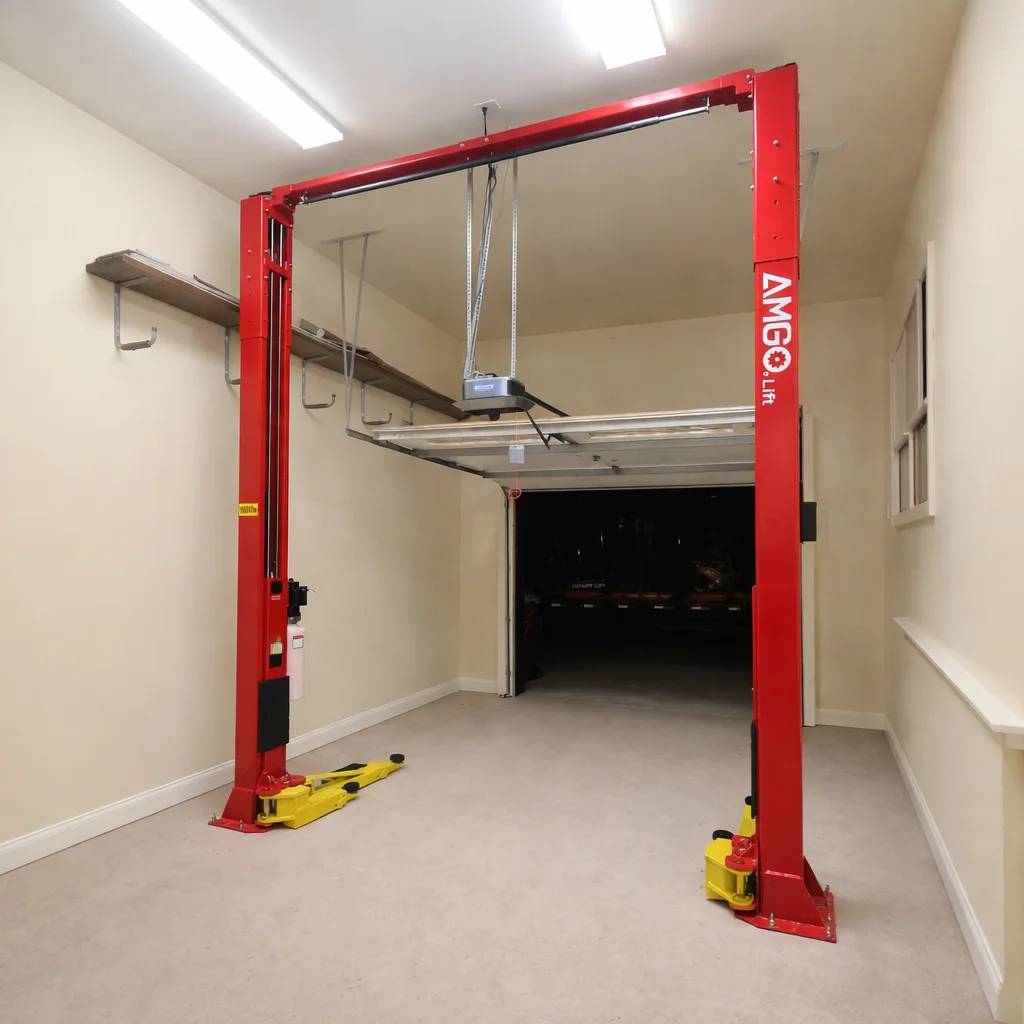

- Clear-Floor Design: Provides unobstructed workspace, maximizing shop floor utility and safety
- 10,000 lbs lifting capacity
- Dual hydraulic direct-drived cylinders made on high standard
- The SuperAsymmetric allows for a symmetrical or an asymmetrical loading, ensuring adequate door clearance
- Single-point manual safety lock release, simultaneously unlocks both columns from one side
- Clear-floor design, provides unobstructed floor us;
- Overhead safety shut-off device for maximum vehicle protection
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
OHX-10H |
| Condition |
New |
| OHX-10 |
OHX-10H |
| Lifting Capacity |
10,000 lbs |
| C Overall Width |
134 15/16" (140 7/8" w/Optional Ext Kit) |
| D Drive-Thru Clearance |
99 13/16" |
| D Drive-Thru Clearance w/Optional Ext Kit |
105 11/16" |
| E Width Between the Column |
112 1/4" |
| E Width Between the Column w/Optional Ext Kit |
118 1/8" |
| F Minimum Pad Height |
3 9/16" |
| Motor |
2 HP / 220V |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
