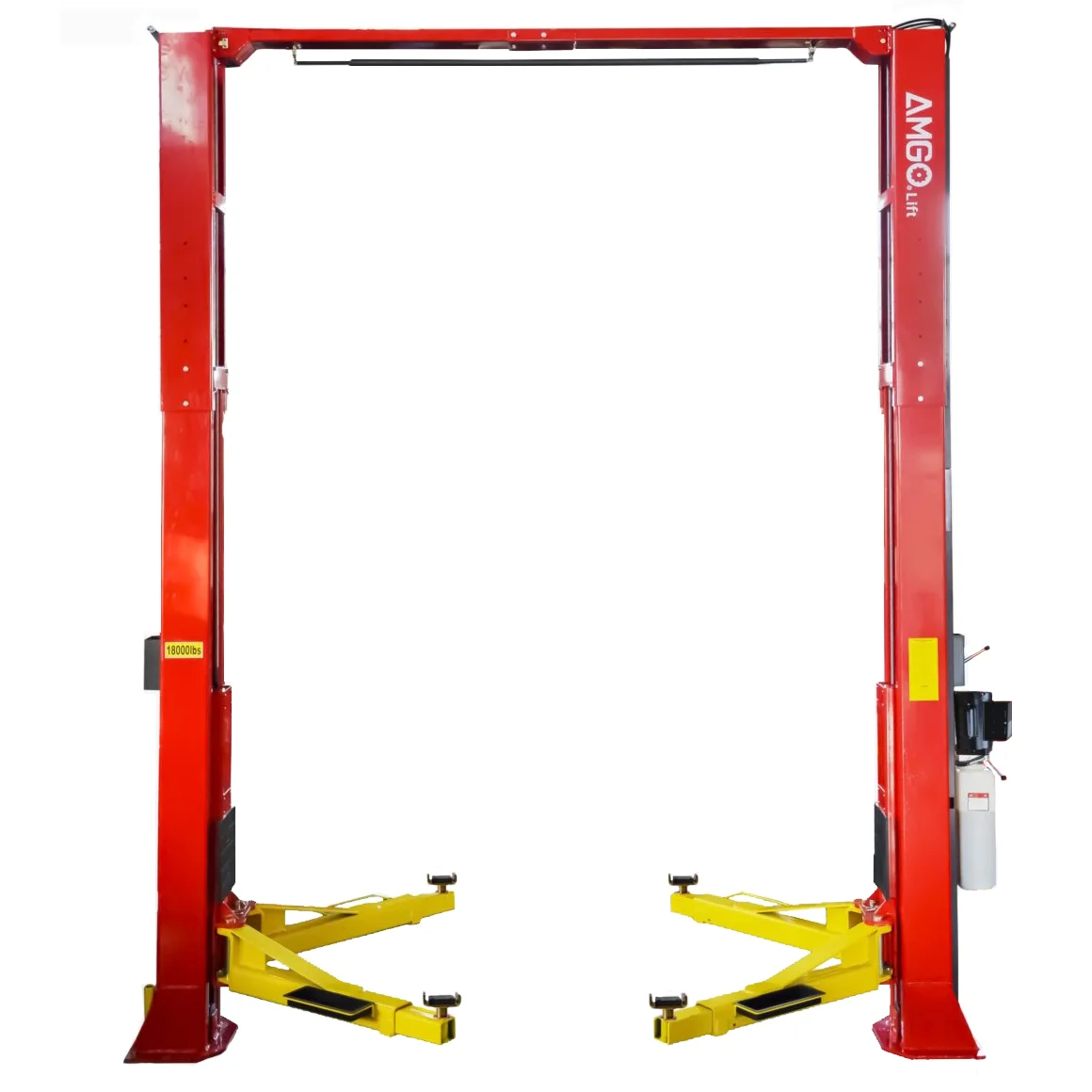

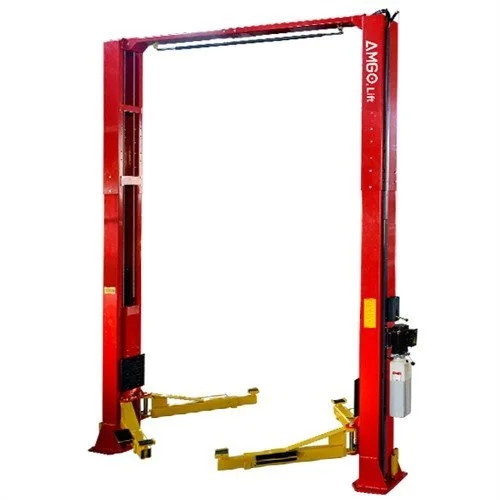

AMGO® Hydraulics OH-18 Heavy-Duty 2 Post Lift 18,000 lbs
$7,695.00
AMGO® Hydraulics OH-18 Heavy-Duty 2 Post Lift 18,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
- Lifting capacity: 18000 lb
14 in stock
AMGO® Hydraulics OH-18 Heavy-Duty 2 Post Lift 18,000 lbs
AMGO® Hydraulics OH-18 Heavy-Duty 2 Post Lift 18,000 lbs is part of our 2 post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details

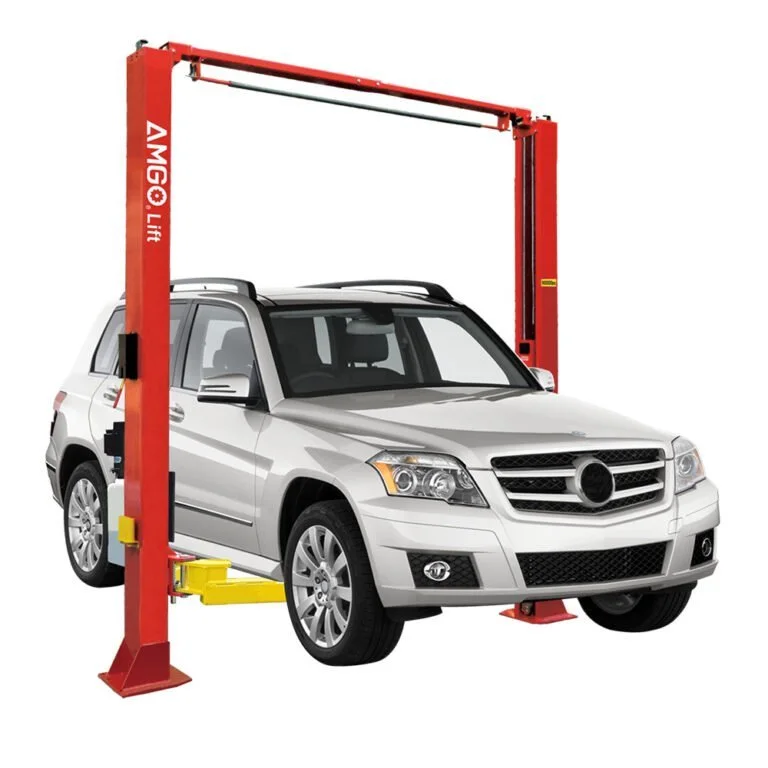

- Maximum 18,000 lb capacity handles heavy trucks, SUVs, and commercial vehicles
- Clearfloor design provides unobstructed workspace for maximum technician efficiency
- Manual single-point safety release unlocks both columns from one side for convenient operation

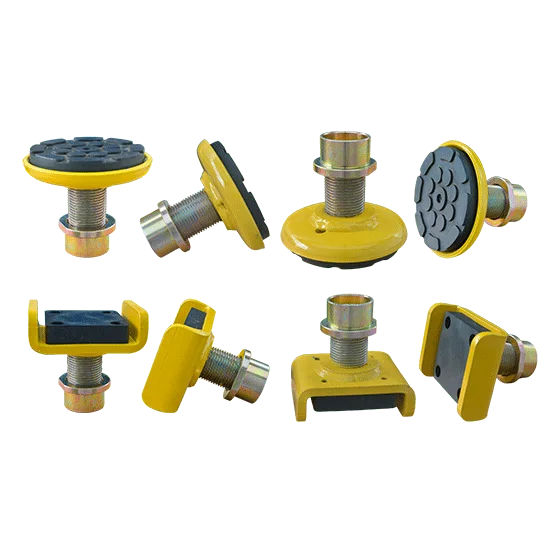

- Complete adapter set included: rubber pads, heavy-duty saddle adapters, and 3" and 6" extension adapters
- Set of 4 stackable rubber pads for standard lifting applications
- 1.5", 2.5", and 5" extension adapters for maximum height flexibility
- 18,000 lb lifting capacity
- Dual hydraulic direct-drived cylinders made on high standard

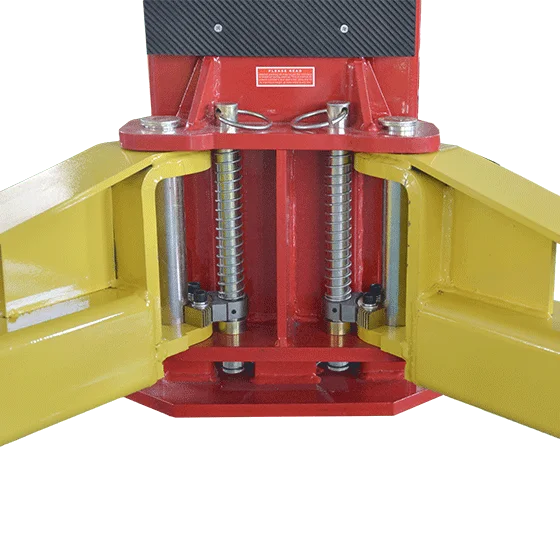

- 4 two-stage sturdy arms ensure the heavy load stability
- Single-point manual safety lock release, simultaneously unlocks both columns from one side
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
OH-18 |
| Condition |
New |
| Lifting Capacity |
18,000 lbs |
| A Max Lifting Height w/o Adapters |
74 7/8" ~ 76 1/4" |
| A Max Lifting Height w/Adapters |
83 7/8" ~ 85 1/4" |
| A Max Lock Height w/o Adapters |
72 15/16" ~ 74 1/4" |
| A Max Lock Height w/Adapters |
81 15/16" ~ 83 1/4" |
| B Overall Height (Low Setting) |
174" |
| B Overall Height (Medium Setting) |
186" |
| B Overall Height (High Setting) |
198" |
| C Overall Width |
151 15/16" |
| D Drive-Thru Clearance |
110 7/16" |
| E Width Between Columns |
123 1/2" |
| F Minimum Pad Height |
6 7/8" |
| Lifting Time |
84 S |
| Motor |

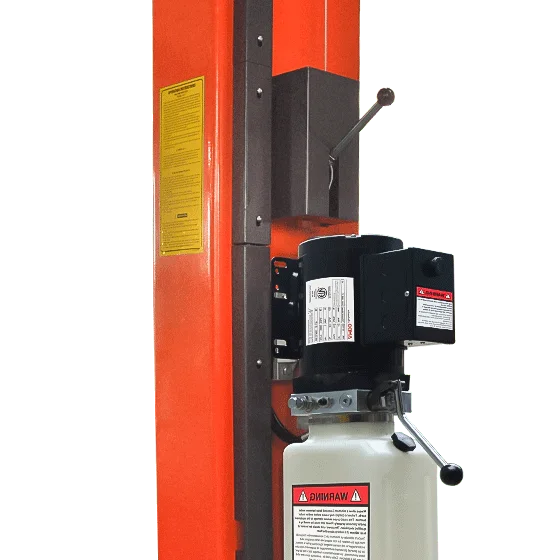

2 HP / 220V |
| Gross Weight |
2,906 lbs |
| Lifting capacity |
18,000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
Free shipping across the USA

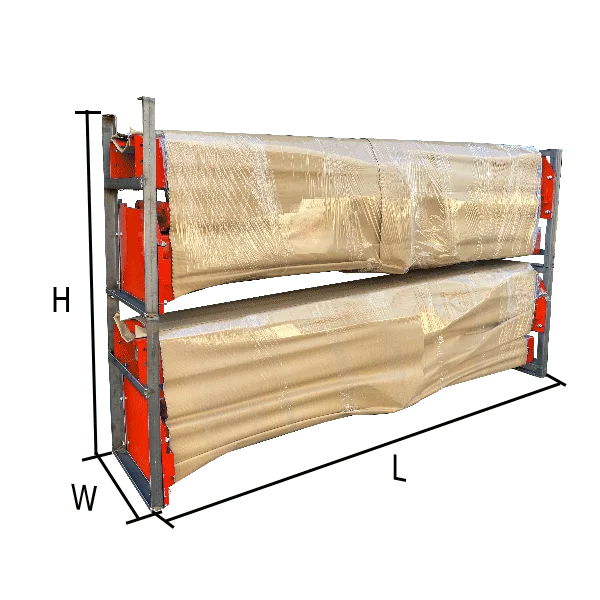

Heavy equipment shipping generally takes 10 to 21 days after order placement. Small items may travel by parcel carrier; larger machines and trailers require freight coordination.
