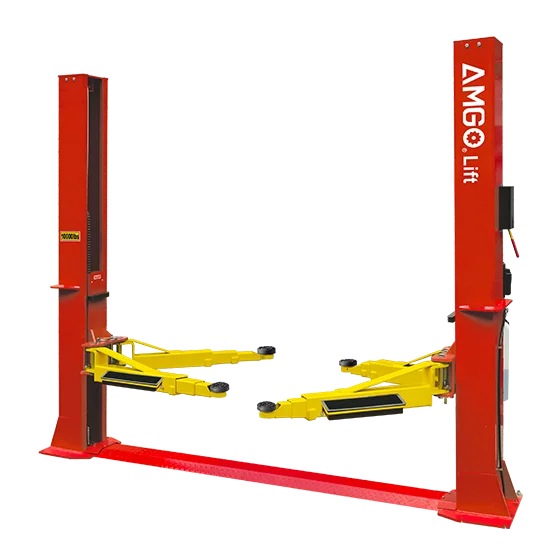

AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs ~ ONLY Ships from CA
$2,999.00
AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs ~ ONLY Ships from CA is part of our 2 post lifts selection from AMGO Hydraulics.
- Lifting capacity: 10000 lb
8 in stock
AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs ~ ONLY Ships from CA
AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs ~ ONLY Ships from CA is part of our 2 post lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 10,000 lbs lifting capacity handles a wide range of passenger vehicles, light trucks, and SUVs

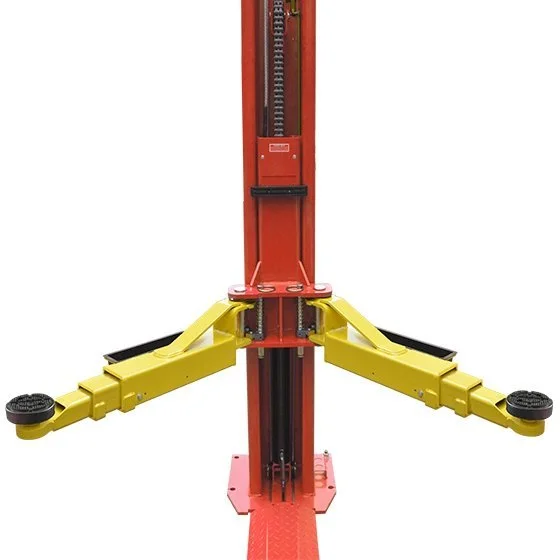

- Super-Asymmetric® arms load vehicles in asymmetric or symmetric positions for maximum versatility
- Single-point safety release and dual locking system convenient, safe operation with redundant safety features
- Self-lubricating UHMW polyethylene sliders and bronze bushings smooth, quiet, long-lasting performance

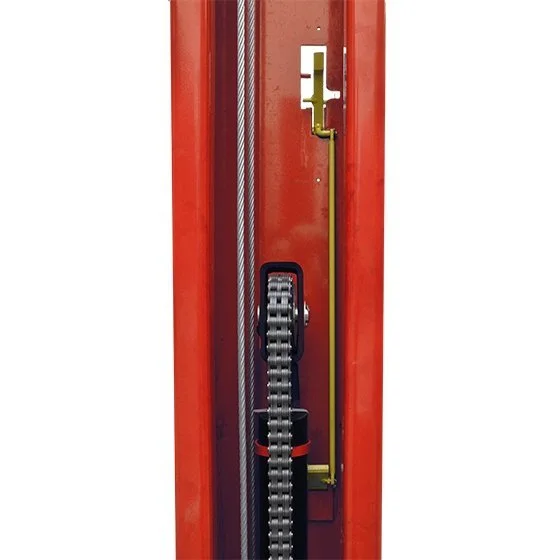

- Aircraft-quality synchronization cable balanced, reliable lifting every time
- Stackable rubber pads protect vehicle lift points and provide stable support

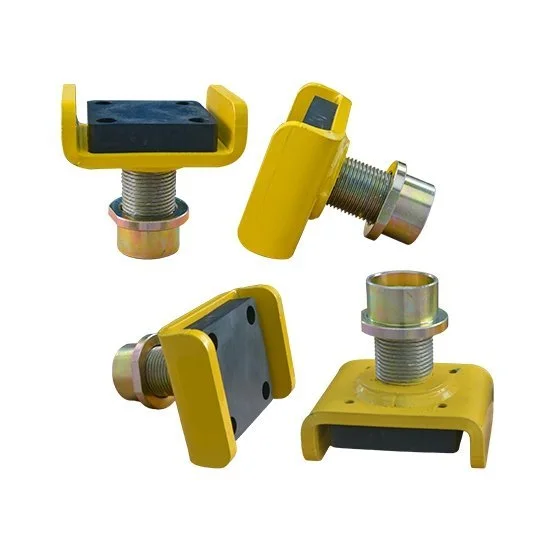

- 3" extension adapters accommodate various vehicle lift point heights and configurations

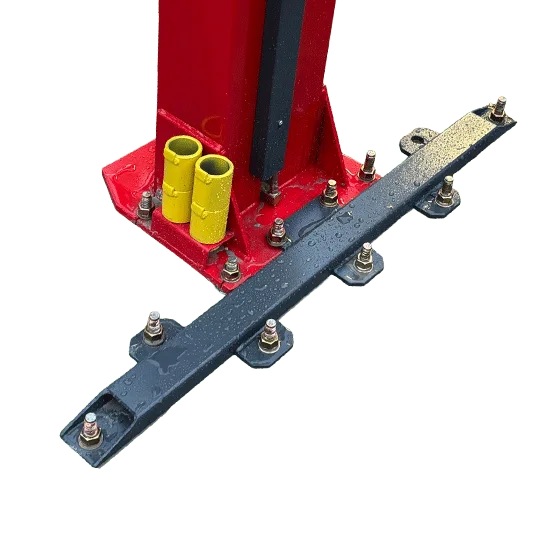

- Detachable foot guard and tool tray keep your workspace safe and organized
- ONLY Ships from CA
- 10,000 lbs Lifting capacity
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
BP-10CA |
| Condition |
New |
| Lifting Capacity |
10,000 lbs |
| A Max Lifting Height w/o Adapters |
76 3/8" ~ 78 1/4" |
| A Max Lifting Height w/Adapters |
79 3/8" ~ 81 1/4" |
| A Max Lock Height w/o Adapters |
74 13/16" ~ 76 11/16" |
| A Max Lock Height w/Adapters |
77 13/16" ~ 79 11/16" |
| B Overall Height |
111 7/8" |
| C Overall Width |
139 1/8" & 145 1/16" |
| D Drive-Thru Clearance |
100 3/4" & 106 11/16" |
| E Width Between Columns |
112 1/4" & 118 1/8" |
| F Minimum Pad Height |
3 9/16" |
| Lifting Time |
62 S |

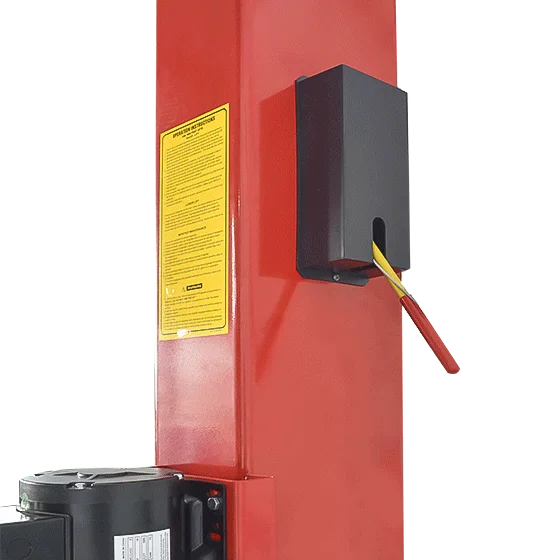

| Motor |
2 HP / 220V |
| Gross Weight |
1,697 lbs |
| Lifting capacity |
10000 lb |
| Lift type |
2 Post Lifts |
| Voltage |
220 V |
