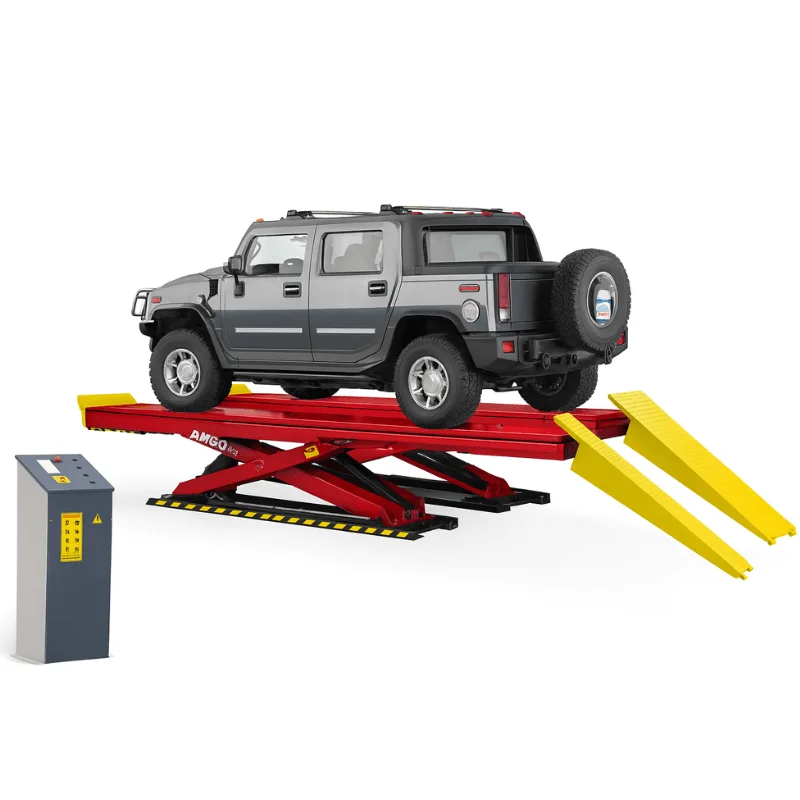

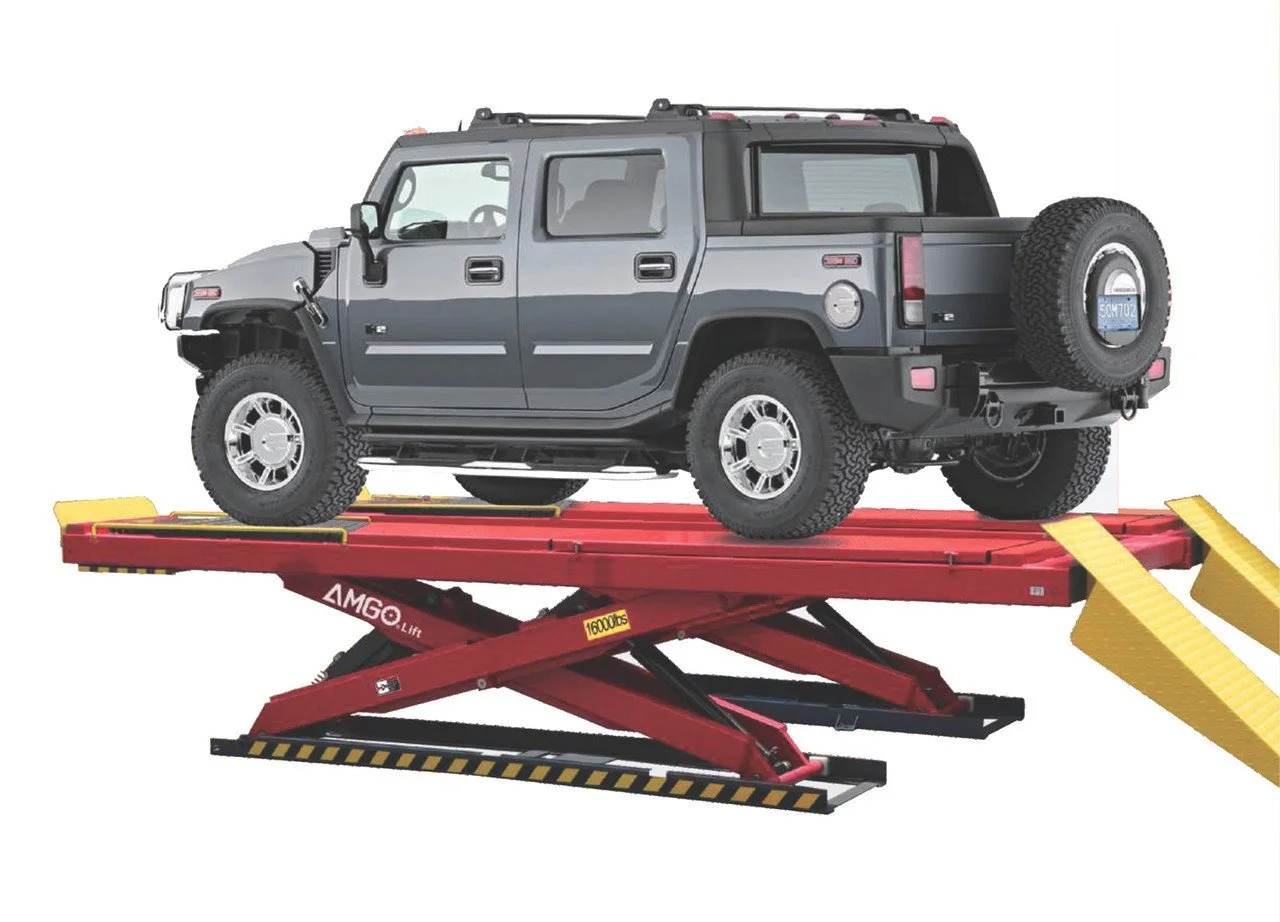

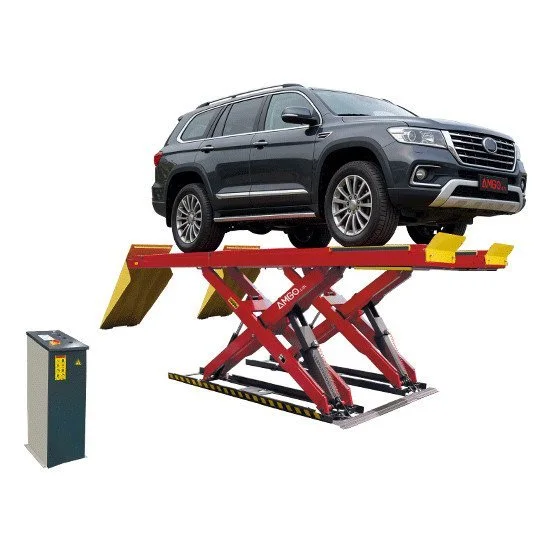

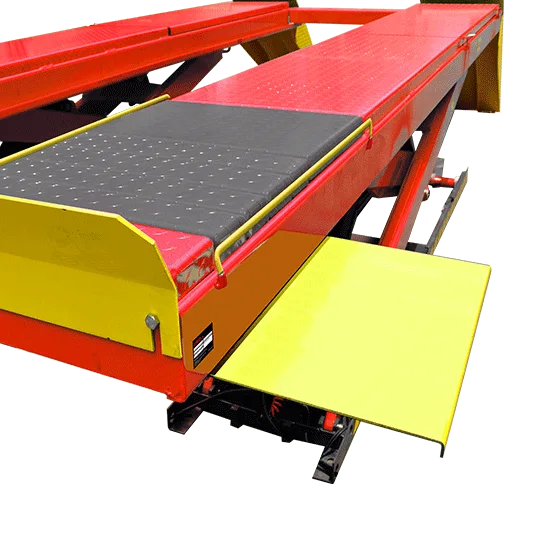

AMGO® Hydraulics AX-16A Scissor Alignment Lift 16,000 lbs.
$16,800.00
AMGO® Hydraulics AX-16A Scissor Alignment Lift 16,000 lbs. is part of our alignment lifts selection from AMGO Hydraulics.
- Lifting capacity: 16000 lb
12 in stock
AMGO® Hydraulics AX-16A Scissor Alignment Lift 16,000 lbs.
AMGO® Hydraulics AX-16A Scissor Alignment Lift 16,000 lbs. is part of our alignment lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- 16,000 lb lifting capacity handles everything from light trucks to heavy-duty work vehicles

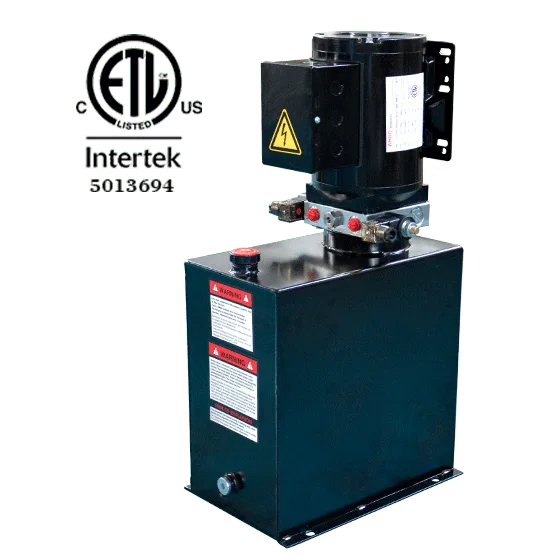

- Electro-air control system with self-locking safety mechanism for operator protection
- Heavy-duty 5 7/8" x 3" tube construction robust frame designed for demanding professional use
- Skid-proof diamond plate runways deliver excellent tire traction and prevent vehicle movement
- Maximum lifting height of 72 13/16" provides ample undercar access for wheel service and alignment work
- Low 13" minimum height allows easy drive-on access for a wide range of vehicles
- Includes control cabinet for centralized, convenient operation
- 16,000 lb lifting capacity
- Alignment service design

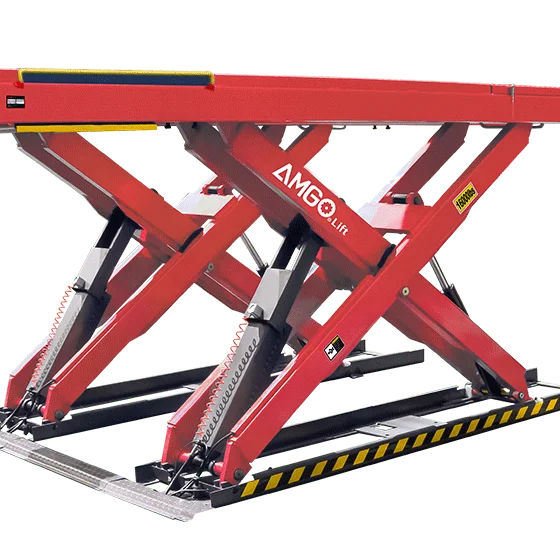

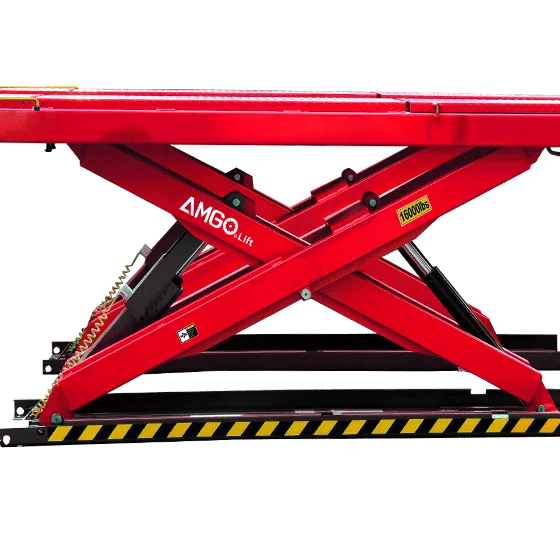

- Robot X scissors heavy duty structure, provides superior performance and durability
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
AX-16A |
| Condition |
New |
| Lifting Capacity |
16,000 lbs |
| A Max Lifting Height |
72 13/16" |
| A Max Lock Height |
71 1/16" |
| A Min Height |
13" |
| Lifting Time |
110s |
| B Runway Length |
213 11/16" |
| C Overall Width |
94 1/16" |
| D Width Between Runways |
44 7/8" |
| E Overall Length (Inc. Ramps) |
274 3/16" |
| F Min. Four Wheel Align |
98" |
| G Max. Four Wheel Align |
184 1/16" |
| H Max. Two Wheel Align |
186 5/8" |
| Motor |
2.0 HP |
| Gross Weight |
6,283 lbs |
| Lifting capacity |
16,000 lb |
| Lift type |
Alignment Lifts |
