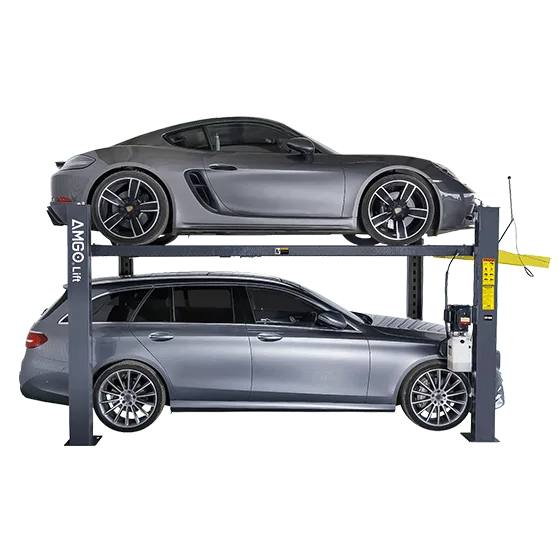

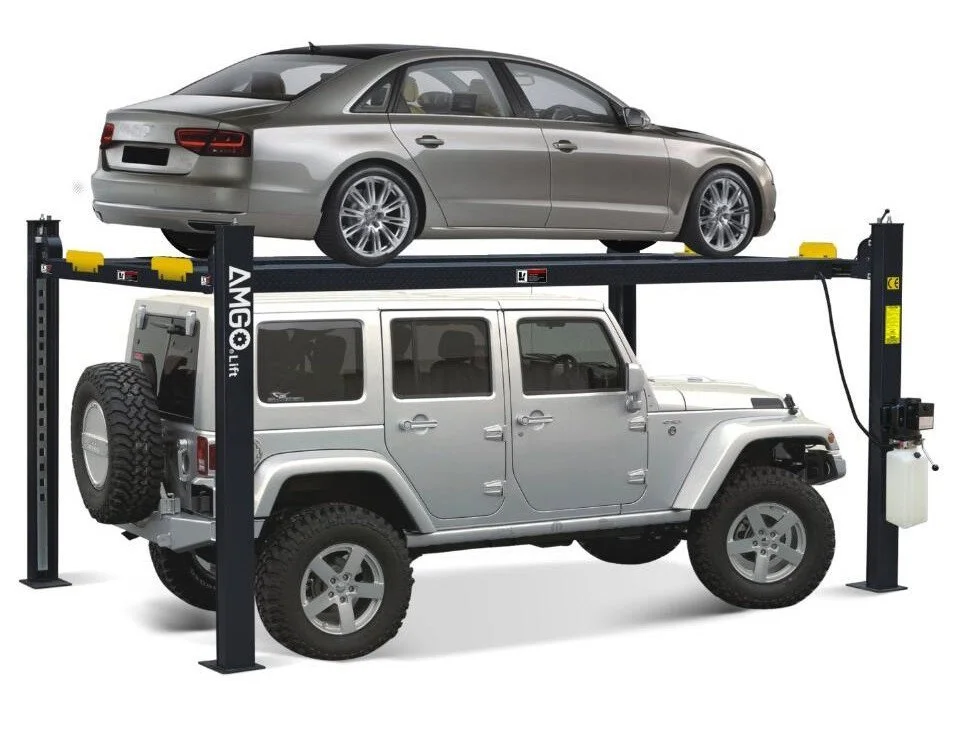

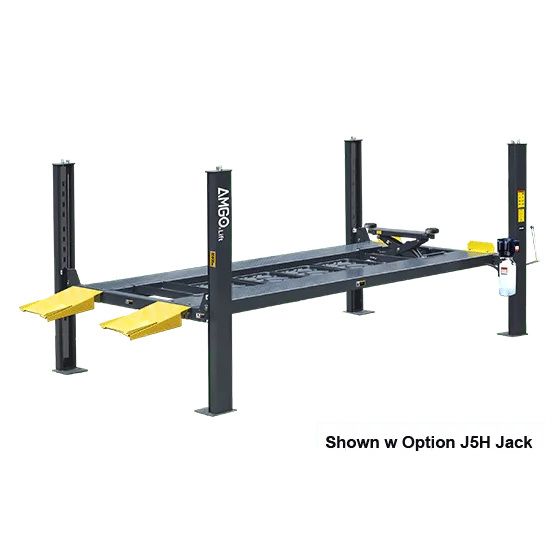

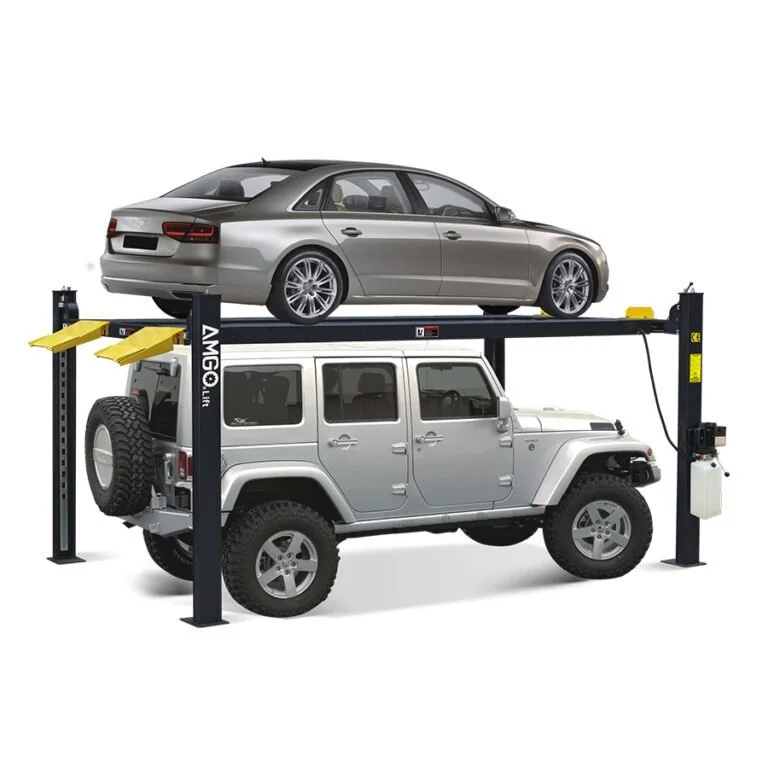

AMGO® Hydraulics 408-HP Ex-Tall Parking & Service 4 Post Lift 8,000 lbs
$3,830.00
AMGO® Hydraulics 408-HP Ex-Tall Parking & Service 4 Post Lift 8,000 lbs is part of our parking lifts selection from AMGO Hydraulics.
- Lifting capacity: 8000 lb
15 in stock
AMGO® Hydraulics 408-HP Ex-Tall Parking & Service 4 Post Lift 8,000 lbs
AMGO® Hydraulics 408-HP Ex-Tall Parking & Service 4 Post Lift 8,000 lbs is part of our parking lifts selection from AMGO Hydraulics.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Extra-tall maximum lifting height of 87 1/2" provides exceptional clearance for comprehensive service and storage

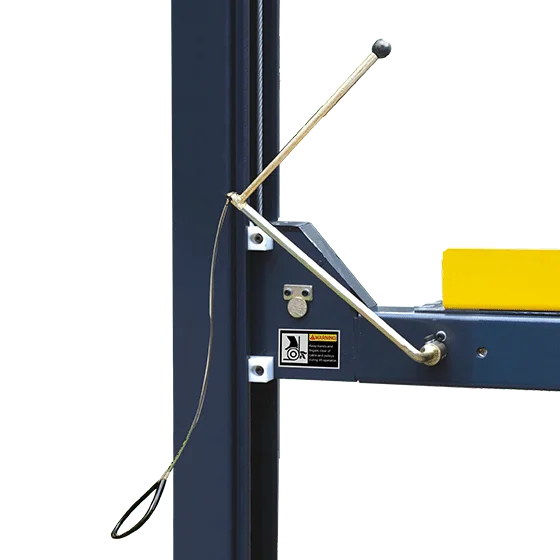

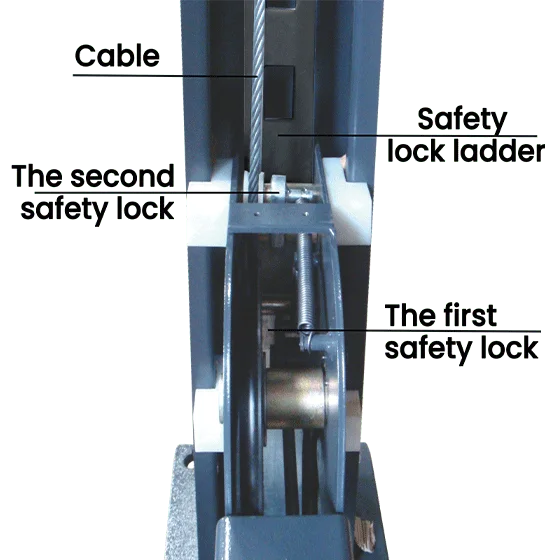

- AMGO exclusive hidden safety locks with manual single-point release and redundant anti-fall devices
- Double-S shaped columns for superior structural strength and stability
- Flexible power unit installation power side column can be installed at any corner to suit your shop layout
- #40801 Caster Kit add mobility for easier positioning and shop reconfiguration
- #40806 Set of 4 Drip Trays protect your shop floor from leaks and spills during service
- #40808 Jack Tray convenient storage for floor jacks and equipment

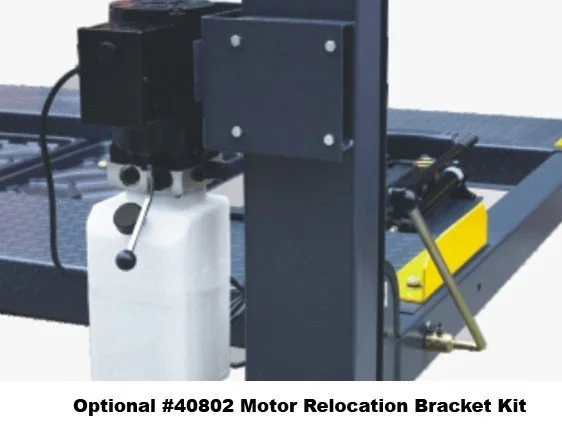

- #40802 90° Installation Plate allows power unit installation at the side of a column for alternative configurations
- AMGO ETL certified power unit comes as standard
- High quality cylinder is designed and made to a high standard
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
Manufacturer documentation
| Brand |
AMGO Hydraulics |
|---|---|
| MPN / Model |
408-HP-V001 |
| Condition |
New |
| Lifting Capacity |
8,000 lbs |
| A Overall Length w/Ramp |
208 1/16" |
| A Overall Length w/o Ramp |
174 5/8" |
| B Outside Edge of Crossbeams |
167 5/8" |
| C Overall Width |
102 1/2" |
| D Width Between Columns |
92 13/16" |
| G Minimum Height |
5 11/16" |
| I Drive-Thru Clearance |
81 5/8" (2074mm) |
| J Width Between Runways |
37" |
| K Outside Edge of Runways |
74 7/16" |
| Motor |
1.0HP 110V/60Hz – 30 amp Required / Optional 2.0HP 220V/60Hz |
| Lifting capacity |
8000 lb |
| Lift type |
Parking Lifts |
| Voltage |
110 V |
