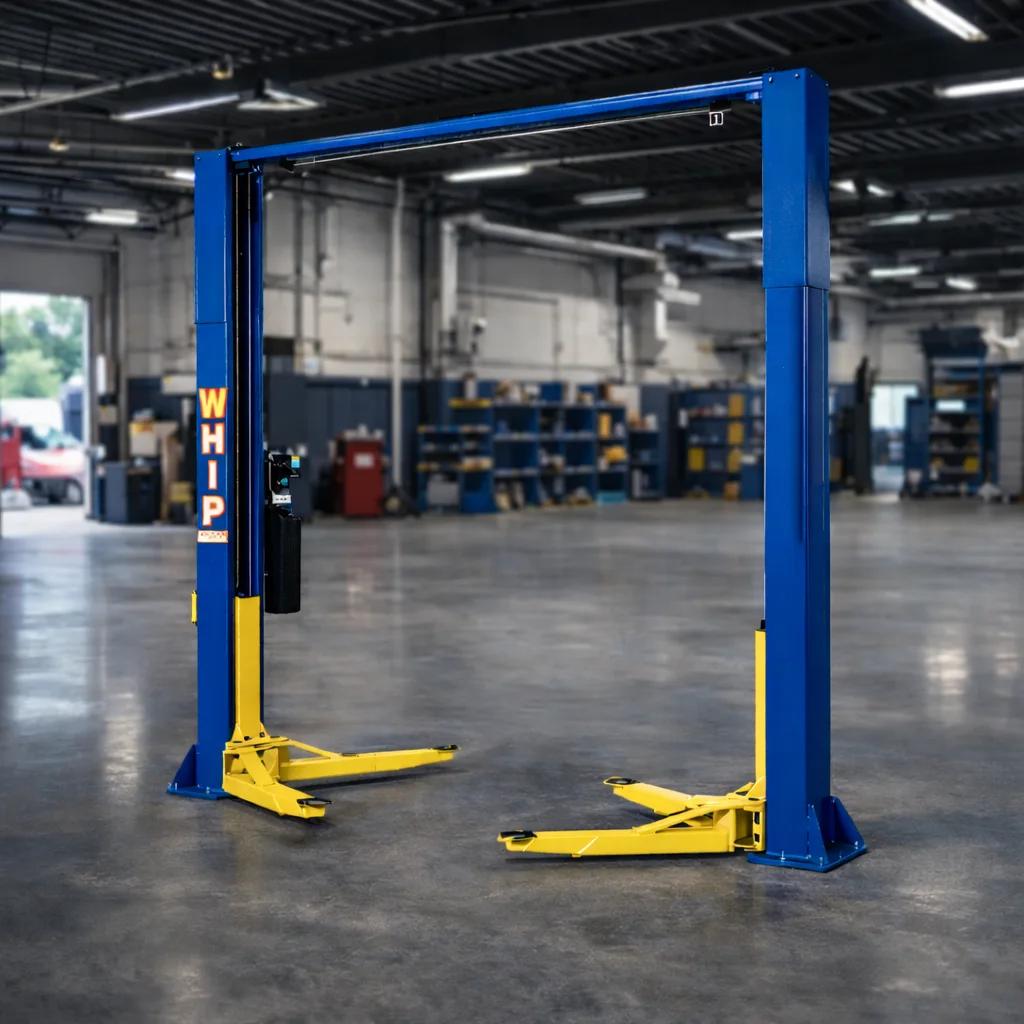

Whip WAS112E-24 Symmetric Ex-Tall 2 Post Car Lift ALI Certified
$7,665.00
Whip WAS112E-24 Symmetric Ex-Tall 2 Post Car Lift ALI Certified is part of our 2 post lifts selection from Whip Industries.
- Voltage: 208/230v Single Phase
6 in stock
Whip WAS112E-24 Symmetric Ex-Tall 2 Post Car Lift ALI Certified
Whip WAS112E-24 Symmetric Ex-Tall 2 Post Car Lift ALI Certified is part of our 2 post lifts selection from Whip Industries.
Match the lifting system to the vehicle or load, the service task and the available workspace. Check rated capacity, lift-point compatibility, slab requirements and installation clearances.
Equipment details
- Ceiling Height: Minimum 169.5" for full operation
- Floor: 4" thick steel-reinforced concrete with a minimum 3,000 PSI compressive strength
- Electrical: 208/230v single phase service with 30 amp circuit protection
- Overall Width: 138.50" ensure adequate bay width and side clearances
- Complete symmetric two post lift with all columns, arms, carriages, and hardware
- Full set of quick-change height adapters (2", 4", 6", 8", and 10")
- 2-piece adjustable bridge for added frame support
- 2HP power unit with hydraulic pump and control system
- Safety lock bars and engagement system
- Complete installation hardware and anchor bolts
Check the configuration
Use the Additional information tab to review the listed specifications. Confirm the model, included components and site requirements against the manufacturer documentation before ordering. Optional accessories or configurations must be identified separately; an image alone does not establish what is included.
| Brand |
Whip Industries |
|---|---|
| MPN / Model |
Whip-WAS112E-24 |
| Condition |
New |
| Important Ordering Notice: |
This lift is built to order. There is a 50% canceling fee for all orders. |
| Capacity |
11,000 lbs. |
| A Overall Height |
165.5" |
| B Overall Width |
138.50" |
| C Rise Height |
73.75" |
| D Floor to Shut Off Height |
159" |
| E Drive Thru Clearance |
106" |
| Arm Configuration |
All-Symmetric |
| F Front Arm Reach |
48.75" |
| G Rear Arm Reach |
62" |
| H Lifting Pad Height |
4.75" |
| I Width Inside Columns |
115" |
| First Lock Height |
16.50" |
| Locking Increments |
4" |
| Speed of Rise |
55 sec. |
| Ceiling Height Required |
169.5" |
| Floor Installation Requirement |
Concrete, 3,000 PSI, 4" Thick, Steel Reinforced |
| Motor |
2HP |
| Voltage |
208/230 V Single Phase |
| Amps |
30 |
| Lift type |
2 Post Lifts |
| Phase |
Single phase |
